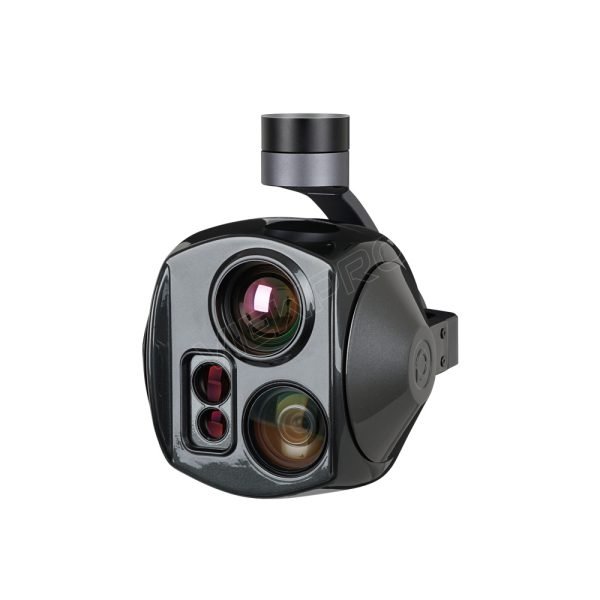

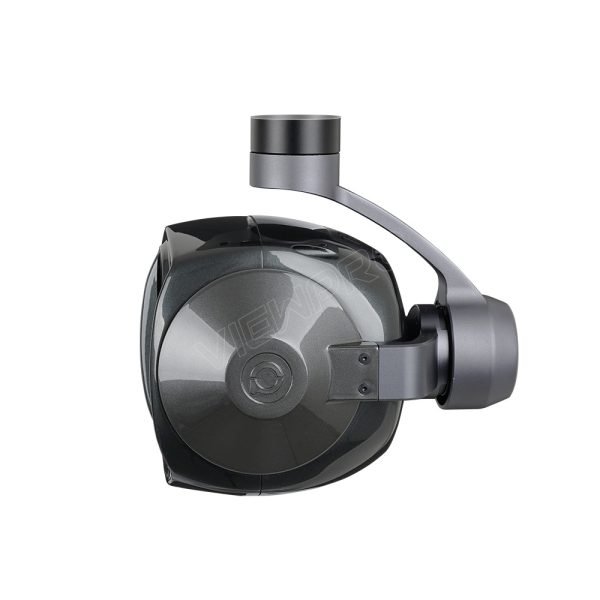

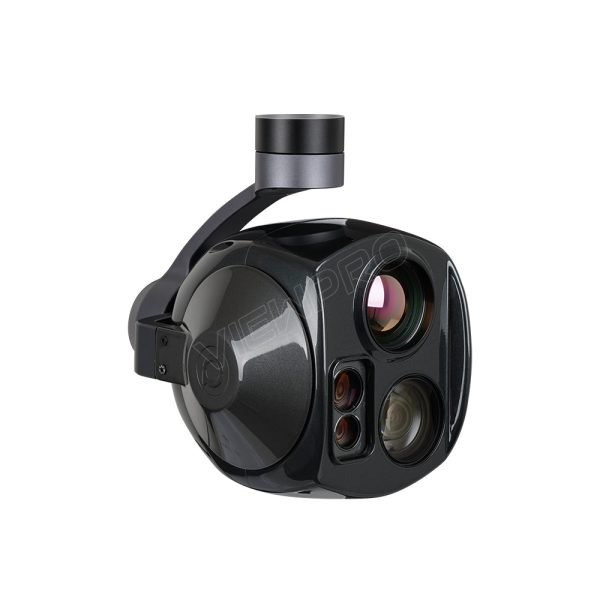

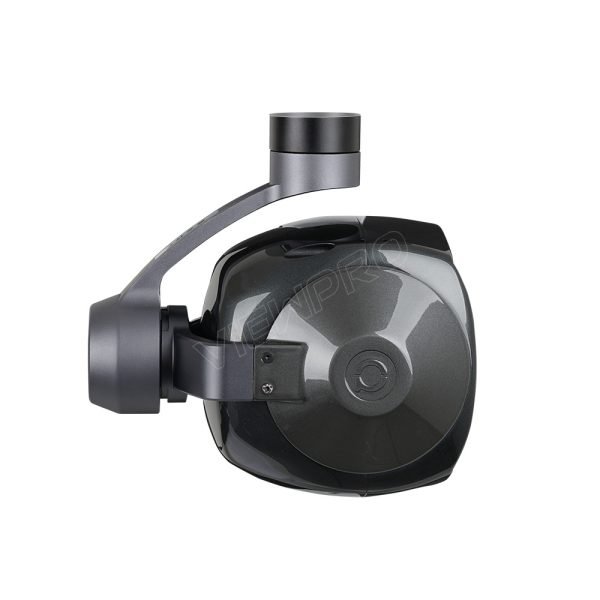

MQ30TIRM Pro 30x Zoom EO/IR 3KM High-level Laser Rangefinder Object Tracking Camera
China Moneypro

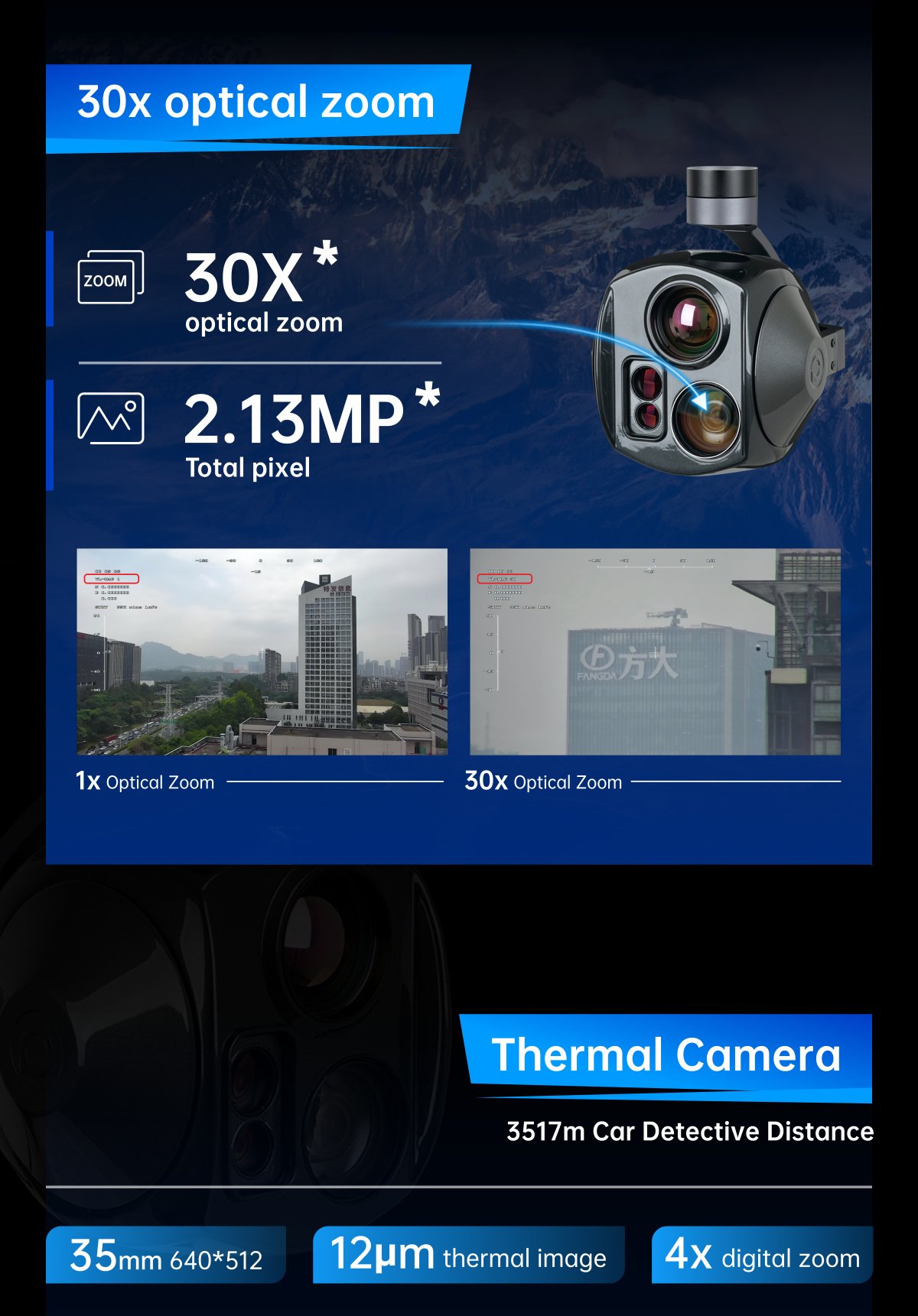

MQ30TIRM pro is a high-level tripe-sensor gimbal camera for long-range surveillance and inspection. It integrates a 30x optical zoom SONY 1/2.8 CMOS a 35mm 640*512 17 m IR thermal camera and a 3km laser rangefinder. Supports stable target tracking. It with 3-axis high-precision gimbal which has the advantages of better anti-shock, anti-interference, and better heat dissipation.
| Hardware Parameter | ||||
| Working voltage | 12V | |||
| Input voltage | 3S ~ 6S | |||
| Output voltage | 5V (connect with PWM) | |||
| Dynamic current | 750mA @ 12V | |||
| Idle current | 650mA @ 12V | |||
| Working environment temp. | -20 ~ +60 | |||
| Output | micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps) | |||
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) | |||
| Photo storage format | JPG(1920*1080) | |||
| Video storage format | MP4 (1080P/720P 25fps/30fps) | |||
| Control method | PWM / TTL / S.BUS / TCP(IP output) | |||
| Gimbal Spec | ||||
| Mechanical Range | Pitch/Tilt: -100 ~120 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) | |||
| Controllable Range | Pitch/Tilt: -45 ~90 , Yaw/Pan: 290 / 360 *N (IP output version) | |||
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 | |||
| One-key to center | ||||
| Camera spec | ||||
| Imager Sensor | SONY 1/2.8 Exmor R CMOS | |||
| Picture quality | Full HD 1080 ( 1920*1080) | |||
| Effective pixel | 2.13MP | |||
| Lens optical zoom | 30x, F=4.3~129mm | |||
| Digital zoom | 12x (360x with optical zoom) | |||
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm | |||
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) | |||
| 720p mode: 63.7 (wide end) ~ 2.3 (tele end) | ||||
| SD: 47.8 (wide end) ~ 1.7 (tele end) | ||||
| Sync system | Internal | |||
| S/N ratio | more than 50dB | |||
| Min illumination | Color 0.01lux@F1.6 | |||
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE | |||
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) | |||
| White balance | Auto, ATW , Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) | |||
| Shutter speed | 1/1s to 1/10,000s, 22 steps | |||
| Backlight compensation | Yes | |||
| Aperture control | 16 steps | |||
| Defog | Yes | |||
| OSD | Yes | |||
| Camera Object Tracking | ||||
| Update rate of deviation pixel | 50Hz | |||
| Output delay of deviation pixel | 5ms | |||
| Minimum object contrast | 5% | |||
| SNR | 4 | |||
| Minimum object size | 32*32 pixel | |||
| Maximum object size | 128*128 pixel | |||
| Tracking speed | 32 pixel/frame | |||
| Object memory time | 100 frames (4s) | |||
| The mean square root values of pulse noise in the object position | < 0.5 pixel | |||

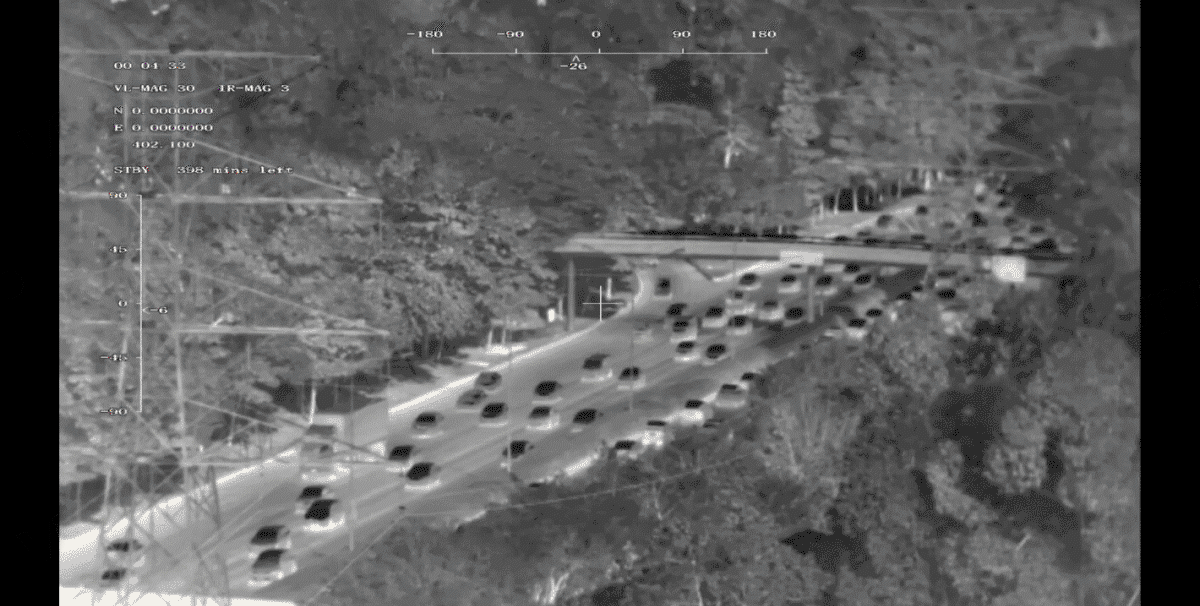

| Thermal Imager Spec | ||||
| Lens size | 35mm | |||
| Horizontal FOV( ) | 17.7 | |||
| Vertical FOV( ) | 13.3 | |||
| Diagonal FOV( ) | 22 | |||
| Detective Distance (Man: 1.8 0.5m) | 1029 meters | |||
| Recognize Distance (Man: 1.8 0.5m) | 257 meters | |||
| Verified Distance (Man: 1.8 0.5m) | 129 meters | |||
| Detective Distance (Car: 4.2 1.8m) | 3157 meters | |||
| Recognize Distance (Car: 4.2 1.8m) | 789 meters | |||
| Verified Distance (Car: 4.2 1.8m) | 395 meters | |||
| Working mode | Uncooled long wave (8 m~14 m) thermal imager | |||
| Detector pixel | 640*480 | |||
| Pixel size | 17 m | |||
| Focusing method | Athermal prime lens | |||
| Emissivity correction | 0.01~1 | |||
| NETD | 50mK (@25 ) | |||
| MRTD | 650mK (@characteristic frequency) | |||
| Image enhancement | Auto adjust image brightness and contrast ratio | |||
| Color palette | White, iron red, pseudo color | |||
| Auto Non-uniform correction | Yes (no shutter) | |||
| Digital zoom | 1x ~ 4x | |||
| Sync correct time | Yes | |||
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) | |||
| Temperature warning | 0 ~120 (For thermometry version only) | |||
| Thermal Imager Object Tracking | ||||
| Update rate of deviation pixel | 50Hz | |||
| Output delay of deviation pixel | 5ms | |||
| Minimum object size | 32*32 pixel | |||
| Maximum object size | 128*128 pixel | |||
| Tracking speed | 32 pixel/frame | |||
| Object memory time | 100 frames (4s) | |||
| IR Laser Rangefinder | ||||
| Laser Wavelengths | 1550nm | |||
| Optical aperture | Transmit 13mm / Receive17 mm | |||
| Resolution | 0.75m | |||
| Measure ability | 3000m (Typical value 1: Object size: the target surface is larger than the laser spot area Reflectivity: 60% Accuracy rate: 90% Visibility: 10 km Environment temperature: 20 Atmospheric pressure: 1013 mbar) | |||
| Vehicle target measuring | 2300m (Typical value 2: Object size: 2.3*2.3 m Emissivity: 30% Others same as Typcial value 1) | |||
| Eye-safe | Class 1 Standard IEC 60825-1, Second Edition (2007-03) | |||
| Laser beam angle (Typical value) | 1.0 mrad | |||
| Accuracy (Typical value) | 0.75m | |||
| Accuracy (In harsh condition) | 2m | |||
| Measurement frequency | 2Hz | |||
| Multi-target measuring | Max.3 targets distance values returning | |||
| Object resolution (Typical value) | 30m | |||
| Packing Information | ||||

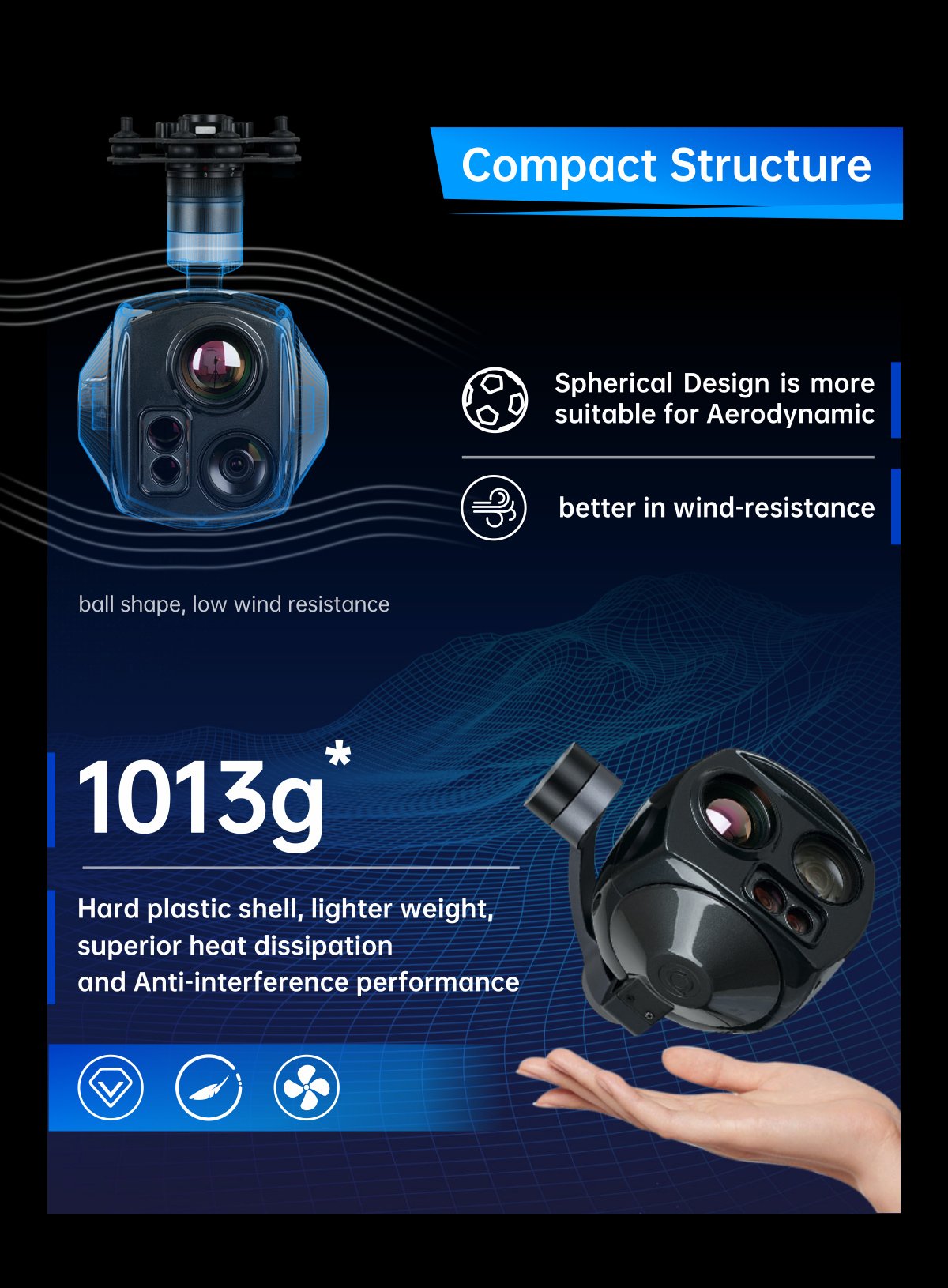

| N.W. | 1110g / 1180g (Viewport version) | |||

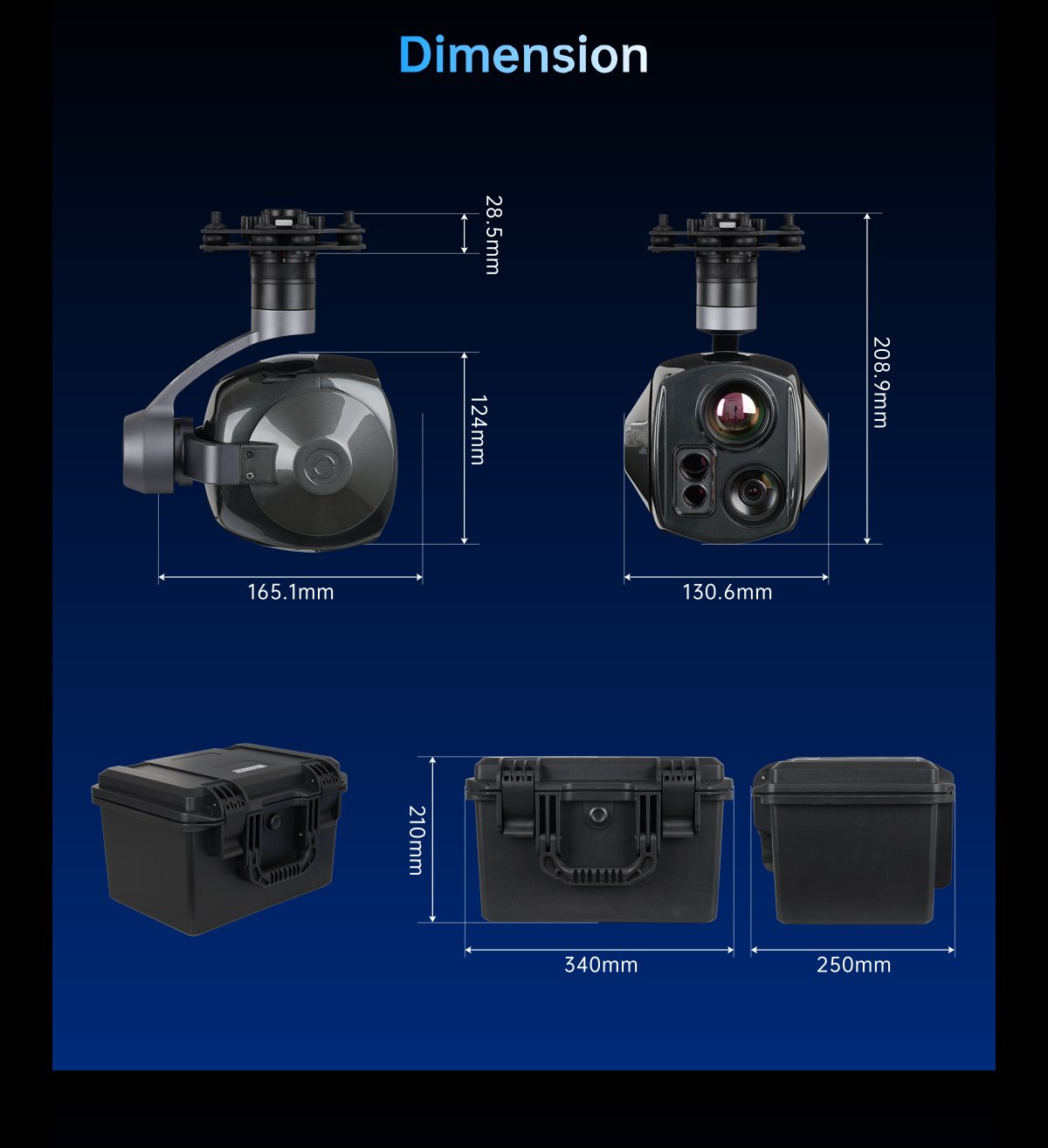

| Product meas. | 203*131*165mm / 209*131*165mm (Viewport version) | |||

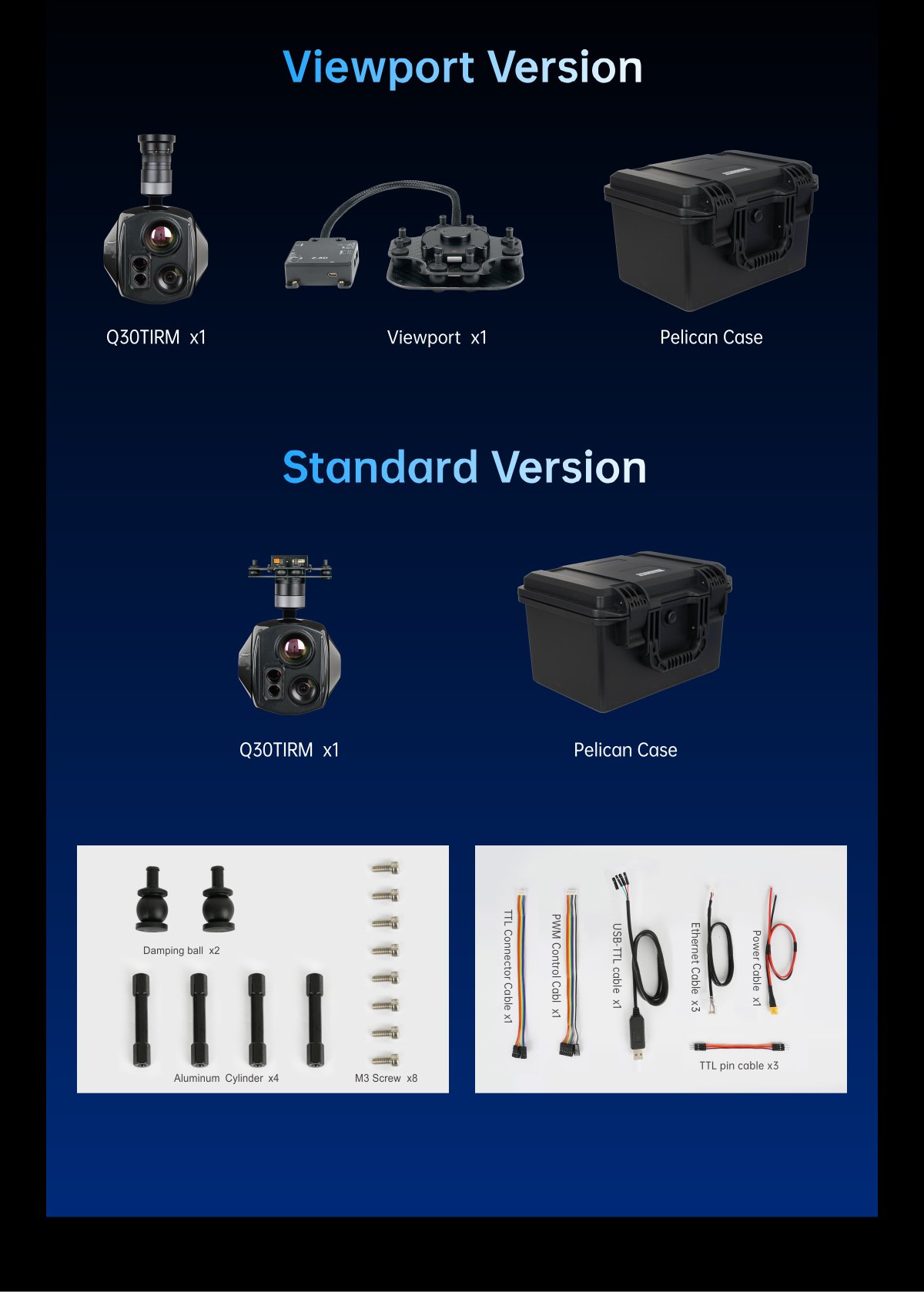

| Accessories | 1pc gimbal camera device, 8pcs screws, 4pcs copper cylinders, 12pcs damping balls, 1pc USB to TTL cable / Hight quality plastic box with foam cushion | |||
| G.W. | 3521g | |||
| Package meas. | 360*300*250mm | |||
