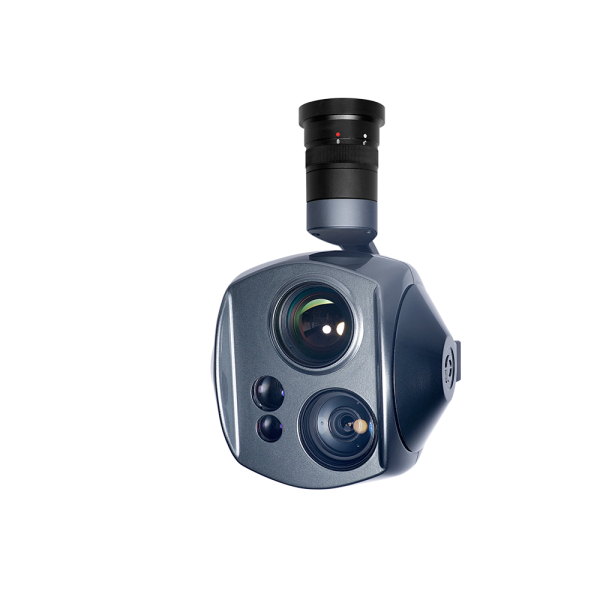

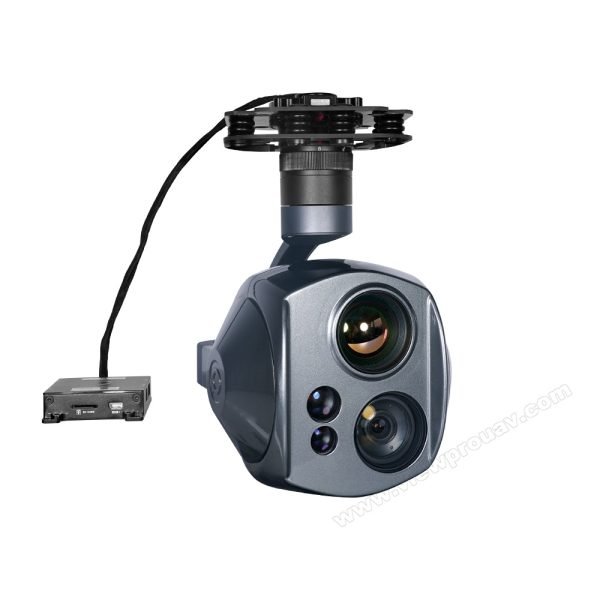

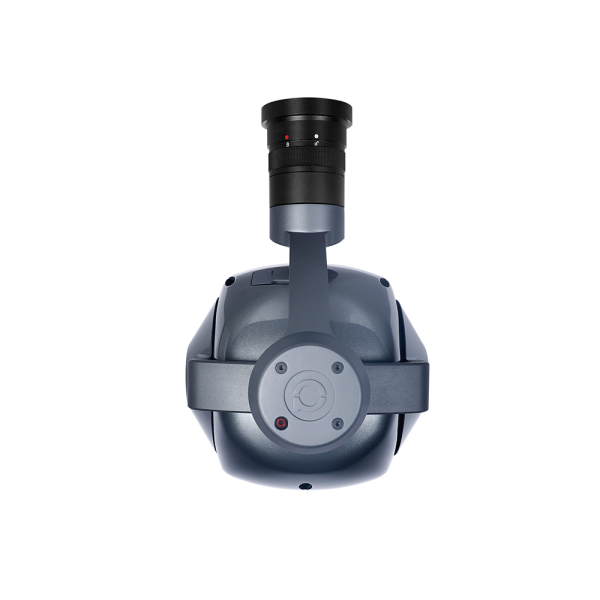

MQ30TIRM pro 3-axis Gimbal Camera 3KM IR Laser Rangefinder 30x Optical Zoom SONY Camera IR+EO Dual Sensors Object Tracking
China Moneypro
The MQ30TIRM pro is a professional 3-axis gimbal camera featuring a 30x optical zoom SONY camera, 640×480 thermal imaging, and a 3KM laser rangefinder. Built on advanced FOC technology, it delivers exceptional stability and precision even at maximum zoom. The SONY 1/2.8 Exmor R CMOS sensor with 0.01lux starlight capability captures crystal-clear 1080p HD images in extremely low light conditions. The integrated thermal camera detects heat sources for building damage assessment, forest fires, and object location tracking. The high-precision laser rangefinder accurately measures distances up to 3000 meters and calculates GPS coordinates automatically. Dual IR and EO sensors enable intelligent object tracking with minimal noise and superior accuracy. Multiple output options include HDMI, Ethernet/IP, and SDI formats. Perfect for military, surveillance, search and rescue, and professional monitoring applications requiring long-range observation and precise target identification.
Professional 3-axis High-precise FOC Program
Q30TIRM pro is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera, a 640 480 thermal camera and a laser rangefinder. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 25mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more.The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 3000 meters, this information will display on screen automatically.

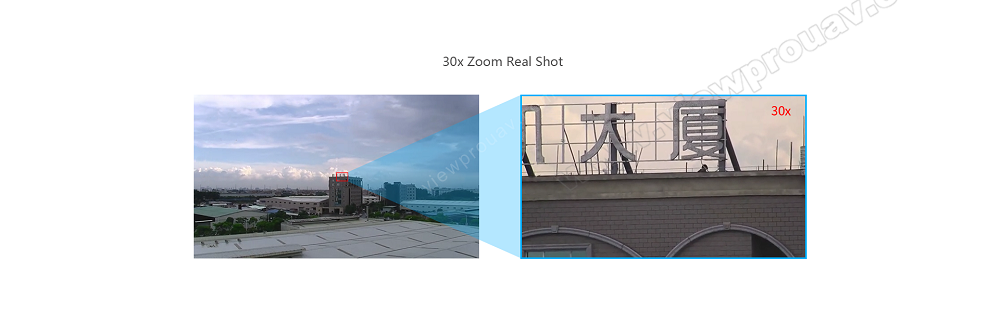

SONY 30x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30TIRM pro can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

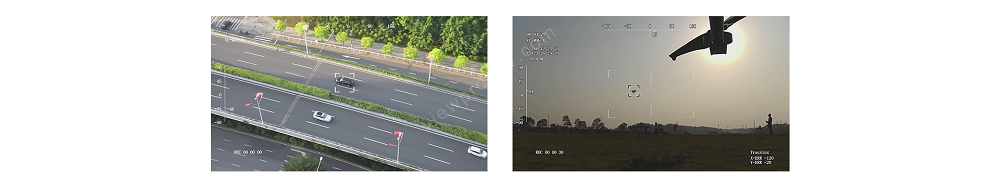

IR+EO Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 192pixel/frame,object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

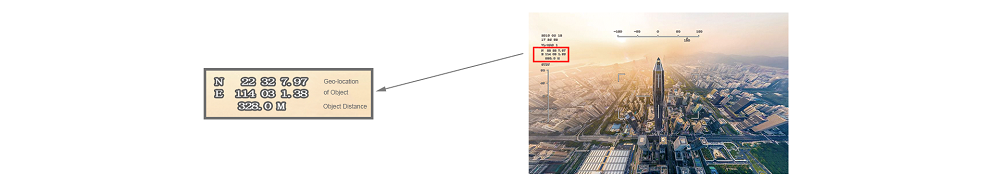

Laser Rangefinder and GPS Location Resolving
The advanced location calculating algorithm is used to calculate the distance of the object within 3000 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military .
Multi Output Methods Optional
Q30TIRM pro supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 700~2000mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -55°～92°, Roll: ±50°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| EO Camera spec | |
| Imager Sensor | SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| SD: 47.8°(wide end) ~ 1.7°(tele end) | |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| IR Thermal Imager Spec | |
| Focus Length | 35mm |
| Horizontal FOV(°) | 17.7° |
| Vertical FOV(°) | 13.3° |
| Diagonal FOV(°) | 22° |
| Detective Distance (Man: 1.8×0.5m) | 1029 meters |
| Recognize Distance (Man: 1.8×0.5m) | 257 meters |
| Verified Distance (Man: 1.8×0.5m) | 129 meters |
| Detective Distance (Car: 4.2×1.8m) | 3157 meters |
| Recognize Distance (Car: 4.2×1.8m) | 789 meters |
| Verified Distance (Car: 4.2×1.8m) | 395 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (For thermometry version only) |
| Laser Rangefinder | |
| Laser Wavelengths | 1550nm |
| Optical aperture | Transmit 13mm / Receive17 mm |
| Resolution | 0.75m |
| Measure ability | 3000m (Typical value 1: · Object size: the target surface is larger than the laser spot area · Reflectivity: 60% · Accuracy rate: 90% · Visibility: 10 km · Environment temperature: 20℃ · Atmospheric pressure: 1013 mbar) |
| Eye-safe | Class 1【Standard IEC 60825-1, Second Edition (2007-03)】 |
| Vehicle target measuring | 2300m (Typical value 2: · Object size: 2.3*2.3 m · Emissivity: 30% · Others same as Typcial value 1) |
| Laser beam angle (Typical value) | 1.0 mrad |
| Accuracy (Typical value) | ± 0.75m |
| Accuracy (In harsh condition) | ± 2m |
| Measurement frequency | 2Hz |
| Multi-target measuring | Max.3 targets distance values returning |
| Object resolution (Typical value) | 30m |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 1116g / 1163g (Viewport version) |
| Product meas. | 165.1*130.6*203.2mm / 165.1*130.6*208.9mm (Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 3518g |
| Package meas. | 360*300*250mm |
