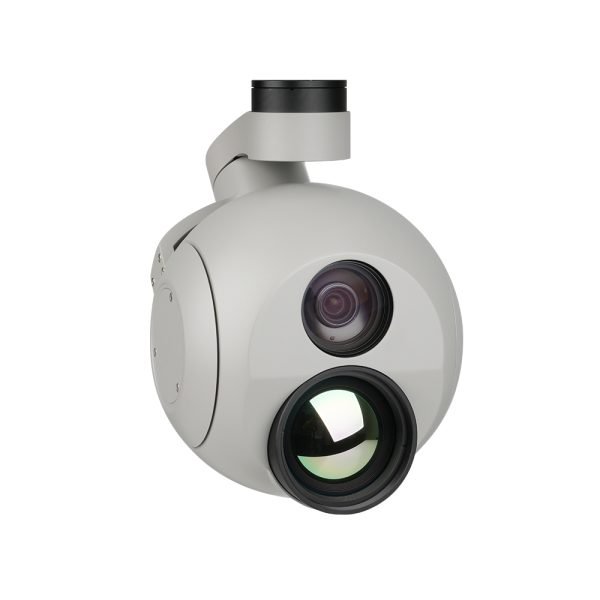

MQ30TIR pro 1280 IR thermal Camera 30x Starlight Night Vision High-level Dual-sensor Tracking Payload Camera
China Moneypro

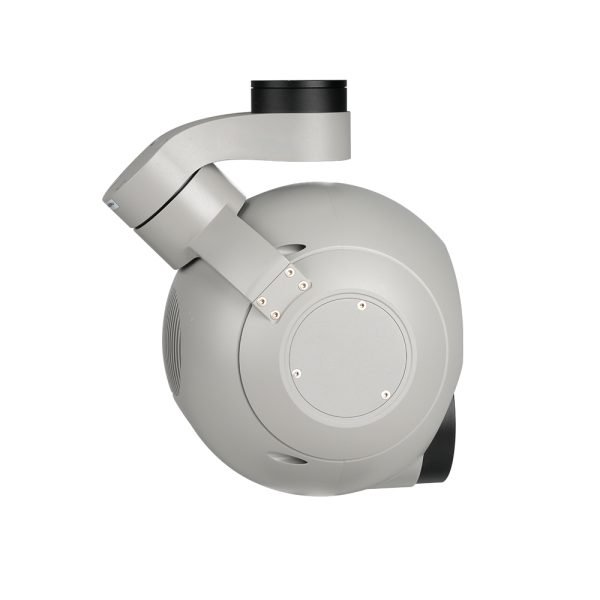

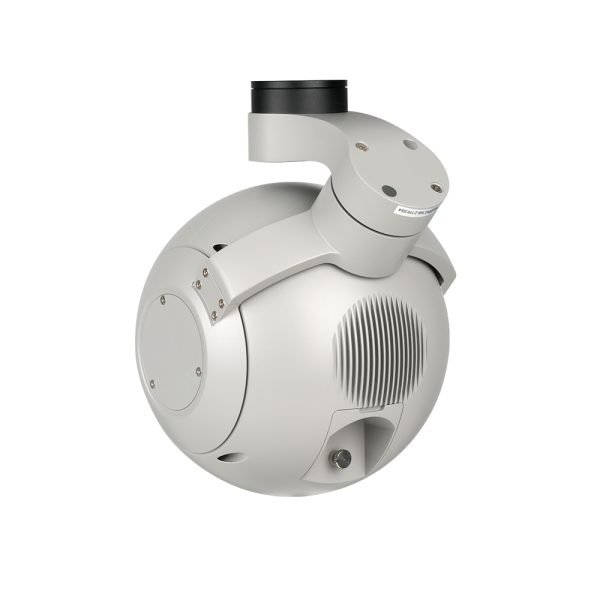

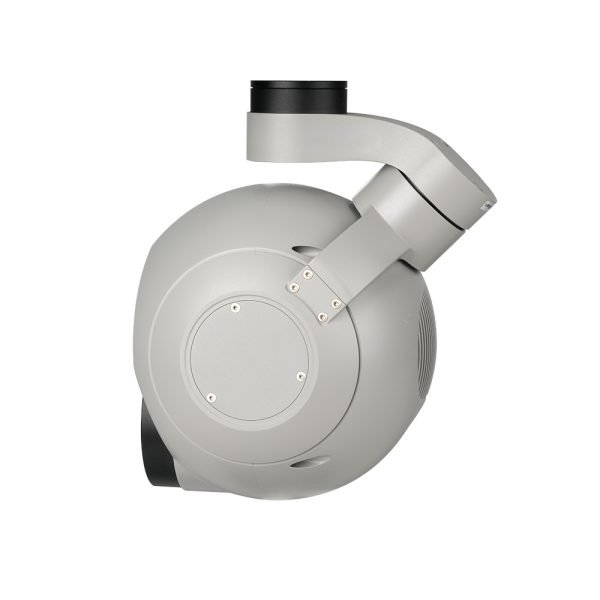

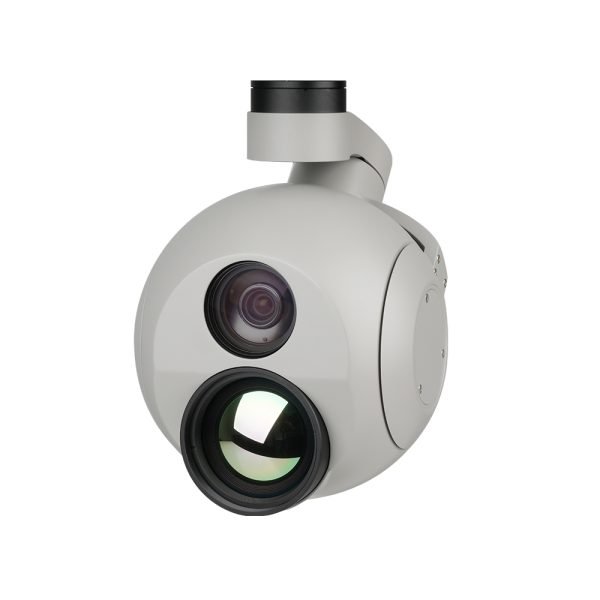

Q30TIR prois a high level dual-sensorgimbal camera for long range surveillance and inspection. It integrates a 30x optical zoom SONY 1/1.8 Type STARVIS night visioncamera and a50mm 1280*1024 12 mIR thermal camera. Supports stable target tracking. It with 3-axis high-precision gimbal which has advantages of better aluminum alloy housing, anti-interference and better heat dissipation. It widely used in UAV industries of long range inspection, surveillance, search and rescue and other industrial applications.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 820~1500mA @16V |
| Power consumption | Average 13.1W, Max 24W |
| Working environment temp. | -20 ~ +50 |
| Output (optional) | IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4(1080P 30fps) |

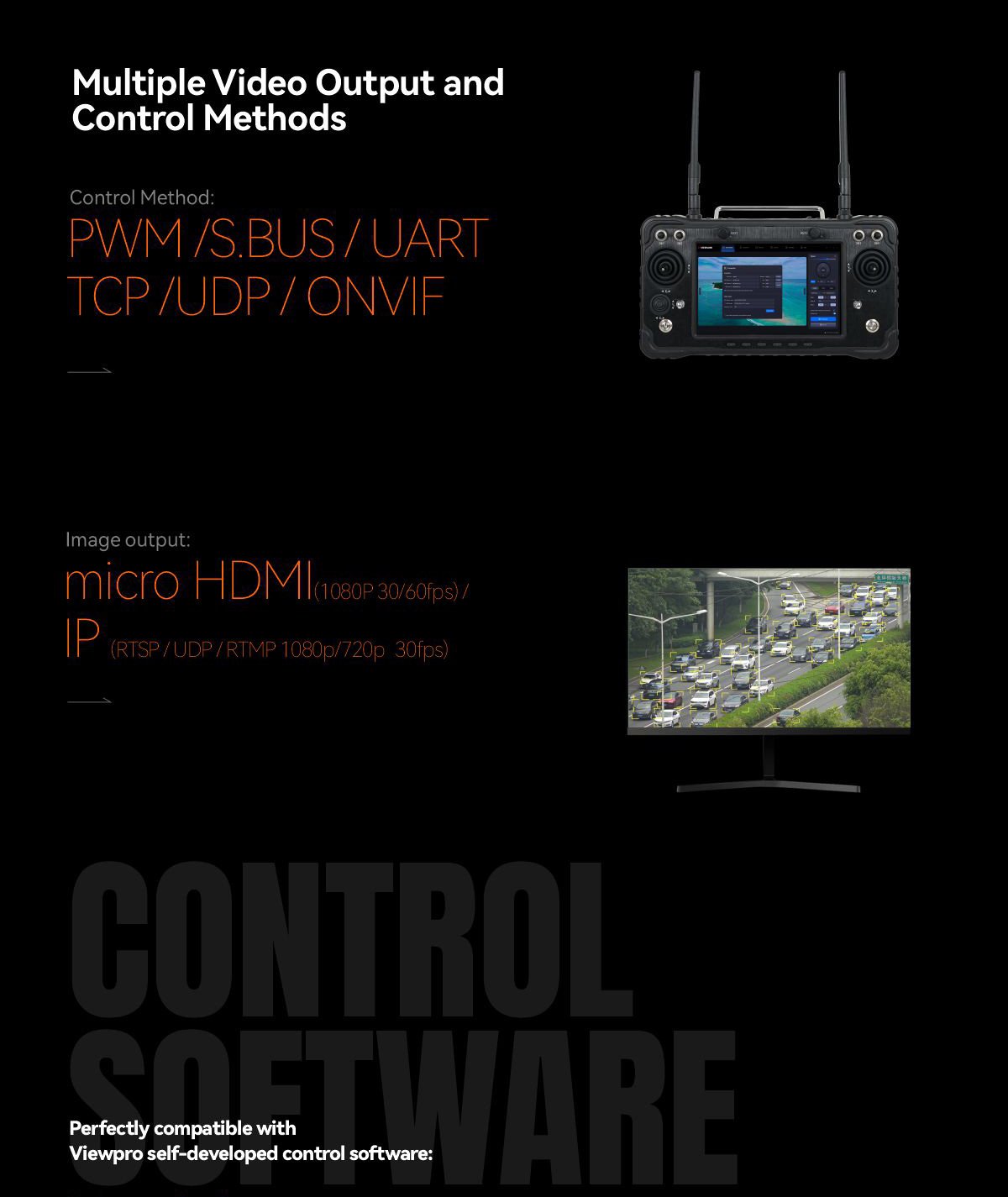

| Control method | PWM / TTL / S.BUS / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -110 (Up) 130 (Down), Roll: 40 , Yaw/Pan: 360 *N |
| Controllable Range | Pitch/Tilt: -45 125 , Yaw/Pan: 360 *N |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |
| EO Camera spec | |
| Imager Sensor | 1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |

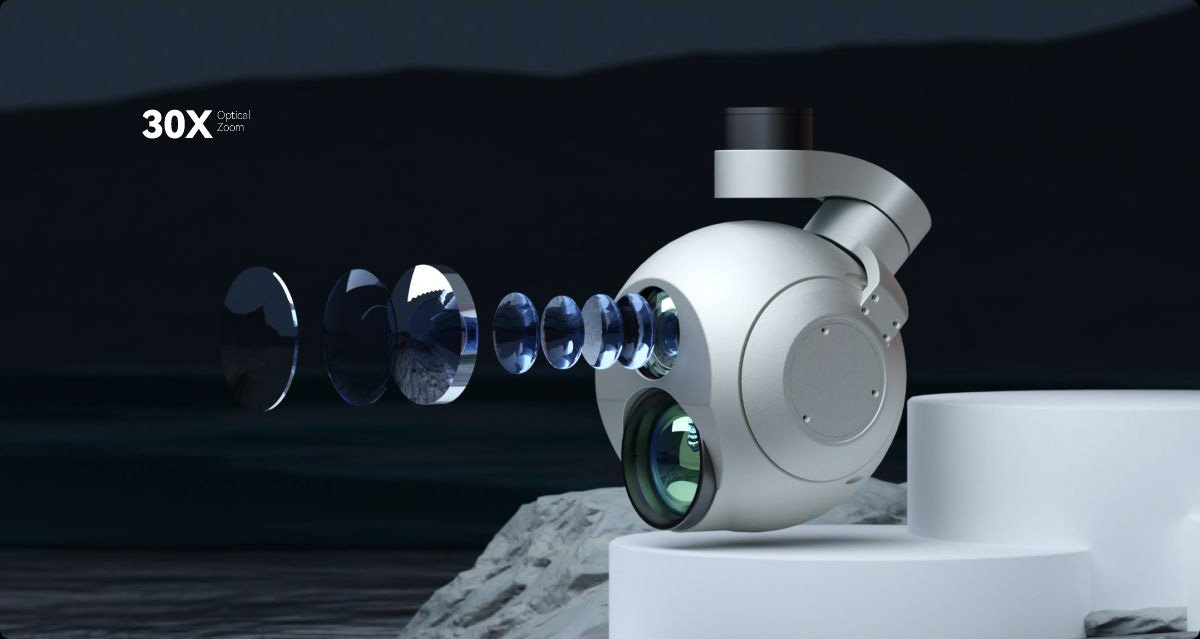

| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle | 64.0 (wide end) ~ 2.4 (tele end) |
| S/N ratio | more than 50dB |

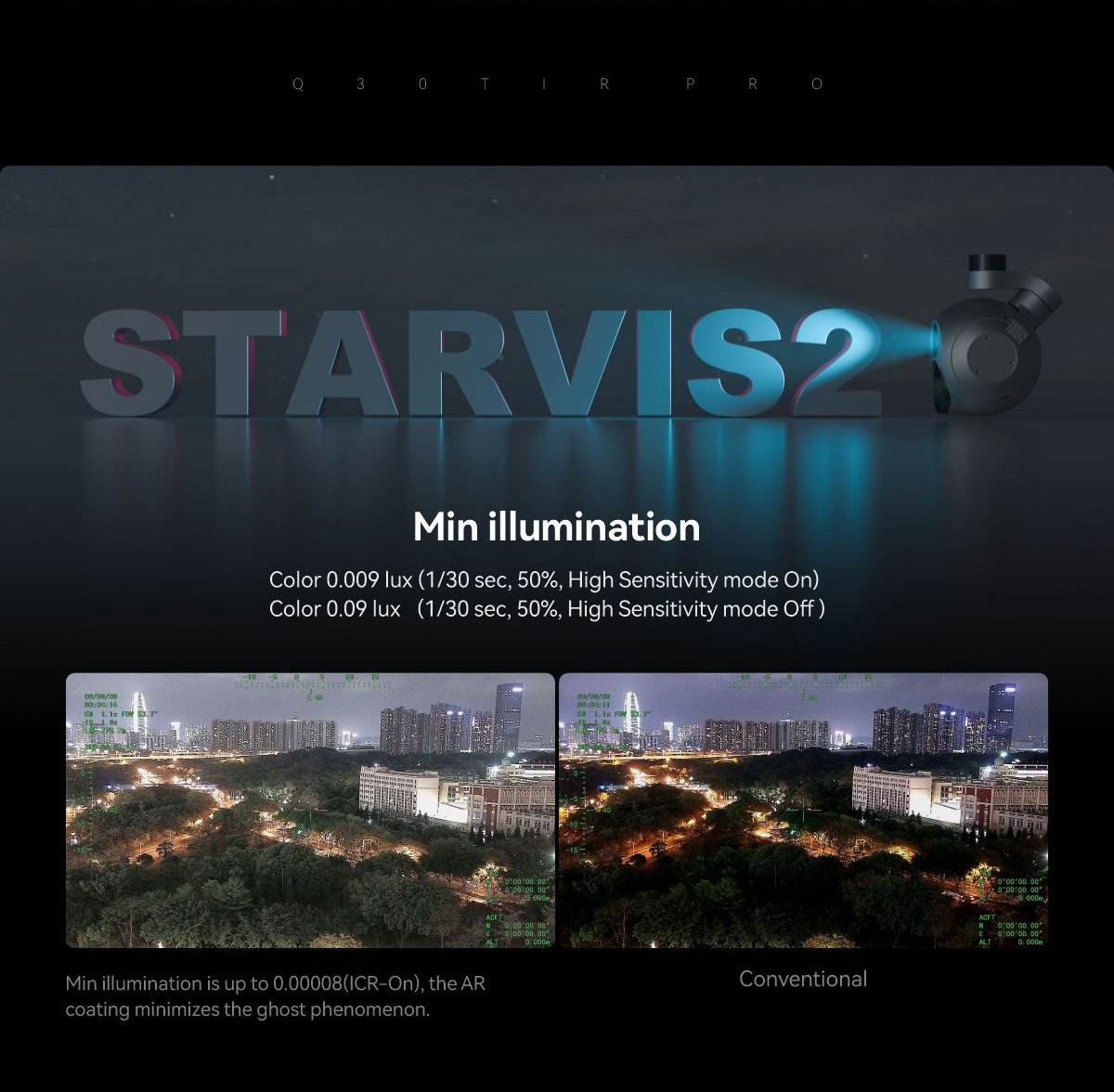

| Min illumination | Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Color 0.09 lux (1/30 sec, 50%, High Sensitivity mode Off ) | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Back light compensation | On/Off |
| Noise reduction | On/Off |
| Image stabilization | On/Off |
| Defog | On/Off |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 17.5 |
| Vertical FOV | 14.0 |
| Detective Distance (Man: 1.8 0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8 0.5m) | 521 meters |
| Verified Distance (Man: 1.8 0.5m) | 260 meters |
| Detective Distance (Car: 4.2 1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1597 meters |
| Verified Distance (Car: 4.2 1.8m) | 799 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |

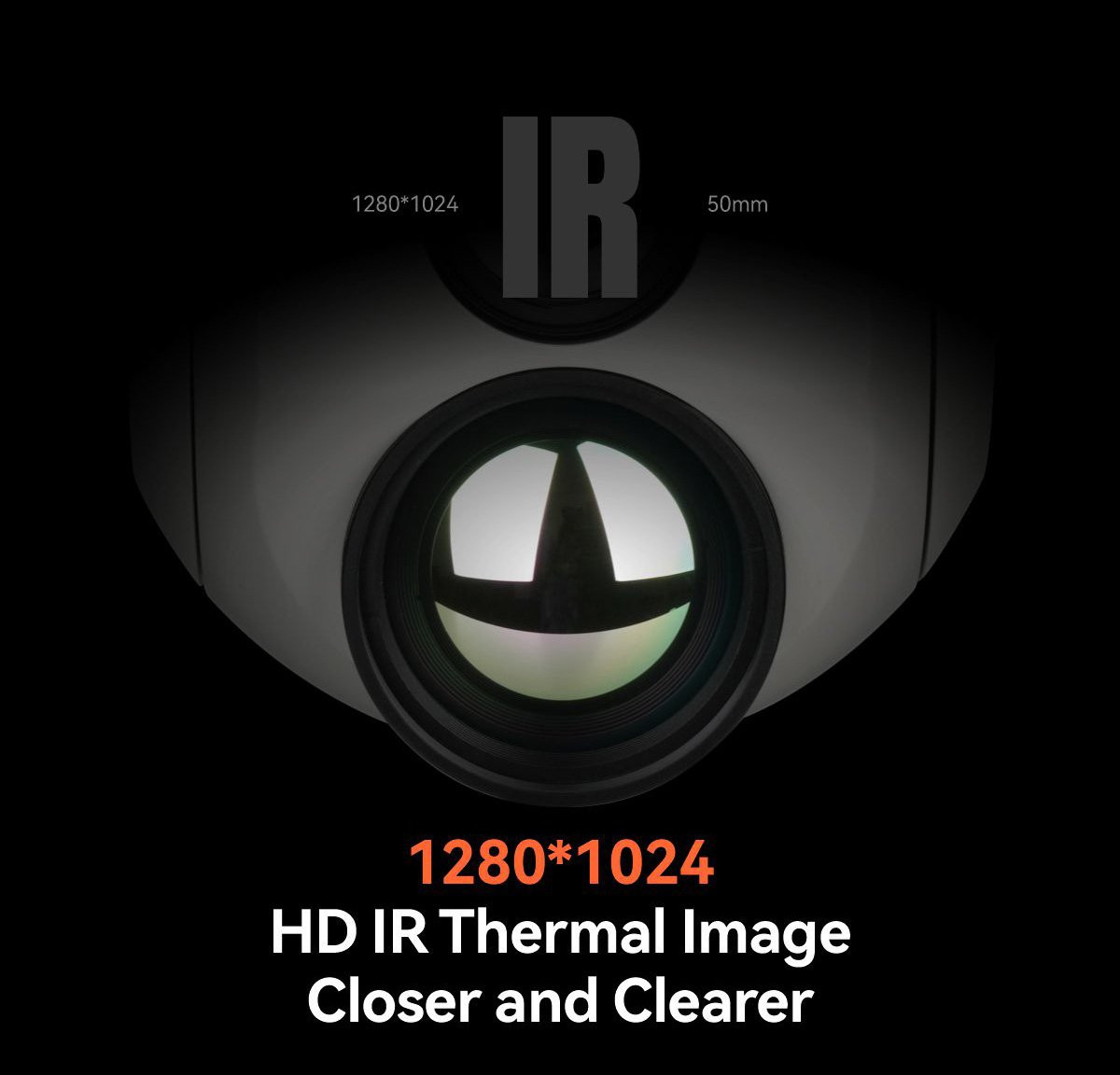

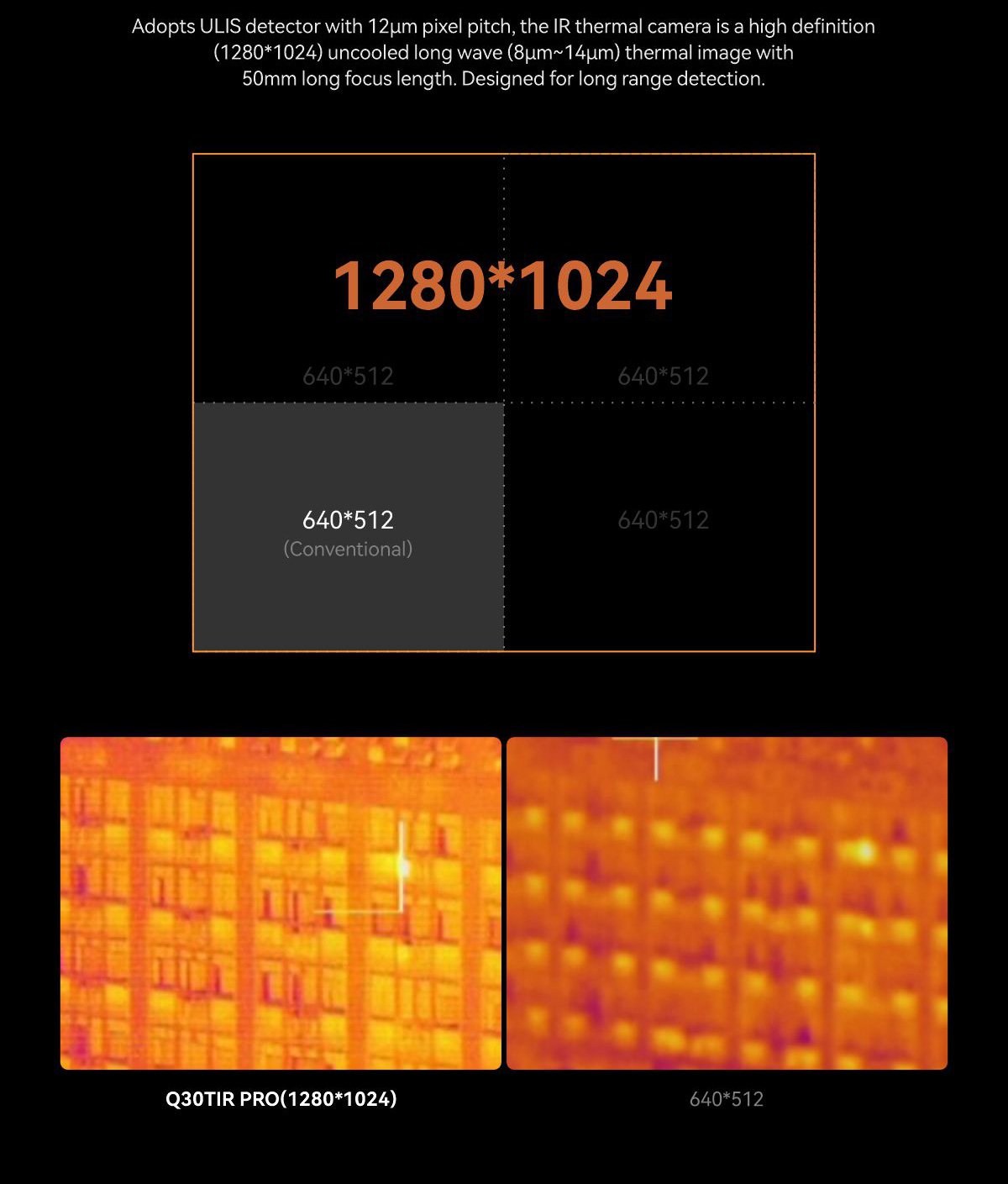

| Detector pixel | 1280*1024 |
| Pixel pitch | 12 m |
| Focusing method | Athermal prime lens |
| NETD | 40mK@25 ,F #1.0 |
| MRTD | 400mK@25 ,F #1.0 |
| Shutter | Bistable Shutter |
| Color palette | White, black, pseudo color |
| Digital zoom | 1x ~ 4x |
| Thermometry type | Not supported |

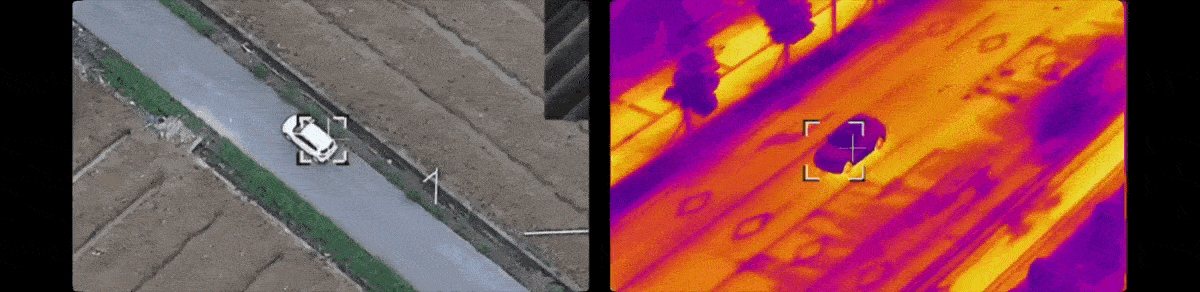

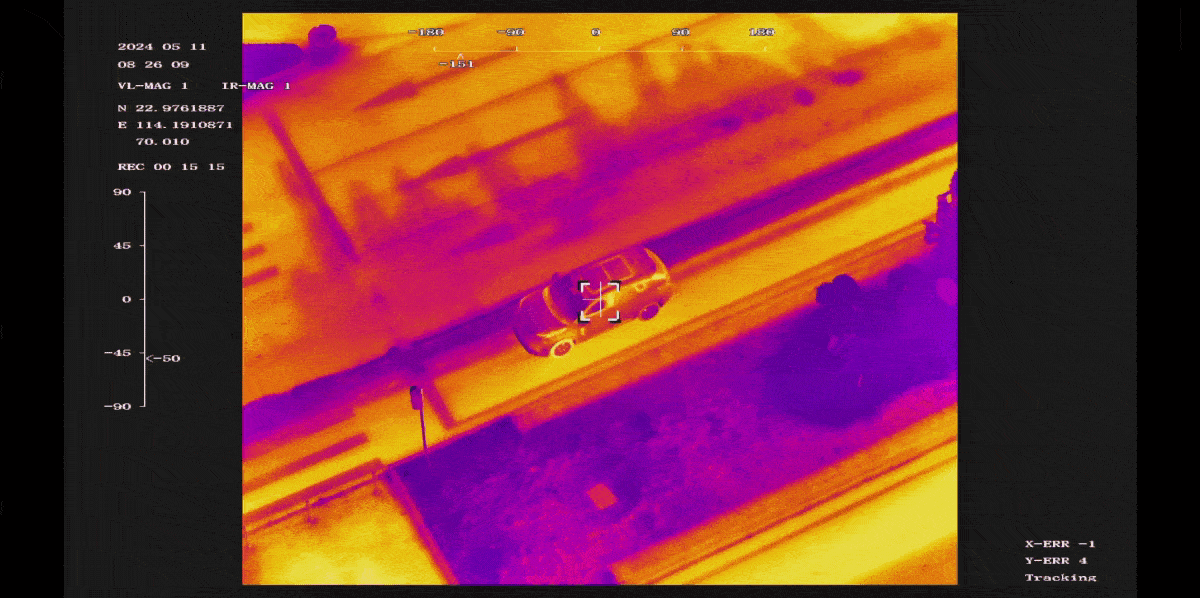

| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Features | |
| OSD | Display the gimbal s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |

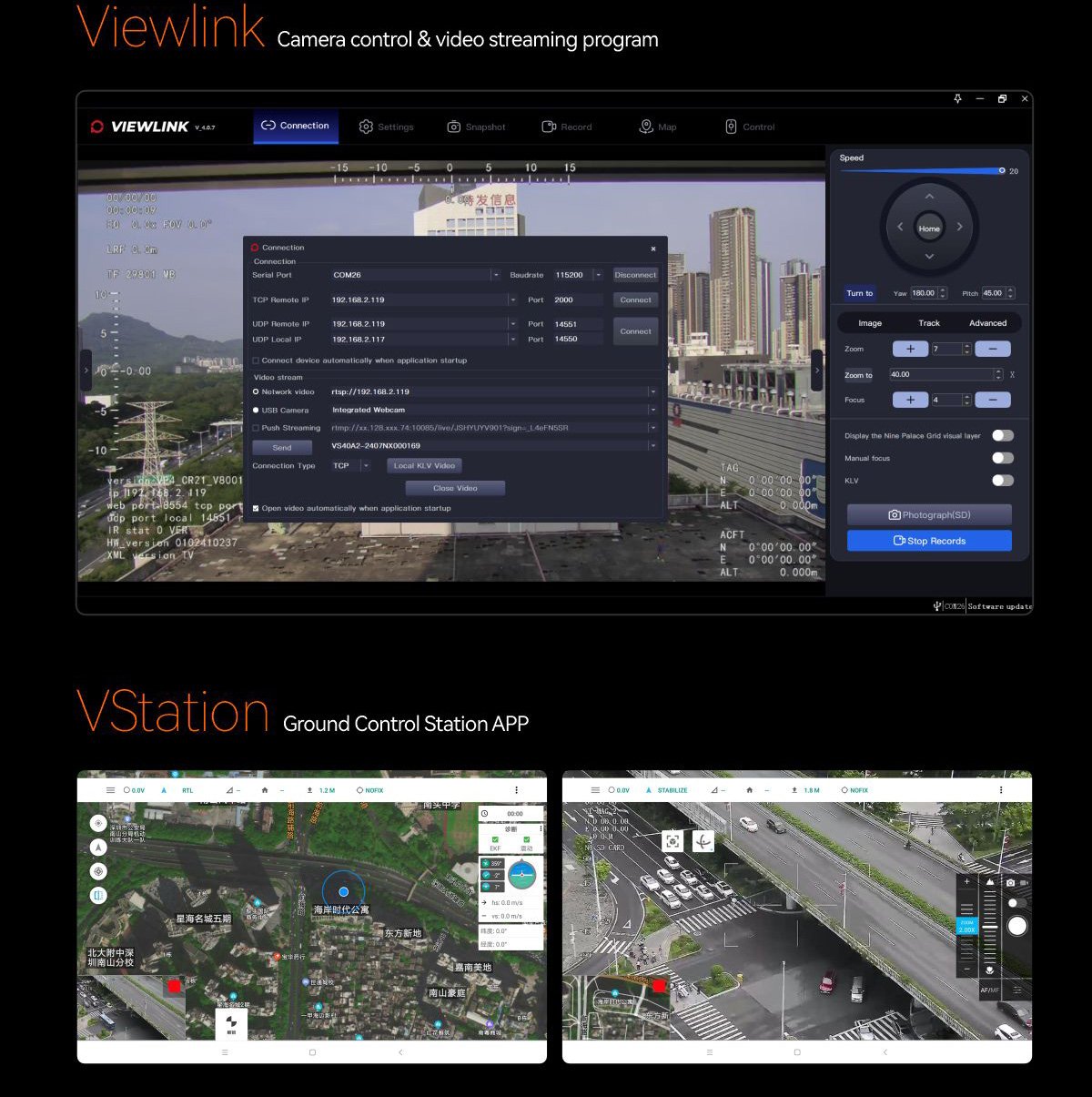

| Card reading online | SMB read pictures or videos / HTTP read pictures or videos |

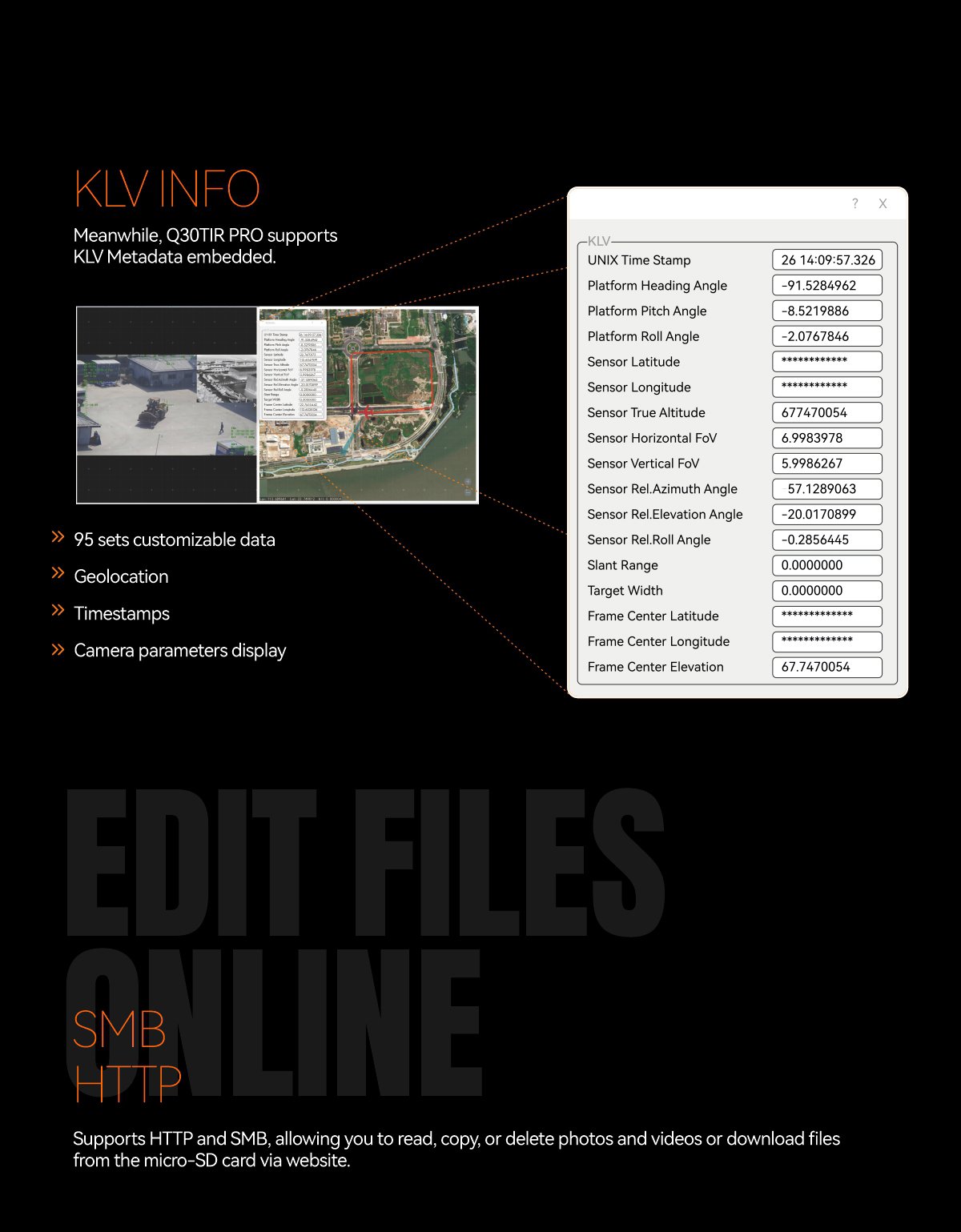

| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
| Dual video stream output | Not support(EO and IR two stream output) |
| Packing Information | |
| N.W. | 1432 10g(Viewport version with Viewport) |

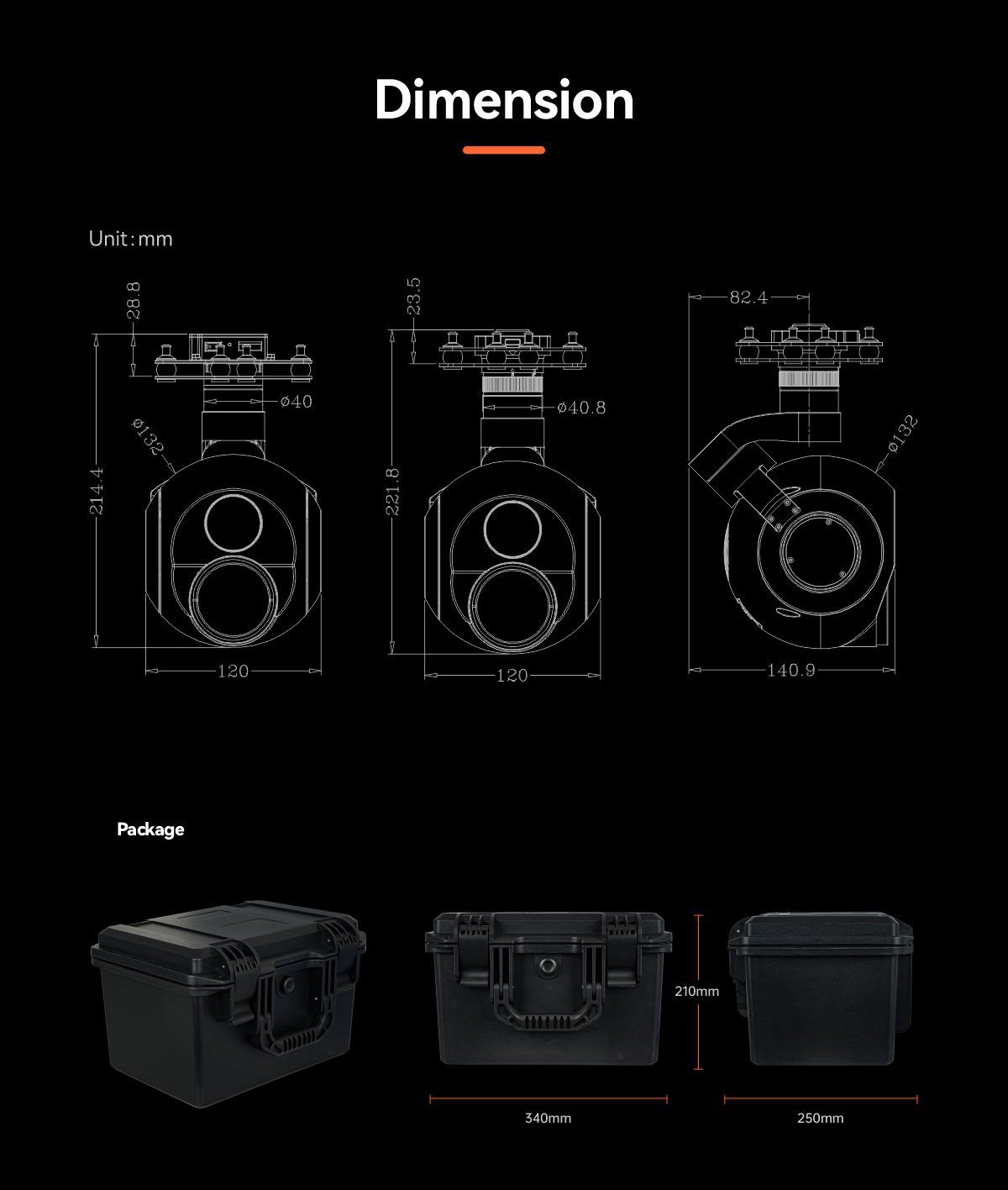

| Product meas. | 140.9*120*216.1mm / 140.9*120*221.8mm(Viewport version with Viewport) |

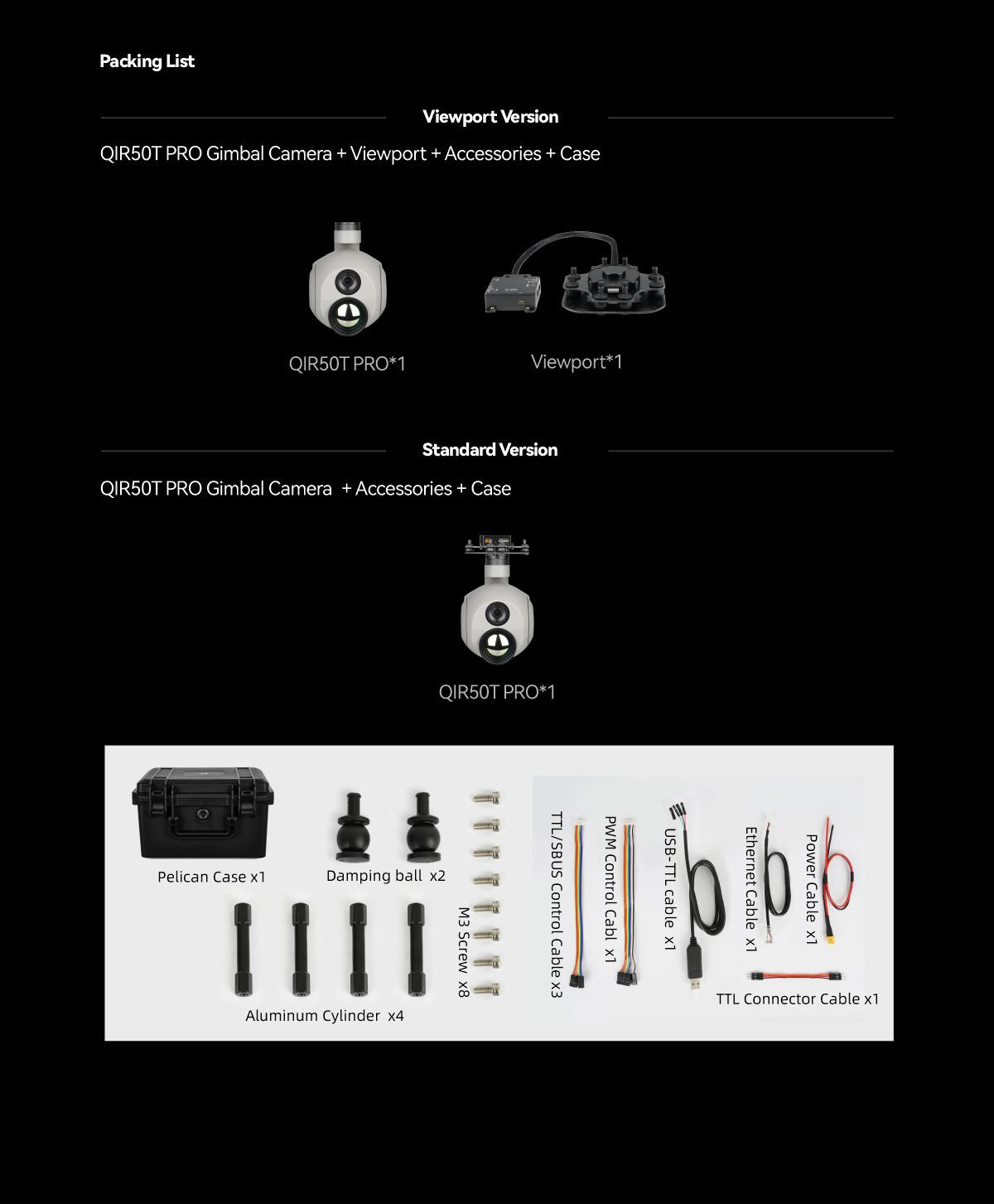

| Accessories | 1pc gimbal camera device, screws, aluminum cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | About 3159g |
| Package meas. | 350*300*250mm |
