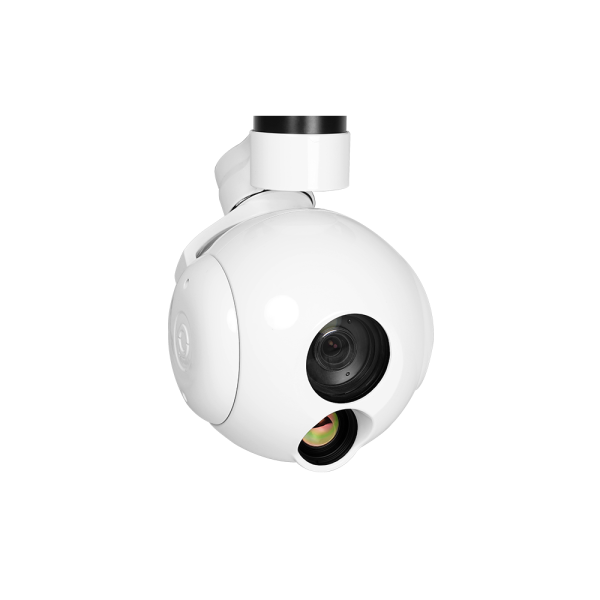

MQ30TIR lite 30x EO + 25mm IR Dual Sensor 3axis Gimbal Camera for UAV

1. Professional 3-axis High-precise FOC Program

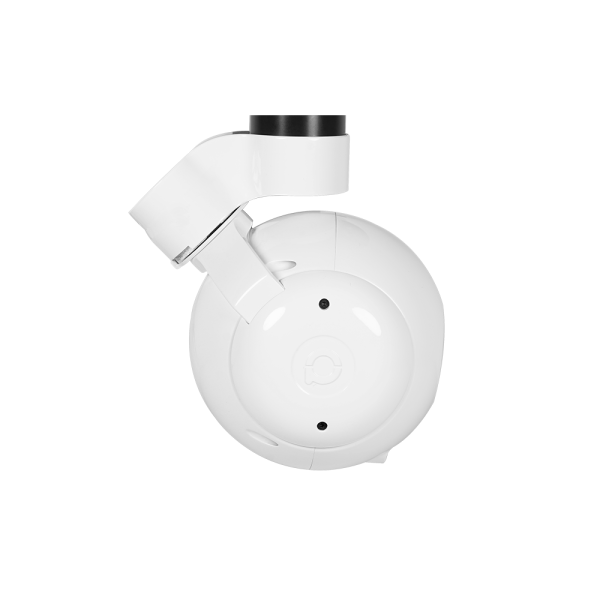

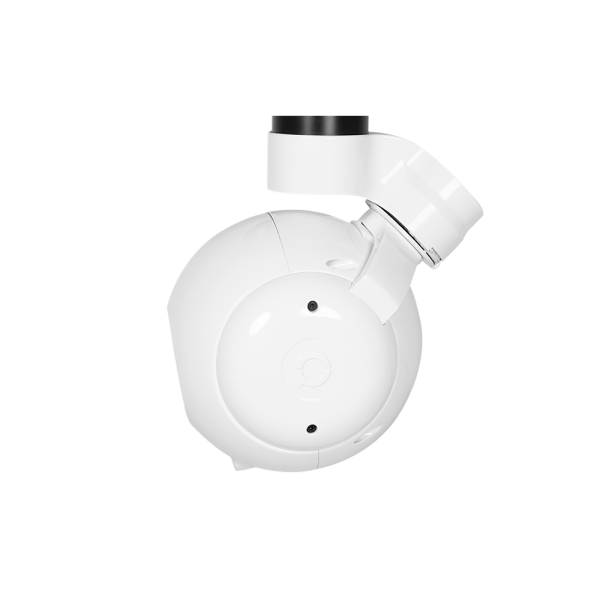

The Q30TIR Lite is a precision-engineered 3-axis gimbal payload, driven by a dedicated processor that delivers motor control accuracy as fine as 0.01°. Unlike conventional gimbals that depend on electrical slip rings, this model features a mechanically limited design with internal wire routing, resulting in more reliable data transmission and enhanced long-term durability. Four vibration-damping balls along with a lightweight damping plate effectively eliminate unwanted movement, producing consistently smooth video footage. Full 360° rotation is achieved through the gimbal’s own motion. Even during high-speed flight, the system remains stable and capable of capturing smooth, jitter-free imagery.

2. Lighter SONY 30x Zoom Starlight Camera

Powered by a SONY 1/2.8 Exmor R CMOS module and featuring a starlight-level minimum illumination of just 0.01lux@F1.6, the Q30TIR Lite delivers clear image details even in extremely low-light conditions. With 2.13 effective megapixels and true 1080p Full HD resolution, plus 30x advanced optical zoom, it enables observation distances of up to 3,000 meters, making it suitable for a wide range of application scenarios.

3. Advanced IR Thermal Imager

Integrated French ULIS high-precision uncooled long-wave infrared (8–14 μm) thermal imaging sensor – Q30TIR Lite.
This device simultaneously records and transmits both thermal and visible images in Picture-in-Picture (PIP) format.

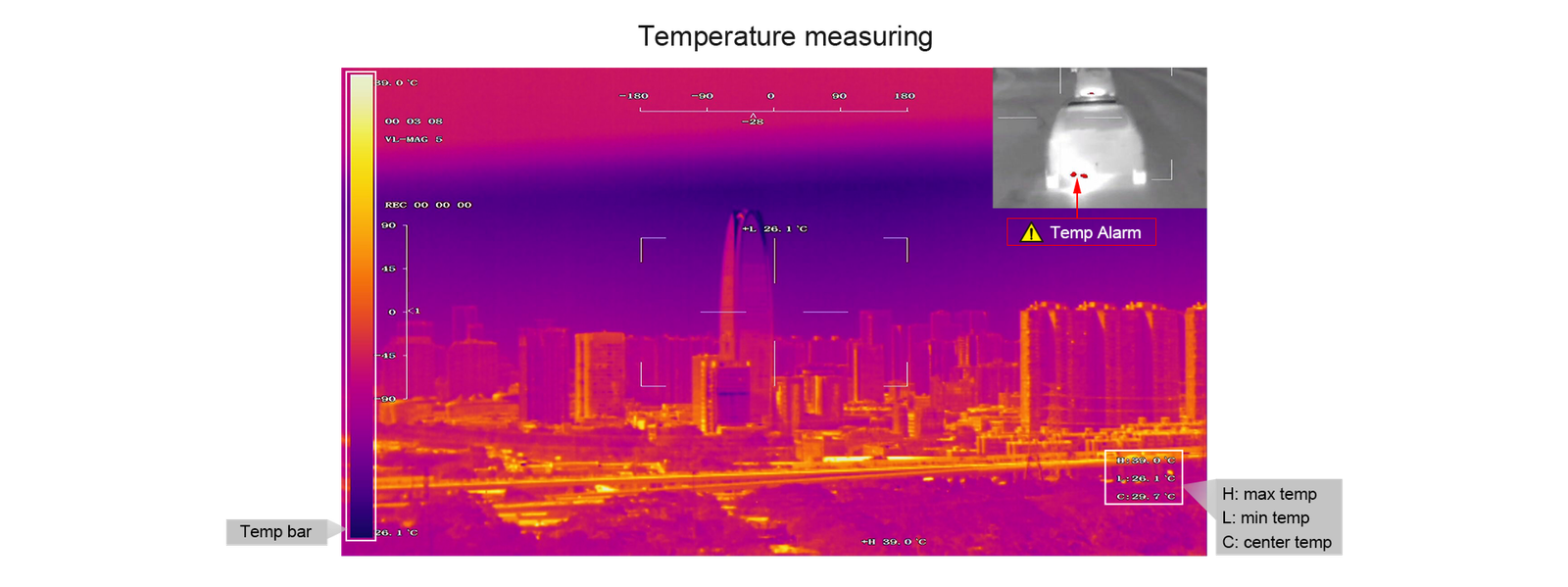

An optional temperature measurement version is available. Equipped with a thermal sensing module, it accurately detects the temperature of people and objects. The sensor supports three-point temperature readings within a 0–120°C range, which can be displayed on-screen. Color palettes applied to thermal data can be customized based on different usage scenarios.

• Temperature bar: Shows gradual temperature changes using corresponding color gradients.
• Temperature measurement: Displays real-time average, maximum, and minimum temperatures.
• Temperature alarm: Never miss critical events when object temperatures go beyond preset thresholds.

4. Visible Light and Thermal Imager Dual Sensors Object Tracking

The system integrates built-in normalization, cross-correlation, and a tracking algorithm along with a re-acquisition mechanism for lost objects, ensuring robust target stability. It supports user-defined OSD characters, adaptive gating, a crosshair cursor, and trace visualization. The tracking capability reaches up to 32 pixels per frame, accommodating object sizes ranging from 16×16 to 160×160 pixels. With a minimum signal-to-noise ratio (SNR) of 4 dB, the root-mean-square (RMS) error of pulse noise in object positioning remains below 0.5 pixels, significantly enhancing both tracking precision and overall performance.

Multi Output Methods Optional

Q30TIR lite supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.
