MQ30TIR 3-axis Gimbal Payload SONY 30x Zoom Camera 640*480 IR Thermal Image Sensor
China Moneypro

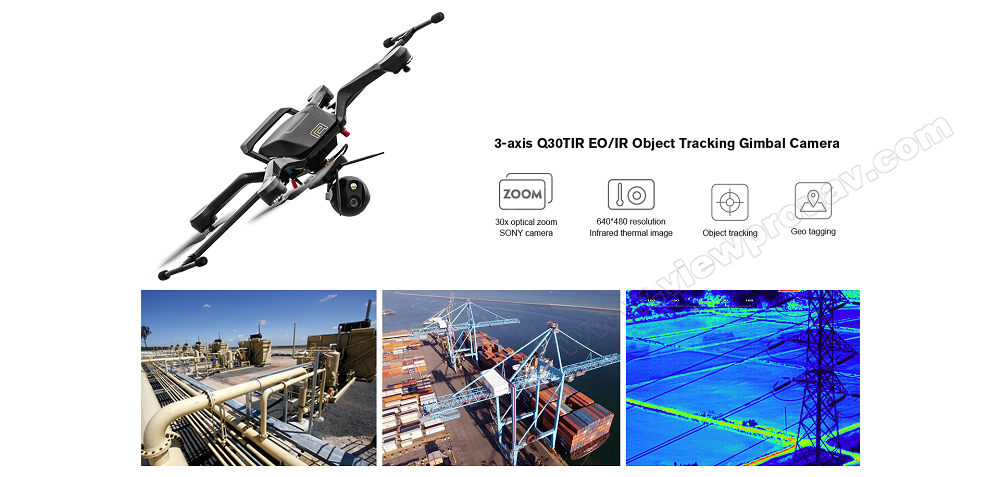

The MQ30TIR is a professional 3-axis gimbal payload featuring exceptional stabilization and precision. Equipped with a SONY 1/2.8 Exmor R CMOS camera offering 30x optical zoom and 1080p FHD quality, it delivers crystal-clear imagery even in extremely low light conditions at 0.01lux. The integrated French ULIS thermal imaging sensor provides 640×480 IR capability with temperature measurement ranging from -30 to 300 degrees, enabling simultaneous recording of thermal and visible images. Advanced features include 0.01-degree control accuracy, vibration elimination through damping technology, 360-degree rotation capability, and real-time temperature alarming. With observation ranges up to 3000 meters and multiple output options including HDMI, IP, and SDI, this versatile system suits diverse professional applications from surveillance to inspection.
Professional 3-axis High-precise FOC Program
The Q30TIR is a highly refined 3-axis gimbal payload engineered for exceptional rotational precision, achieving a control accuracy of 0.01° through a dedicated processor. Unlike conventional gimbals that depend on electrical slip rings, the Q30TIR adopts a mechanically limited design with internal concealed wiring, enhancing signal stability and long-term durability. To eliminate vibration, it incorporates four damping balls and a lightweight damping plate, delivering consistently smooth video output. Full 360° rotation is maintained via the gimbal’s own movement. As a result, stable and fluid footage can be captured even during high-speed flight.

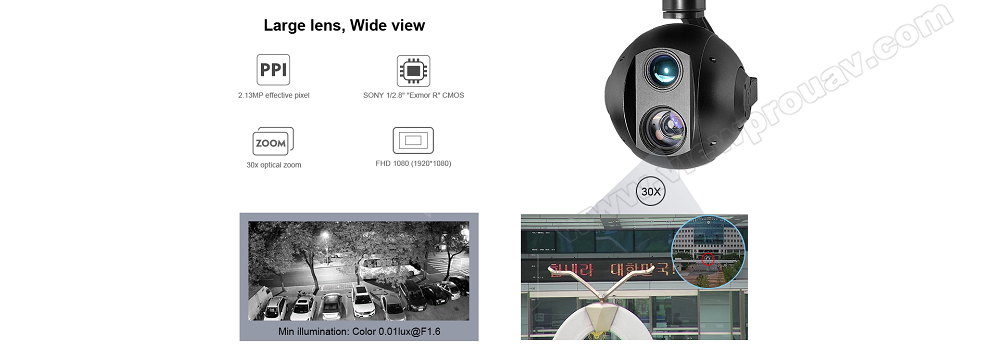

SONY 30x Zoom Starlight Camera
Powered by a SONY 1/2.8 Exmor R CMOS module and featuring a starlight-level minimum illumination of just 0.01lux@F1.6, the Q30TIR delivers clear image details even in extremely low-light conditions. With 2.13 effective megapixels and 1080p Full HD resolution, coupled with 30x advanced optical zoom, it enables monitoring distances of up to 3000 meters, making it suitable for a wide range of applications across different fields.
SONY 30x Zoom Starlight CameraAdvanced IR Thermal Imager

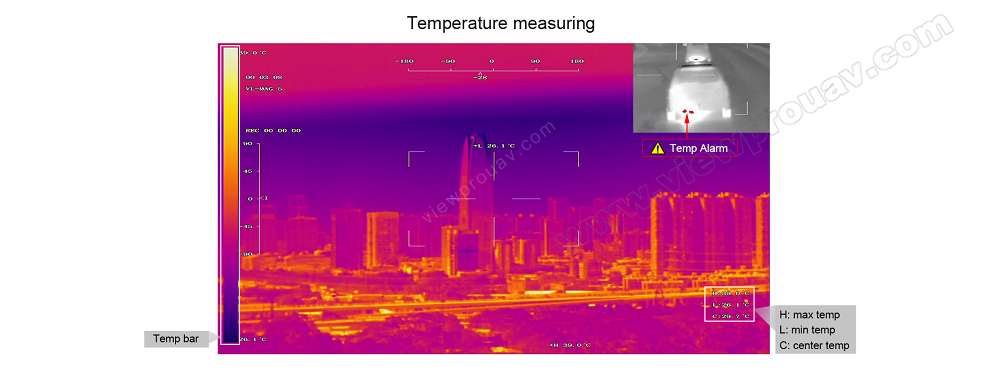

The Integrated French ULIS high-precision Q30TIR is an uncooled long-wave infrared sensor operating in the 8–14 μm range. It supports simultaneous recording and transmission of thermal and visible light images in PIP (Picture-in-Picture) format. Equipped with a temperature measuring function, it accurately detects the temperature of both objects and individuals. The thermal sensor enables three-point temperature measurement across a range of -30°C to 300°C, with readings displayed directly on screen. Users can also apply different color palettes to thermal data based on specific scene requirements.
*Temperature Scale: Shows progressive temperature changes using corresponding colors.
*Thermal Analysis: Provides real-time display of average, maximum, and minimum temperatures.
*Temperature Alert: Ensures you never miss a condition when object temperatures exceed preset thresholds.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 700~1600mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 512G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -100 120 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -45 115 , Yaw/Pan: 290 / 360 *N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) |
| 720p mode: 63.7 (wide end) ~ 2.3 (tele end) | |
| SD: 47.8 (wide end) ~ 1.7 (tele end) | |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/ Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| IR Thermal Imager Spec | |
| Focus Length | 25mm |
| Horizontal FOV | 24.6 |
| Vertical FOV | 18.5 |
| Diagonal FOV | 30.4 |
| Detective Distance (Man: 1.8 0.5m) | 735 meters |
| Recognize Distance (Man: 1.8 0.5m) | 184 meters |
| Verified Distance (Man: 1.8 0.5m) | 92 meters |
| Detective Distance (Car: 4.2 1.8m) | 2255 meters |
| Recognize Distance (Car: 4.2 1.8m) | 564 meters |
| Verified Distance (Car: 4.2 1.8m) | 282 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~120 (For thermometry version only) |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 1250g / 1276g(SDI output) / 1300 (Viewport Version) |
| Product meas. | 164*128*196mm / 164*128*201mm (Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 3421g |
| Package meas. | 360*300*250mm |
