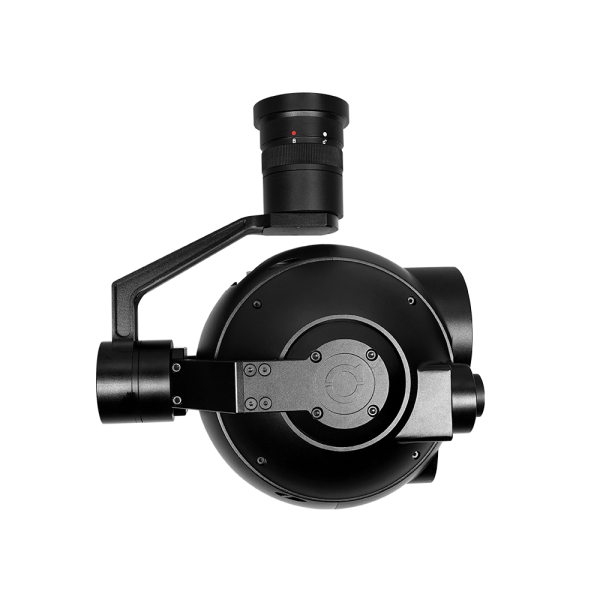

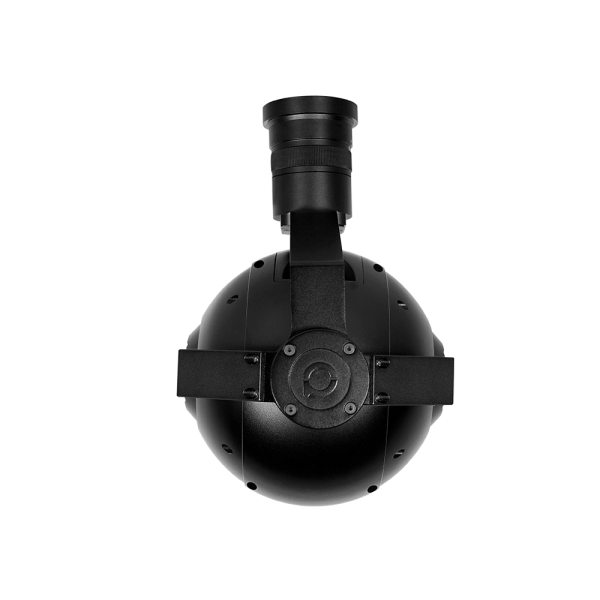

MQ30TIR-1352 Powerful 3-axis Gimbal Camera 30x Optical Zoom SONY Camera and Dual IR Thermal Zoom Sensor Industrial Inspection/search/ firefighting gimbal
China Moneypro
The MQ30TIR-1352 is a professional 3-axis gimbal camera combining a 30x optical zoom SONY camera with dual thermal sensors for superior surveillance and inspection capabilities. Featuring FOC technology-based stabilization, this system delivers crystal-clear imagery even at maximum zoom, recognizing vehicles and structures from 3000 meters away. The dual 13mm and 52mm thermal sensors provide flexible field of view options, from wide 45.4-degree coverage to narrow 11.9-degree targeting with 4x thermal zoom. Advanced object tracking algorithms enable stable target acquisition with minimal noise. Ideal for public safety, industrial inspection, search and rescue, and firefighting operations, the gimbal offers comprehensive visible light and thermal imaging simultaneously in picture-in-picture format, ensuring operators gain critical situational awareness for informed decision-making.
Q30TIR-1352 is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera and dual thermal zoom sensor. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. With dual 13mm & 52mm thermal sensor, it features wide field of view to cover large areas in a single flight or narrow in on a target with 1x to 4x zoom for enhanced image detail. It s widely used in public safety, industrial inspection, search, and firefighting.

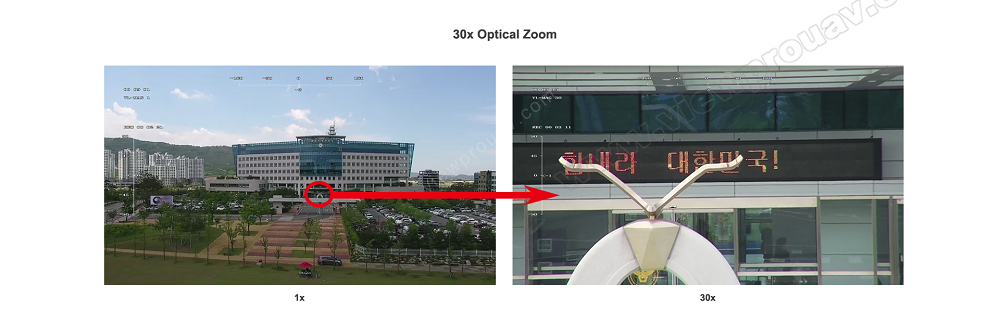

30x Time Optical Zoom EO Camera
Powered by 30x optical zoom high resolution camera module, Q30TIR-1352 can recognize cars, buildings and structures in 3000 meters, which can meet the application requirements of various domains.
Visible Light and Thermal Imager Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

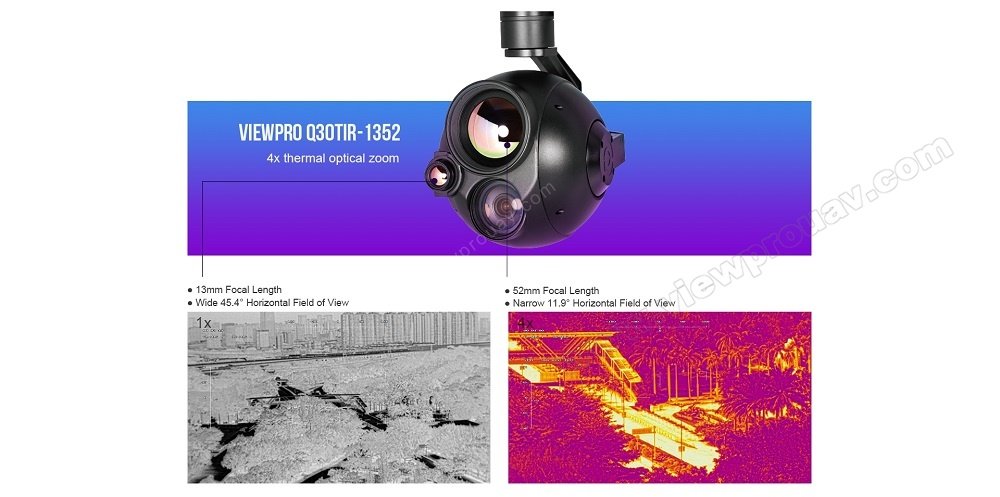

High Resolution Dual Thermal Zooming Camera
Integrated French ULIS high-precision uncooled long wave (8 m ~14 m ) thermal image sensor, Q30TIR-1352 can record and transmit thermal image and visible images at the same time in PIP format. 4x thermal zooming can realize when IR sensor swithes from 13mm to 52mm, this system provides a wide 45.4 field of view for maximum situational awareness and a narrow 11.9 field of view to get the most thermal pixels on your target. Viewpro Q30TIR-1352 allows people to gain thermal FOV flexibility for improved image detail and magnification to assess situations and make critical decisions.
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1000mA @ 12V |
| Idle current | 830mA @ 12V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 60fps) / IP (720p) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |
| Control method | PWM / TTL / S.BUS / TCP(IP output) |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -40 110 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP / SDI output version) |
| Angle scope of software design | Pitch/Tilt: -35 90 , Yaw/Pan: 290 / 360 *N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| RGB Camera spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/ Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| RGB Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| IR Thermal Imager 1 Spec | |
| Lens | 52mm |
| Horizontal FOV | 11.9 |
| Vertical FOV | 9 |
| Diagonal FOV | 14.9 |
| Detective Distance (Man: 1.8 0.5m) | 1529 meters |
| Recognize Distance (Man: 1.8 0.5m) | 382 meters |
| Verified Distance (Man: 1.8 0.5m) | 191 meters |
| Detective Distance (Car: 4.2 1.8m) | 4690 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1173 meters |
| Verified Distance (Car: 4.2 1.8m) | 586 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 60mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~120 (For thermometry version only) |
| IR Thermal Imager 2 Spec | |
| Lens size | 13mm |
| Horizontal FOV | 45.4 |
| Vertical FOV | 34.8 |
| Diagonal FOV | 55.2 |
| Detective Distance (Man: 1.8 0.5m) | 382 meters |
| Recognize Distance (Man: 1.8 0.5m) | 96 meters |
| Verified Distance (Man: 1.8 0.5m) | 48 meters |
| Detective Distance (Car: 4.2 1.8m) | 1173 meters |
| Recognize Distance (Car: 4.2 1.8m) | 293 meters |
| Verified Distance (Car: 4.2 1.8m) | 147 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 60mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| IR Thermal Imager Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 1395g |
| Product meas. | 172.9*127.7*198.6mm |
| Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
