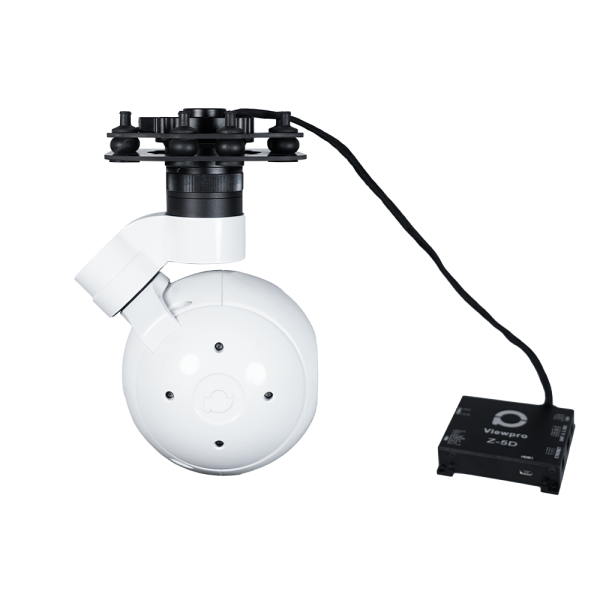

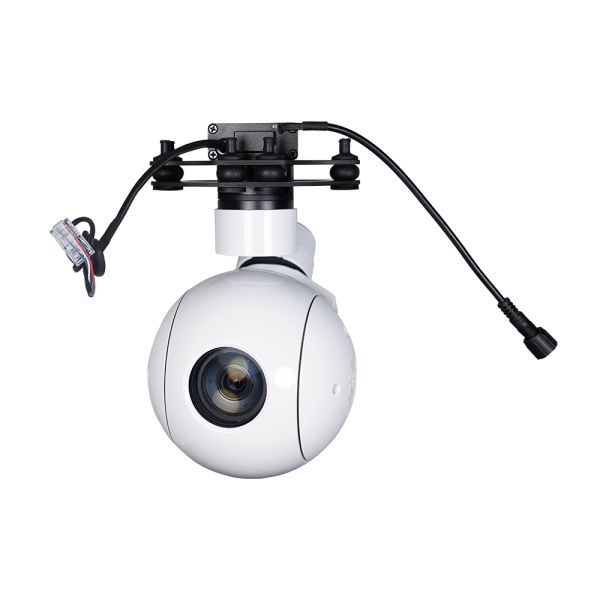

MQ30T Pro II 30x Optical Zoom Object Tracking Gimbal Camera

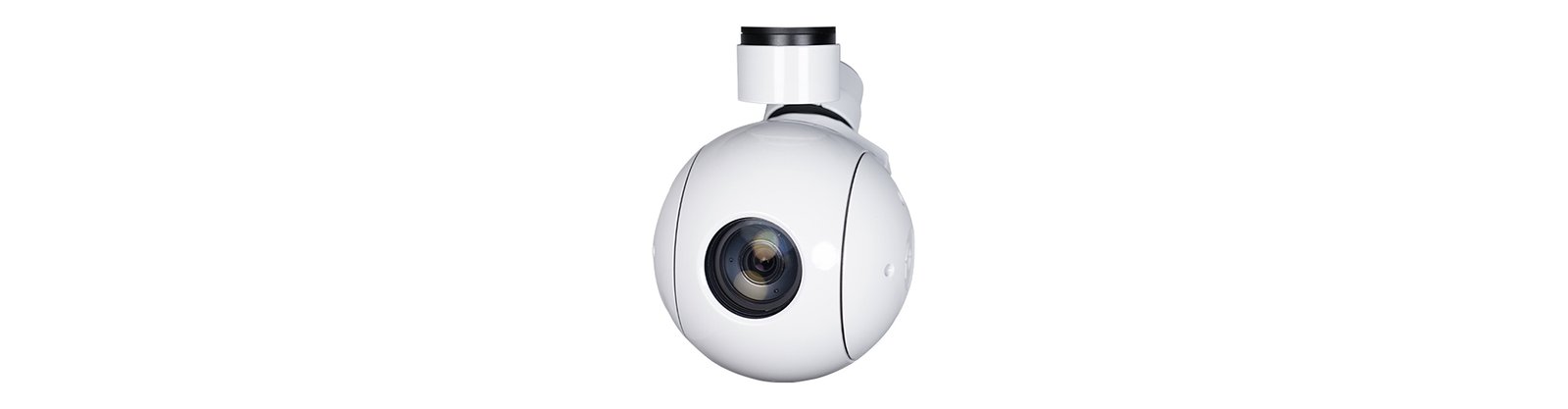

The MQ30T Pro II is a professional 30x optical zoom gimbal camera designed for UAV aerial photography. Powered by a SONY 1/2.8 Exmor R CMOS sensor, it delivers stunning Full HD 1080p video with exceptional low-light performance at 0.01lux. The advanced 30x optical zoom provides observation ranges up to 500 meters while maintaining image stability. Built-in object tracking technology with intelligent algorithms ensures precise target acquisition and tracking at speeds up to 48 pixels per frame. The lightweight 3-axis gimbal features ultra-reactive motors and vibration compensation for smooth, professional footage. With 360-degree continuous yaw rotation, multiple output options including SDI, HDMI, and IP streaming, plus SD card local storage, this camera is ready to install and fly. Perfect for surveillance, inspection, and professional aerial applications.
The Q30T Pro is equipped with a 30x optical zoom lens and powered by a SONY 1/2.8 Exmor R CMOS sensor. It supports full HD 1080p video and features rapid auto-focus, making it ideal for UAV aerial photography. Its lightweight build, combined with a 3-axis gimbal, ensures highly responsive motor performance. The FOC solution greatly enhances vibration compensation during UAV flight. With default SDI output, the yaw axis supports continuous 360° rotation. Additionally, the Q30T Pro offers target tracking capabilities, delivering stable imagery even at maximum 30x zoom. All parameters are pre-tuned—simply mount the gimbal camera onto your UAV and take off.

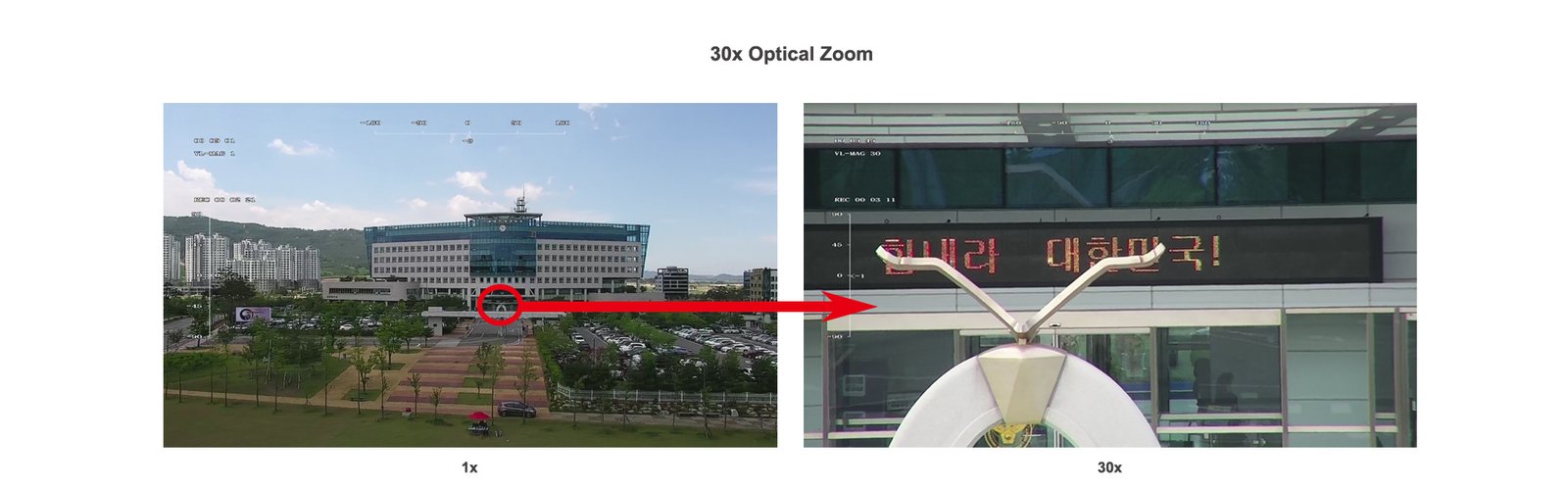

SONY 30x Optical Zoom Camera
Powered by a SONY 1/2.8 Exmor R CMOS module, the Q30T Pro delivers a starlight-level minimum illumination of just 0.01 lux at F1.6, enabling it to capture clear image details even in extremely low-light conditions. With 2.13 effective megapixels and 1080p HD resolution, along with 30x advanced optical zoom, it offers an observation distance of up to 500 meters, making it suitable for a wide range of application scenarios.

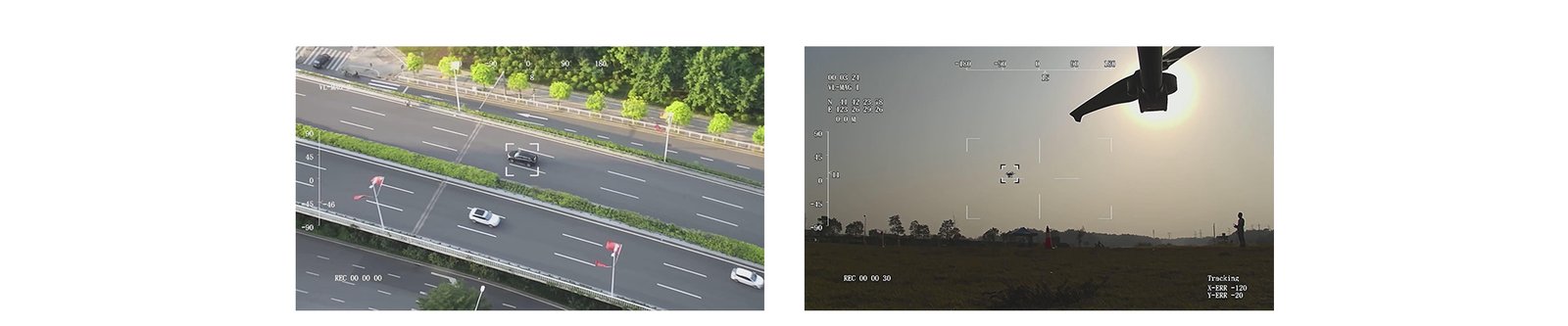

Built-in Object Tracking
The system employs built-in normalization, cross-correlation, and a tracking algorithm integrated with an object missing recapture mechanism to ensure robust target locking. It supports customizable OSD characters, adaptive gate, cross cursor, and trajectory information display. With a tracking capability of up to 32 pixels per frame and an object size ranging from 16×16 to 160×160 pixels, the system operates reliably at a minimum signal-to-noise ratio (SNR) of 4 dB. The root mean square (RMS) error of pulse noise at the object position is less than 0.5 pixels, significantly enhancing both tracking precision and overall performance.
Multi Output Methods Optional
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 520~1500mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | SMB read / HTTP read |
| Control method | PWM / TTL / S.BUS/ TCP (IP output version)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal spec | |
| Mechanical Range | Pitch/Tilt: -55 120 , Roll: 40 , Yaw/Pan: 300 / 360 *N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -45 115 , Yaw/Pan: 290 / 360 *N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera spec | |
| Imager Sensor | SONY 1/2.8 Exmor R CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7 (wide end) ~ 2.3 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/ Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 895g / 960g (Viewport version) |
| Product meas. | 128.2*104.9*183.9mm / 128.2*104.9*189.6mm(Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2052g |
| Package meas. | 300*250*200mm |
