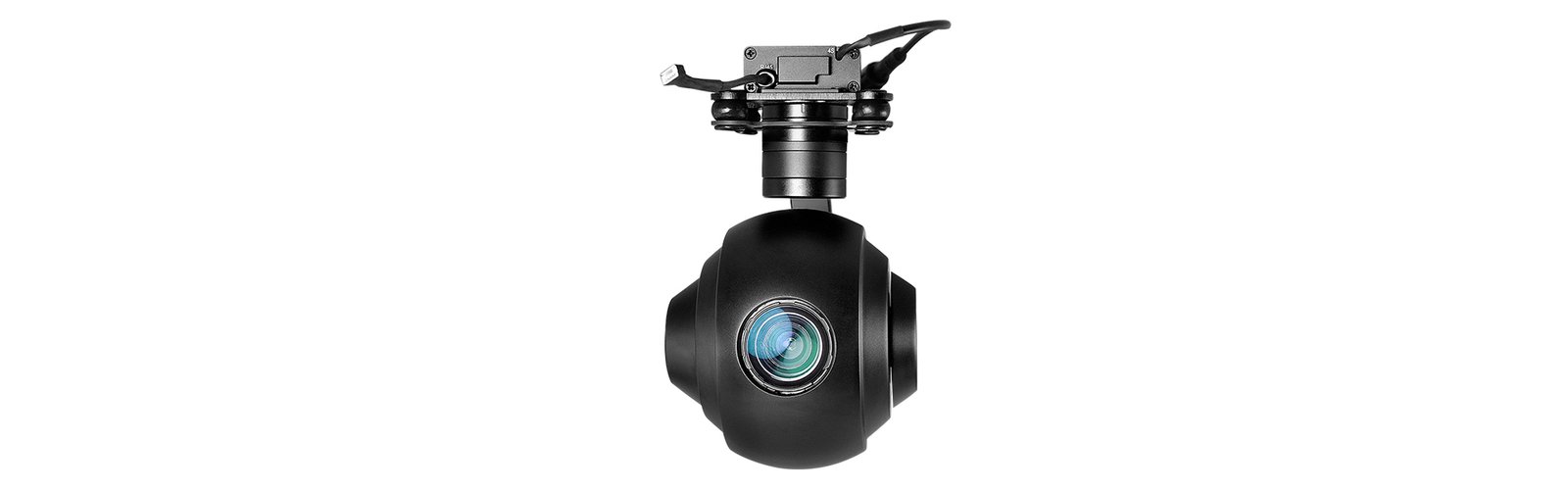

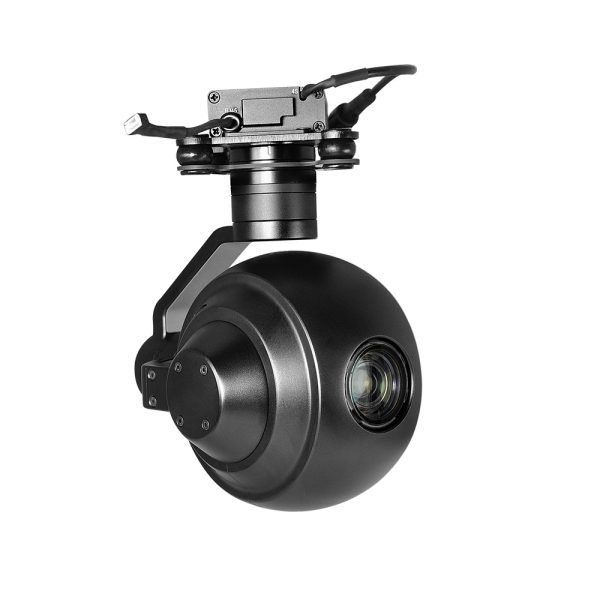

MQ20T 20x Optical Object Tracking Gimbal Camera
China Moneypro
The MQ20T is a professional 3-axis gimbal camera featuring SONY 20x optical zoom 4K technology with exceptional low-light performance at 0.01 lux. Built-in auto-tracking delivers stable target acquisition with advanced algorithms and minimal tracking error under 0.5 pixels. The lightweight aluminum alloy housing provides superior anti-interference and thermal management. Outputs 1080p FHD video with OSD and supports GPS geo-tagging. Multiple connectivity options include HDMI, Ethernet IP, and 360-degree endless pan capability. Precise stabilization system with automatic thermal compensation eliminates drift. Observation range extends to 2000 meters. Supports PWM, TTL, and S.BUS control methods. Ideal for UAV applications requiring professional surveillance and tracking across various domains.
The Q20T is a 3-axis gimbal camera designed for UAVs, offering 20x optical zoom, 4K EO imaging, and an auto tracking function. Its aluminum alloy housing ensures a lightweight structure while delivering strong anti-interference capability and effective heat dissipation. The camera outputs and records FHD 1080p video with on-screen display (OSD). When connected to a GPS module, it supports geo-tagging. Thanks to a high-precision stabilization system and an automatic thermal compensation algorithm, the gimbal achieves reliable stabilization performance without thermal drift.
SONY 20x Time Optical Zoom 4K Camera
Powered by a SONY 1/2.5 Exmor R CMOS module, this device delivers a minimum illumination of just 0.01 lux at F1.6, along with 8.51 effective megapixels and Full HD 1080p image quality. Equipped with 20x advanced optical zoom, it enables an observation range of up to 2000 meters, making it suitable for a wide variety of application scenarios across different fields.
Built-in Auto-tracking Function
By incorporating built-in normalization, cross-correlation, and a tracking algorithm along with a recapture mechanism for lost objects, stable target following is achieved. The system supports customizable user OSD characters, adaptive gating, a cross cursor, and trace information display. With a tracking speed of up to 32 pixels per frame and object sizes ranging from 16×16 to 160×160 pixels, the algorithm maintains stable performance even at a minimum signal-to-noise ratio (SNR) of 4 dB. The root mean square error of pulse noise at the object position is below 0.5 pixels, significantly enhancing tracking precision and overall effectiveness.
Multi Output Methods Optional
The Q20T supports both HDMI and Ethernet/IP output. HDMI provides 1080p resolution, while the default Ethernet output is set to 720p, though recordings are made in 1080p. Additionally, the IP output enables 360-degree endless pan functionality.
Multi Control Methods
Standard PWM and TTL serial port control are supported, with SBUS available as an option. Using Viewpro’s Viewlink software, you can enable IP streaming and TTL control.
Control box signal interfaces:
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 900mA @ 12V |
| Idle current | 800mA @ 12V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI1080P60/IP (4K 2160P/1080p25 30 optional) |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) (4K/1080p optional) |
| Control method | PWM / TTL / S.BUS |
| Gimbal spec | |
| Mechanical Range | Pitch/Tilt: -125 125 , Roll: 70 Yaw/Pan: 300 / 360 *N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -45 90 , Yaw/Pan: 290 / 360 *N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera spec | |
| Imager Sensor | SONY 1/2.5 Exmor R CMOS |
| Total pixel | 8.51MP |
| Signal system | 4K: 2160P/29.97,2160P/25 FHD: 1080P/59.94,1080P/50,1080i/59.94,1080i/50,720P/59.94,720P/50 |
| Lens optical zoom | 20x, F2.0 to F3.8 |
| Digital zoom | 12x (240x with optical zoom) |
| Min.working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Angle of view ( H ) | 70.2 (Wide end) ~ 4.1 (Tele end) |
| Sync system | Internal/External |
| S/N ratio | 50dB |
| Photo storage format | JPG (4K:3840*2160/1080P:1920*1080) |
| Video storage format | MP4 (2160P 25fps/30fps or 1080P 25/30fps) |
| Min illumination | 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic Shutter speed | 1/1 to 1/10000 sec. (22 steps) |
| Noise reduction | On/Off (level 5 to 1/ Off, 6 steps) |
| Defog mode | On/Off (Low, Mid, High) |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180 , Horizontal/Vertical mirror image |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 ~ 192 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 663g (Viewport version) |
| Product meas. | 105*140.6*150.3mm |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards Hight quality plastic box with foam cushion |
| Package meas. | 260*180*280mm |
