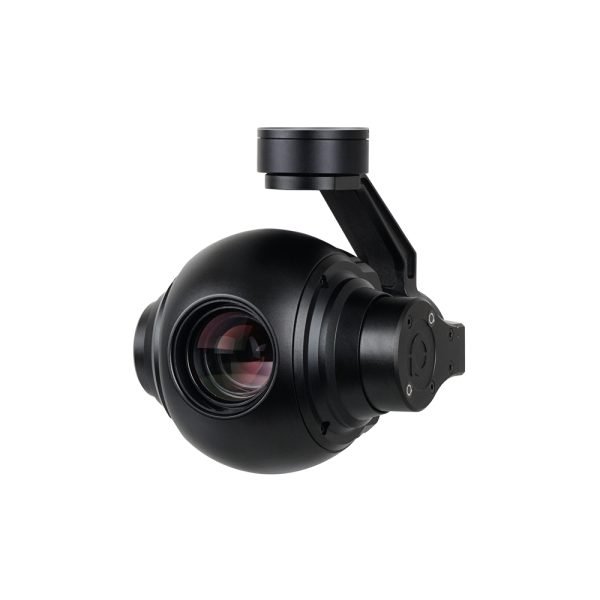

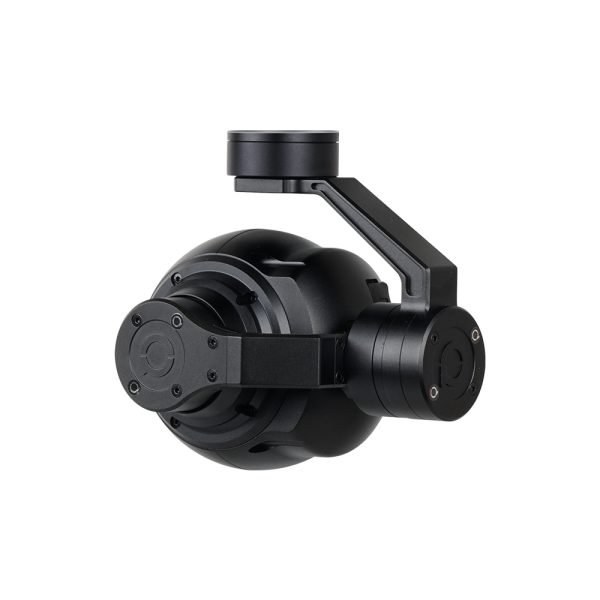

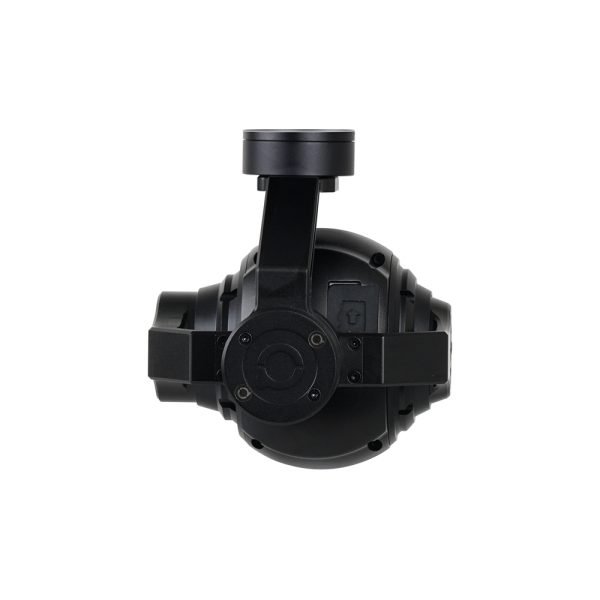

MQ10N / Q10E 10x Optical Zoom Gimbal Camera

Professional 3-axis High-precise FOC Program

The Q10E is a high-performance gimbal system specifically developed for 10X zoom cameras used in drone-based aerial inspections, surveillance operations, and search and rescue tasks. It integrates an HD camera with 10X optical zoom capability and a highly stable 3-axis gimbal, enabling the capture and recording of 1080p video at 30 frames per second directly onto an onboard TF card. This provides a reliable aerial perspective that can be managed either by the drone operator or a separate user, offering an efficient overhead view for covering extensive ground areas quickly. With its 10X zoom function, you can maintain a safe distance while getting a close-up look at any object or area requiring your focus.

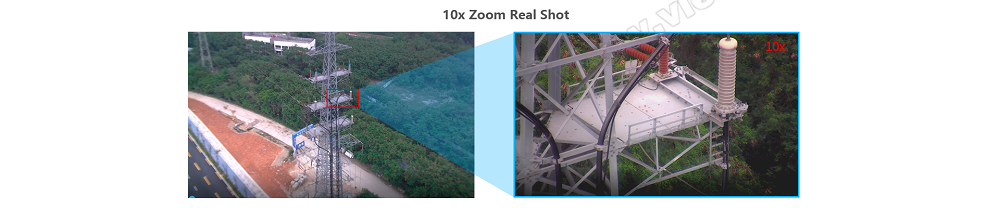

10x Optical Zoom Camera

The Q10E gimbal and camera system is equipped with a 10x optical zoom lens. It integrates a 1/3-inch CMOS sensor module delivering approximately 2.48 million effective pixels. With a color low-light sensitivity of 0.05 lux at F1.6, it ensures clear image capture even in poorly lit conditions. The camera also offers a 105dB wide dynamic range, enabling it to retain details in both overexposed and shadowed areas when dealing with backlighting or strong light. Supporting 2.48 megapixels, the Q10E provides 10x optical autofocus and records high-definition 1080P video. Designed specifically for UAV aerial photography, it utilizes a fast-focus algorithm tailored for aerial scenarios, achieving a focus time of under one second.

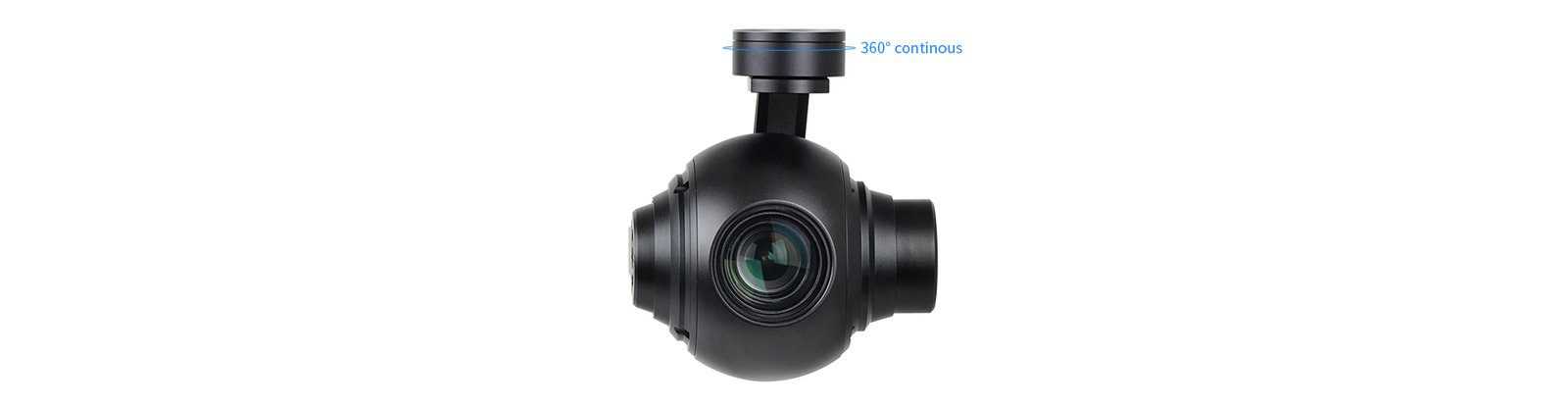

IP Output with 360 degrees continuous

The Q10E supports IP output with seamless 360-degree rotation. By default, the IP output is set to 720P.

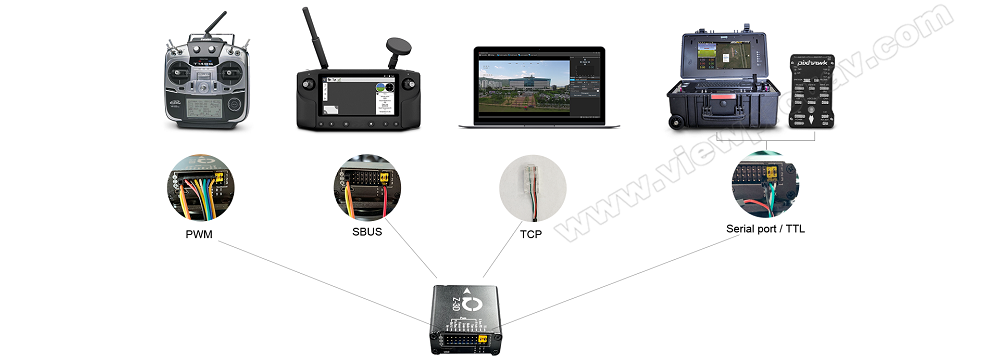

Multi Control Methods

Standard interfaces include PWM, TTL serial port, and TCP control, with SBus available as an option. TTL control can be realized using Viewpro’s Viewlink software.

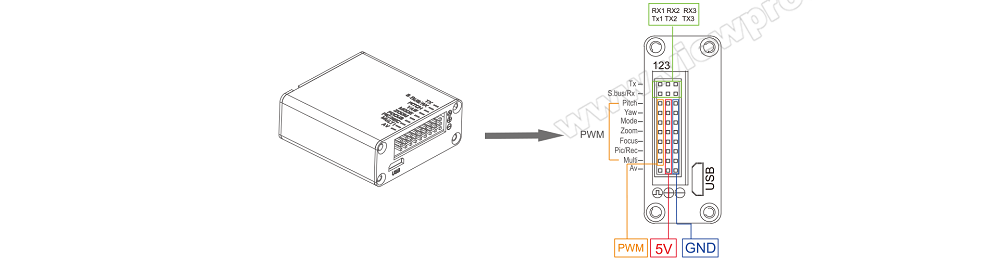

Control box signal interfaces:

Compatible with Viewport

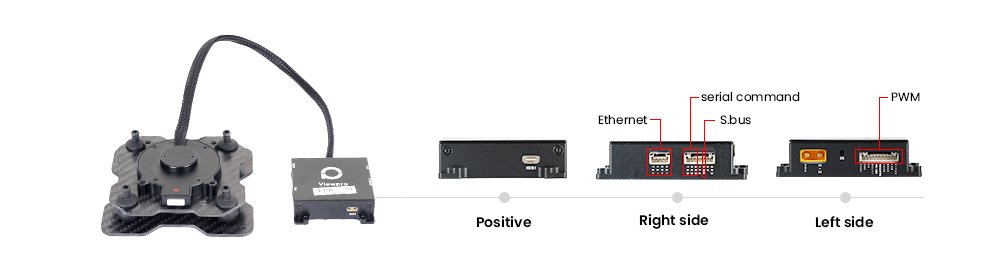

Q10E is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Dimensions

Applications

Q10E have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.
