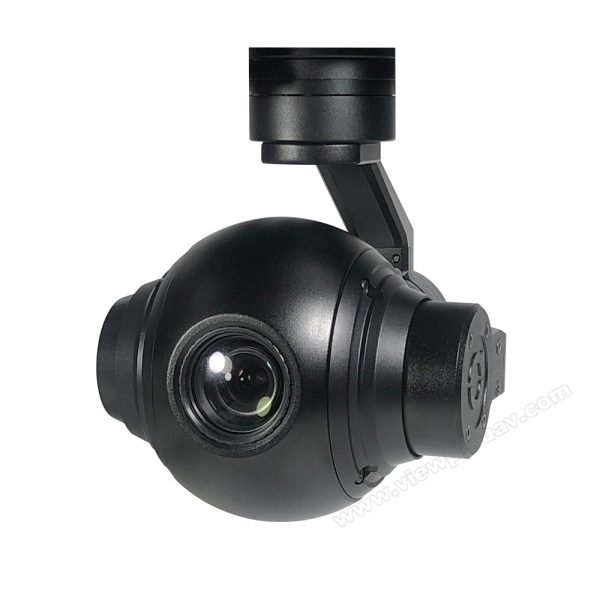

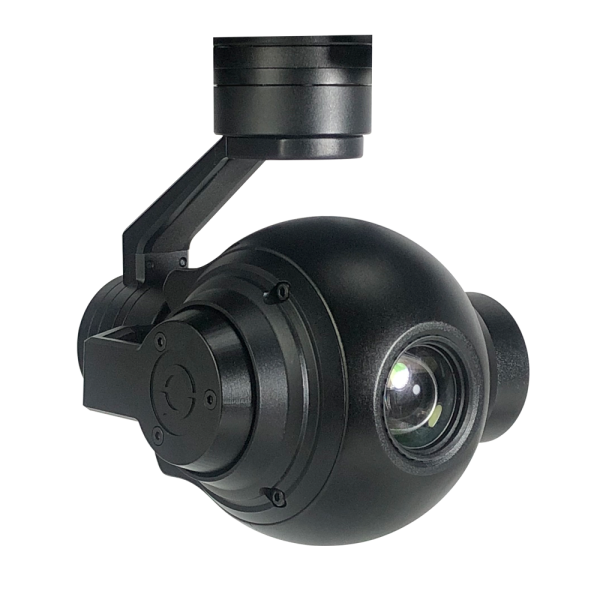

MQ10F 10x Zoom Camera
China Moneypro
The MQ10F 10x Zoom Camera is a professional 3-axis gimbal camera system designed for UAV aerial photography. Featuring a sophisticated 3-axis stabilization system with 0.01-degree control accuracy, it delivers smooth, stable footage even during high-speed flight. The camera boasts a 10x optical zoom lens with a 1/3-inch CMOS sensor capturing 4 million effective pixels in HD 1080p video. Its compact, lightweight design makes it ideal for various aircraft types including drones, helicopters, and fixed-wing planes. The system supports multiple output methods including HDMI 1080p and AV 720p, plus flexible control options via PWM, Serial TTL, and optional Sbus. Compatible with Viewpro’s quick-release Viewport connector for easy assembly and plug-and-play operation, the MQ10F is widely used in public security, power inspection, fire response, and professional zoom aerial photography applications.
Professional 3-axis High-precise FOC Program
The Q10F features a highly refined 3-axis camera gimbal driven by a dedicated processor, delivering motor control precision as fine as 0.01. Full 300° rotation is supported via the gimbal’s articulation, allowing for smooth and stable footage even during high-speed flight.
10x Optical Zoom Camera
The Q10F gimbal and camera system is equipped with a 10x optical zoom lens. It features a 1/3-inch CMOS sensor with approximately 4 million effective pixels, capable of recording HD 1080p video. The camera offers fast autofocus and a compact form factor, making it ideal for UAV aerial photography. By adopting a field-oriented control (FOC) solution, we effectively compensate for UAV vibrations, ensuring stable image output even at full 10x optical zoom.
3-axis Samll Size Gimbal Camera

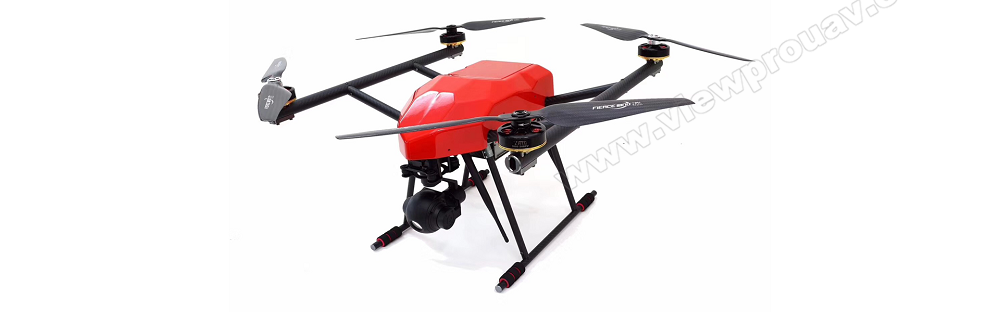

The Q10F is a professional three-axis gimbal designed for high stability, compactness, lightweight operation, and minimal power usage. It is well suited for various aerial platforms, including UAVs, helicopters, fixed-wing aircraft, and rotary-wing aircraft.

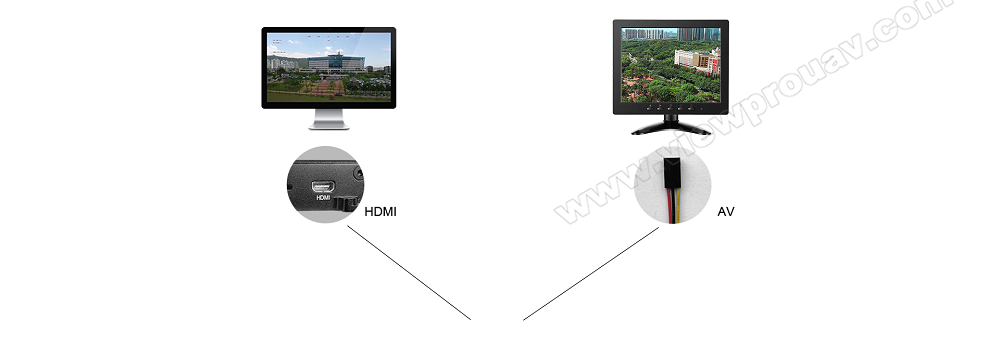

Multi Output Methods Optional
The Q10F support HDMI and AV output. HDMI is 1080P and AV output is 720p.

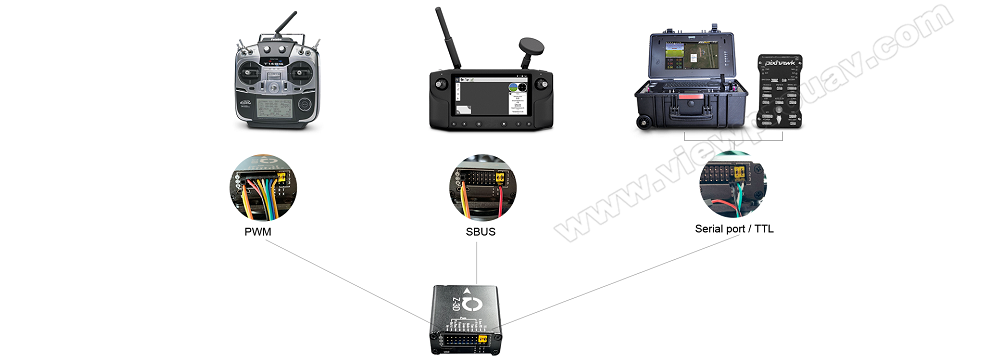

Multi Control Methods
PWM and TTL serial port control come as standard, while SBus support is available as an option. Using Viewpro’s Viewlink software, you can achieve full TTL control.

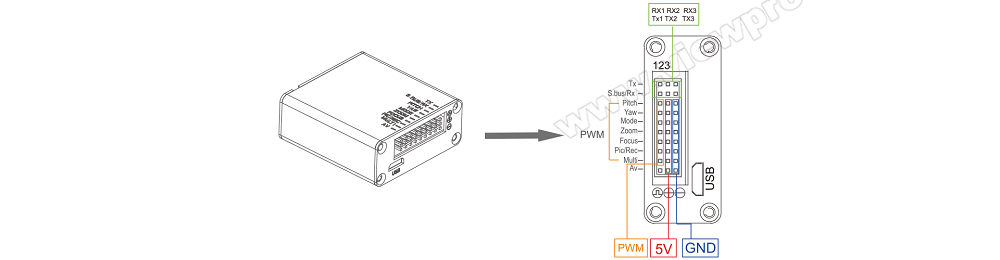

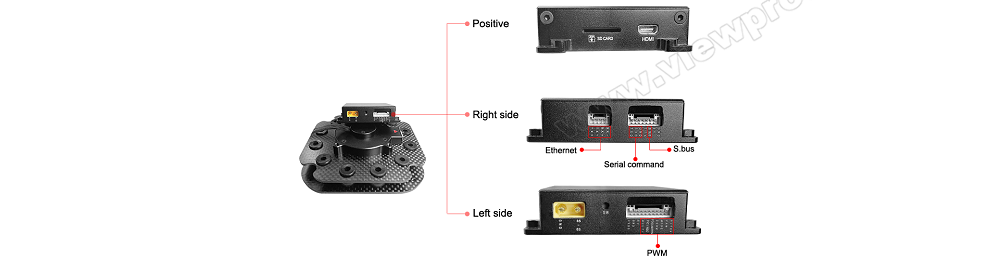

Control box signal interfaces:
Applications
The Q10F has been extensively adopted across multiple sectors, including public security, electric power systems, firefighting operations, and zoom aerial photography, as well as in various other drone-related applications.
Compatible with Viewport
Q10F is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

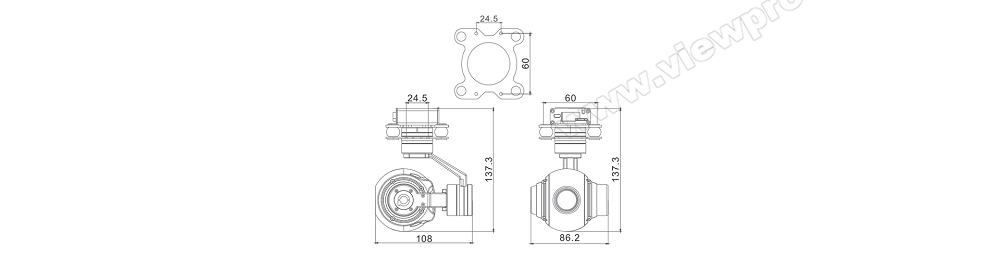

Dimensions
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 180~500mA @ 16V |
| Working environment temp. | -20 ~ +50 |
| Output | micro HDMI(HD output 1080P 60fps/30fps) / Analog |
| Local-storage | SD card (Up to 32G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG (1920*1080) |
| Video storage format | MOV (1080P 30fps) |
| Control method | PWM / SBUS / TTL |
| Geotagging | not support |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: 120 , Roll: 70 , Yaw/Pan: 300 |
| Controllable Range | Pitch/Tilt: -45 90 , Yaw/Pan: 290 |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| Camera Spec | |
| Image Sensor | 1/3inch CMOS |
| Total pixel | 4MP |
| Effective pixels | 2688*1520 |
| Dynamic range | 65dB |
| Lens | 5MP |
| Optical zoom | 10x, F=4.9~49mm |
| Min focus distance | 1.5m |
| Scope of observation | Horizontal: 53.2 (close focus) ~ 5.65 (far focus) |
| Vertical: 39.8 (close focus) ~ 4.2 (far focus) | |
| Focus: 66.6 (close focus) ~ 7.2 (far focus) | |
| Sync system | Progressive scanning |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
| Analog output | Standard CVBS 1Vp-p |
| SNR | 38dB |
| Min illumination | Chromatic color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light suppression |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter | Auto |
| Control system | UART/IR/PWM |
| Communication protocol | PELCO-D, Hitachi protocol or VISCA |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180 , Horizontal/Vertical mirror image |
| OSD | Not support |
| Camera Object Tracking(Optional) | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 4s |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 437g / 530g(Viewport version) |
| Product meas. | 108*86.2*140.6mm / 108*86.2*146.3mm(Viewport version) |
| Accessories | 1pc gimbal camera device with damping system, screws / Hight quality box with foam cushion |
| G.W. | 820g |
| Package meas. | 200*200*150mm |
