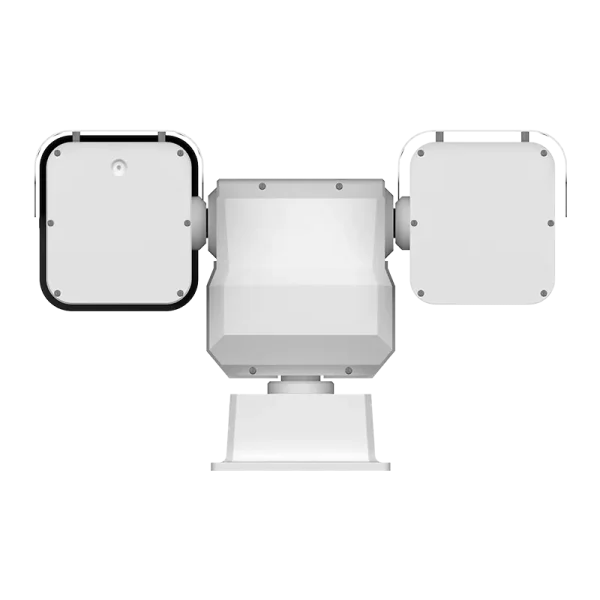

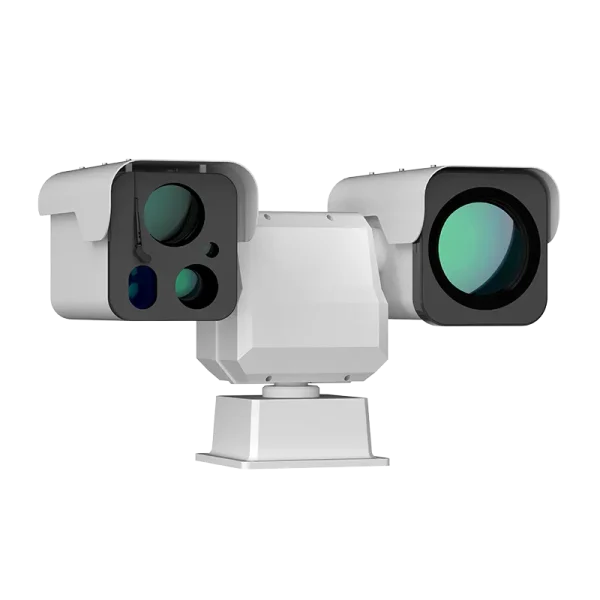

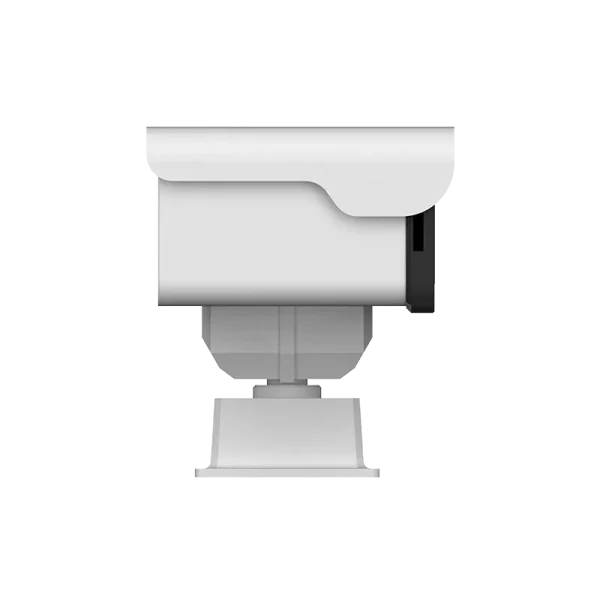

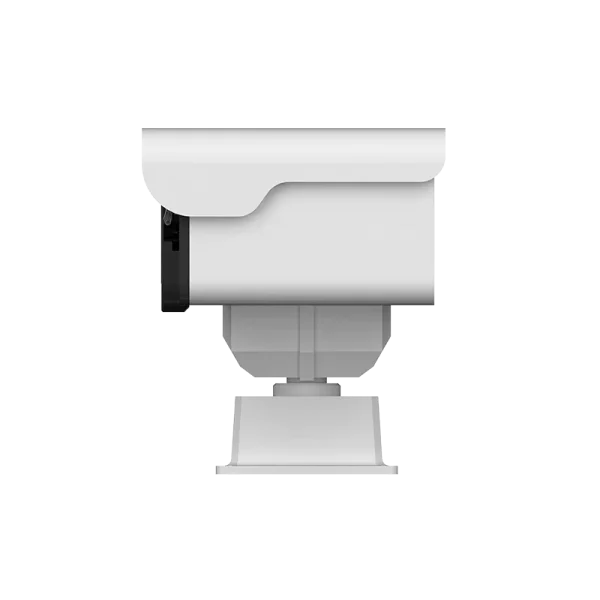

MPC564 Multi-Spectrum PTZ Camera

China Moneypro

PC5 multi-spectral PTZ network camera is designed for forest fire prevention and perimeter surveillance. PC5 is equipping a dual thermal/visible light imaging system, with maximum 150mm thermal lens. Laser rangefinder and laser illumination are optional.

PC5 is powered by NPU for AI-ISP to increase the performance in low light condition, as well as provides the capabilities to recognize the human, vehicle, vessel, smoke, fire point, working with various patrol mode to enable uninterrupted safety monitoring day and night.

Support TPM technology and meeting the FIPS 140-3 Level 3 standard.

Feature

Industry-Leading Infrared Detector

Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.

Multi-Spectrum

Featuring both long range thermal and visible light imaging. addtionally with max. 1.5km laser illumination and 6km laser rangefinder.

Long-Range Detection

Supports 30~150mm continuous zoom lens for thermal imaging cameras and 10~550mm continuous zoom lens for visible light cameras.

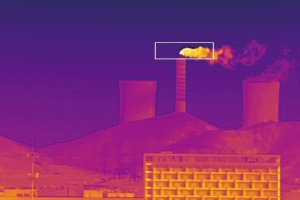

Intelligent Smoke&Fire Detection Algorithm

Support intelligent smoke and fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.

AI-Powered Video Content Analysis

Using Al human/vehicle/vessel recognition for tripwire/intrusion
detection.

Platform Integration

Support ONVlF, provide SDK&demo for development; provide NVR and VMS software for application.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	640×512
Pixel Pitch	12μm
Focal Length	75/100/150/30~150mm
Optical Module
Sensor	1/1.8 inch 4MP CMOS/1/1.25 inch 4MP CMOS
Resolution	2688×1520
Focal Length	6~336mm/10~550mm
IR Illuminator (Optional)
Illuminating Distance	1500m
Laser Wavelength	808nm
LRF (Optional)
Laser Wavelength	1535nm
Measurement Distance	3km
PTZ
Pan	360° continuous，0.1°~100°/s
Tilt	-90°~+90°，0.1°~60°/s
Scan mode	Preset/Tour/Area Scan/Linear Scan/Pattern Scan/Comprehensive Patrol
Smart Function
Smoke & Fire Detection	Support
Fire Detection	Support
Radar Linkage	Support
Zoom Linkage	Support
Smart Record	Alarm trigger recording, disconnection trigger recording (continue transmission after connection)
Smart Alarm	Support alarm trigger of network disconnection, IP address conflict, full memory, memory error, illegal access and abnormal detection
Smart AI Detection	Support smart video analysis such as tripwire & area intrusion detection, support AI human/vehicle/vessel classification
Target tracking	Support
Alarm Linkage	Recording/Snapshot/Sending Email/PTZ linkage/Alarm output
System Interface
Power	DC 48V±15%
Network	RJ45 self-adaptive 10M/100M Ethernet port
Audio	1×input, 1×output
Alarm	1×input, 1×output
Storage	Support Micro SD card (Max.512G)
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<90%RH
Protection	IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Certification	CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3
Power Consumption	≤300W
Dimenstion(mm)	623.6×398.5×350
Weight	30KG
