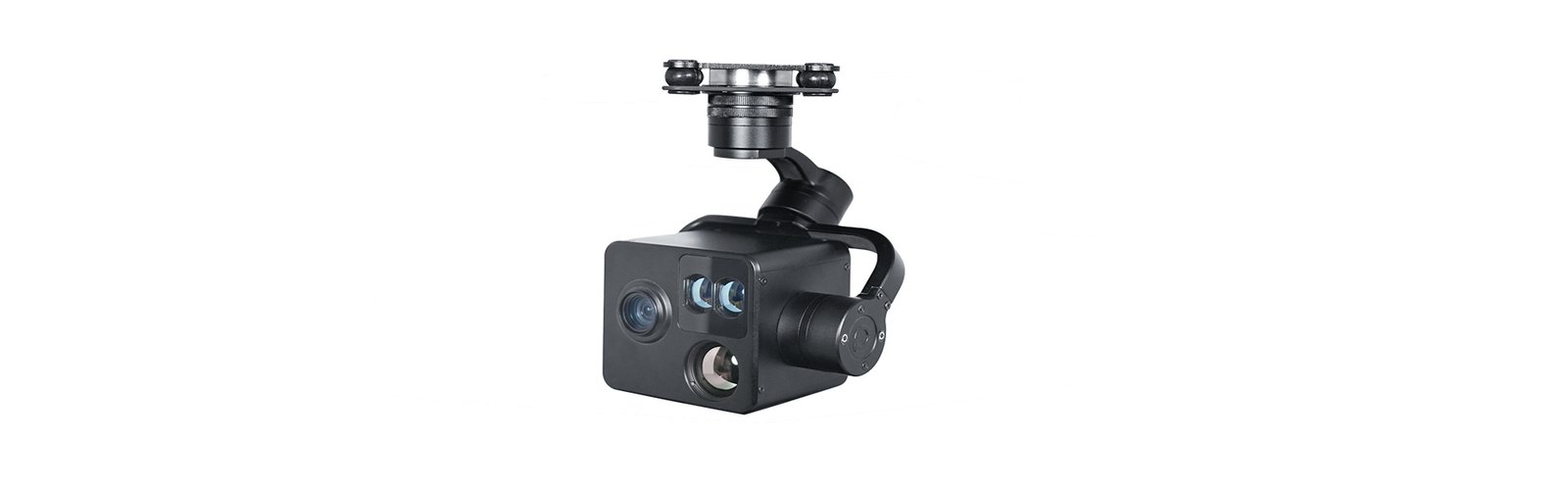

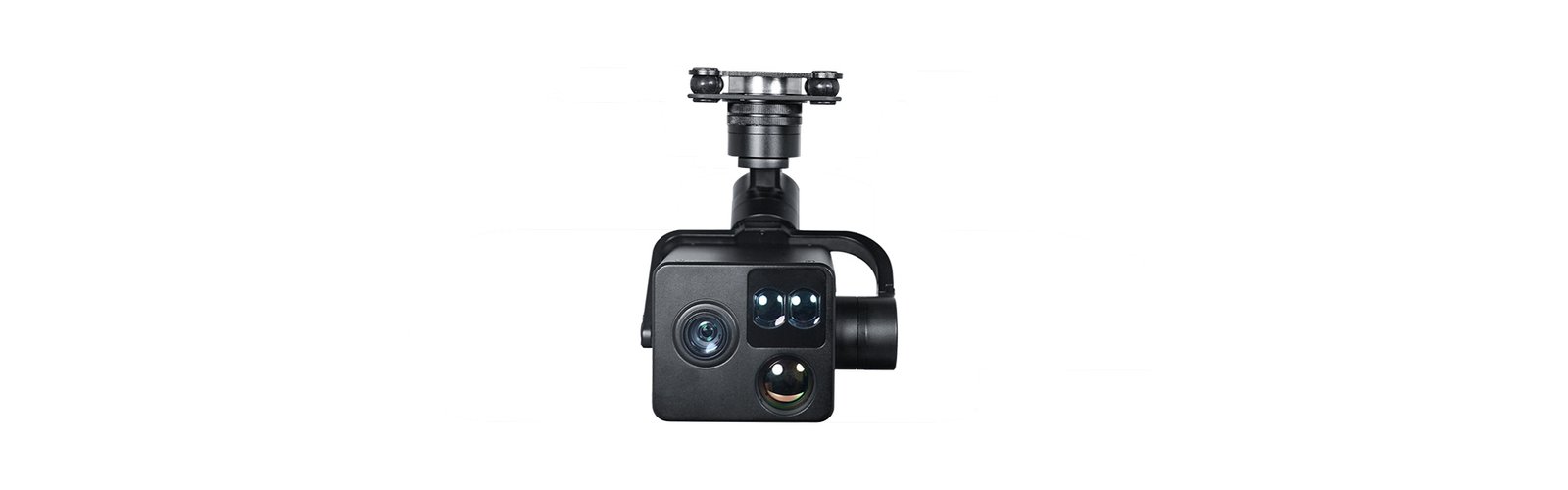

MMini Z10TIRM Dual-sensor Object GPS Coordinate Resolving and LRF Gimbal Camera

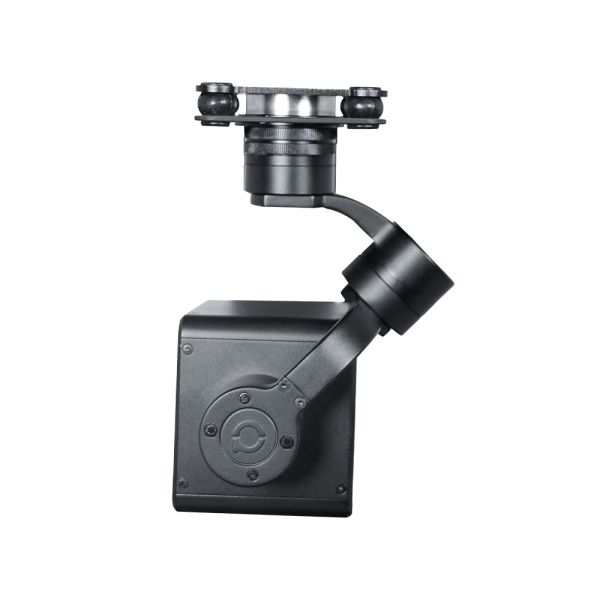

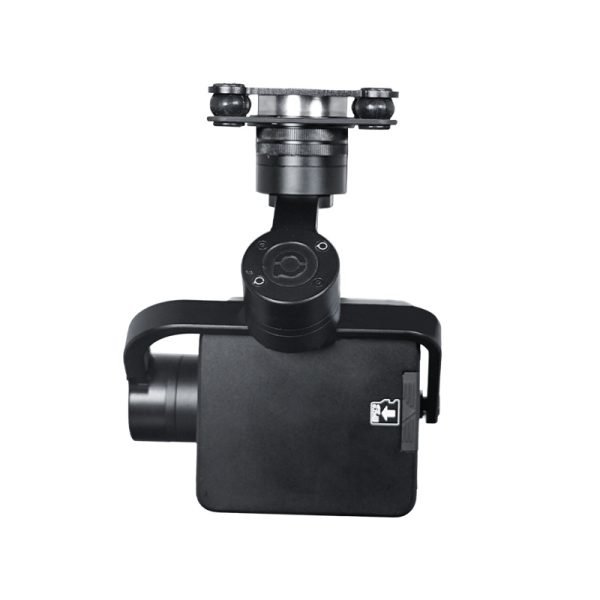

The Mini Z10TIRM features a highly refined 3-axis stabilization system, driven by a dedicated processor that achieves precise motor control with an accuracy of 0.01. Its exclusive mechanical limiting structure and internal wiring design enhance signal stability and overall robustness. Four vibration-damping balls and a lightweight damping plate work together to eliminate unwanted movement, delivering exceptionally smooth video footage. Full 360° gimbal rotation is supported, allowing stable and fluid image capture even during high-speed flight.

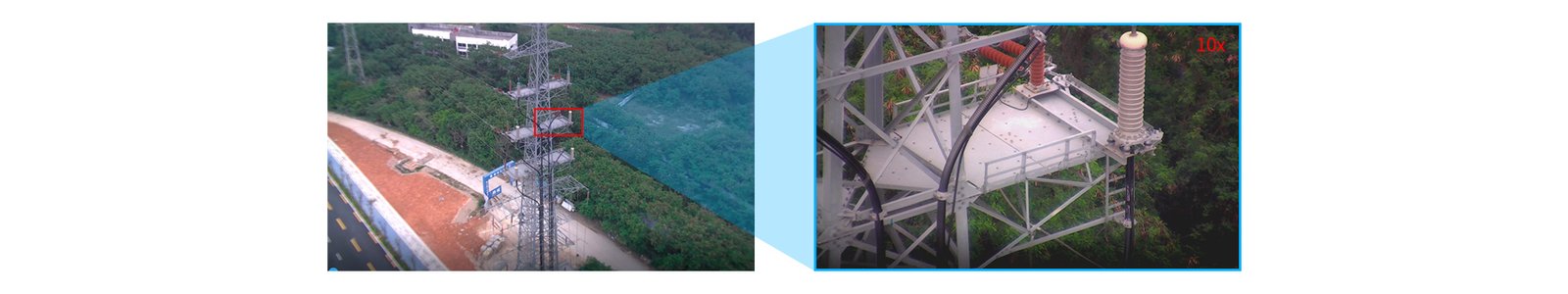

10x Optical Zoom Camera

Powered by a 1/3 CMOS module, this camera delivers 4.08 effective megapixels and supports 10x optical zoom for Full HD 1080P video recording. Specifically engineered for aerial photography, it features fast auto-focus, versatile functionality, and a compact form factor. The camera also offers both TCP and TTL serial control interfaces.

IR+EO Dual Sensors Object Tracking

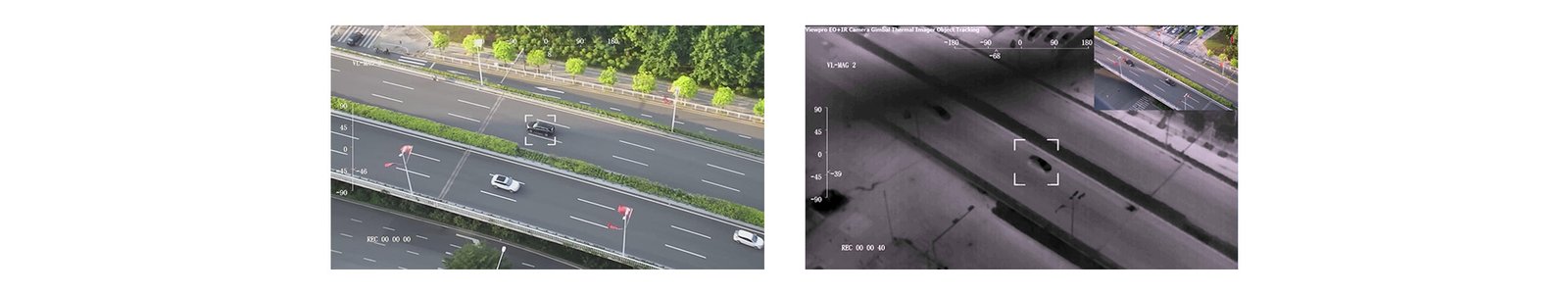

The system integrates built-in normalization, cross-correlation, and tracking algorithms, complemented by a target reacquisition mechanism for lost objects, enabling robust and stable target following. It supports customizable on-screen display (OSD) elements including user-defined characters, adaptive gating, cross cursors, and real-time trail visualization. The tracker achieves a velocity of up to 48 pixels per frame and handles targets ranging from 32×32 to 128×128 pixels. Under a minimum signal-to-noise ratio (SNR) of 4 dB, the root-mean-square (RMS) error of impulse noise in the target’s position remains below 0.5 pixels, markedly enhancing both precision and tracking performance.

GPS Location Resolving

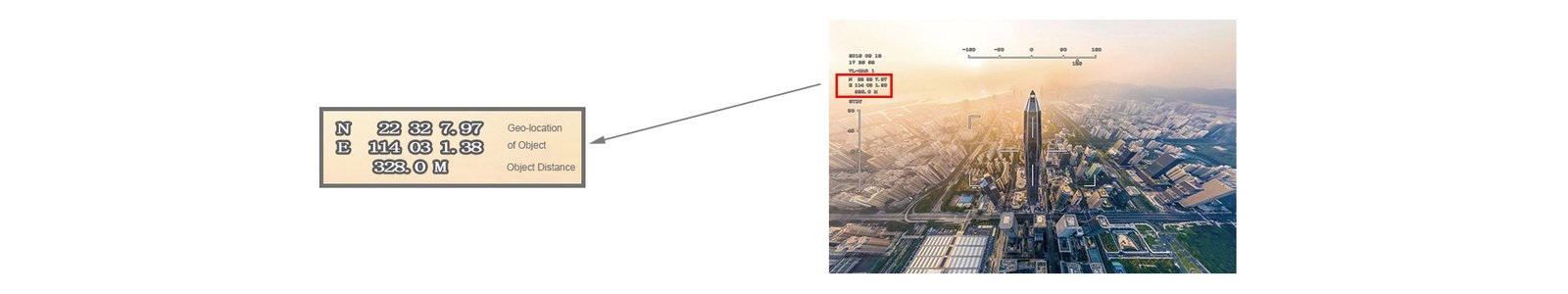

The advanced ranging algorithm is capable of determining an object’s distance within a 1500-meter range, precisely analyzing its latitude and longitude, and presenting the results on-screen. This technology provides significant support for military and police operations.

Output Methods and Control

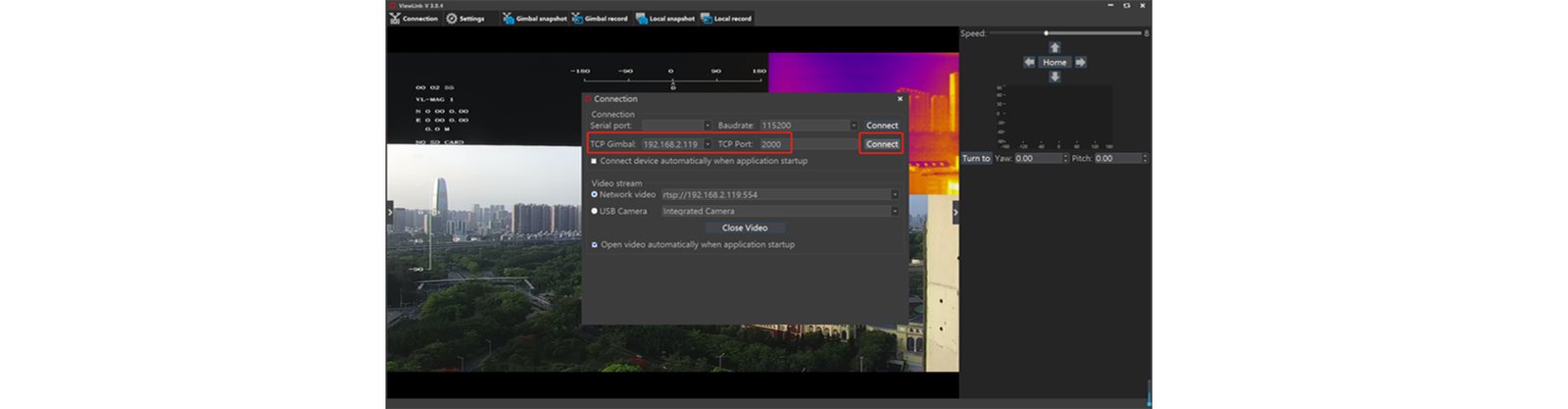

The Mini Z10TIRM features Ethernet/IP output capability. By default, Ethernet output and recording are both set to 1080P. The gimbal supports continuous 360-degree panning with no end stops. Using Viewpro’s Viewlink software, users can enable IP streaming and TTL control. Optional control methods include PWM, S.BUS, or UDP—please contact Viewpro for custom requests.

Application

In law enforcement, firefighting, power tower and pipeline inspection, as well as search and rescue operations, there is a strong demand for versatile monitoring and search capabilities. During emergencies, real-time situation transmission is critical to enhancing response speed and minimizing casualties.
