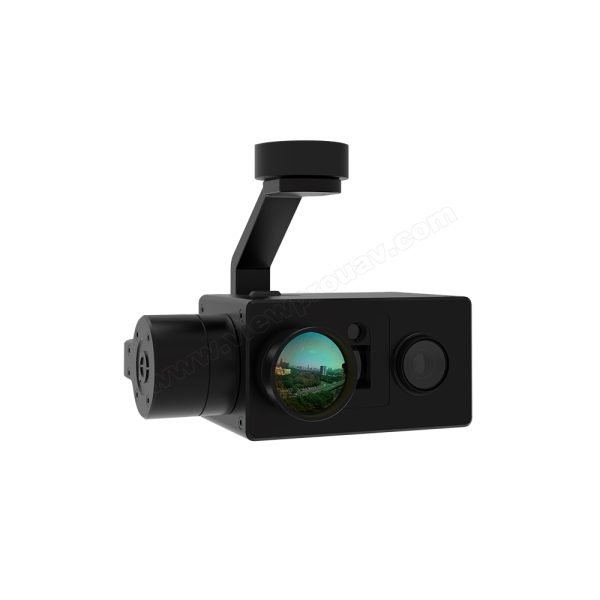

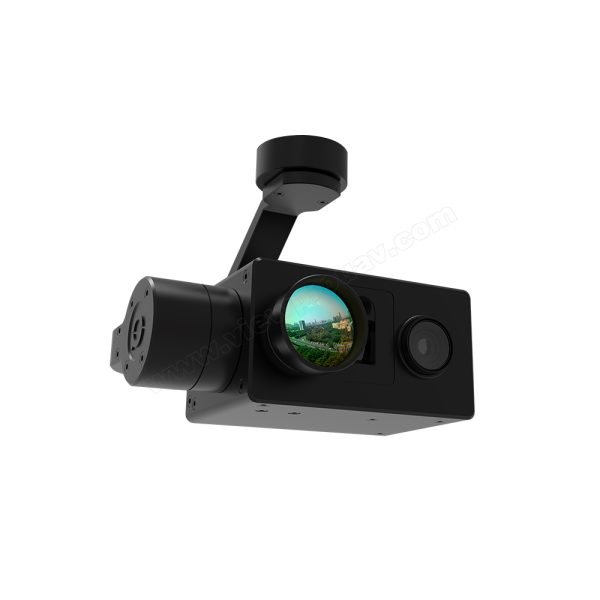

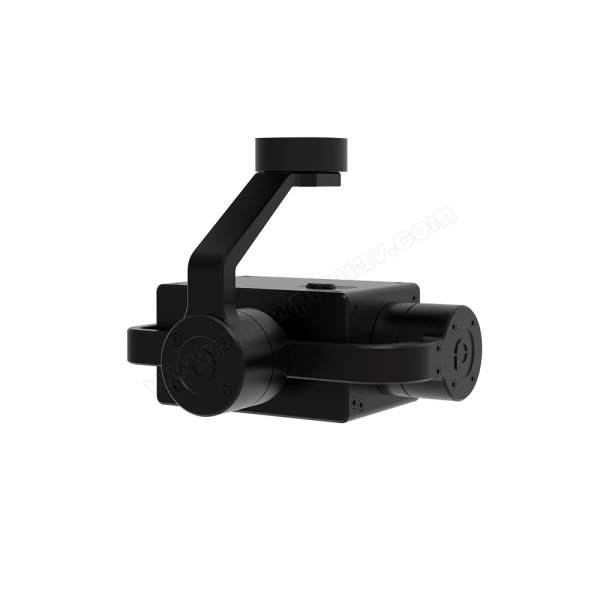

MMicro Z10TIRM Lightest Triple-sensor EO+IR+ Laser Rangefinder Gimbal Camera
China Moneypro

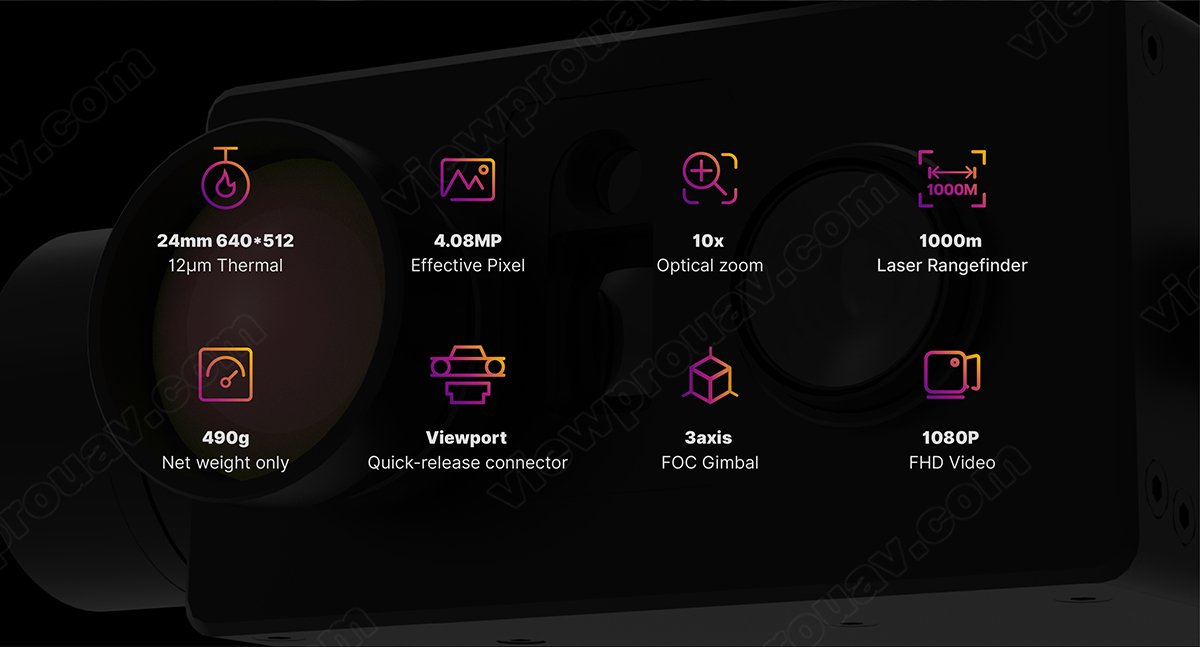

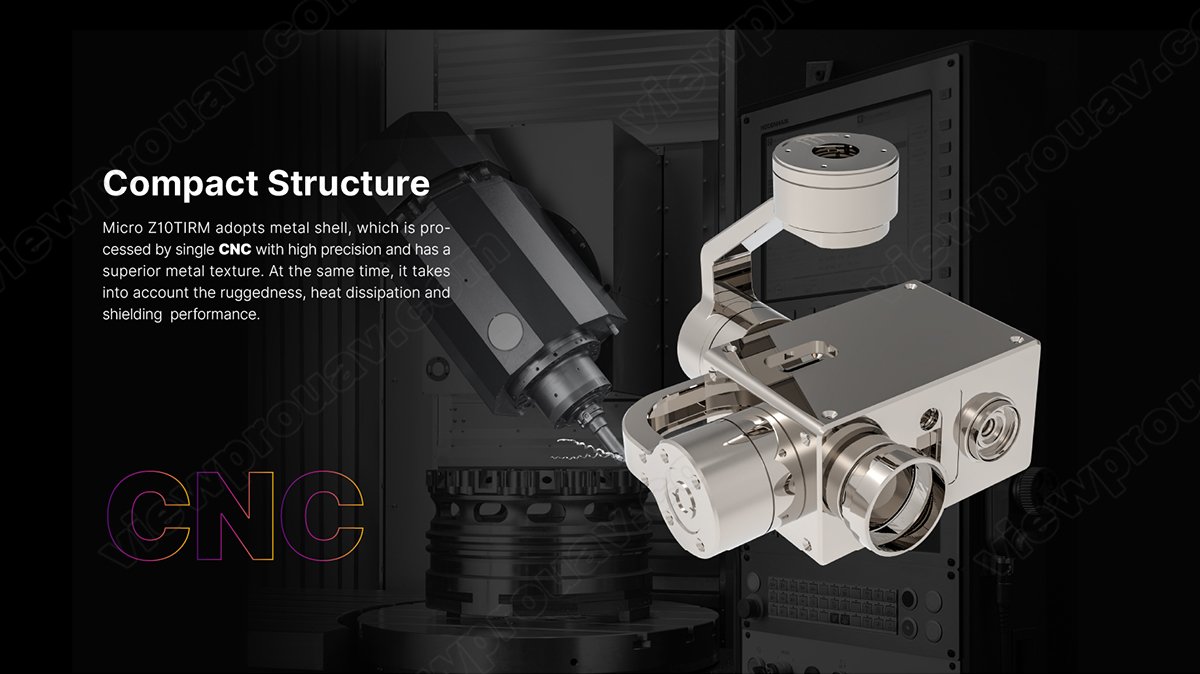

MMicro Z10TIRM is a lightweight triple-sensor gimbal camera with laser rangefinder, with 499g wight it integrates 10x optical zoom camera, 24 mm 640*512 IR thermal sensor and 1000m laser rangefinder. As an upgraded version of Mini Z10TIR, it is more powerful while maintaining its small size and lightweight. Micro Z10TIRM can be installed on rotary-wing drones for public safety, first response, power line inspection, disaster prevention, emergency monitoring inspections, search and rescue, etc.

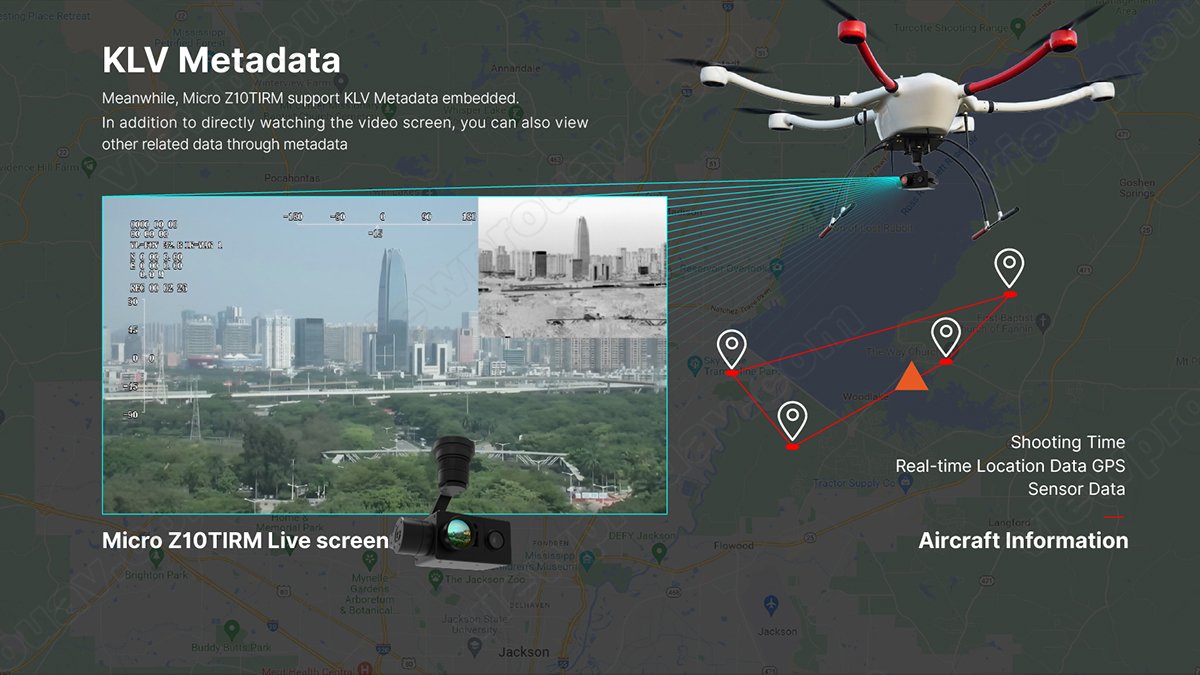

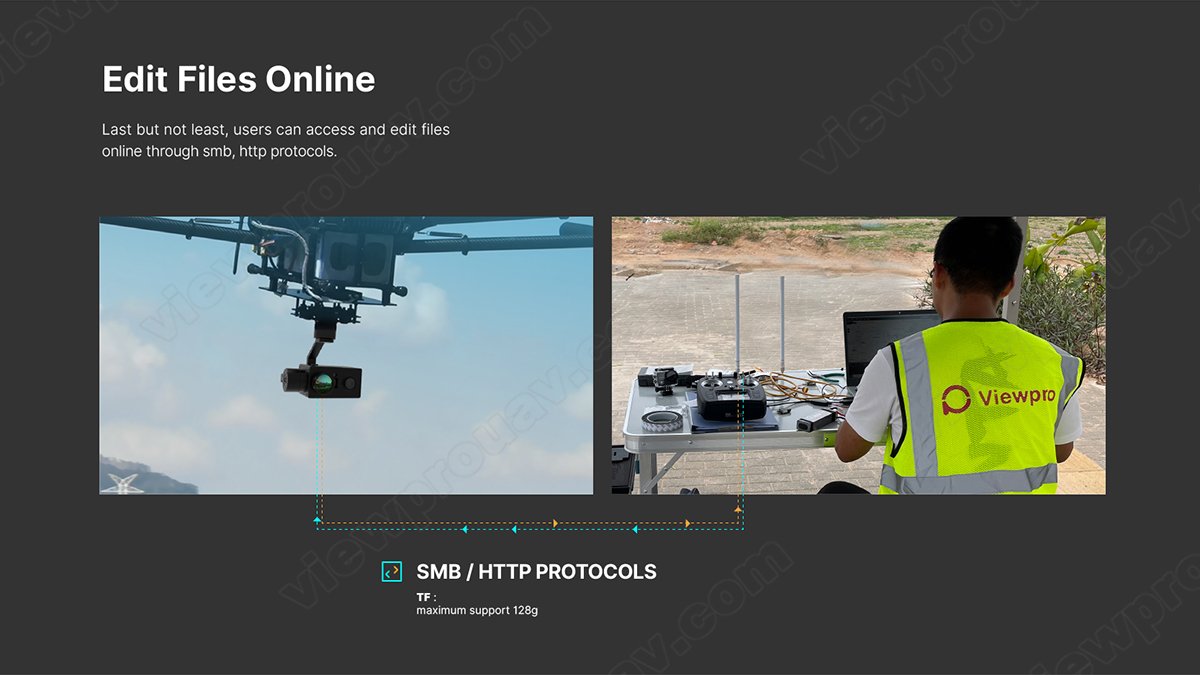

| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1250mA @ 12V |
| Idle current | 750mA @ 12V |
| Working environment temp. | -20 ~ +60 |
| Output | IP(1080P/720p 25/30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080 / 1280*720) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |

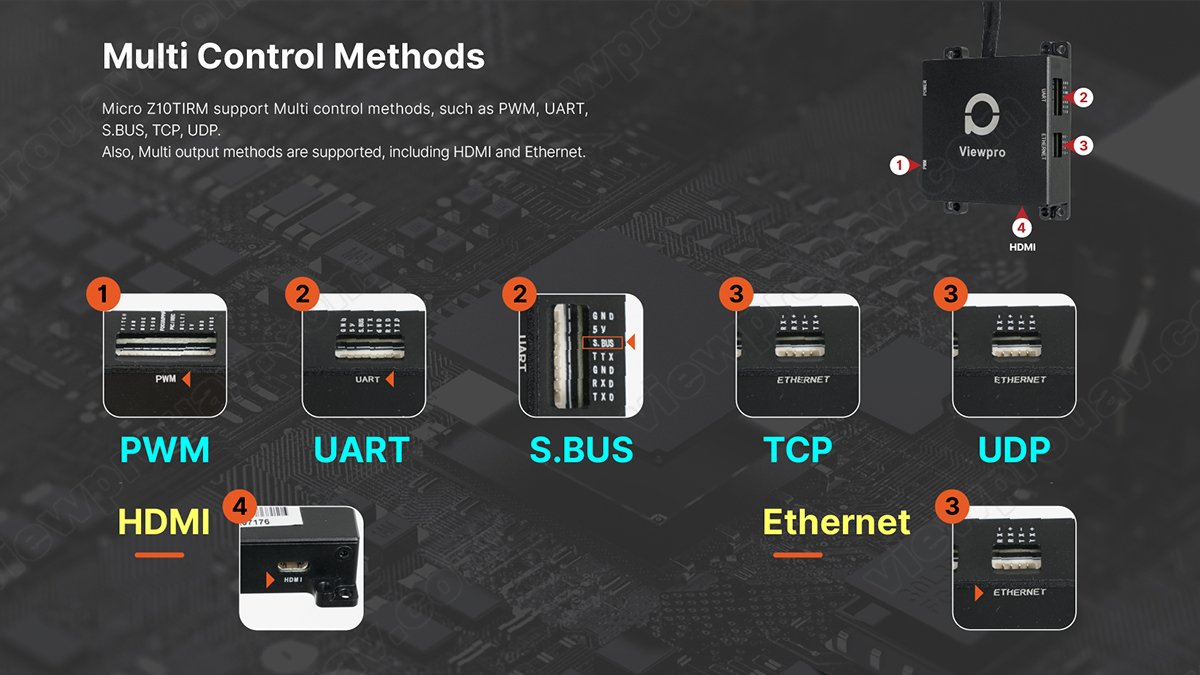

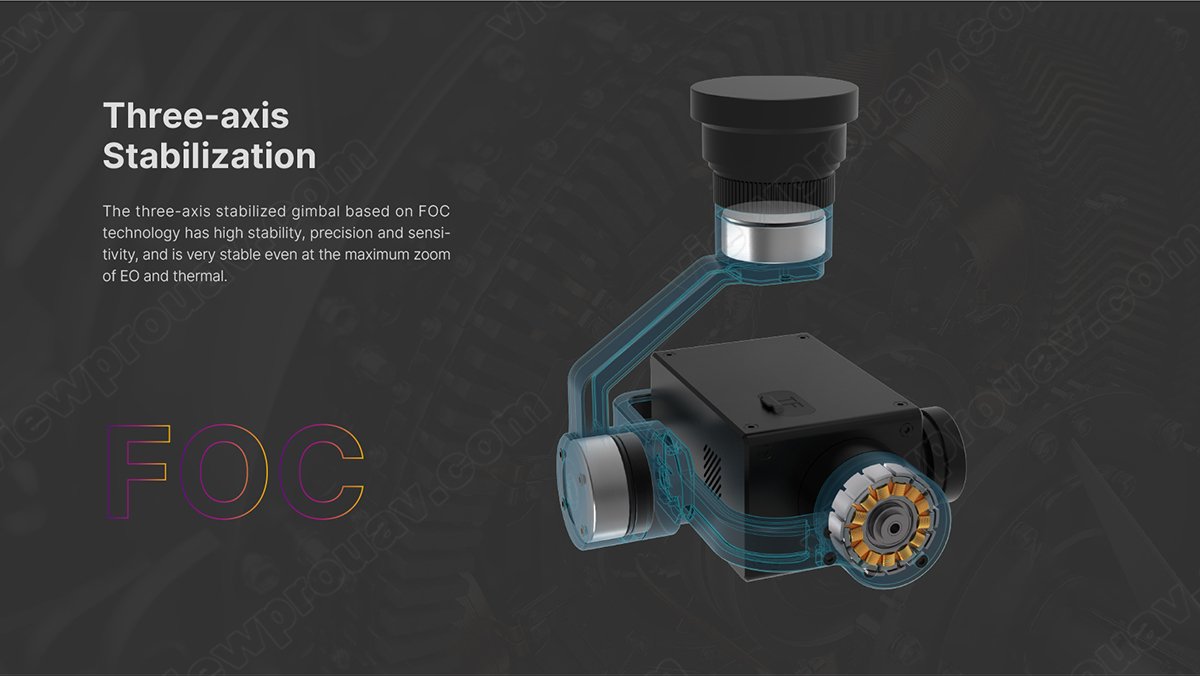

| Control method | PWM / SBUS / TTL / TCP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -33 110 , Roll: 35 , Yaw/Pan: 360 *N |
| Controllable Range | Pitch/Tilt: -30 90 , Yaw/Pan: 360 *N |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| EO Camera Spec | |
| Imager Sensor | 1/3-type CMOS(Progressive Scan) |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 4.08MP |

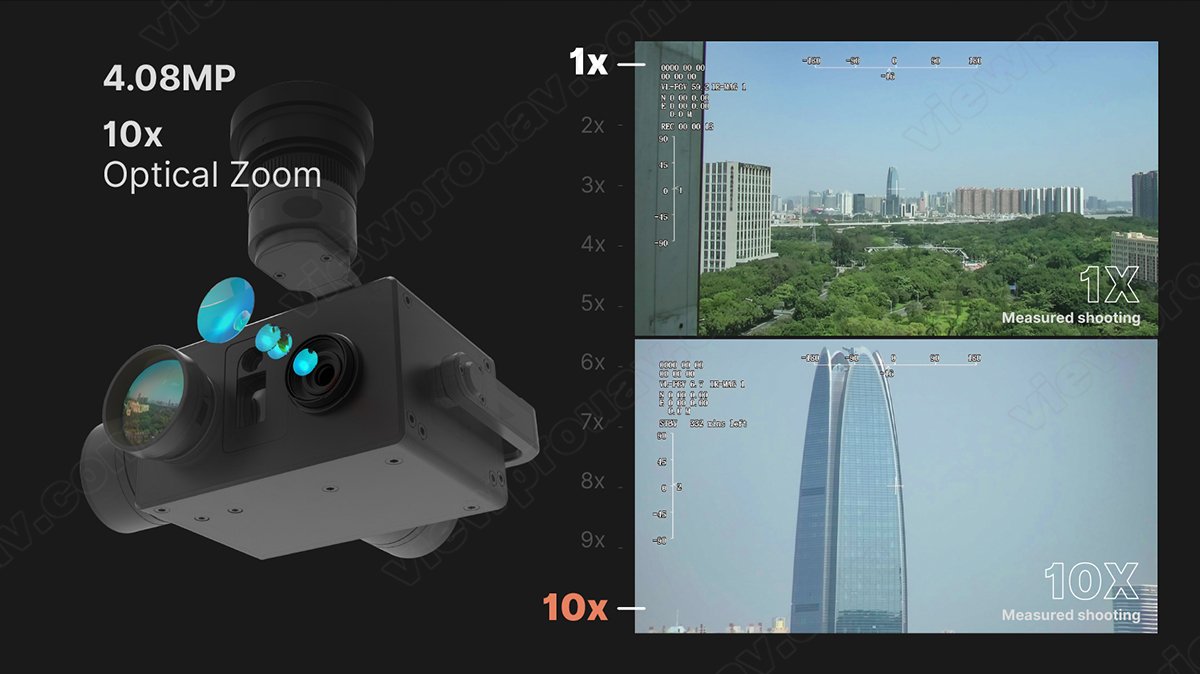

| Lens optical zoom | 10x, F=3.3~33.0mm, F1.8~3.4 |
| Digital zoom | 16x |
| Min object distance | 10mm(wide end) to 800mm(tele end) |
| Horizontal viewing angle | 58.2 (wide end) ~ 6.9 (tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | 0.5 lx (1/30s, F1.8, 50%) |
| Gain | Auto / Manual |
| White balance | ATW1 (Narrow), ATW2 (Wide), One push, manual (B, R),indoor,outdoor |
| Shutter speed | 1/1s to 1/10,000s |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| OSD | Yes |
| IR Thermal imager spec | |

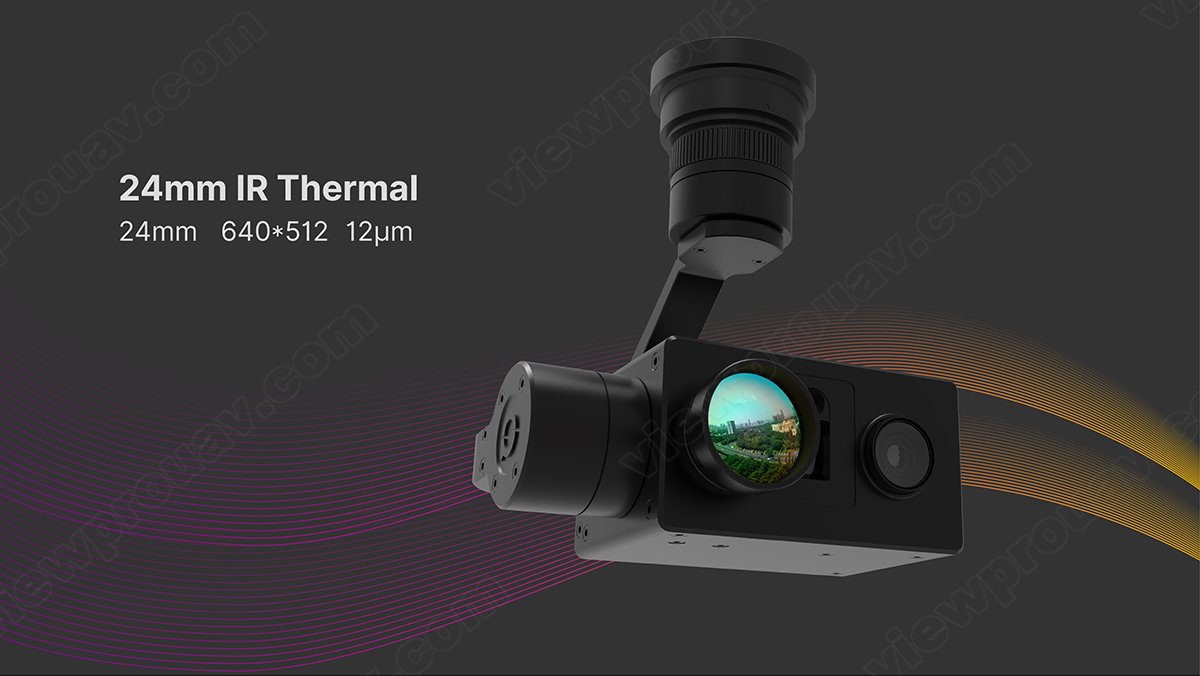

| Focus Length | 24mm |
| Horizontal FOV | 18.2 |
| Vertical FOV | 14.6 |
| Diagonal FOV | 23.2 |
| Detective Distance (Man: 1.8 0.5m) | 1000 meters |
| Recognize Distance (Man: 1.8 0.5m) | 250 meters |
| Verified Distance (Man: 1.8 0.5m) | 125 meters |
| Detective Distance (Car: 4.2 1.8m) | 3067 meters |
| Recognize Distance (Car: 4.2 1.8m) | 767 meters |
| Verified Distance (Car: 4.2 1.8m) | 383 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 12x |
| Sync correct time | Yes |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| IR Laser Rangefinder | |

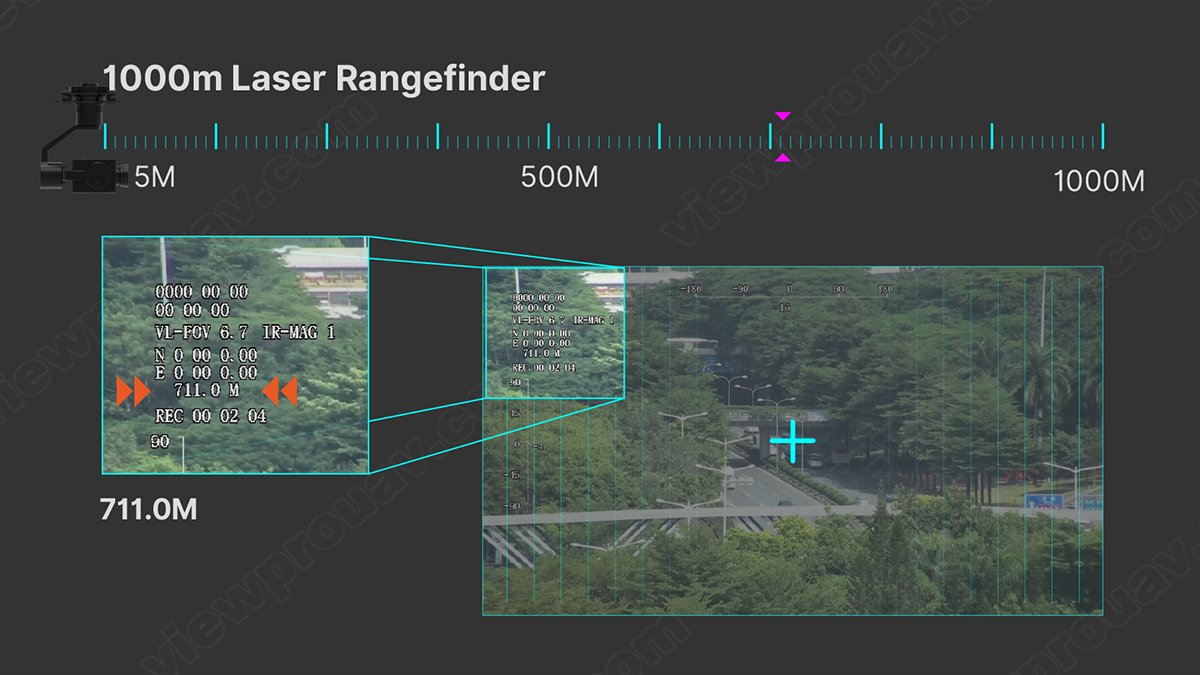

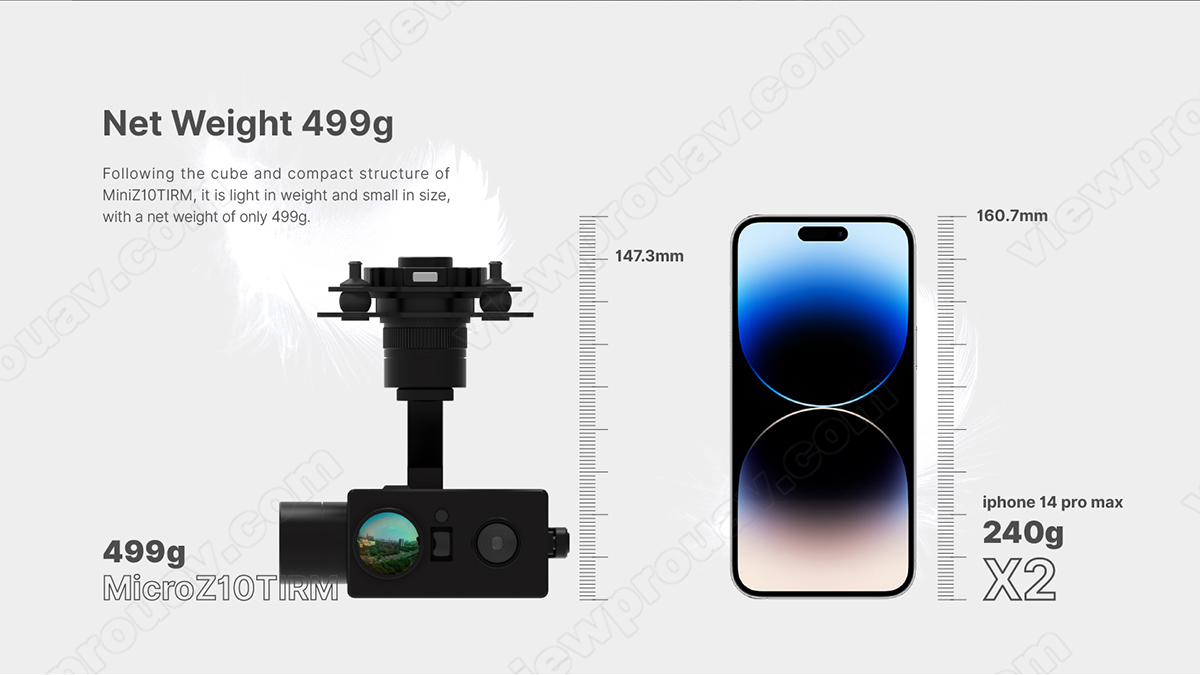

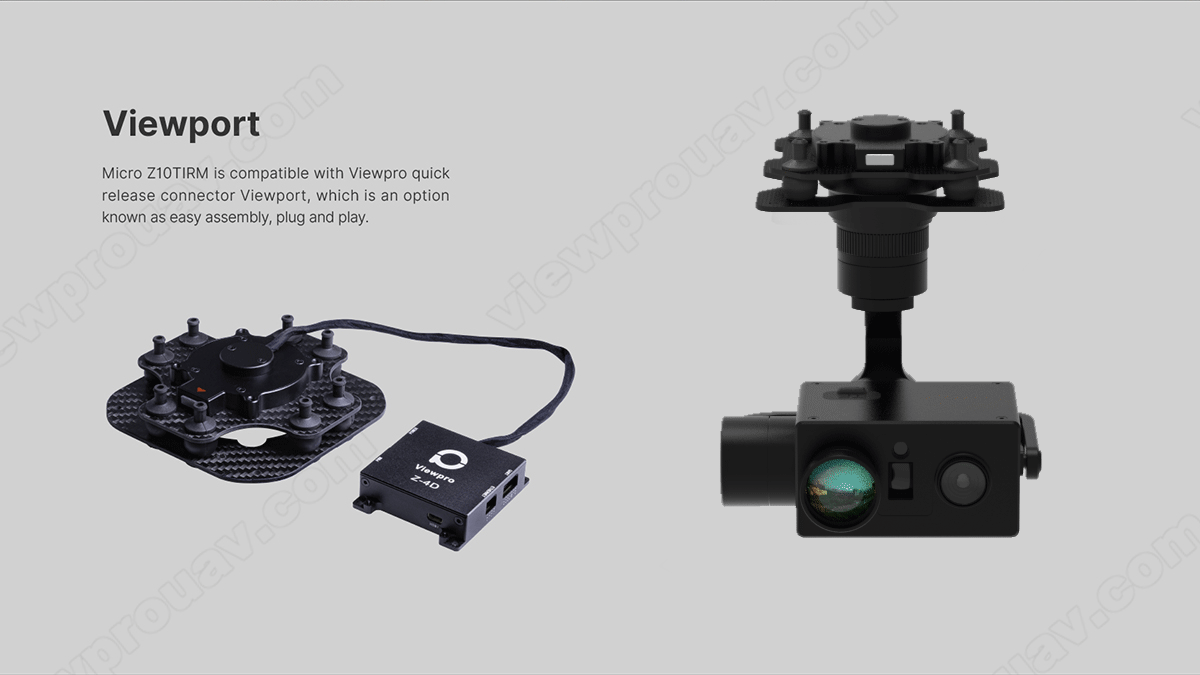

| Range | 5~1000 meters |
| Resolution | 1m <400 1 2m >400 0.4% |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 12 mrad |
| Laser pulse frequency | 0.1C1Hz |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| Packing Information | |
| N.W. | 499g |
| Product meas. | 122.2*115.4*141.6 (Standard version) /122.2*115.4*147.3mm(Viewport version) |

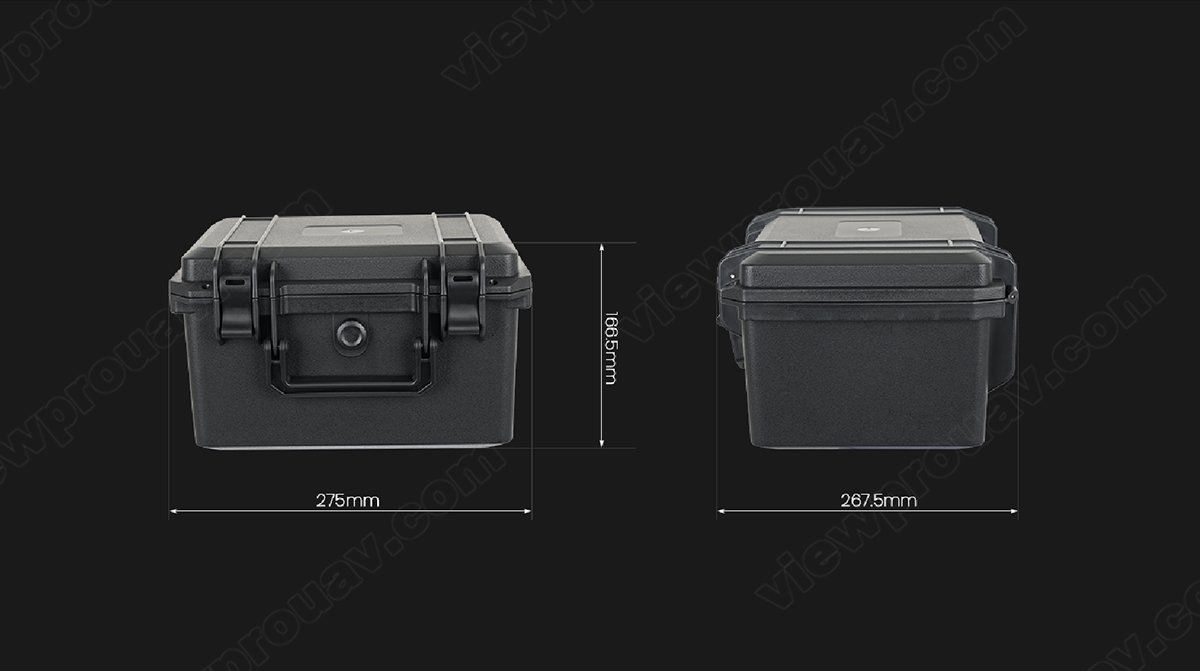

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, TTL cable / Hight quality plastic box with foam cushion |
| Package meas. | 300*250*200mm |
