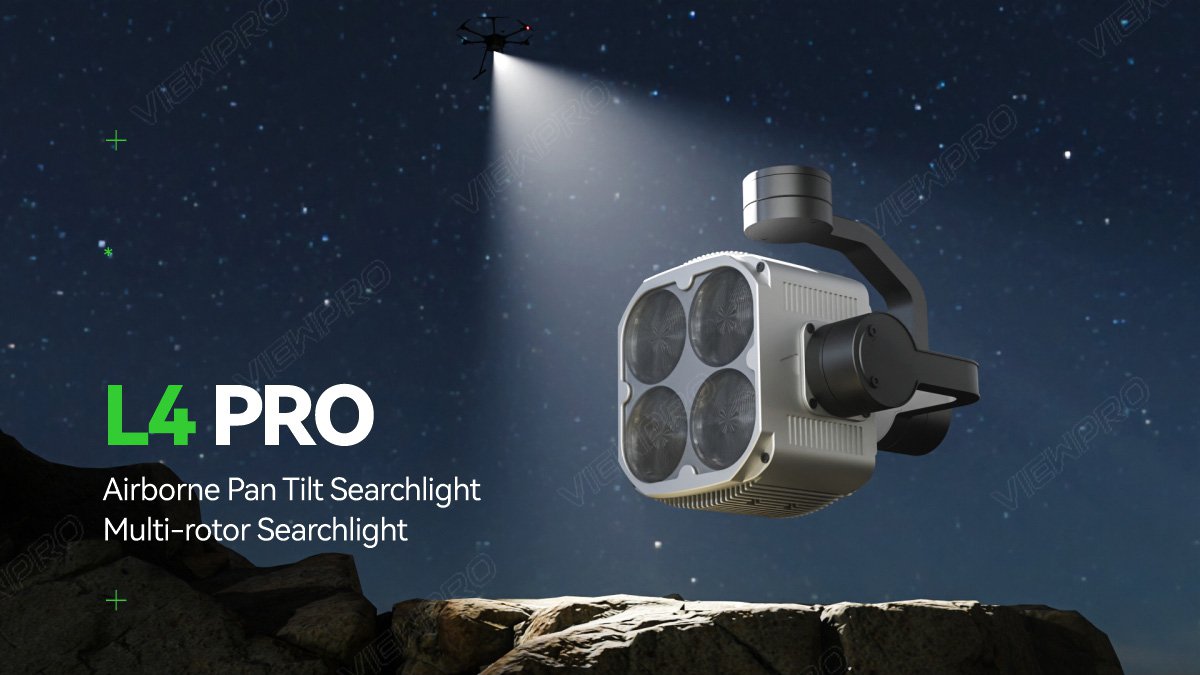

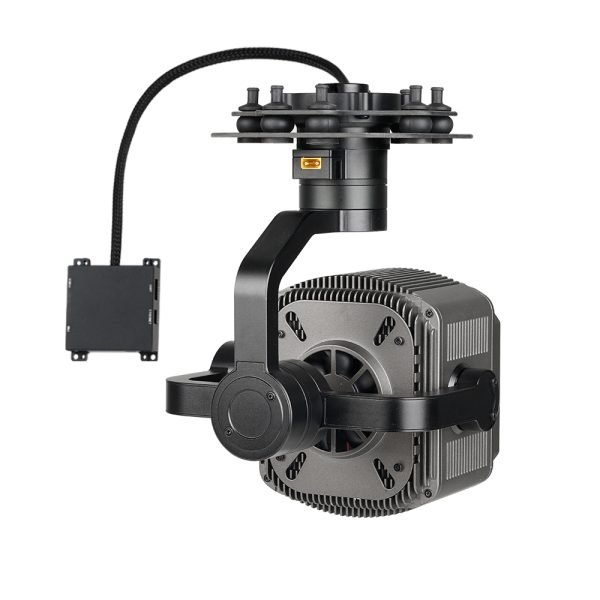

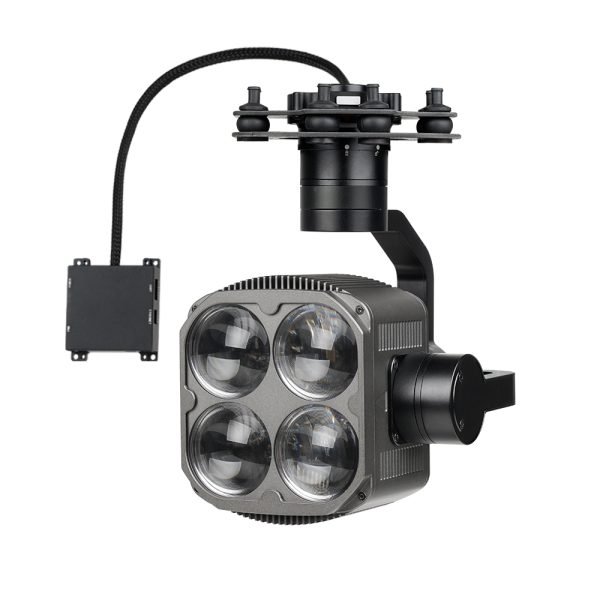

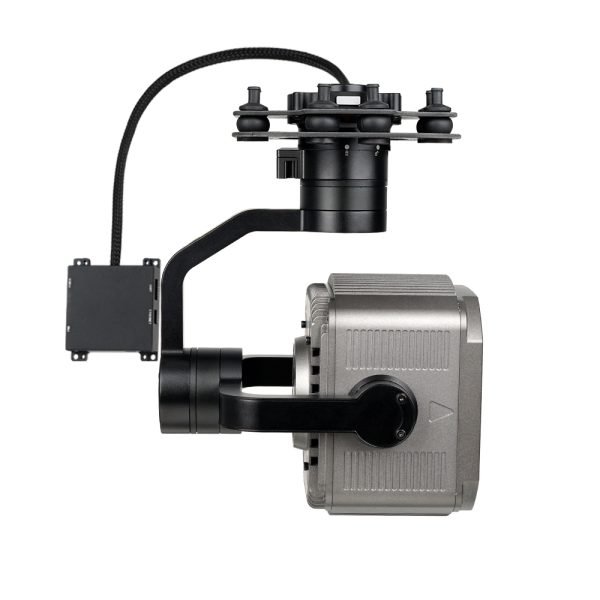

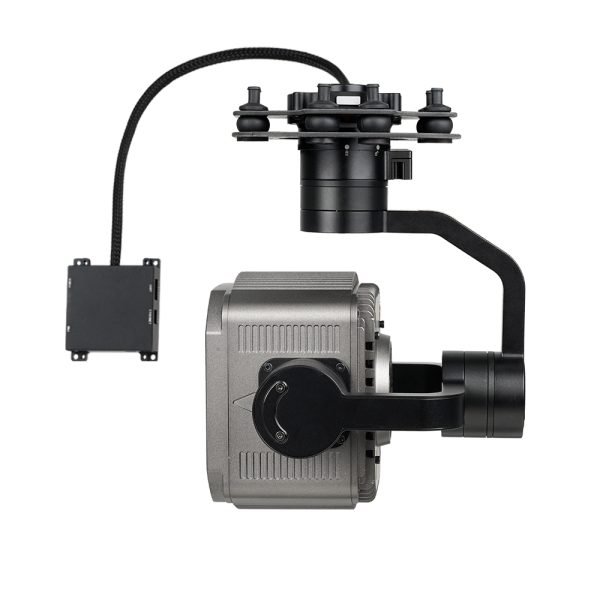

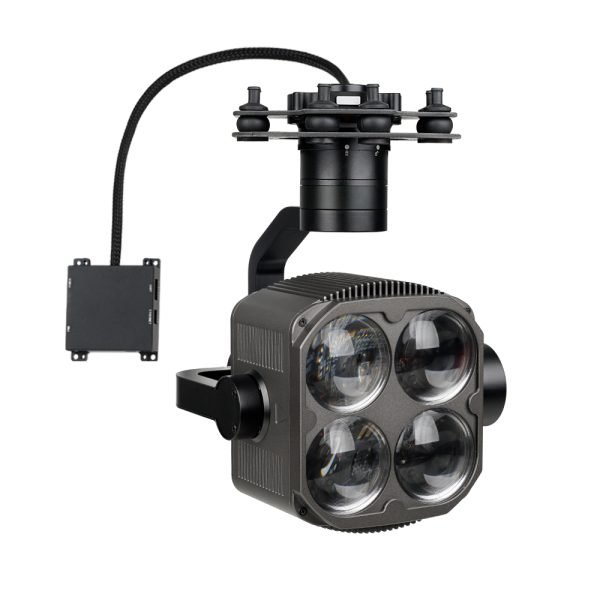

ML4 PRO Airborne Pan Tilt Searchlight Multi-rotor Searchlight
China Moneypro
The ML4 PRO Airborne Pan Tilt Searchlight is a professional multi-rotor mounted lighting system designed for aerial operations. Featuring advanced 128W LED technology, it delivers exceptional brightness with up to 13,500 lumens and illuminates areas up to 1,230 meters at 150m distance. The precision three-axis gimbal offers extensive pan, tilt, and roll control with minimal vibration for stable, smooth operation. Operating on 6S battery input with 24V output, it provides flexible power management with adjustable LED output from 0-128W. Multiple control methods including PWM, SBUS, and TTL ensure compatibility with various drone platforms. Built for demanding environments from -20 to +50 degrees Celsius, this searchlight combines durability with performance. Perfect for search and rescue, surveillance, inspection, and emergency response missions requiring powerful, directional aerial illumination.
| Hardware Parameter | |
| Working voltage | 24V |
| Input voltage | 6S (22.2V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Maximum current | 6000mA @ 24V |
| Power consumption | Minimum power: 1W (LED off), Peak power: 144W (LED maximum consumption) |
| Working environment temp. | -20 ~ +50 |

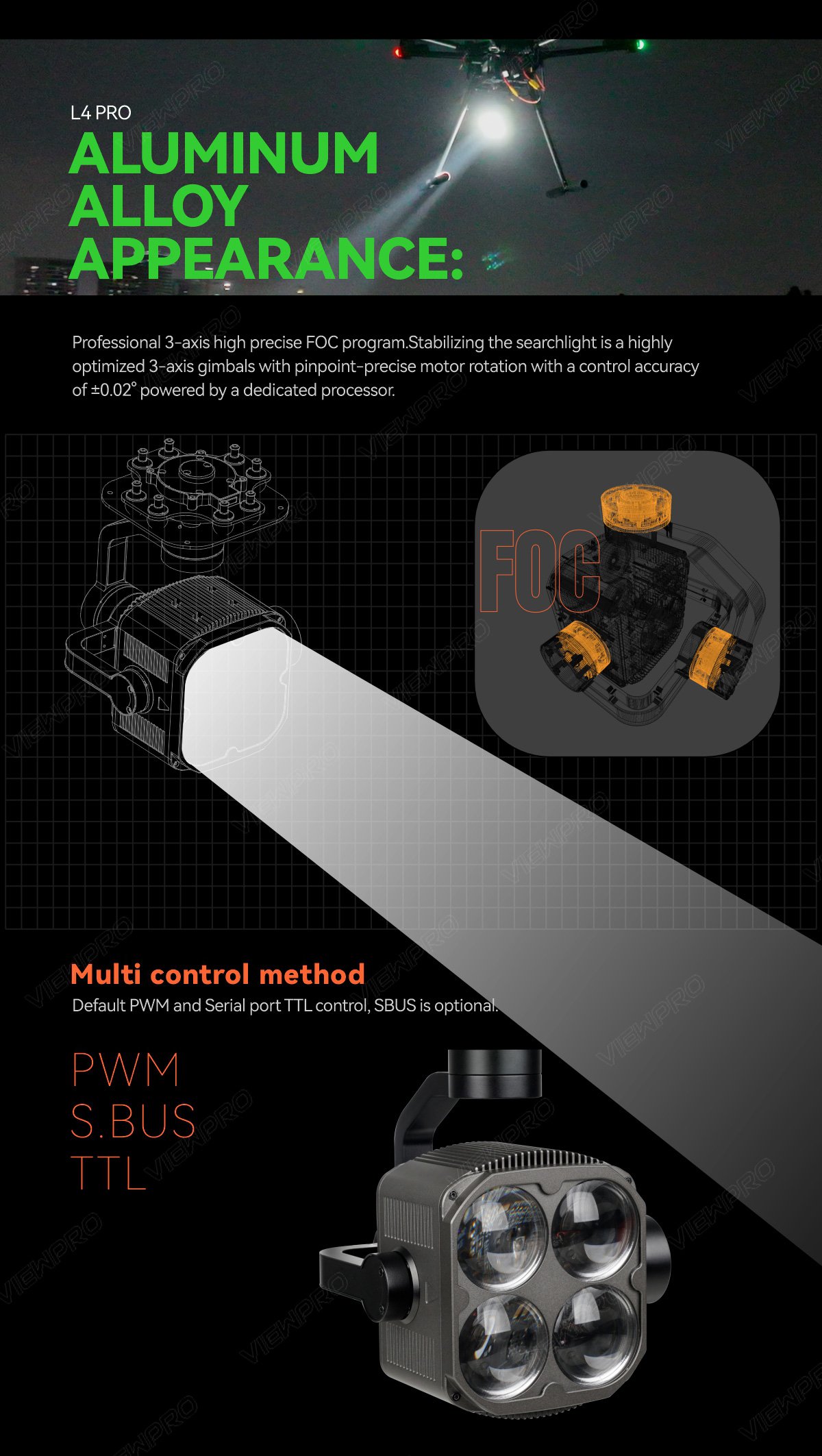

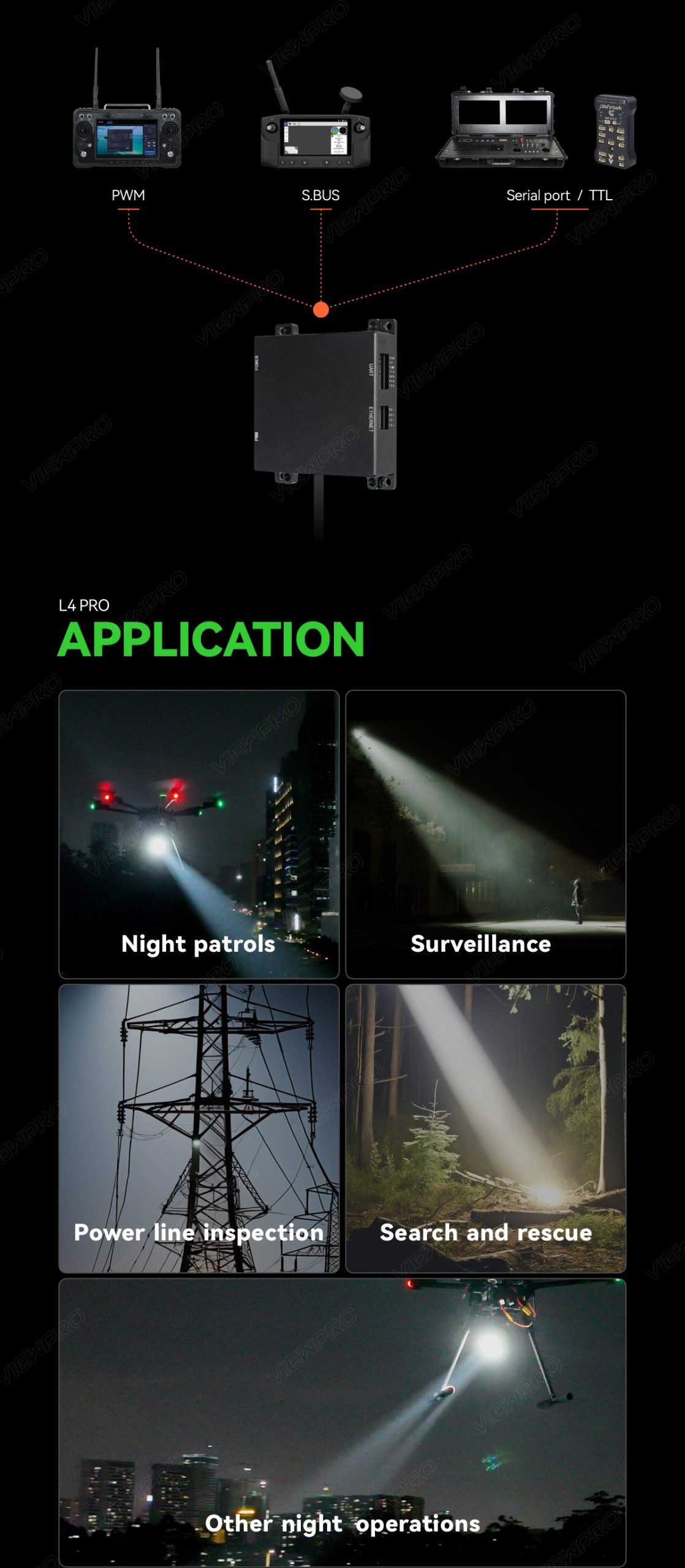

| Control method | PWM / SBUS / TTL |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -30 (Upward) 123 (Downward), Roll: 70 , Yaw/Pan: 120 |
| Controllable Range | Pitch/Tilt: -25 90 , Yaw/Pan: 115 |
| Vibration angle | Pitch/Roll/Yaw: 0.02 |
| One-key to center | |

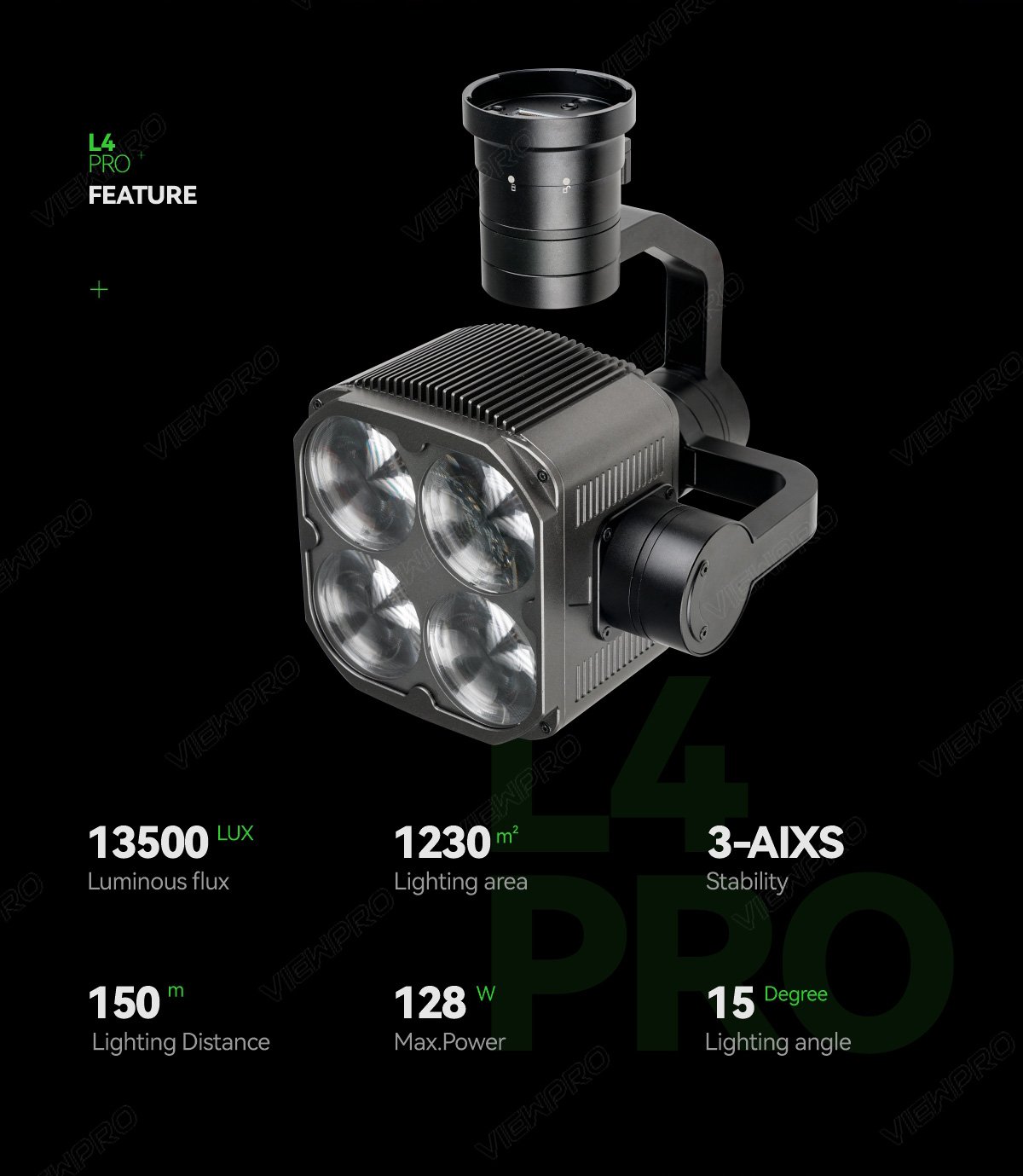

| LED Spec | |
| LED power | 0~128W(Adjustable) |
| Luminous flux | 13500lm+3% (power 128W) |
| 8050lm+3% (power 64W) | |
| Luminous | 113lm/W (power 128W) |
| Spot diameter | 40m (power 128W, 50m distance) |
| 40m (power 128W, 50m distance) | |
| Illumination area | 1230O (power 128W,150m distance) |
| Central illuminance | 15Lux (power 128W,150m distance) |
| 8Lux (power 64W,150m distance) | |
| Operating mode | Normally on: 128W , 64W(DJI version) |
| Sharp flash: 128W , 64W(DJI version) | |
| Packing Information | |
| N.W. | 925 10g(Viewport version with Viewport) |

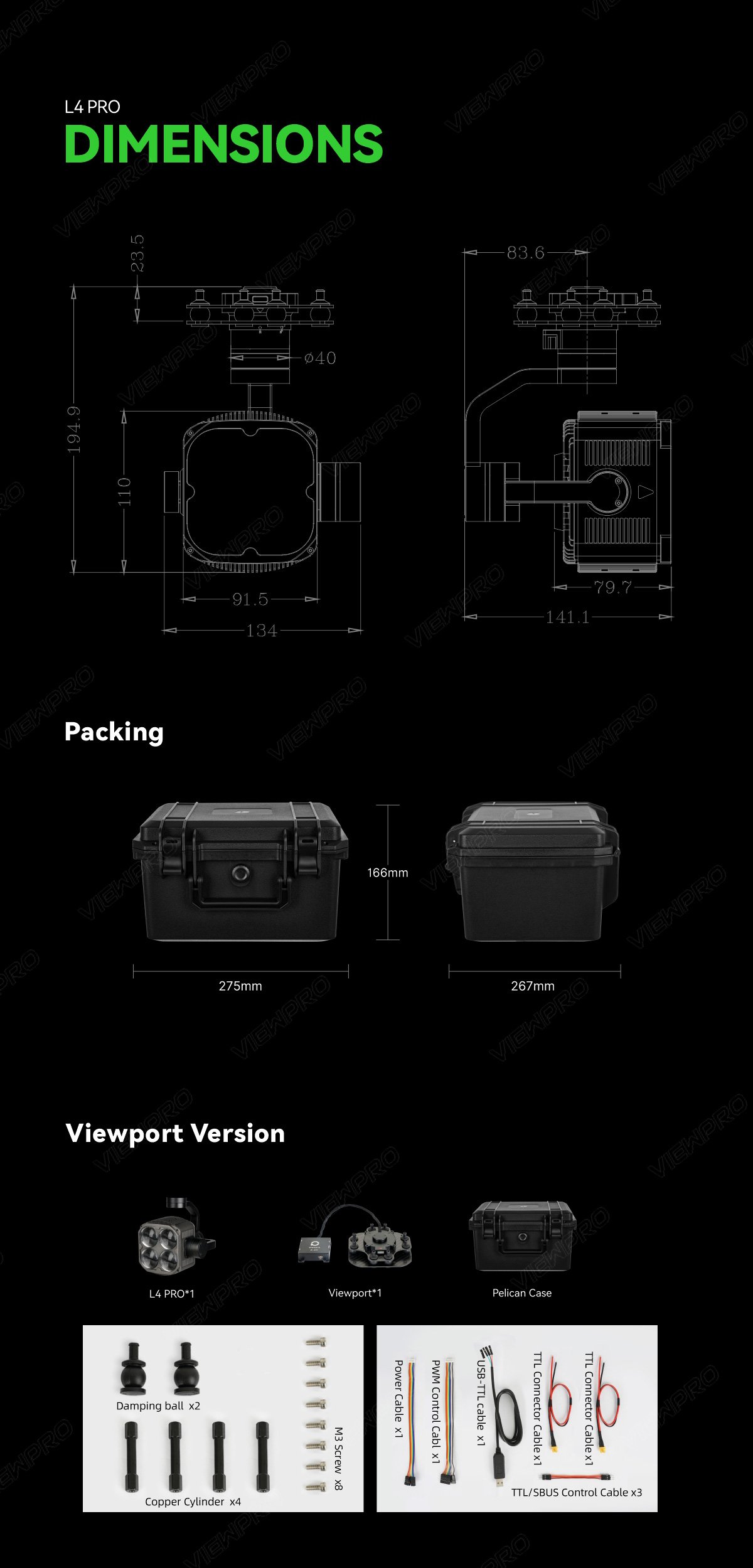

| Product meas. | 141.1*134*194.9mm(Viewport version with Viewport) |
| Accessories | 1pc gimbal device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| G.W. | 2652g |
| Package meas. | 350*300*250mm |
