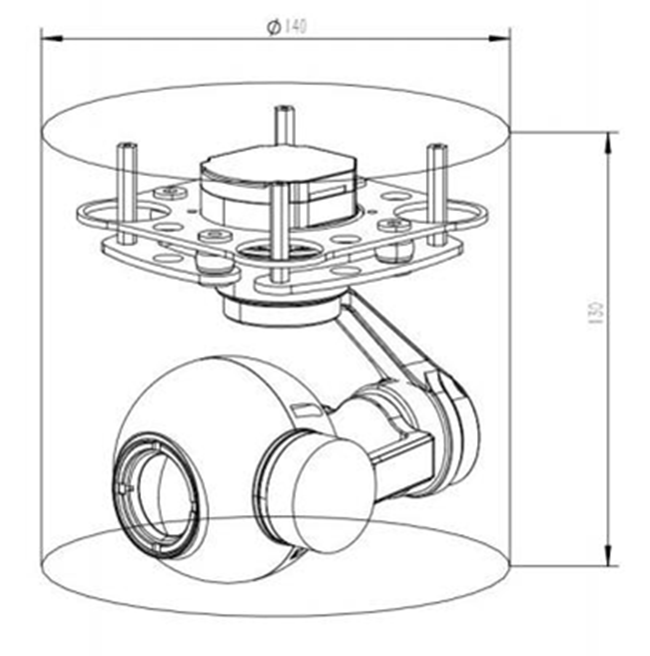

MKIP640G25 IP Output 25mm Lens 640*512 Thermal Imager with 3-Axis Gimbal
China Moneypro
The MKIP640G25 is a professional-grade thermal imaging gimbal camera designed for UAV aerial photography. Featuring a 25mm lens with 640×512 pixel resolution and uncooled vanadium oxide infrared sensor, it delivers exceptional thermal sensitivity of 50mK. The integrated 3-axis gimbal provides precise stabilization with minimal jitter across roll, pitch, and yaw axes. It supports multi pseudo-color switching, area and point temperature measurement, and Ethernet RTSP video streaming. Local TF card storage enables onboard recording. Operating on DC12V-26.2V with minimal 6W power consumption, this compact 380g system offers temperature measurement from -20 to 150 degrees Celsius, expandable to 100-550 degrees. Control via ground software, UART, or UDP protocols allows simultaneous PTZ and thermal camera management. Ideal for surveillance, inspection, and thermal analysis applications.
The KIP640G25 is a compact thermal imaging gimbal camera with IP video output, featuring a 25mm lens and a 640×512 infrared detector. Equipped with 3-axis image stabilization, it ensures steady video capture in dynamic conditions. The camera supports multiple pseudo-color modes, spot and area temperature measurement, and offers Ethernet output with a standard RTSP stream. Local storage via a TF card slot is also available. Using our ground control software, you can simultaneously manage pan-tilt movement and thermal camera settings. Additionally, the gimbal and camera parameters can be controlled and read via UART or UDP. A variety of serial control protocols are provided for flexible integration.
| Voltage | DC12V-26.2V | Power Consumption | Dynamic 6W |
| Roll angle action range | -45 +45 , Jitter 0.02 | Pitch angle action range | -45 +120 |
| Yaw angle action range | -280 +280 , Jitter 0.03 | Gimbal Mode | Support one key back to center, Lock/Follow Mode; Angle setting, position reading |
| Resolution | 640 512 pixel |
| Pix Spacing | 12 m |
| Type | Uncooled vanadium oxide infrared thermal imager |
| Wavelength coverage | 8 14 m |
| Thermal sensitivity NETD | 50mk@F1.0 |
| Temperature Measurement Range | -20 ~ 150 , can be extended to 100550 |
| Lens specification | 25mm lens, D:22.26 H 17.46 V:14.01 |
| Contrast, Pseudo color | Adjustable, multiple pseudo-color mode |
| Main application | UAV aerial photography | Work Condition | -20 to +60 / 20% to 80% RH |
| Storage Condition | -40 to +70 / 20% to 95% RH | Weight (Not including dampers) | 380 10g |
