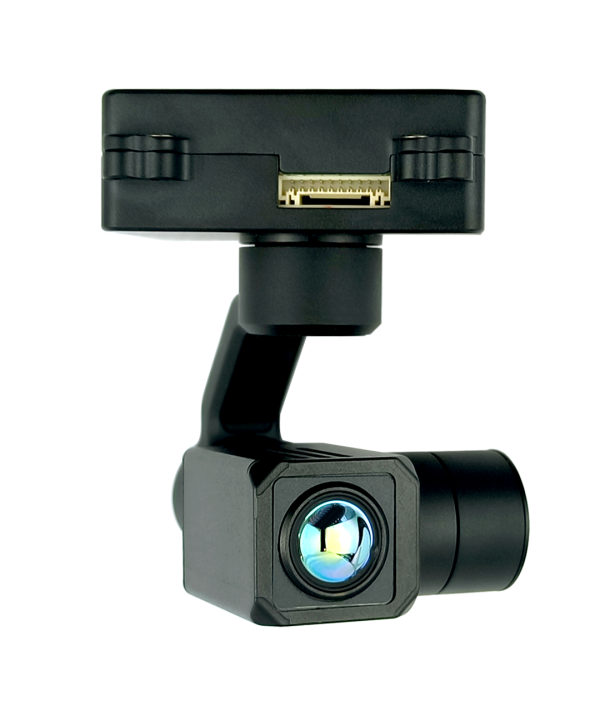

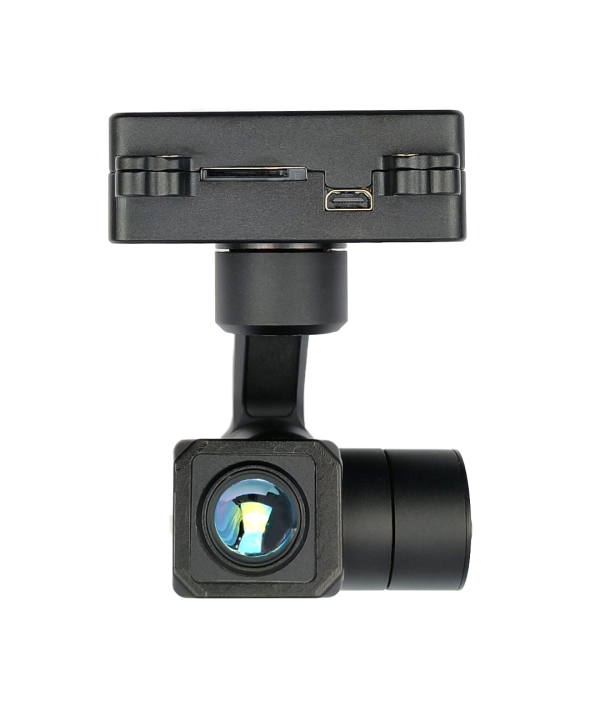

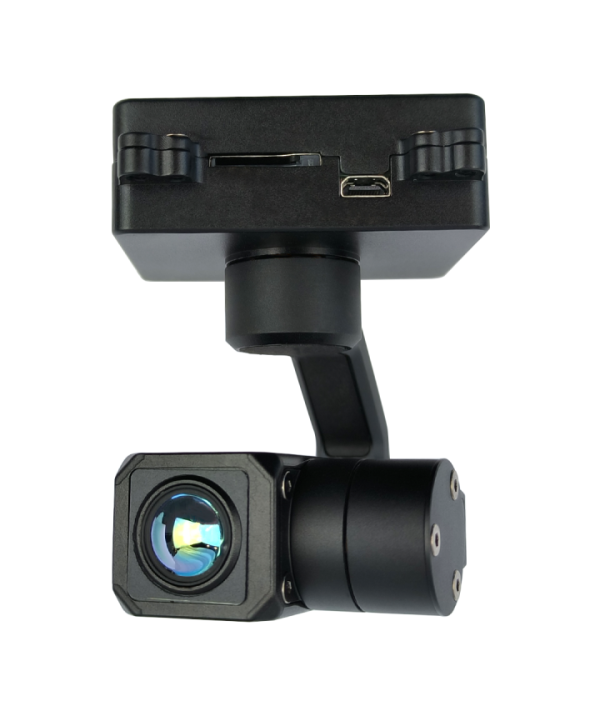

MKHP640M5 3-Axis Single Thermal Camera Gimbal
China Moneypro
The MKHP640M5 is a professional 3-axis thermal camera gimbal featuring an 8.7mm lens with 640×512 resolution and vanadium oxide uncooled infrared detection. It delivers exceptional stability with pitch and roll jitter of just 0.02 degrees and horizontal jitter of 0.03 degrees. The gimbal offers full-pixel temperature measurement across a -20 to 650-degree range with 3-degree accuracy, multi-pseudo color modes, and comprehensive control options including UART, S.BUS, and network connectivity. With dual Network and HDMI outputs, standard RTSP streaming, QGC compatibility, and local TF card storage, it provides versatile deployment options. Operating on 12-26.2V DC with minimal 5W power consumption, this compact 110g gimbal excels in surveillance, inspection, and thermal analysis applications requiring precision and reliability.
The KHP640M5 is a compact 8.7mm triple-axis thermal gimbal camera featuring a 640×512 resolution. It provides both Network and HDMI outputs, and supports multi-pseudo color switching as well as comprehensive temperature measurement. With three-axis stabilization, the gimbal also enables standard RTSP streaming, QGC control, and local recording via a TF card. Control interfaces include UART, S.BUS, and Network.
| V-IN | DC 12V-26.2V | Power | Dynamic 5W |
| Roll Angle | -20 ~+20 | Pitch Angle | -40 ~+110 |
| Course Angle | -140 ~+140 | Pitch and Roll Jitter Angle | 0.02 |
| Horizontal Angle jitter | 0.03 | One-click back to center function | One key automatic fast return to the initial position |
| Type | Vanadium oxide uncooled infrared detector |
| Resolution | 640*512 |
| Pixel Size | 10um |
| Spectrum | 8 14 m |
| NETD | 50mk@25 F1.0 |
| Measurement Range | -20 ~650 |
| Measurement Accuracy | 3 or 3% |
| Function | Full pixels temperature measurement( full pixels temperature storage for option) |
| Lens | 8.7mm/F1.0, FOV 40 x32.2 |
| Video | IP RTSP Streaming Mutual data transmission |

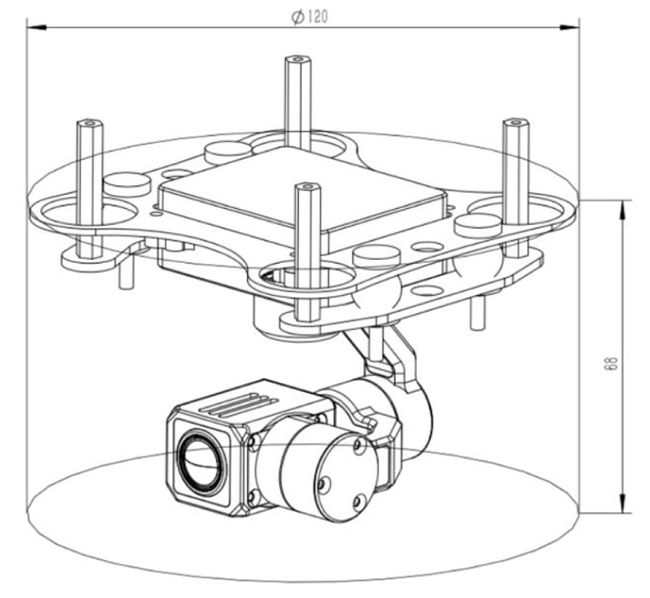

| Device Size | 120mm 68mm | Work Condition | -20 to +45 / 20% to 80% RH |
| Storage Condition | -40 to +60 / 20% to 95% RH | Weight (Not including dampers) | 110 10g |
