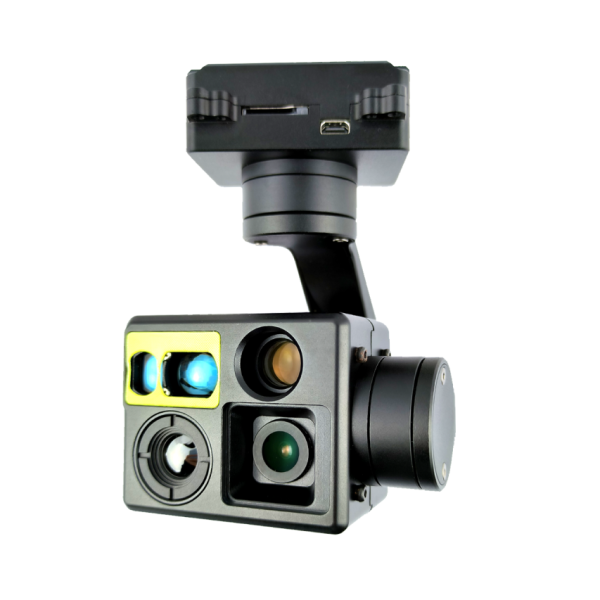

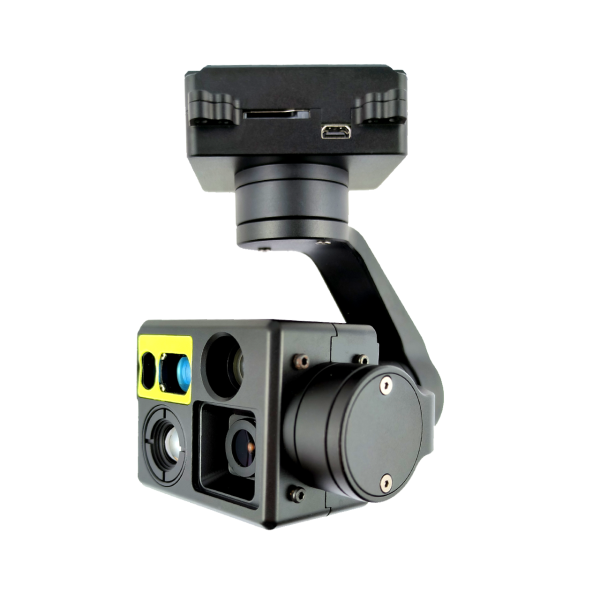

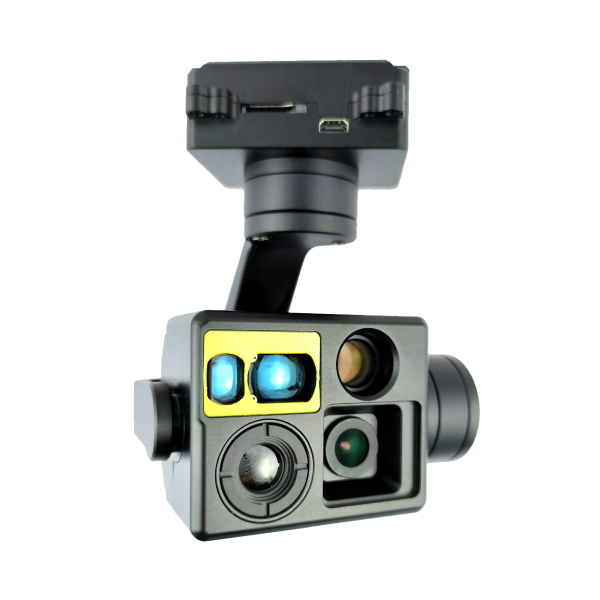

MKHDA609L12 Four-Sensor Gimbal Camera fixed focus 4K EO Camera + fixed focus 1080P EO Camera + 640X512 IR Camera +1200m LRF, HDMI/Ethernet outp
The MKHDA609L12 is a professional four-sensor gimbal camera system combining a fixed-focus 4K 8MP EO camera, fixed-focus 1080P 2MP EO camera, 640×512 uncooled IR camera with thermal measurement, and a 1200m laser rangefinder. Featuring a high-precision 3-axis stabilization gimbal with exceptional stability and minimal jitter, this compact, lightweight system delivers superior performance with low power consumption. It supports dual Ethernet and HDMI outputs, RTSP streaming, five picture-in-picture modes, and ten pseudo-color displays. The system offers flexible control via serial port, S.BUS, UDP, UART, and PWM, with local dual-channel TF card recording. Ideal for surveillance, reconnaissance, and professional imaging applications requiring multi-spectrum capability and precision targeting.
KHDA609L12 is a four-sensor integrated system integrating fixed focus 4K 8MP EO camera, fixed focus 1080P 2MP EO camera, 9.1mm lens 640 512 IR camera (uncooled vanadium oxide detector), up to 1200m laser rangefinder, and a high-precision encoder FOC control scheme 3-axis stabilization gimbal. It adopts Ethernet and HDMI dual output. The gimbal camera features the characteristics of high stability, compact size, light weight and low power consumption; This integrated camera system supports RTSP stream real-time video output, 5 Picture-in-Picture modes, 10 pseudo-color display modes, and global temperature measurement function. It can be controlled by serial port, S.BUS, UDP, UART and PWM. Local TF card dual-channel video recording and photography are supported.
| Voltage | DC 12V-26.2V | Power Supply | Dynamic 6W |
| Roll Angle | -45 +45 | Pitch Angle | -45 +100 |
| Yaw Angle | -150 +150 | Angle jitter in pitch and roll directions | 0.02 |
| Horizontal angle jitter | 0.03 | Gimbal Mode | Support gimbal Lock/Follow mode; One key return to center |

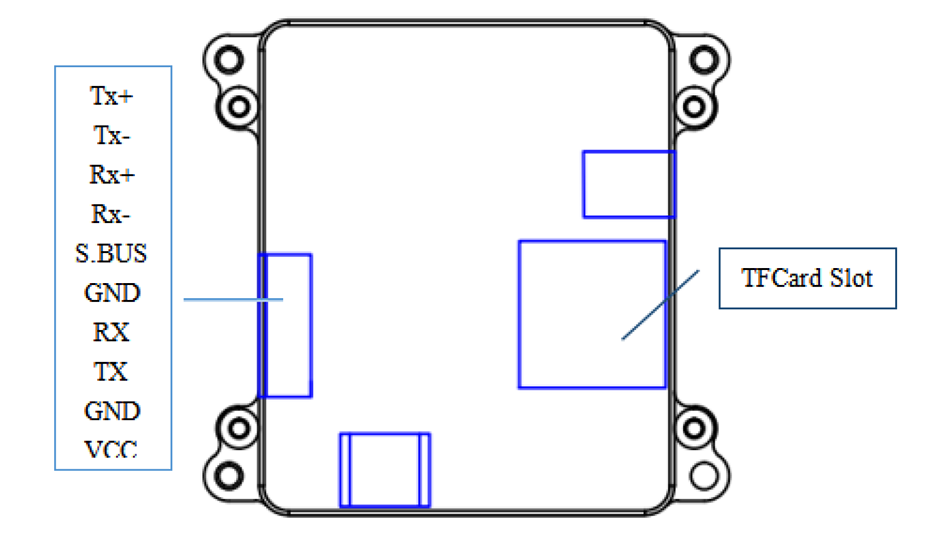

| Adjustable control speed | When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification | Control method | serial port, S.BUS, UDP, UART and PWM |
| CMOS Size | 8 Mega pixels CMOS SENSOR |
| Digital Zoom | 9x Digital Zoom |
| Compressed Storage Mode | H264 H265,video streaming local TF storage 1080p |
| Field of View (FOV) | 25mm lens, FOV: 10.5 7.8 |
| CMOS Size | 2 Mega pixels CMOS SENSOR |
| Digital Zoom | 9x Digital Zoom |
| Compressed Storage Mode | H264 H265,video streaming local TF storage 1080p |
| Field of View (FOV) | 6mm lens, FOV 60 x 43 |
| Resolution | 640*512 pixel |
| Pixel spacing | 12 m |
| Type | Uncooled Vanadium Oxide Detectorr |
| Wavelength range | 8 14 m |
| Thermal sensitivity (NETD) | 50mk@F1.0@25 |
| Field of view | 9.1mm Lens; FOV 48 38 |
| Measurement (Optional) | Average temperature, highest temperature, lowest temperature display |
| Infrared Wavelength | 905nm class Safety laser |
| measuring range | 5 1200 meters |
| Accuracy/resolution | 1m |
;

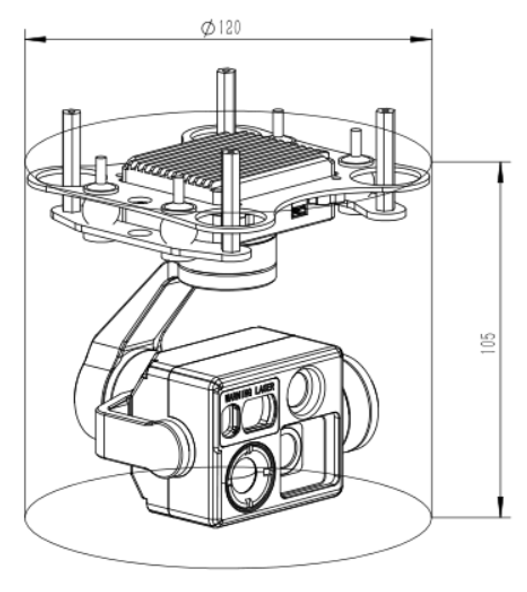

| Dimensions | :120mm H:105mm | Working Condition | -10 to +55 / 20% to 80% RH |
| Storage Environment | -20 to +60 / 20% to 95% RH | Weight | 240 10g |
