MIS025TA Two-Axis Tri-Light Pod

The MIS025TA two-axis, three-light pod consists of an uncooled infrared thermal imager, a wide-angle visible light camera, a telephoto visible light camera, a two-axis servo-stabilized platform, and an image tracker. It features lightweight construction, high stability and accuracy, and high integration, and can be applied to missile bodies to perform tasks such as target engagement.

The IS025TA two-axis three-light pod can identify and track targets based on their brightness or thermal characteristics, and output information such as frame angle and line-of-sight angular rate.

I. Photos of the actual product

Figure 1 Product Image

II. Product Functions

a) It has self-testing and fault reporting functions;

b) It has the ability to detect long-wave infrared and visible light bands and can output infrared and visible light images;

c) Possesses the ability to move freely along two axes: azimuth and pitch;

d) It has multiple working modes, including automatic search , manual search, and tracking;

e) It has the function of receiving commands from the control station and completing operations;

f) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

g) It has the function of locking /unlocking targets, and the pod outputs an image with a tracking frame after locking the target;

h) It has an automatic target tracking function, which can automatically track targets and has the ability to resist natural interference;

i) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

j) It has the function of adjusting the gate size;

k) It has a tracking point switching function;

l) It can communicate bidirectionally with the control station via RS232/100Mbps network and output information such as infrared images, visible light images, system working status, camera working status, and optical axis position;

m) It has photo and video recording functions ;

n) Possesses typical target (person, vehicle) detection capabilities;

III. Mounting Platform

Drones, loitering munitions, etc.

IV. Main Technical Parameters

model	IS025TA
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8 m 14 m
Detector resolution	640 512
Pixel size	12 m
Lens focal length	25mm
Field of view	17.5 13.1
Noise equivalent temperature difference	NETD 50mK
Minimum distinguishable temperature difference	MRTD 500mK
Wide-angle visible light camera
resolution	2560 1520
focal length	4.45mm
Field of view	79.7 52.7
Long-range visible light camera
resolution	2560 1520
focal length	50mm
Field of view	8.5 5.1
Servo Platform
Orientation angle	-120 +120
Pitch angle	-100 +25
Angular accuracy	2mrad
Stable accuracy	0.1mrad
Maximum angular velocity	60 /s
Maximum angular acceleration	60 /s2
Maximum turning speed	60 /s
Maximum turning acceleration	50 /s2
Tracking angular velocity	20 /s
System parameters
Power-on preparation time	15S (Self-test complete)
Power supply voltage	DC18 30V
power	25w
weight	600g
volume	68mm 101.2mm 104.4mm
interface
Control Interface	RS232
Video interface	Ethernet
Storage interface	128G memory card (Mini SD card)
Image storage format	JPG format
Video storage format	AVI format
Environmental adaptability
Operating temperature	-40+55
Storage temperature	-45+65
Vibration conditions	The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions.
Impact conditions	Peak acceleration 20g, duration 11ms
Protection level	Can fly in light to moderate rain

V. Mechanical Dimensions and Installation Interfaces

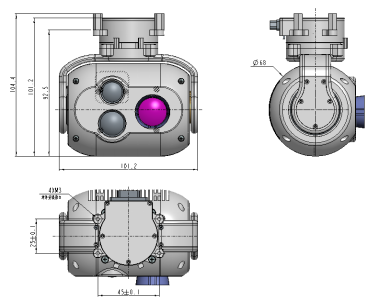

Figure 2 Product interface and dimension diagram
