MIS021FA Two-Axis Four-Light Pod
China Moneypro
The MIS021FA Two-Axis Four-Light Pod is an advanced surveillance system combining visible light cameras, uncooled infrared thermal imaging, and servo-stabilized platform technology. Designed for drones and loitering munitions, it delivers all-weather target reconnaissance, tracking, and attack guidance capabilities. Features include dual visible light lenses with switchable output, automatic target tracking, visual axis stabilization, and intelligent threat detection. With infrared resolution of 1280×1024 and laser rangefinding up to 1.2km, it enables precise battlefield operations day and night. Weighing just 850g with low power consumption, this compact pod operates reliably across extreme temperatures from -40 to +55 degrees Celsius.
The MIS021FA two-axis four-light pod mainly consists of a visible light camera, an uncooled infrared thermal imager, a servo-stabilized platform, an image compression and tracking system, and a power module. The product can perform target imaging reconnaissance, attack guidance, and scene matching and positioning tasks. It has visible light and infrared imaging capabilities and is capable of all-weather battlefield target search, target tracking and positioning, and attack guidance.
I. Product Images
Figure 1 IS021FA Two-Axis Four-Light Pod
II. Product Functions
a) Capable of being used around the clock;
b) It has the function of switching between visible light and infrared video output;
c) Equipped with visual axis stabilization function;
d) It has a target tracking function, which can automatically track a selected target;
e) It has status parameters and the ability to show/hide indicator boxes;
f) It has manual search, automatic tracking, digital guidance, and scanning functions;
g) It has the ability to automatically identify and alert static /moving targets;
III. Mounting Platform
Drones, loitering munitions, etc.
IV. Main Technical Parameters
| model | IS021FA Two-Axis Four-Light Pod |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8 m 14 m |
| Detector resolution | 1280 1024 |
| Pixel size | 12 m |
| Lens focal length | 35mm |
| Field of view | 24.8 19.9 |
| Wide-angle visible light | |
| resolution | 1920 1080 |
| focal length | 4mm |
| Field of view | 71.5 44.1 |
| Long focal length visible light | |
| resolution | 1920 1080 |
| focal length | 16mm |
| Field of view | 20.4 11.2 |
| Laser rangefinder | |
| wavelength | 905nm |
| Maximum ranging distance | 1.2km (under conditions of visibility 6km) |
| Minimum ranging distance | 20m |
| Distance measurement accuracy | 1m |
| Ranging frequency | 1 5Hz |
| Servo Platform | |
| Orientation angle | -120 +120 |
| Pitch angle | -100 +25 |
| Stable accuracy | 1mrad |
| Angular accuracy | 2mrad |
| Tracking accuracy | 2mrad |
| Maximum angular velocity | 60 /s |
| Maximum angular acceleration | 60 /s2 |
| System parameters | |
| Power-on preparation time | 15S (Self-test complete) |
| Power supply voltage | DC18 30V |
| power | 25W (steady state) |
| weight | 850g |
| volume | 101.2mm 92.5mm 67.72 |
| interface | |
| Control Interface | RS422 |
| Video interface | 100M network |
| Environmental adaptability | |
| Operating temperature | -40+55 |
| Storage temperature | -50+65 |
V. Mechanical Dimensions

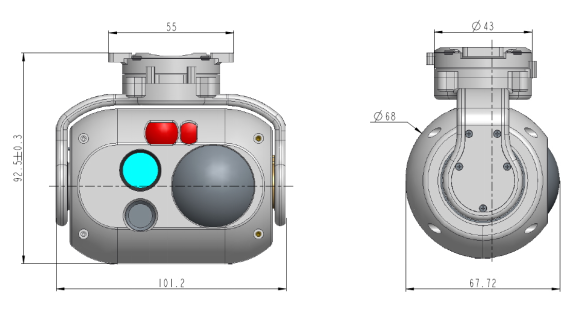

Figure 2 Product outline dimensions
| Stabilization | 2-Axis |
|---|---|
| Weight | Ultra-Light (≤ 1 kg) |
