MIS015DA Two-Axis Dual-Optical Pod

The MIS015DA Two-Axis Dual-Optical Pod is an advanced surveillance system combining visible light and uncooled infrared thermal imaging for comprehensive all-weather reconnaissance. This integrated platform features a servo-stabilized gimbal, image compression, and intelligent tracking capabilities. It delivers 24/7 operational capability with switchable visible and infrared video output, automatic target tracking, and manual search functions. The system includes visual axis stabilization, digital guidance, and blind spot tracking. With a 640×512 infrared detector and 1920×1080 visible camera, it provides superior target acquisition and reacquisition. The servo platform offers exceptional stability at 1mrad accuracy with 60 degrees per second angular velocity. Weighing under 1kg and operating on DC12-32V power, it’s ideal for tactical applications requiring persistent surveillance and attack guidance in any lighting condition.

The MIS015DA two-axis dual-light pod is primarily composed of a visible light camera, an uncooled infrared thermal imager, a servo-stabilized platform, an image compression and tracking system, and a power module. The system is capable of performing target imaging reconnaissance, attack guidance, and scene matching missions. Equipped with both visible light and infrared imaging capabilities, it enables all-weather battlefield target search, target tracking, and attack guidance.

I. Product Images

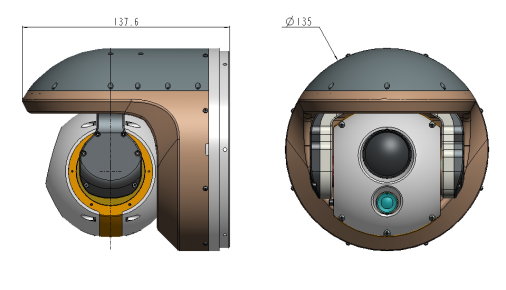

Figure 1 IS015DA Two-Axis Dual-Optical Pod

II. Product Functions

a) Suitable for 24/7 operation
b) Equipped with switchable visible light and infrared video output
c) Features visual axis stabilization
d) Includes target tracking capability with automatic following of a selected target
e) Provides status parameters and the option to show/hide indicator boxes
f) Supports manual search, automatic tracking, digital guidance, and scanning functions
g) Includes a self-test function
h) Capable of target acquisition, tracking, and reacquisition after target loss
i) Features blind spot local tracking function

III. Main Technical Parameters

model	IS015DA Two-Axis Dual-Optical Pod
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8 m 14 m
Detector resolution	640 512
Pixel size	12 m
Lens focal length	35mm
Field of view	12 10
Visible light
resolution	1920 1080
focal length	16mm
Field of view	18 10
Servo Platform
Orientation angle	-115 +115
Pitch angle	-90 +15
Stable accuracy	1mrad
Angular accuracy	0.2
Tracking accuracy	2mrad
Maximum angular velocity	60 /s
Maximum angular acceleration	60 /s2
Isolation	3% 2Hz@3
System parameters
Power-on preparation time	15S (Self-test complete)
Power supply voltage	DC12 32V
power	20W (steady state)
weight	1kg
volume	135mm 137.6mm
interface
Control Interface	RS422
Video interface	100M network
Environmental adaptability
Operating temperature	-40+55
Storage temperature	-50+65
