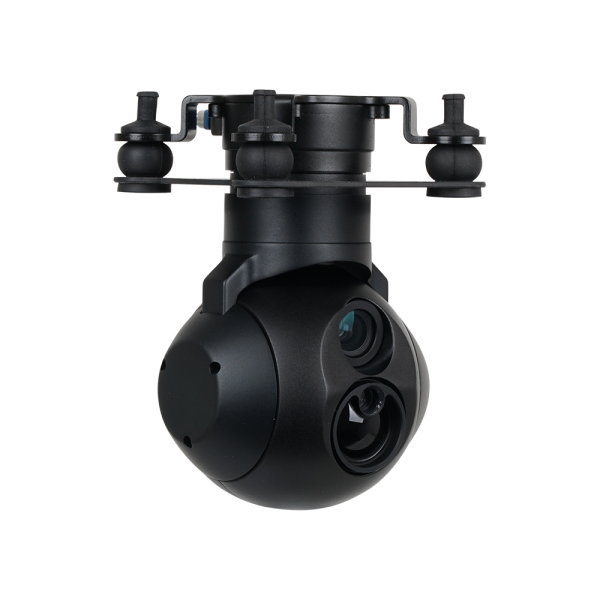

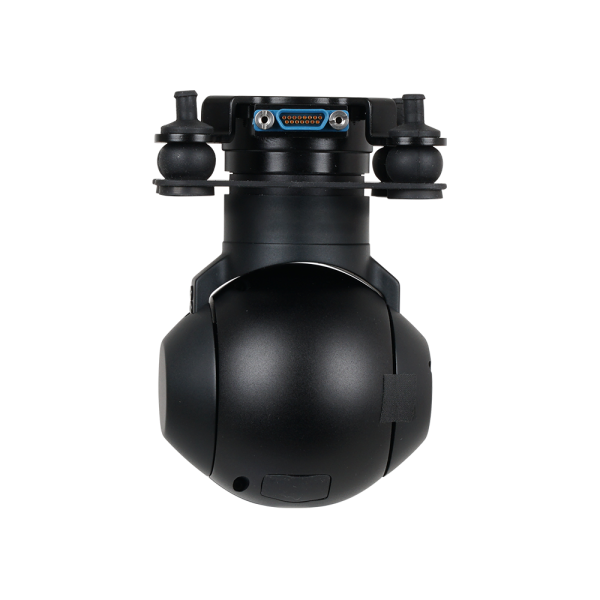

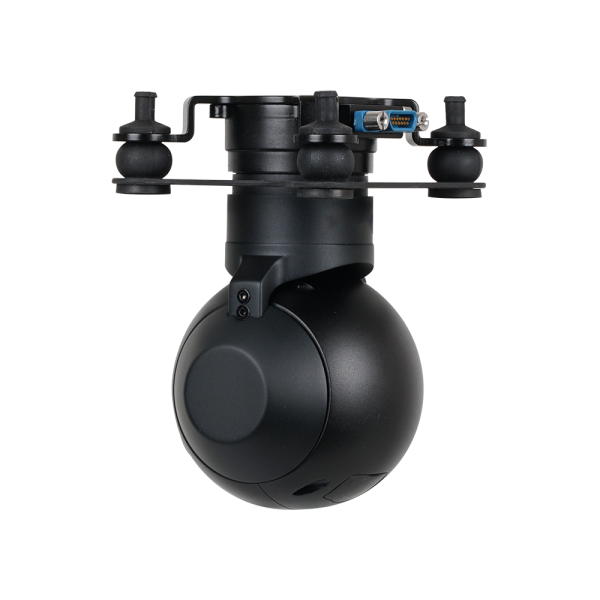

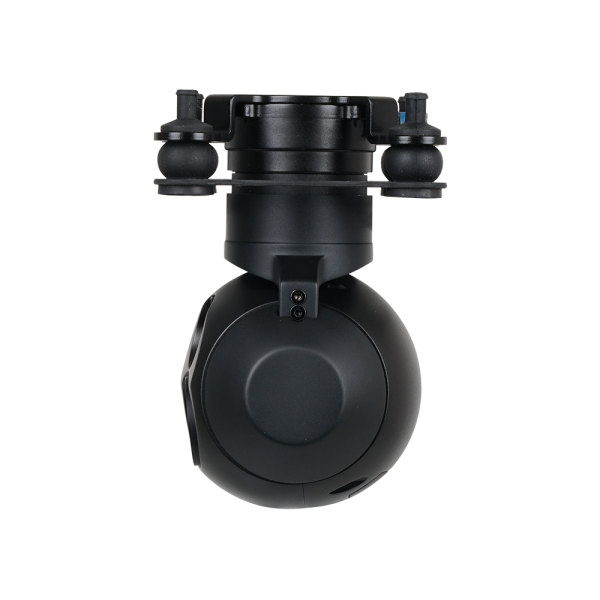

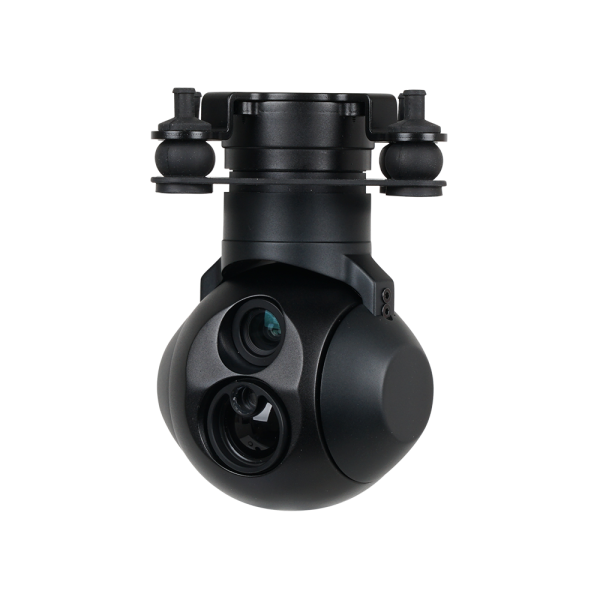

MHawkeye U8L 8mm Fixed Focus EO+1.5KM Laser Rangefinder Camera

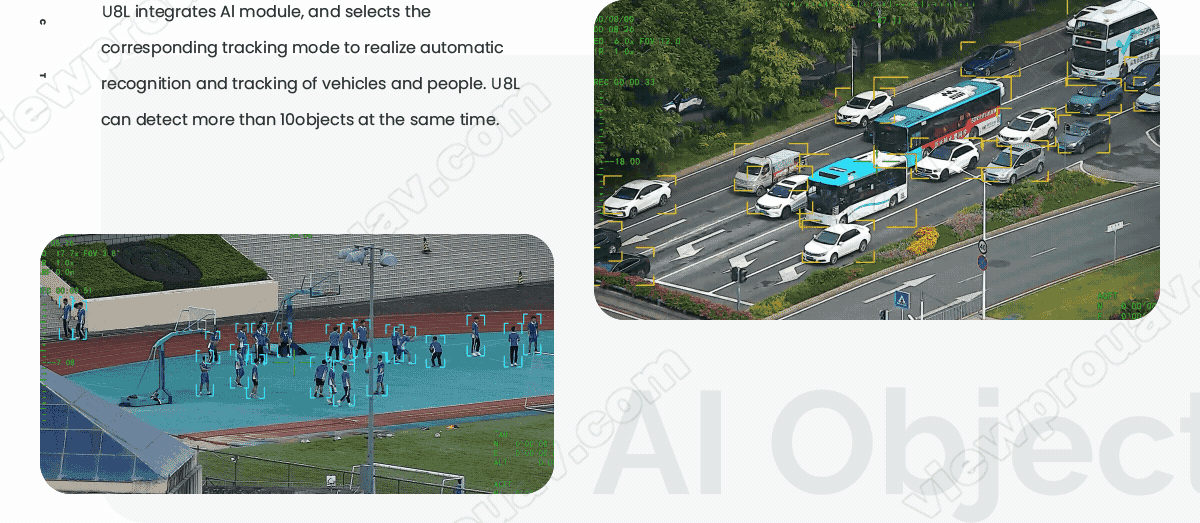

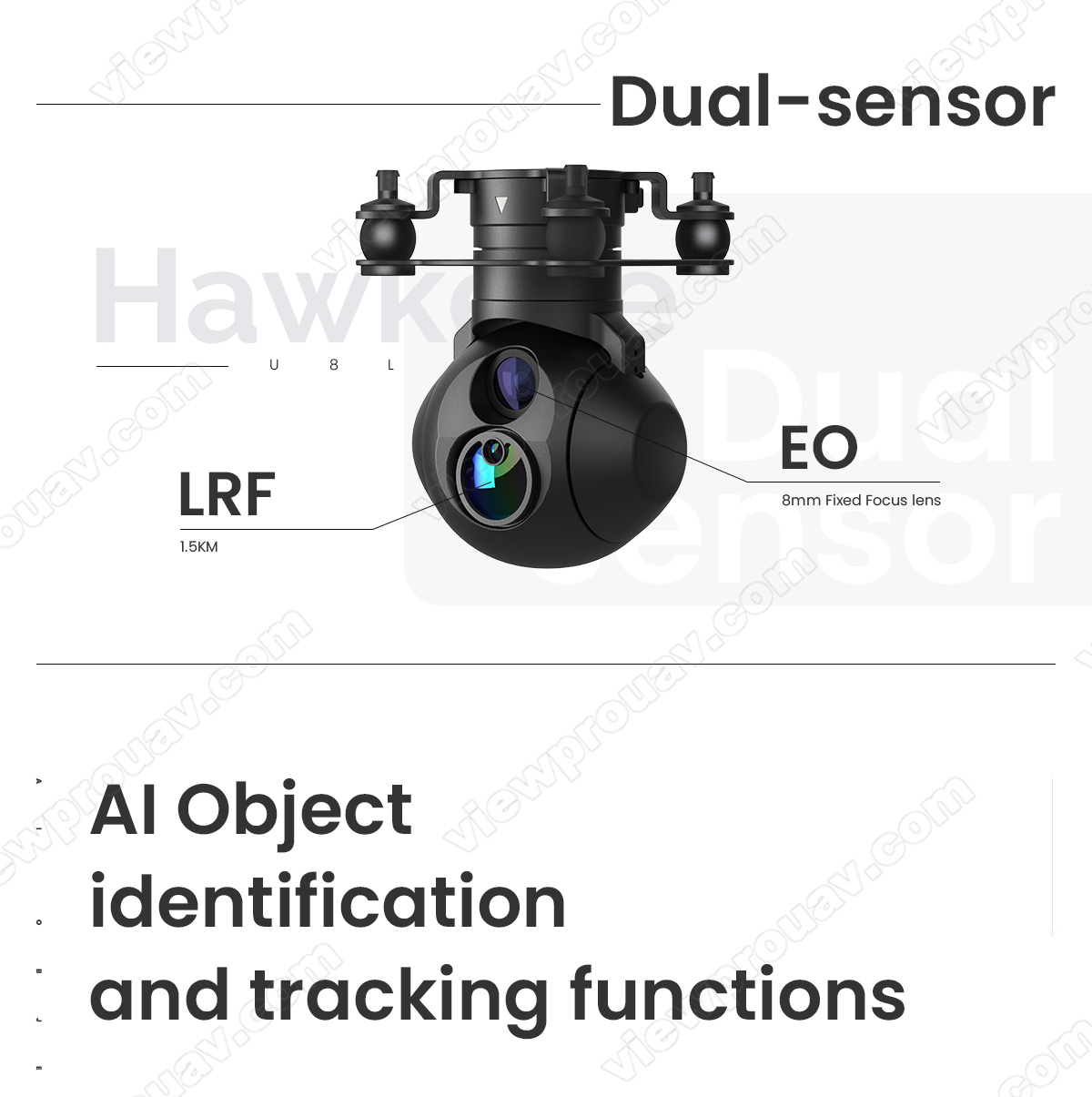

MU8L is a powerful 2-axis gimbal camera which integrates a 8mm fixed focus EO camera, a 1.5KM Laser rangefinder. Features a built-in AI module, it can auto detect and tracking humans and cars. It very suitable for some small size drones, mainly supply in defense, patrol, surveillance, inspection, search and rescue etc.

Category:
Hardware Parameter
Working voltage12V(3S)
Output voltage5V (connect with PWM)
Dynamic current650~1000mA @ 12V
Idle current650mA @ 12V
Working environment temp.-20 ~+60

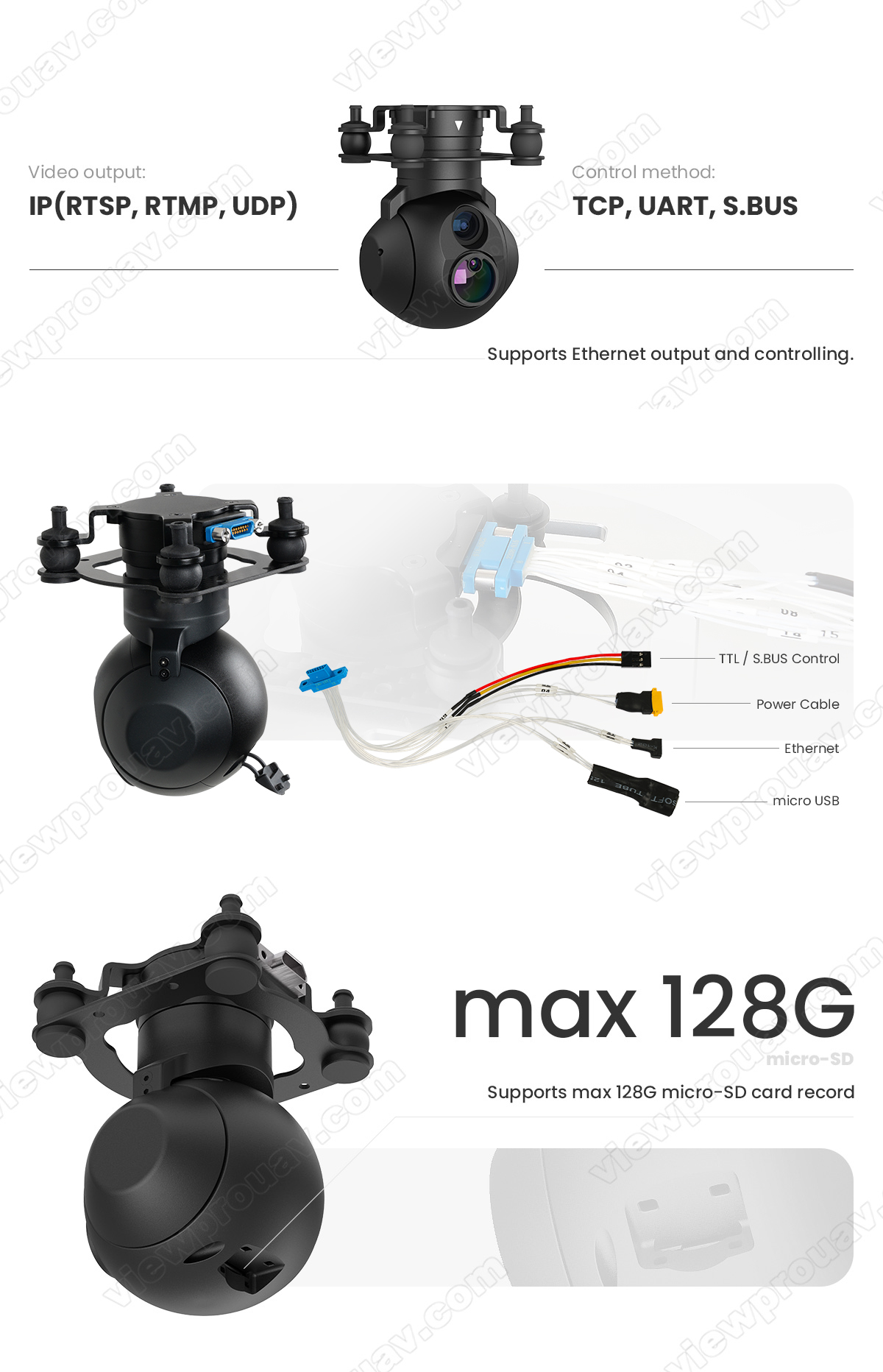

OutputIP rtsp (1080p 30fps)
Local-storageSD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage formatJPG(1920*1080)
Video storage formatMP4  (1080P 25fps)

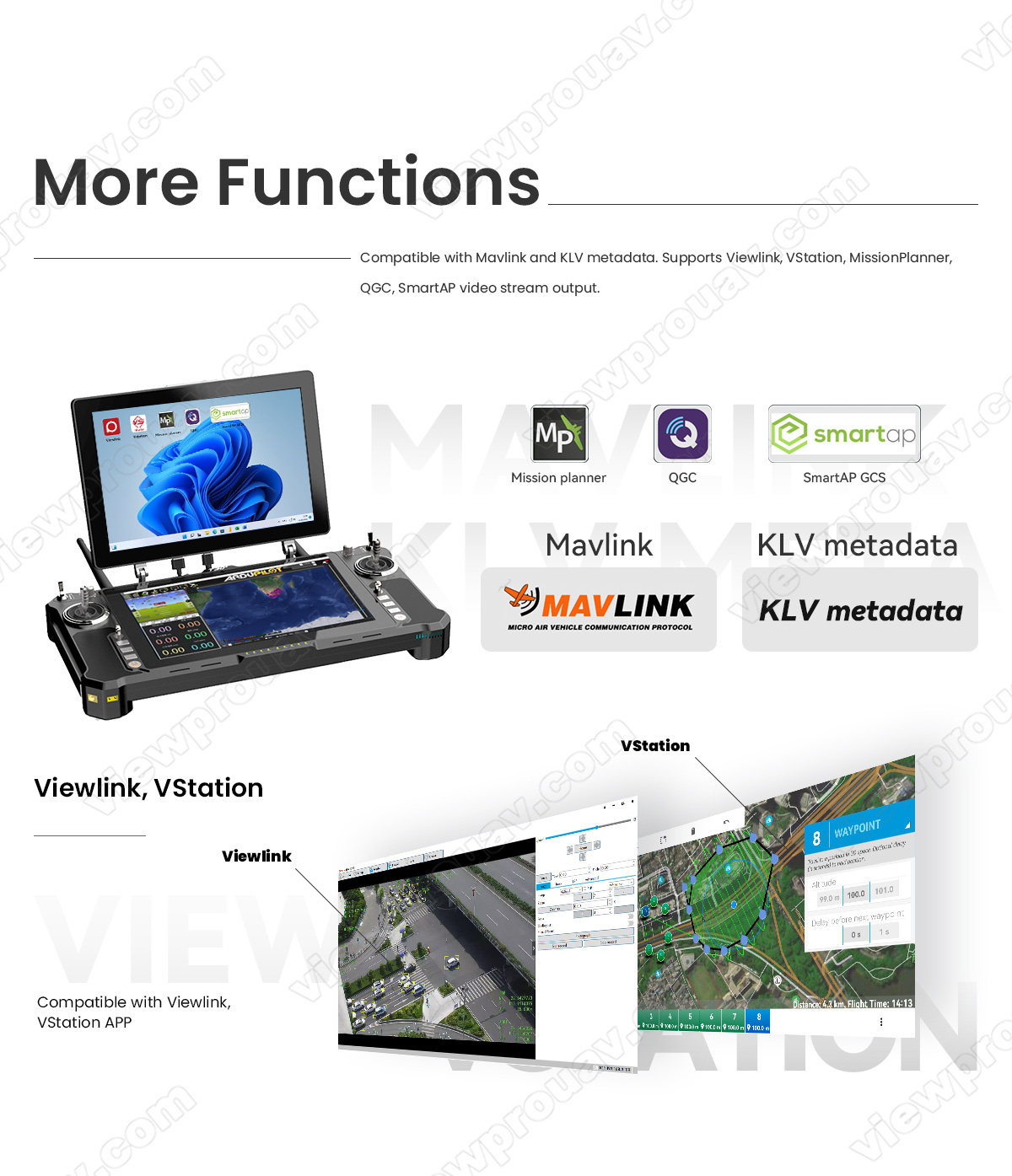

Control methodTTL / S.BUS/ TCP
Gimbal Spec

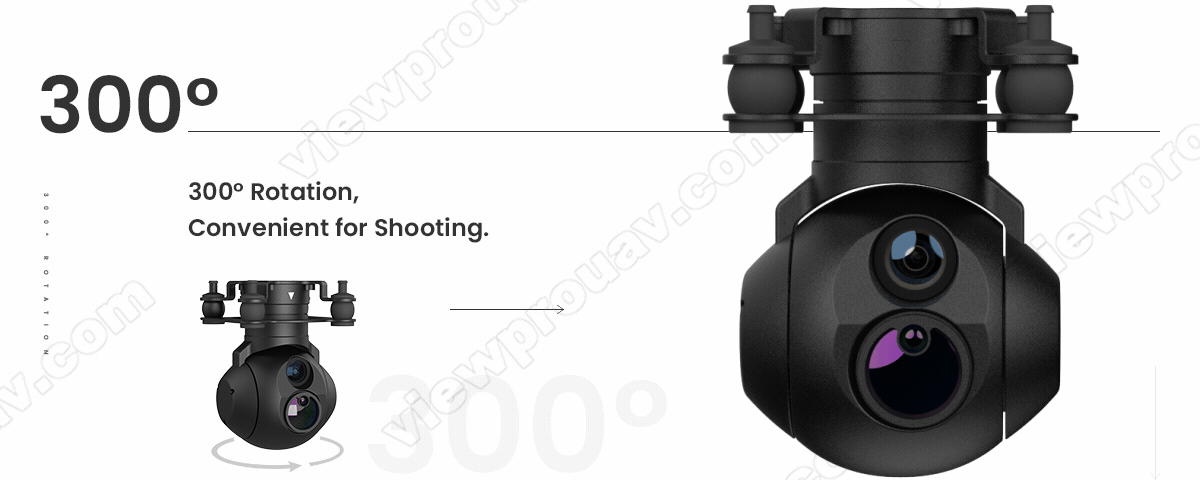

Angle scope of structure designPitch/Tilt: -60 120 ,    Yaw/Pan: 300 *N
Angle scope of software designPitch/Tilt: -45 90 ,   Yaw/Pan: 300 *N
Vibration anglePitch/Roll: 0.02 , Yaw 0.02
One-key to center
EO Camera Spec
Resolution3840*2160 @60fps
Focus Length8mm
Angle of View38 *22
EO  Camera Object Tracking
Update rate of deviation pixel60Hz
Minimum object contrast5%
Minimum object size16*16 pixel
Maximum object size128*128 pixel
Tracking speed 48 pixel/frame
Object memory time100 frames
IR Laser Rangefinder
Range5~1500 meters
Resolution1:<400 1      2: 400 0.4%
Light Beam905nm pulse laser
Divergent Angle3~10 mrad
Measuring Respond Time1:<0.06s/m( 100)  2:<0.28s/m( 100~600)   3:<0.85s/m( 600~1000)   4:<1s/m( 1000~1500)
Power0.5~0.9W

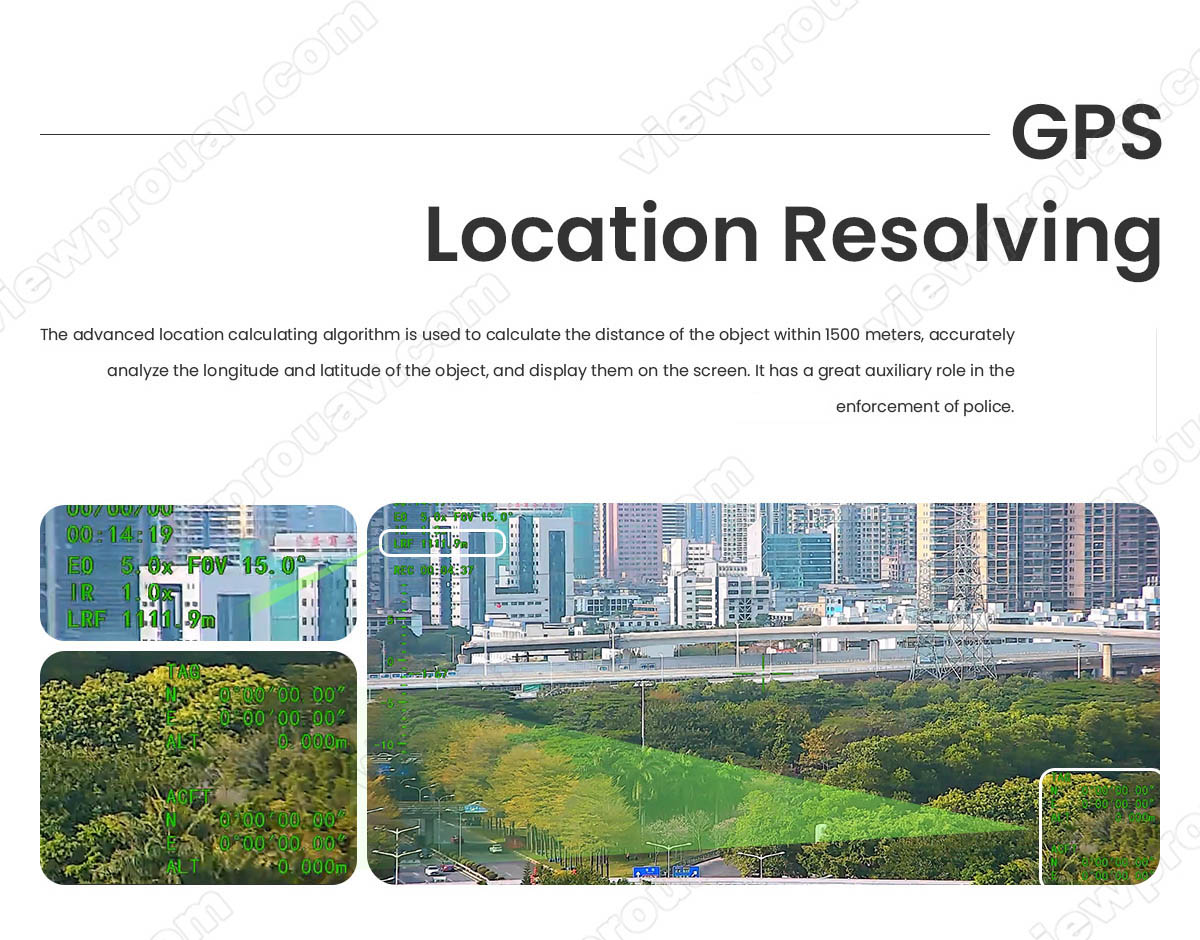

Location ResolvingLatitude and longitude of target
RanefinderTarget distance measuring
Packing Information

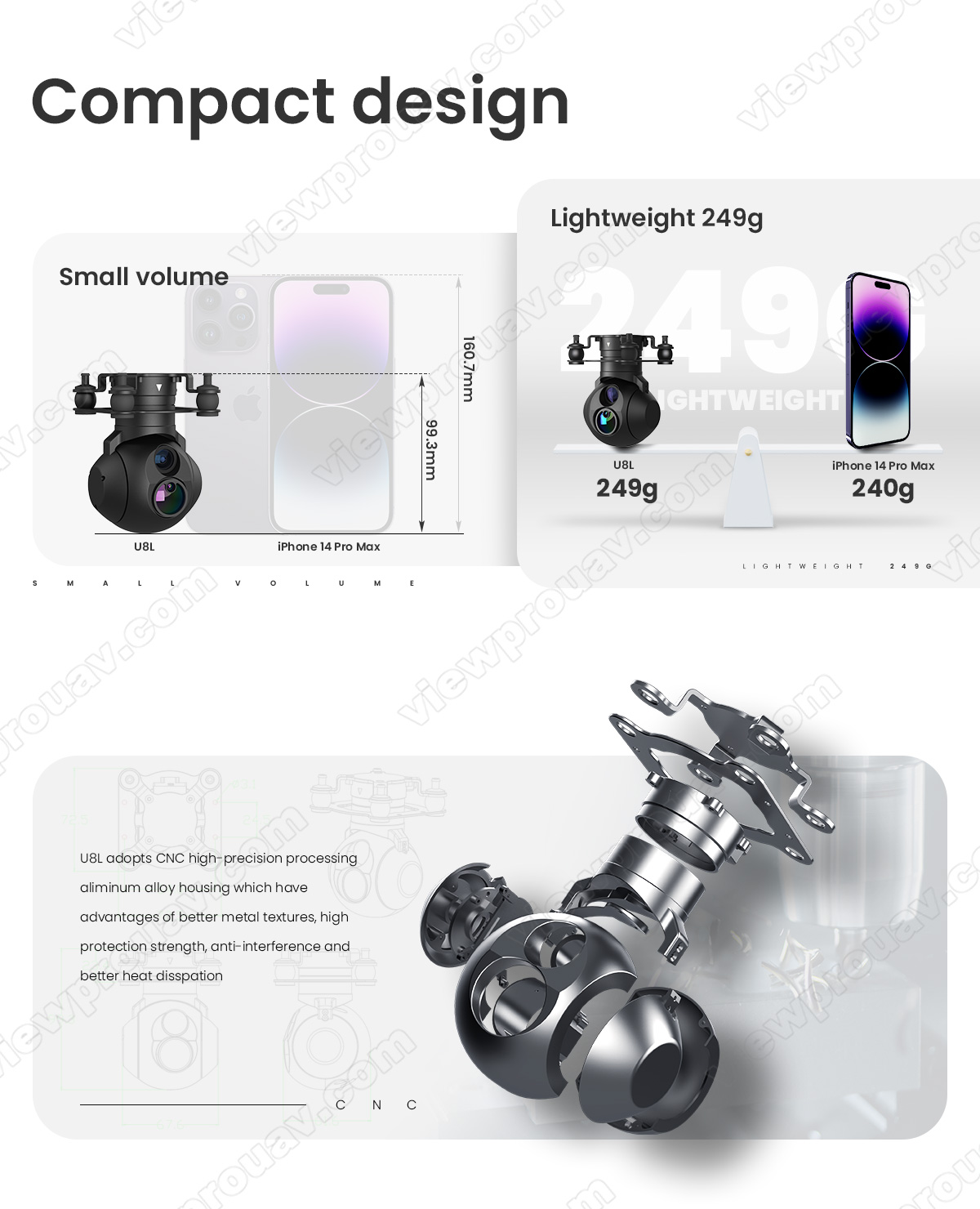

N.W.249g (with damping system)

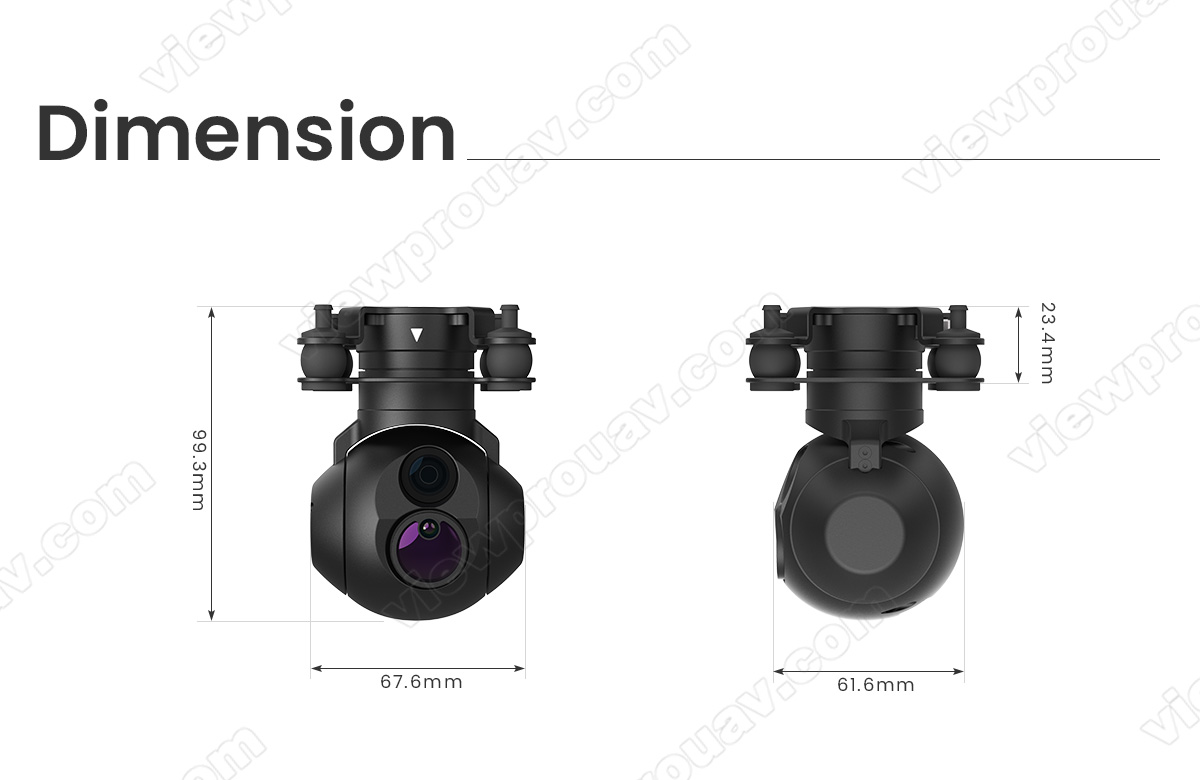

Product meas.67.6*61.6*99.3mm
Accessories1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion
Package meas.167*158*120mm
