MHawkeye U818 Micro Prime Lens Dual Sensor Tracking Camera for Surveillance

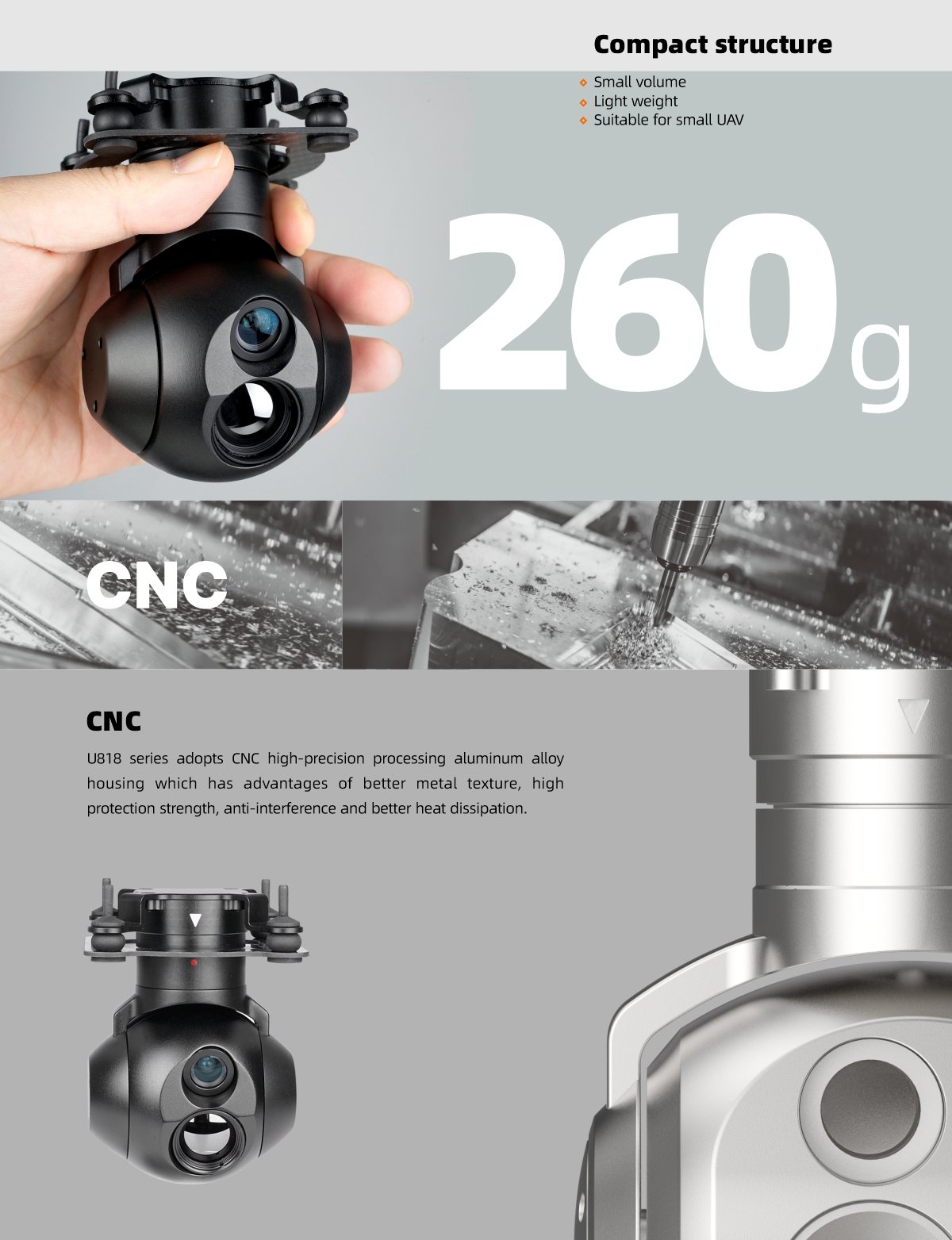

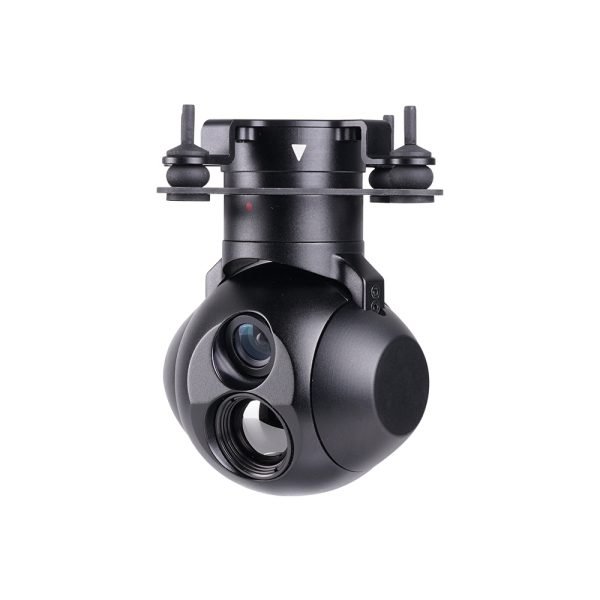

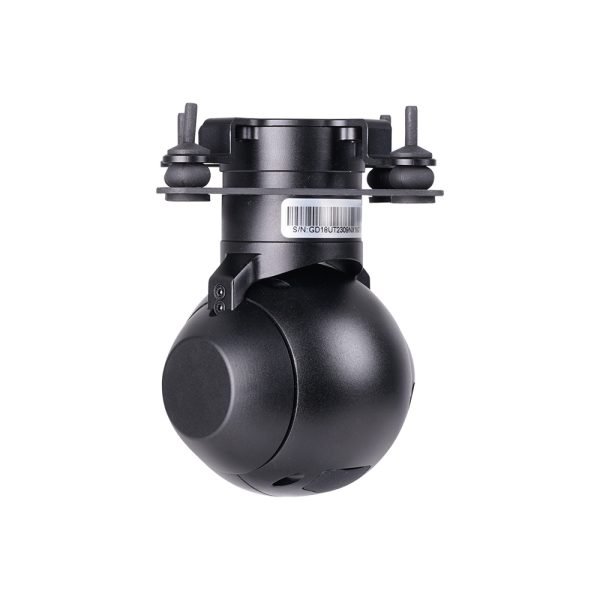

MU818is a dual-sensorgimbal camera of Viewpro micro sereis Hawkeye series, featuring 260g light net weight, small volume and compact structure, which integrates a 8mm prime lens camera and a18mm lens 640*512 thermal camera. It with 2-axis high-precision gimbal which has advantages of better metal texture, anti-interference and better heat dissipation. It widely used in surveillance, large area reconnaissance and other other UAV industrial applications.

Category:
Hardware Parameter
Working voltage12V
Input voltage3S ~ 6S
Output voltage5V (connect with PWM)
Dynamic current600~900mA @ 12V
Idle current600mA @ 12V
Working environment temp.-40  ~ +60
OutputIP rtsp (1080p 30fps)
Local-storageSD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage formatJPG(1920*1080)
Video storage formatMP4  (1080P 30fps)

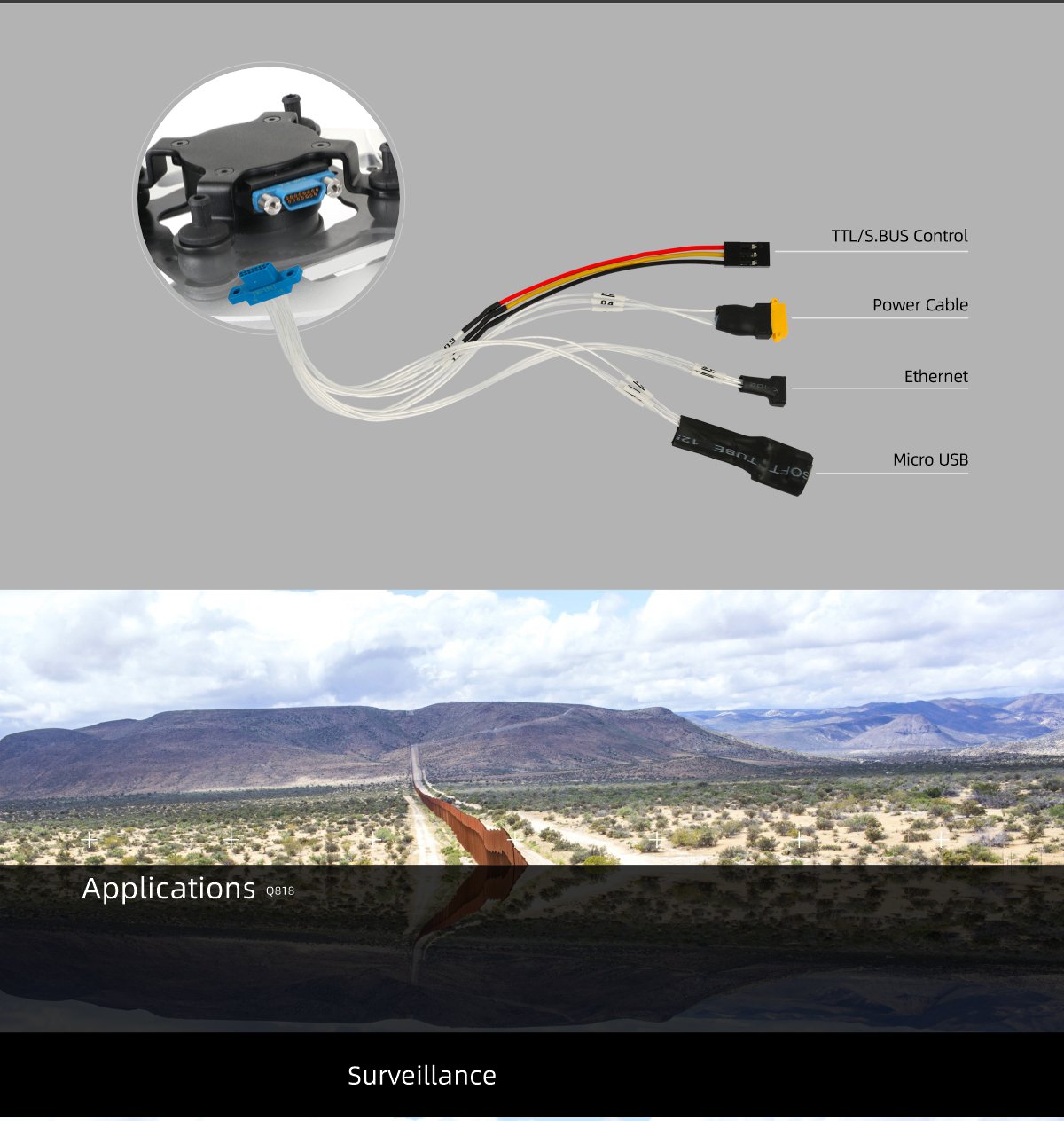

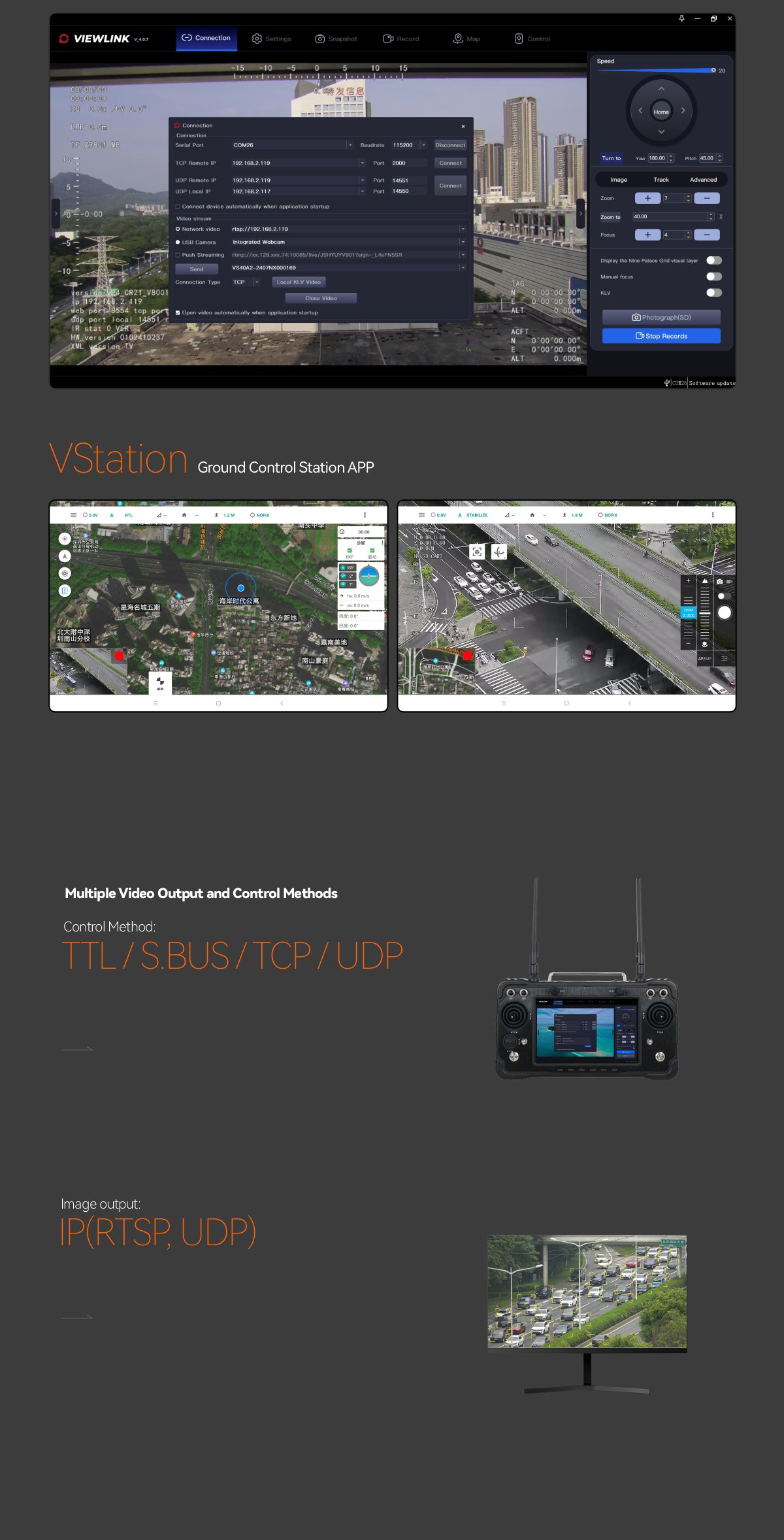

Control methodTTL / S.BUS/ TCP
Gimbal Spec
Angle scope of structure designPitch/Tilt: -90 120 ,    Yaw/Pan: 360 *N
Angle scope of software designPitch/Tilt: -45 90 ,   Yaw/Pan: 360 *N
Vibration anglePitch/Roll: 0.02 , Yaw 0.02
One-key to center
EO Camera Spec
Imager SensorCMOS Sensor
Resolution1920*1080(3.68MP) @60fps
Focus Length8mm
Pixel Pitch3 m
Angle of View51 *30
Recognize Distance (Car: 6.5x3m) 3.6km
Digital zoom1x ~ 4x
DefogYes

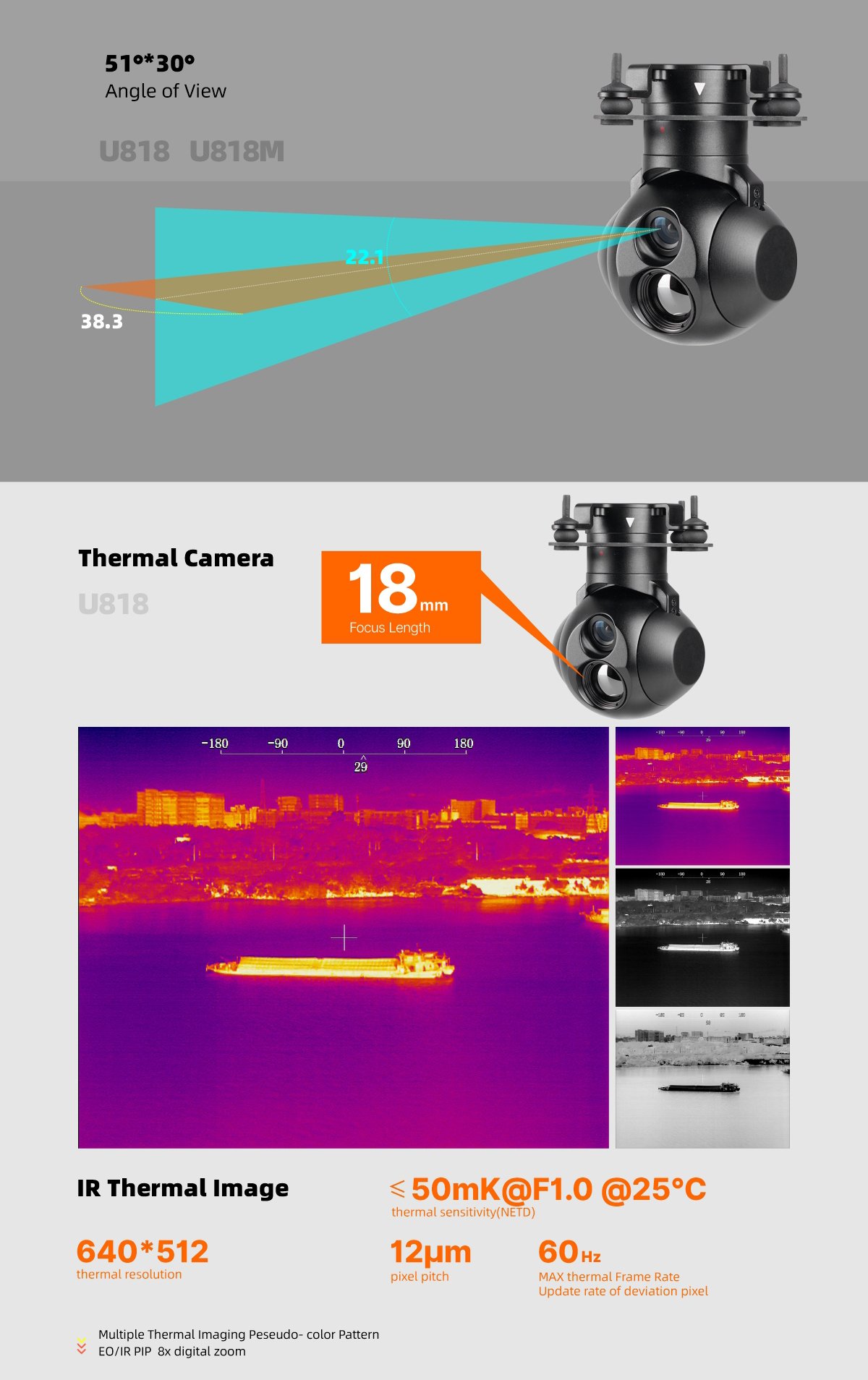

IR Thermal Imager Spec
Focus Length18mm
Horizontal FOV24
Vertical FOV18
Recognize Distance (Car: 6.5x3m) 1km
Working modeUncooled VOx long wave (8 m~14 m) thermal imager
Detector pixel640*512
Pixel size12 m
Focusing methodAthermal prime lens
NETD 50mK@F.0 @25
Color paletteWhite hot, black hote, pseudo color
Digital zoom1x ~ 4x
Sync correct timeYes

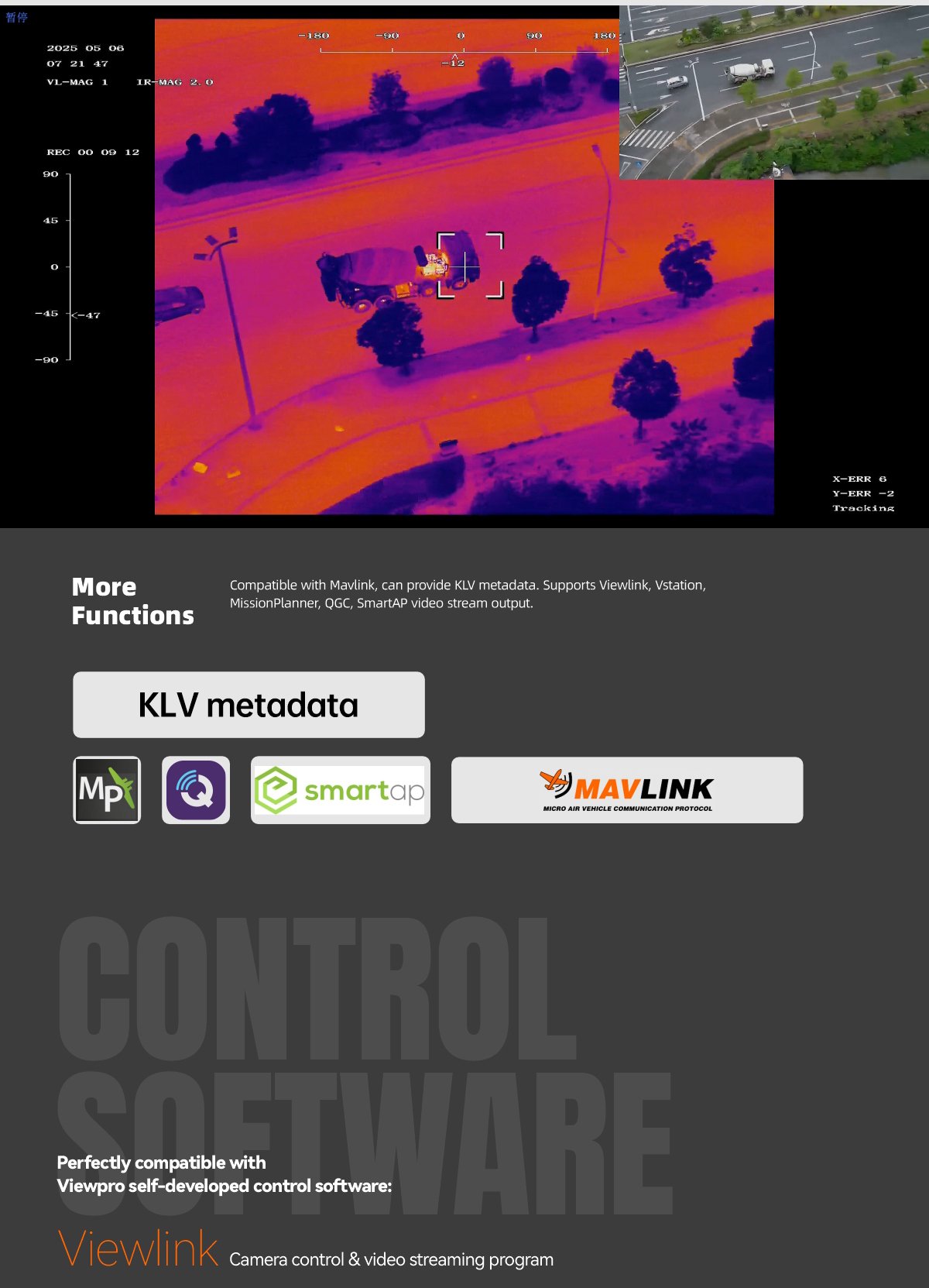

EO / IR Camera Object Tracking
Update rate of deviation pixel60Hz
Minimum object contrast5%
Minimum object size16*16 pixel
Maximum object size128*128 pixel
Tracking speed 48 pixel/frame
Object memory time100 frames

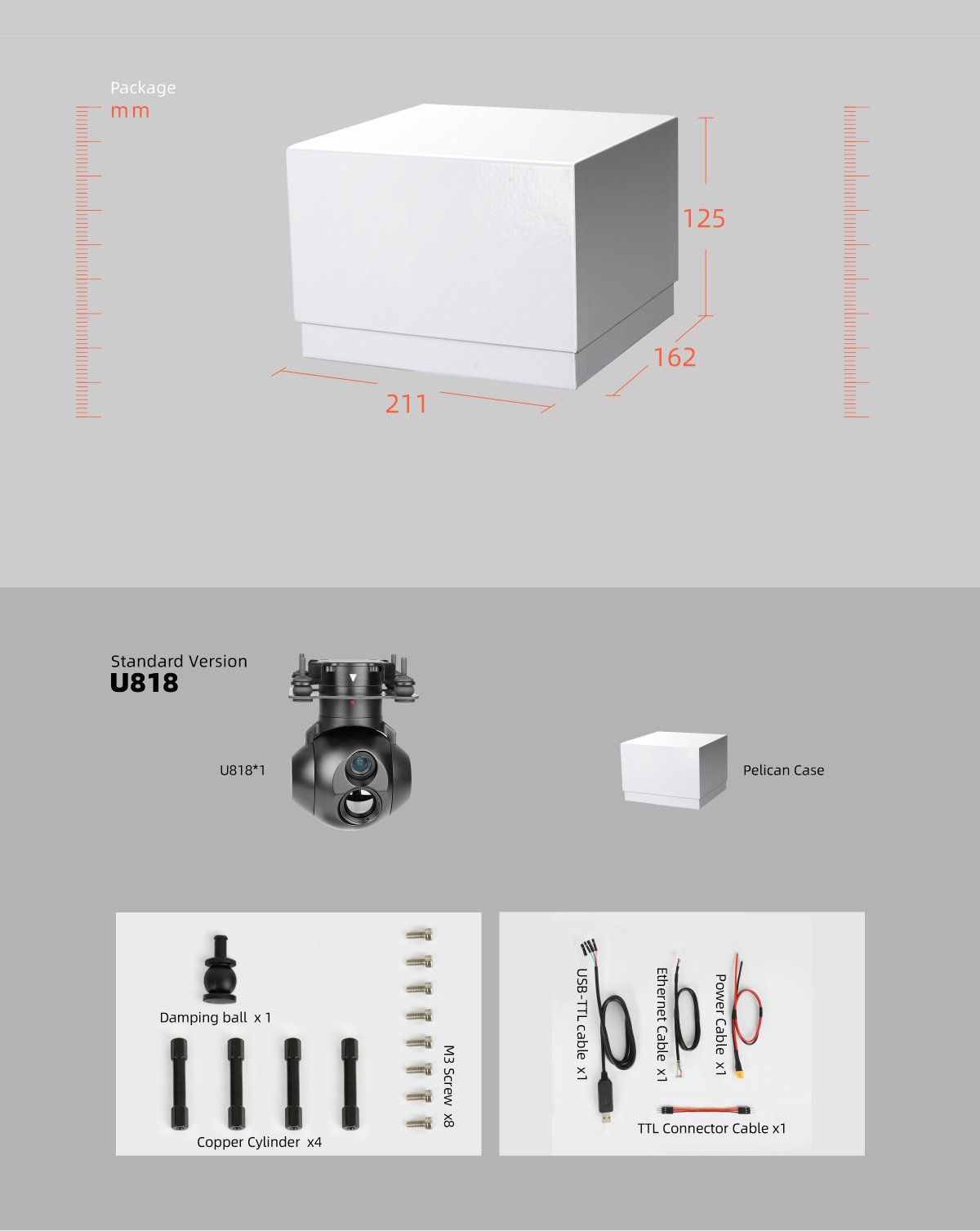

Packing Information
N.W.260g (with damping system)

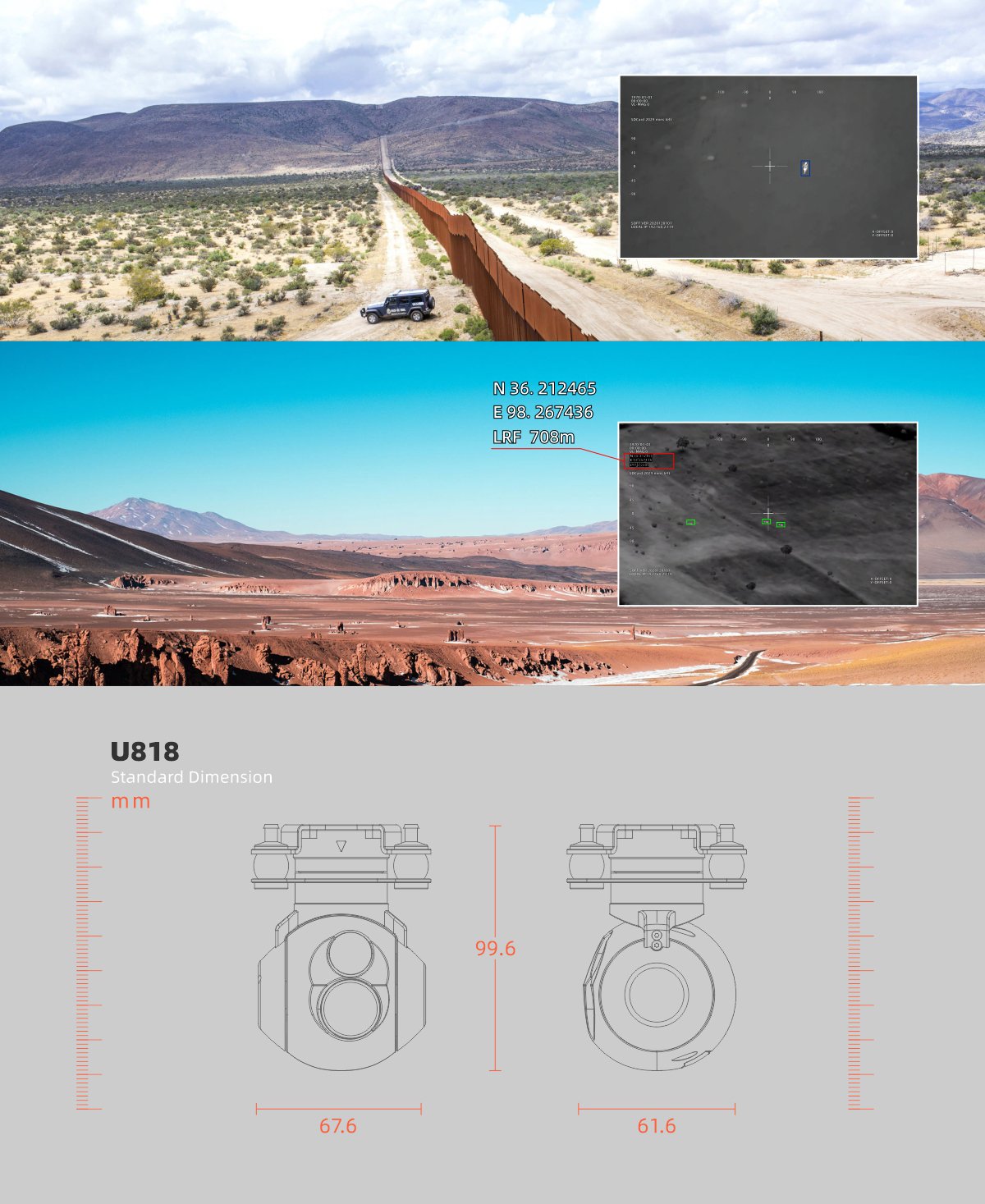

Product meas.67.9*61.6*89.7mm
Accessories1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion
