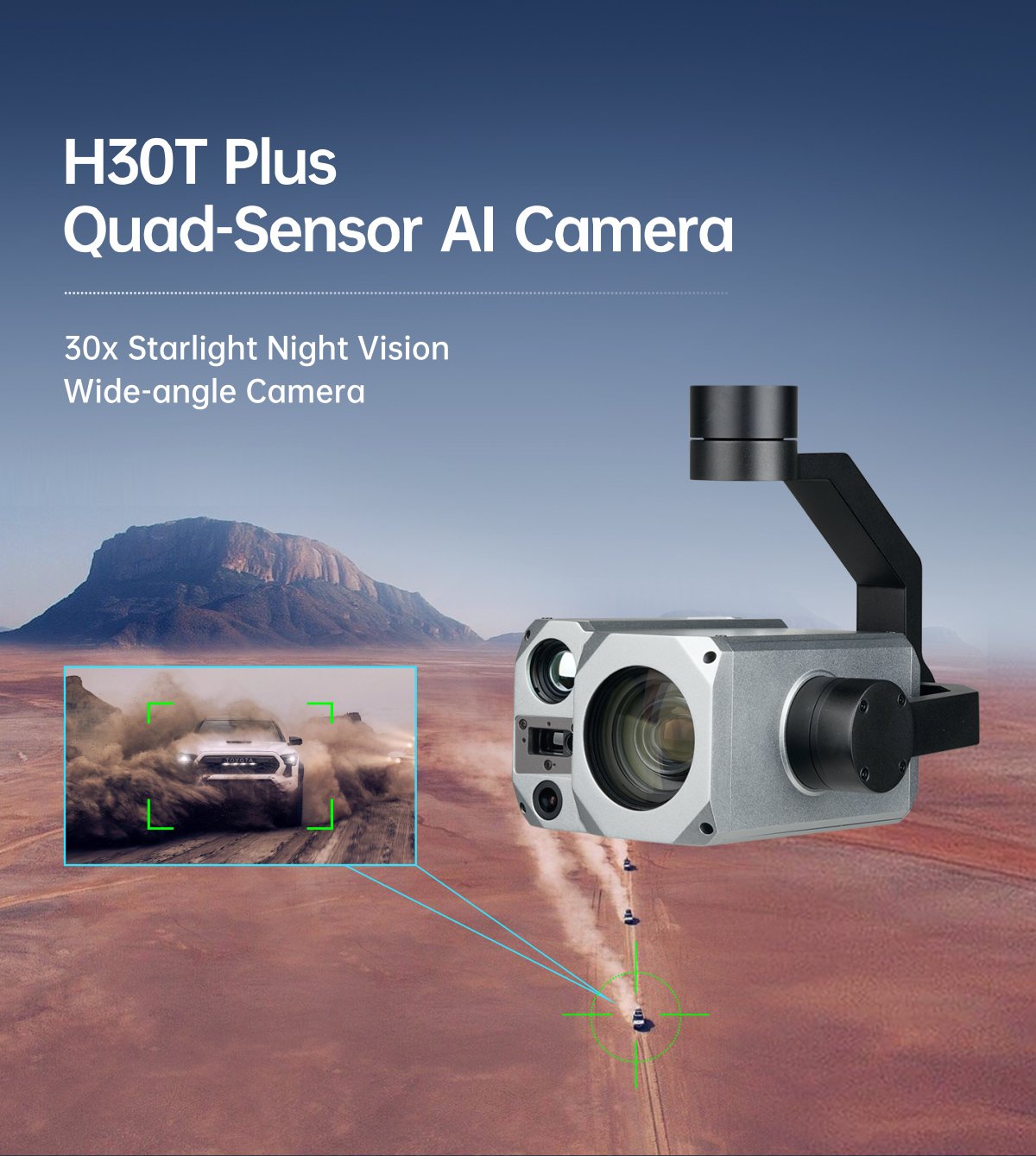

MH30T Plus Quad-Sensor 30x Starlight Night Vision Wide-Angle AI Camera
China Moneypro
The MH30T Plus is an advanced quad-sensor gimbal camera featuring a 30x optical zoom with starlight night vision capability. Equipped with a 1/1.8 STARVIS CMOS sensor delivering 4.17MP resolution, it excels in low-light environments with exceptional sensitivity down to 0.009 lux. The system includes a wide-angle 2MP camera, uncooled thermal imaging with 640×512 resolution, and an IR laser rangefinder extending to 1500 meters. Advanced AI technology enables simultaneous detection of up to 10 targets with 85% car detection accuracy. The three-axis gimbal offers precise stabilization with 0.02-degree vibration control and 360-degree pan capability. Features include real-time object tracking, geotagging, TF card storage up to 256GB, and multiple control options via PWM, TTL, S.BUS, or TCP/UDP protocols. Operating from 4S-6S input voltage with dynamic current of 1100-2500mA, it delivers professional-grade surveillance and reconnaissance capabilities for demanding applications.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1100~2500mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | TF card (Up to 256G, class 10, FAT32 format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4(1080P 30fps) |

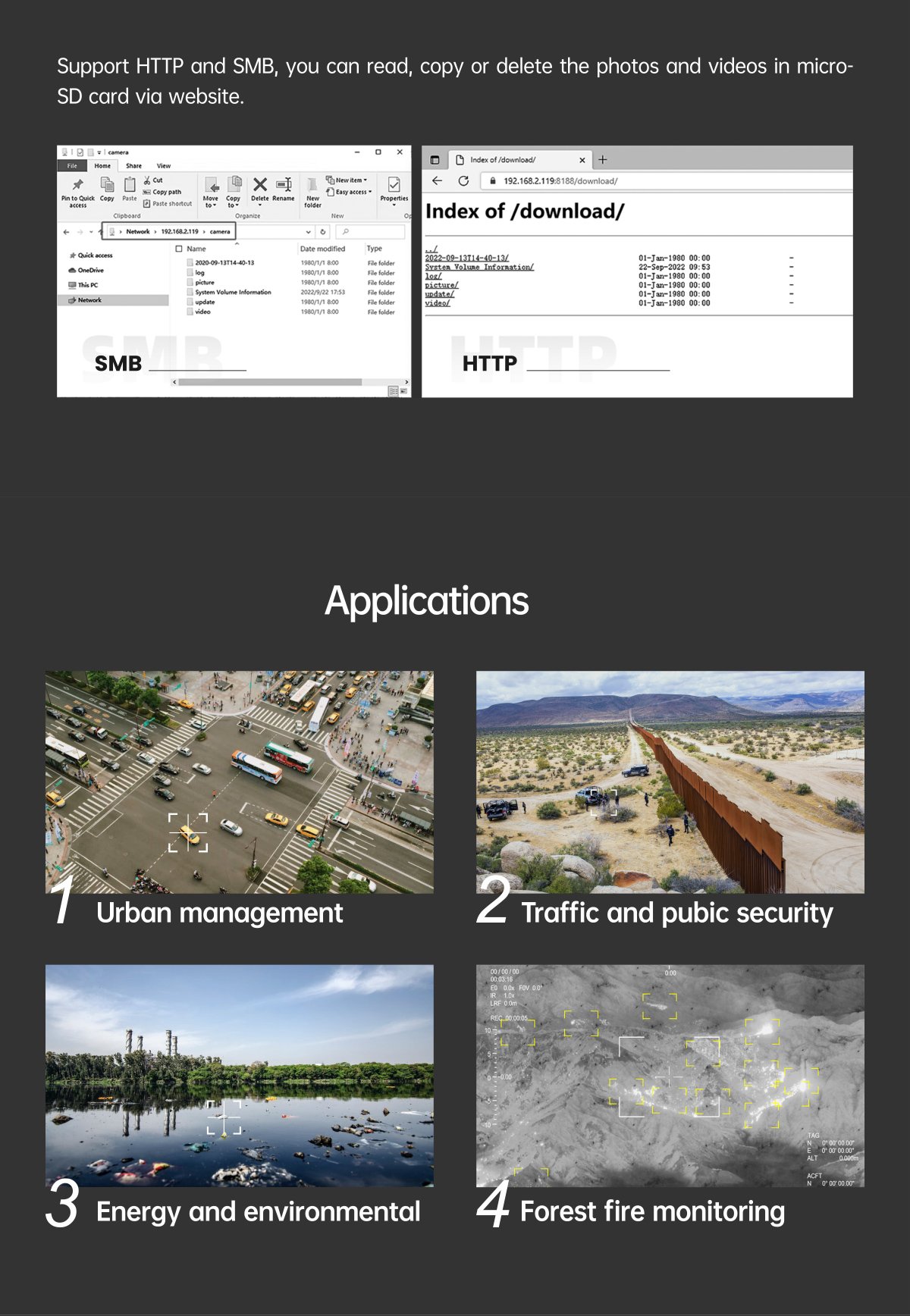

| Card reading online | HTTP read pictures |

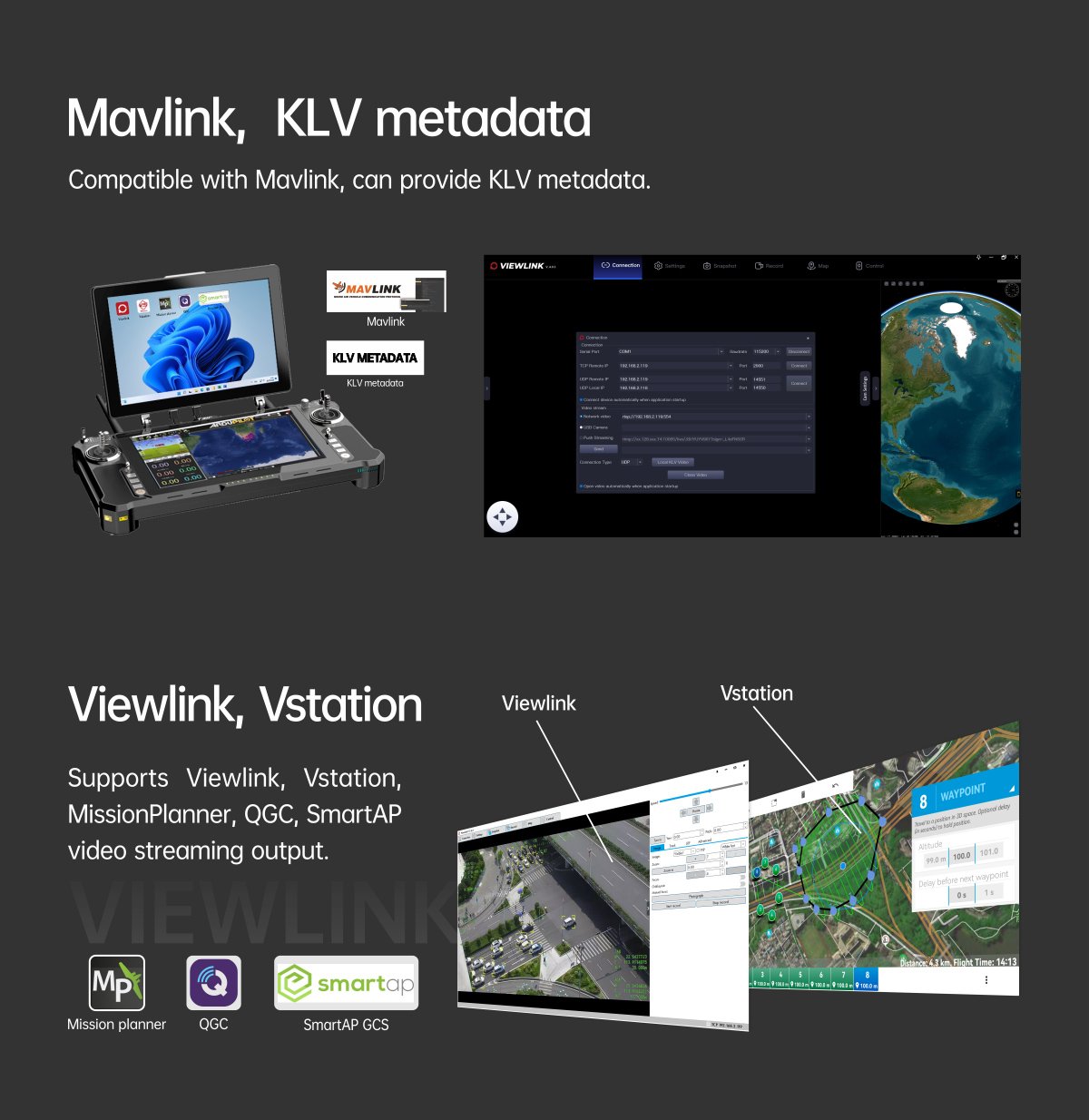

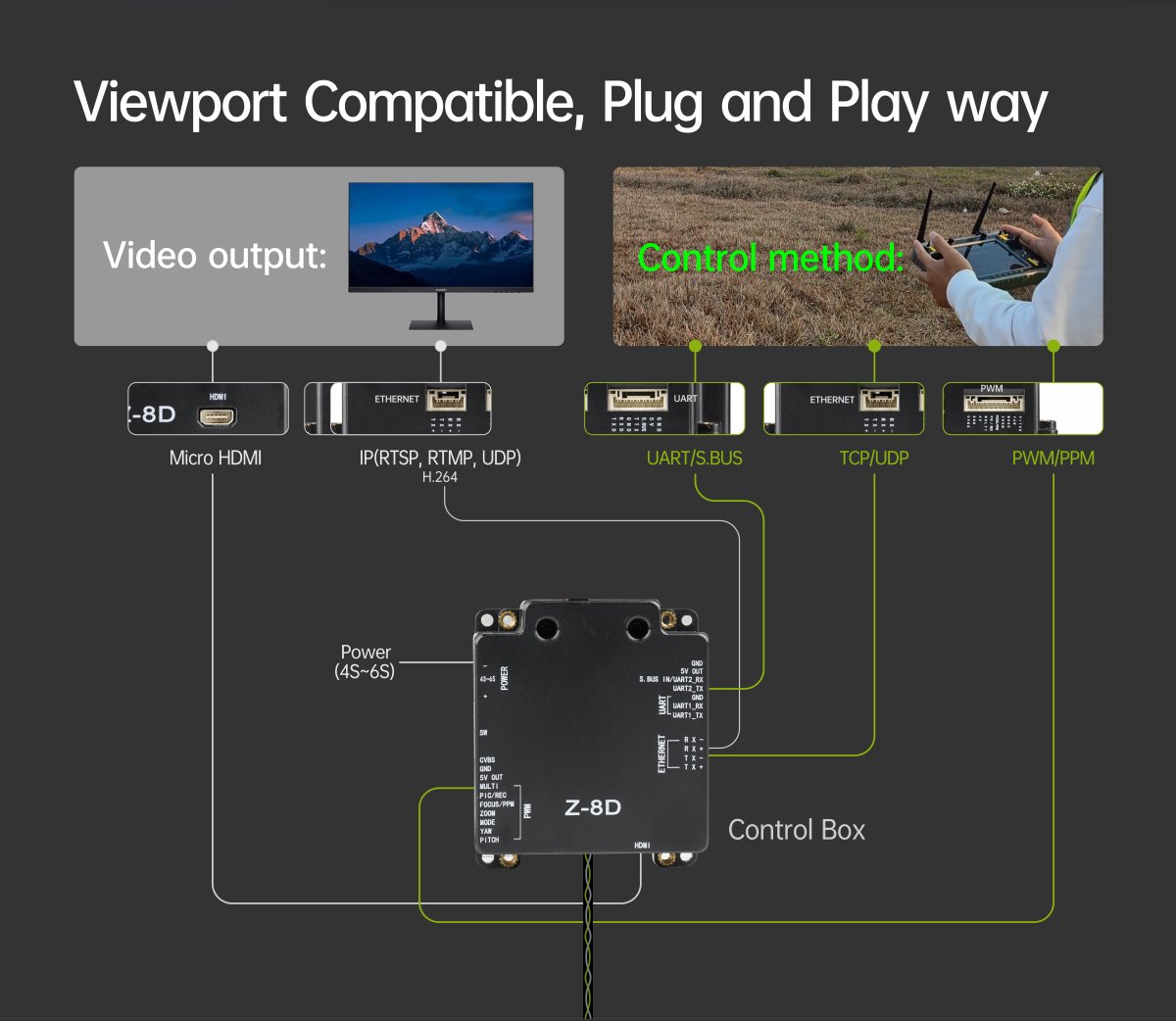

| Control method | PWM / TTL / S.BUS / TCP(IP output version)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |

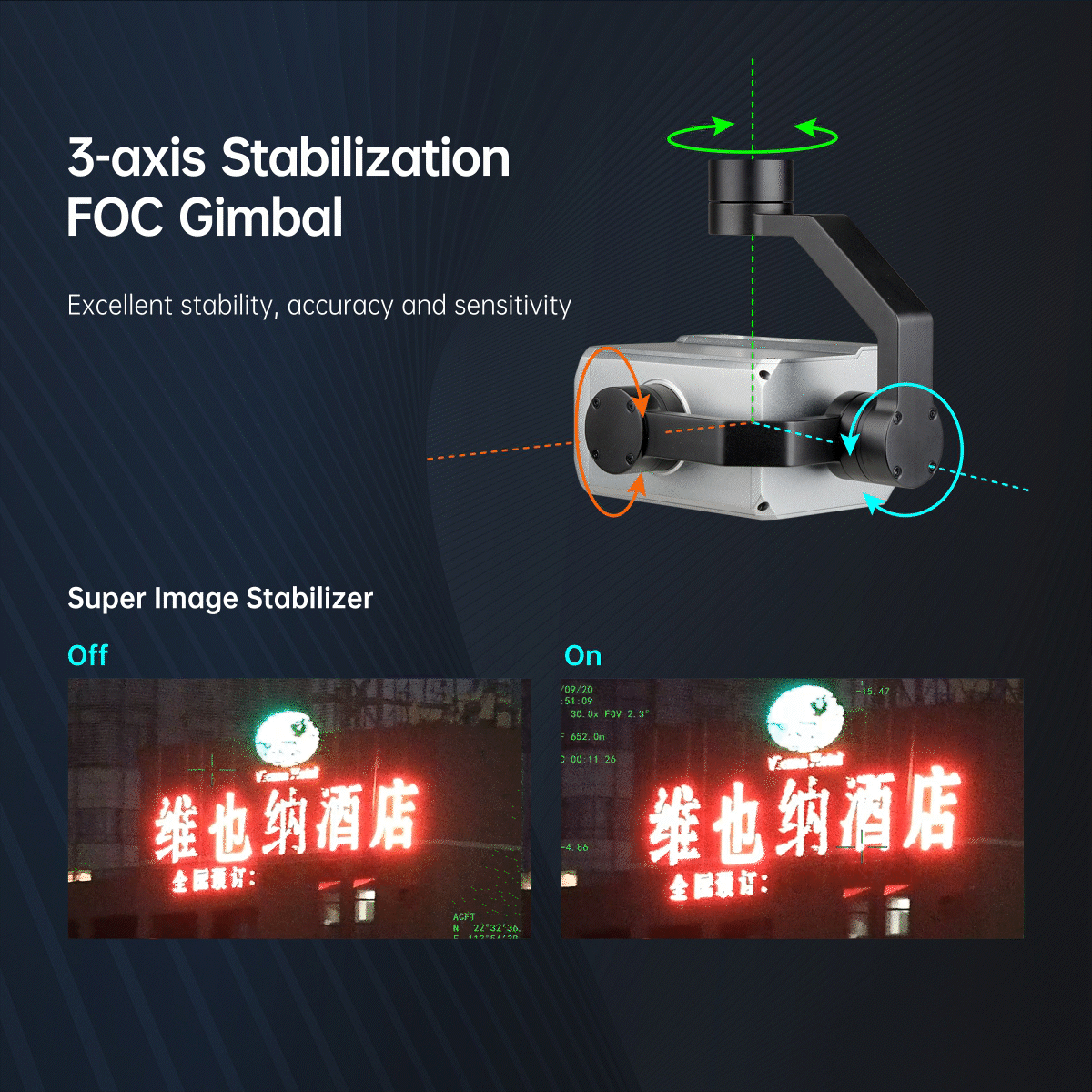

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt:-110 130 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 125 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| EO1 Camera spec | |
| Imager Sensor | 1/1.8 Type STARVIS CMOS Sensor |
| Picture quality | 4.17MP |
| Lens optical zoom | 30x, f=6.5~162.5mm, F1.6 to F4.8 |
| Digital zoom | 12x (max. 432x with StableZoom) |
| Min object distance | 100 mm (Wide end), 1200 mm (Tele end) |
| Horizontal viewing angle | 58.1 (wide end) ~ 2.3 (tele end) |
| Sync system | Internal |
| Image S/N | 50 dB (Weight On) |
| Min illumination | In the case of ICR-Off (Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On) 0.09 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) 0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) In the case of ICR-On 0.00008 lx (1/30 sec, 50%, High Sensitivity mode On) 0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On) |
| High Sensitivity mode On/Off | Off |
| Recommended illumination | 100 lx to 100,000 lx |
| Gain | Auto/Manual (0 to 50.0 dB (0 to 28 step)) Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step)) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Wide Dynamic Range Mode | On/Off |
| Shutter speed | 1/1 sec to 1/10000 sec (22 steps) |
| Backlight compensation On/Off | Off |
| Image Stabilizer On/Off/Hold | Off |
| ICR On/Off | Off |
| Aperture control | 16 steps |
| Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps) |
| Defog | On/Off (low, mid, high) |
| OSD | Yes |

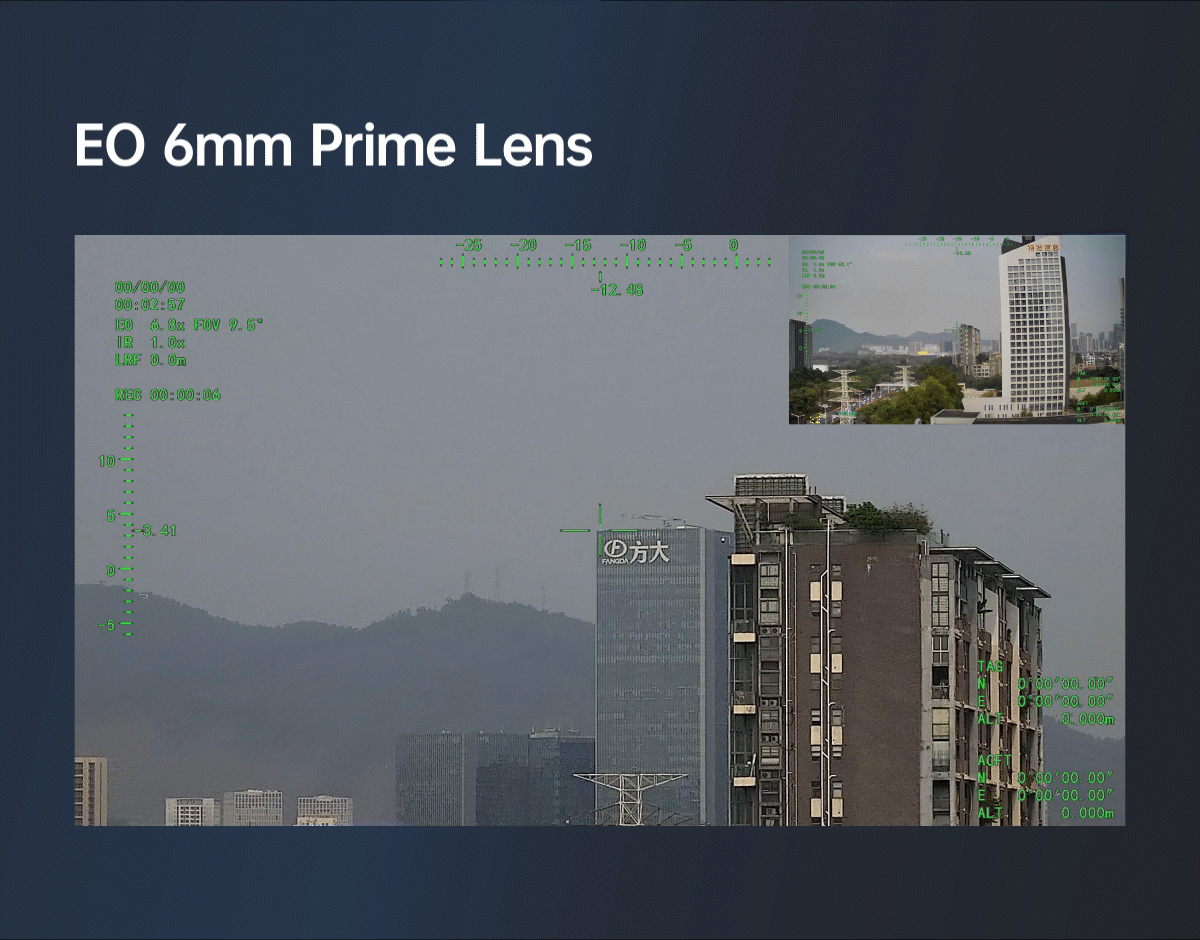

| EO2 Camera spec | |
| Imager Sensor | 1/2.9 CMOS Sensor |
| Image pixel | 2MP |
| Picture quality | Full HD 1080 (1920*1080) |
| Lens | Focus Length 6mm |
| Angle of View (D,H,V) | FOV D 60 H 50 V 28 |
| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Horizontal FOV | 22.9 |
| Vertical FOV | 18.4 |
| Diagonal FOV | 29.0 |
| Detective Distance (Man: 1.8 0.5m) | 792 meters |
| Recognize Distance (Man: 1.8 0.5m) | 198 meters |
| Verified Distance (Man: 1.8 0.5m) | 99 meters |
| Detective Distance (Car: 4.2 1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2 1.8m) | 607 meters |
| Verified Distance (Car: 4.2 1.8m) | 303 meters |
| Working mode | Uncooled VOx long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12 m |
| Focusing method | Athermal prime lens |
| NETD | 50mK@25 , F#1.0 (<=40mk Optional) |
| Color palette | White, iron red, pseudo color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |

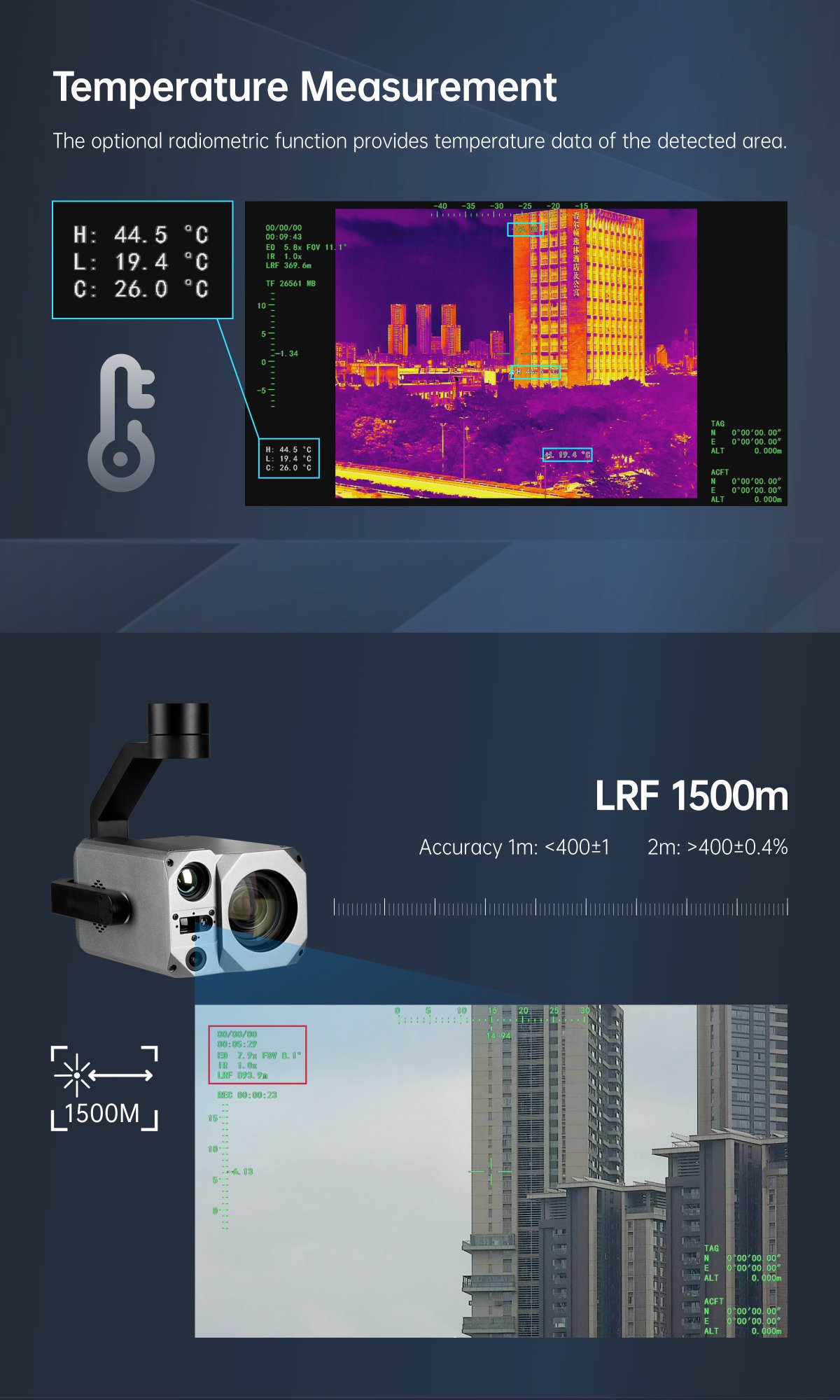

| Radiometric function | Optional -20 ~+150 , +100 ~+550棩 |
| EO/IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames |
| IR Laser Rangefinder | |
| Range | 5~1500 meters |
| Accuracy | 1m: <400 1 2m: >400 0.4% |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 12 mrad |
| Laser pulse frequency | 0.1C1Hz |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |

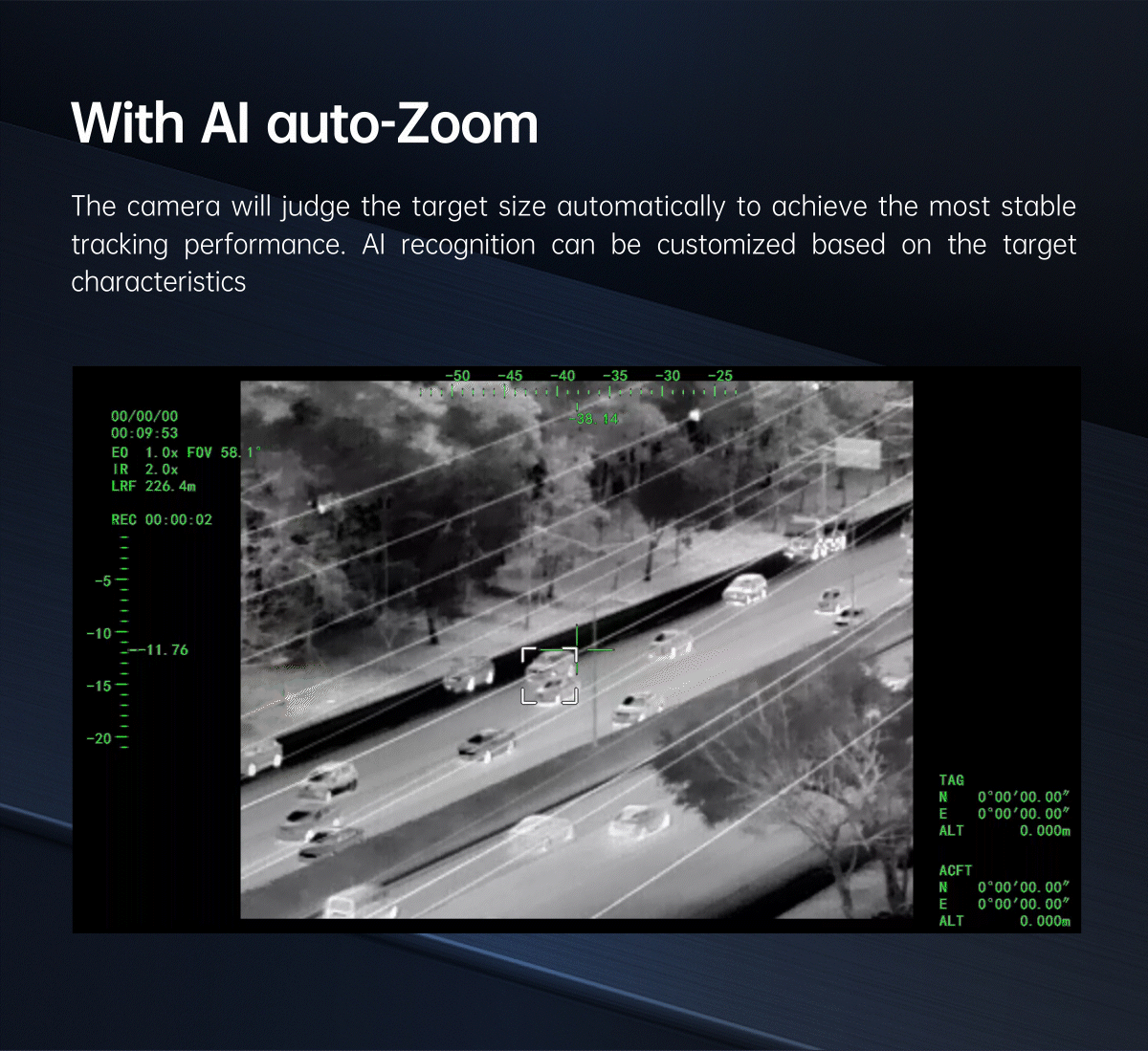

| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5 5 pixel |
| Car detection rate | 85% |
| False alarm rate | 10% |
| Packing Information | |
| N.W. | 1030 10g(Viewport version with Viewport) |
| Product meas. | 178.3*136.5*200.6mm / 178.3*136.5*206.3mm(Viewport version with Viewport) |

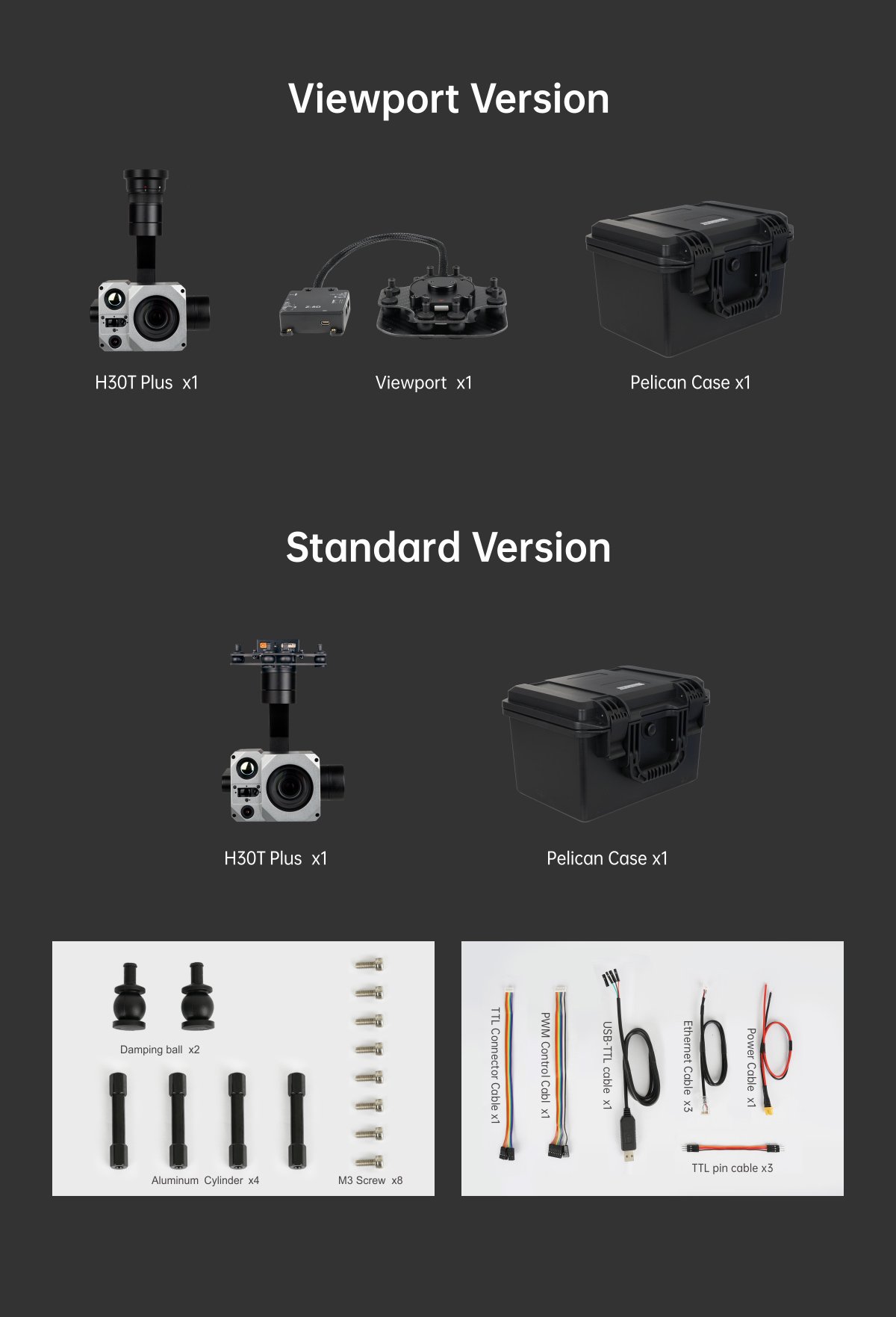

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2750g |
| Package meas. | 350*300*250mm |
