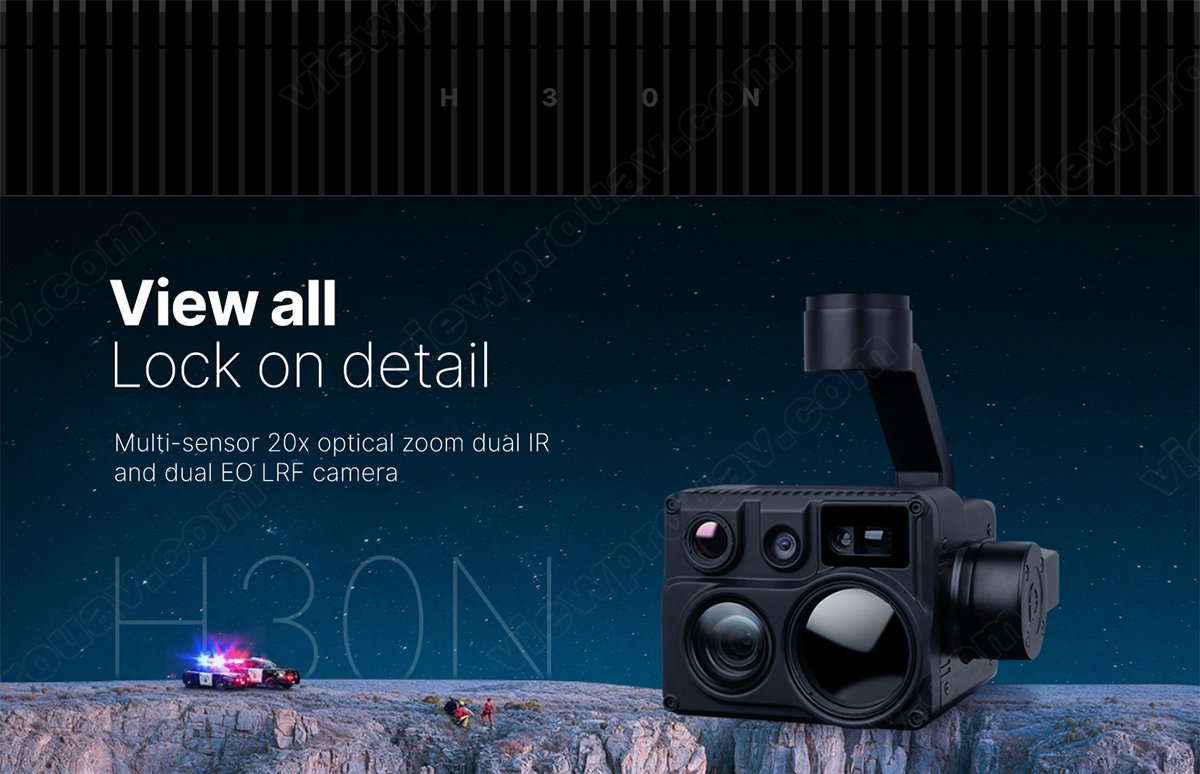

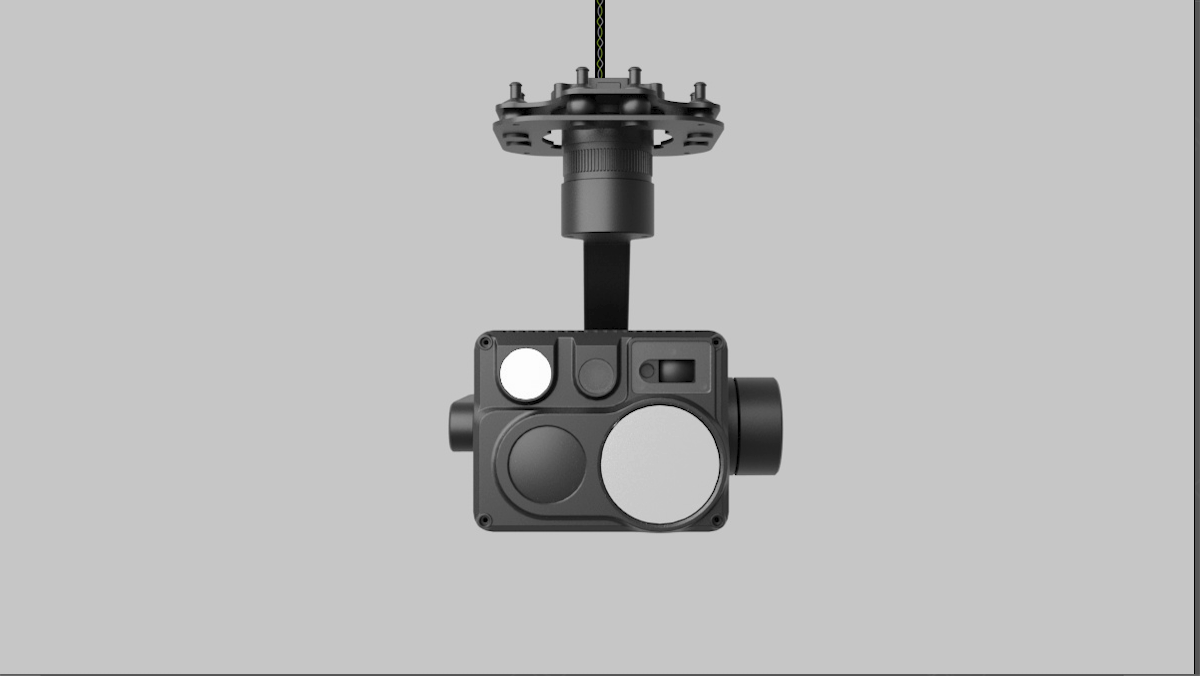

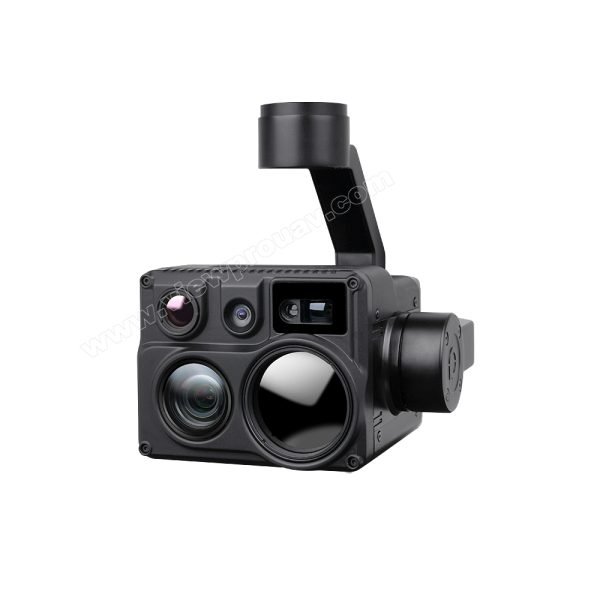

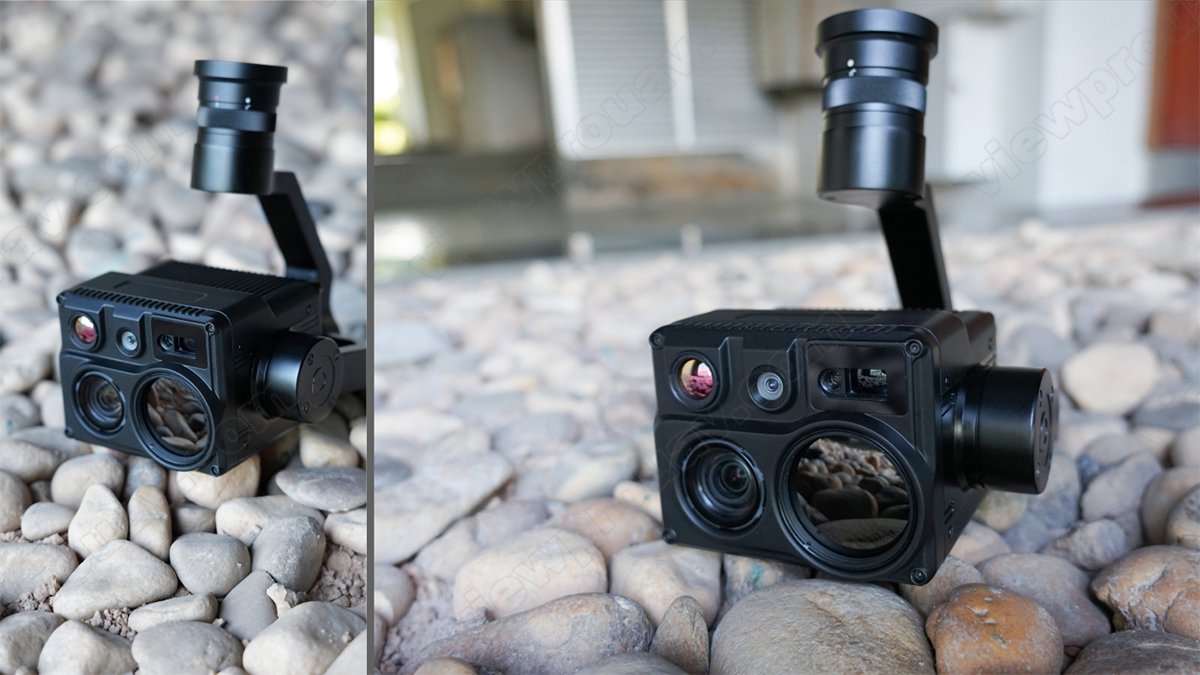

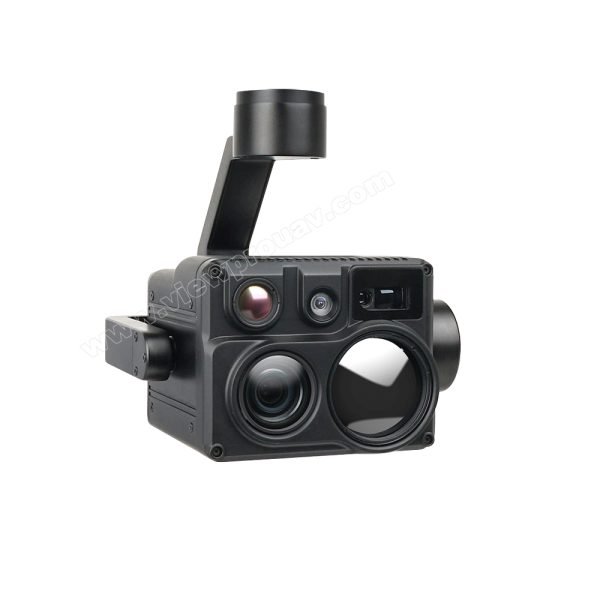

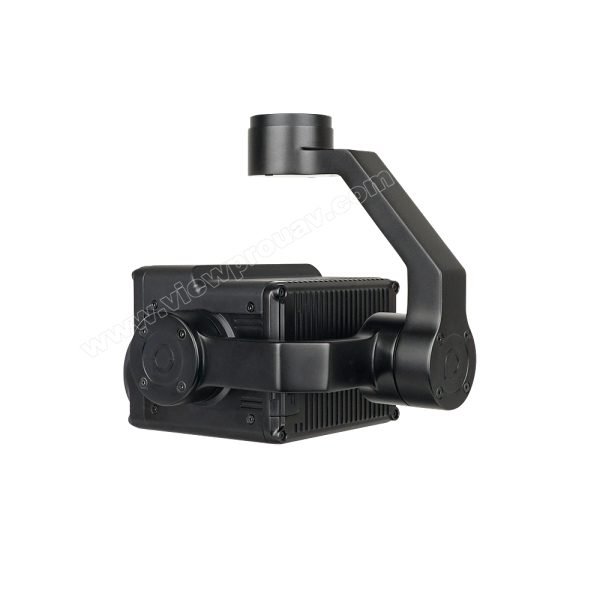

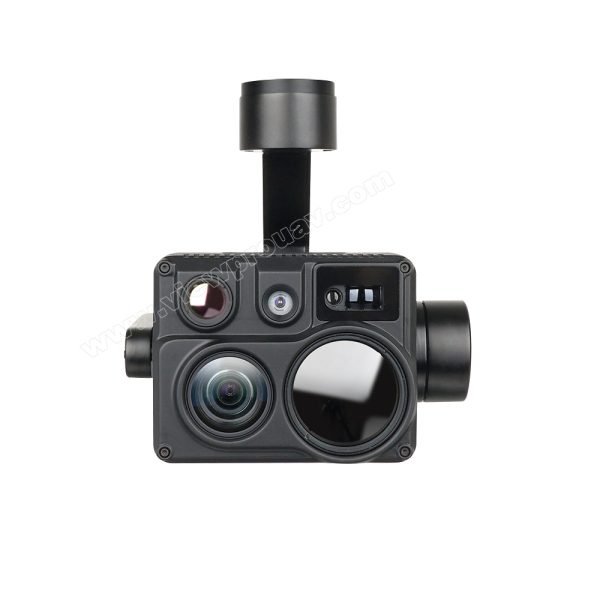

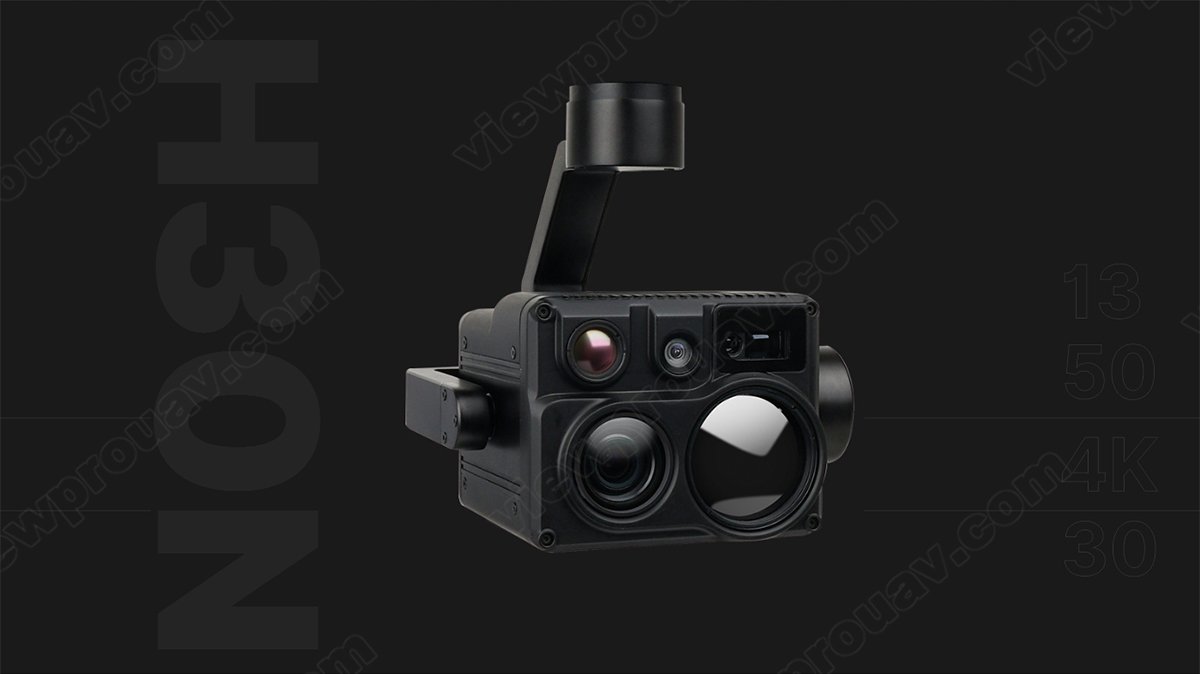

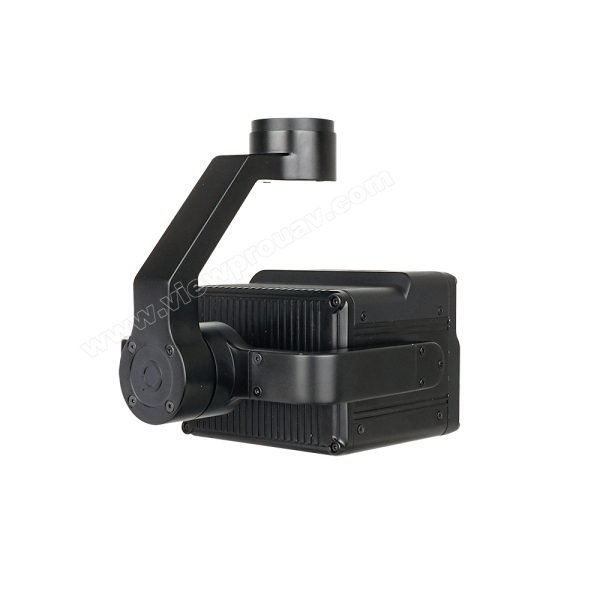

MH30N Multi-sensor EOIR Laser Rangefinder with dual IR Thermal and dual EO Camera
China Moneypro

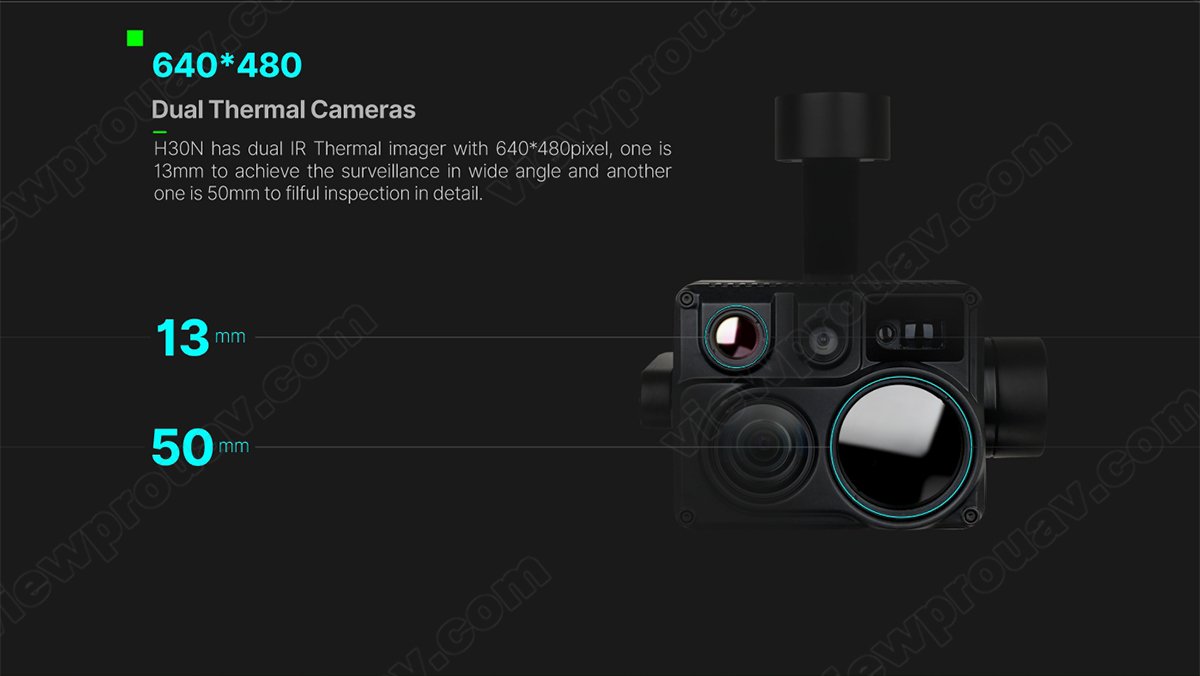

MH30N is a multi-sensor camera with dual IR Thermal sensor and dual EO camera sensor. It equips with high-resolution 4K 30x EO camera and 2.8mm wide angle FPV camera 2.8mm with 1920*1080 resolution. The dual IR Thermal sensor is 50mm and 13mm, 640*480, Moreover, it features with 1000m rangefinder and GPS coordinates of tracking target.
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 800~2500mA @ 16V |
| Working environment temp. | -20 ~ +60 |
| Output | micro HDMI(1080P25/30fps)/IP (RTSP/UDP 4K/1080p 30fps ) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Photo storage format | JPG (4K:3840*2160) |
| Video storage format | MP4 (1080P/4K 25fps) |

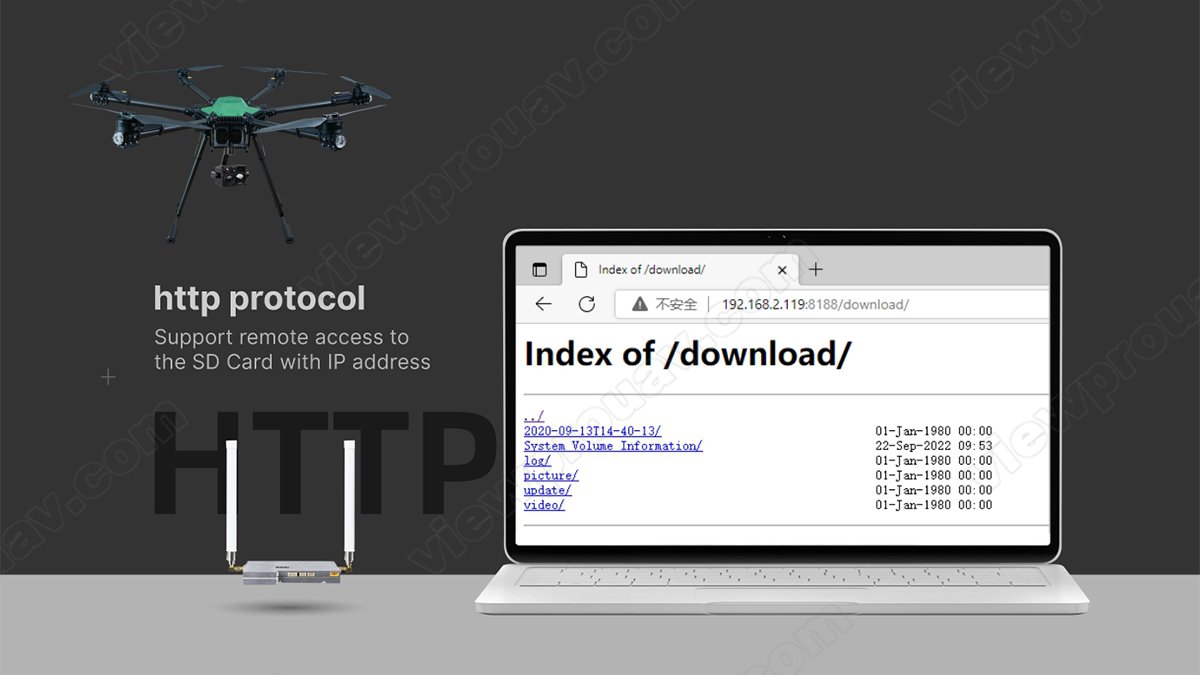

| Card reading online | HTTP read picture |

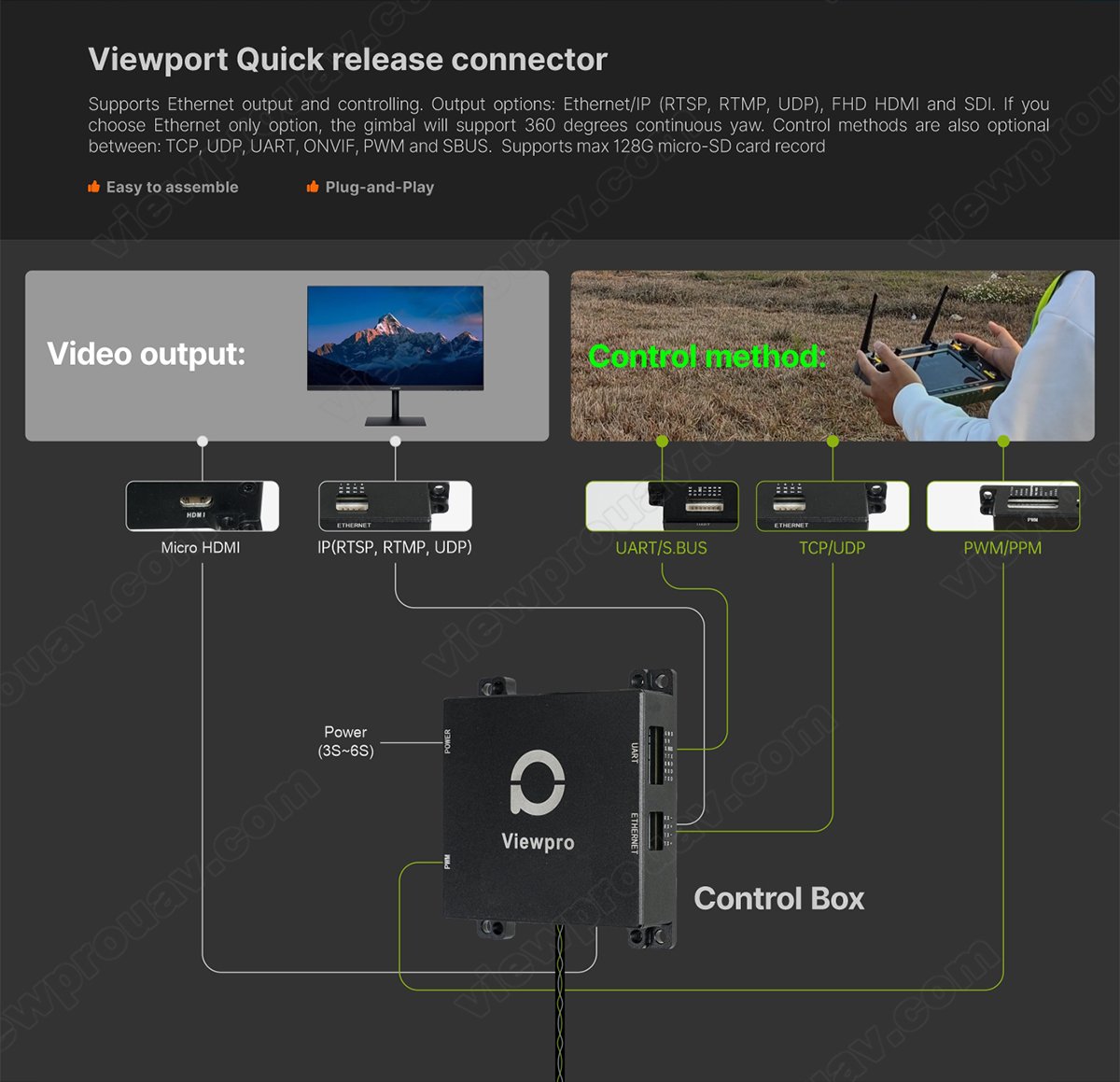

| Control method | PWM / SBUS / TTL / TCP/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |

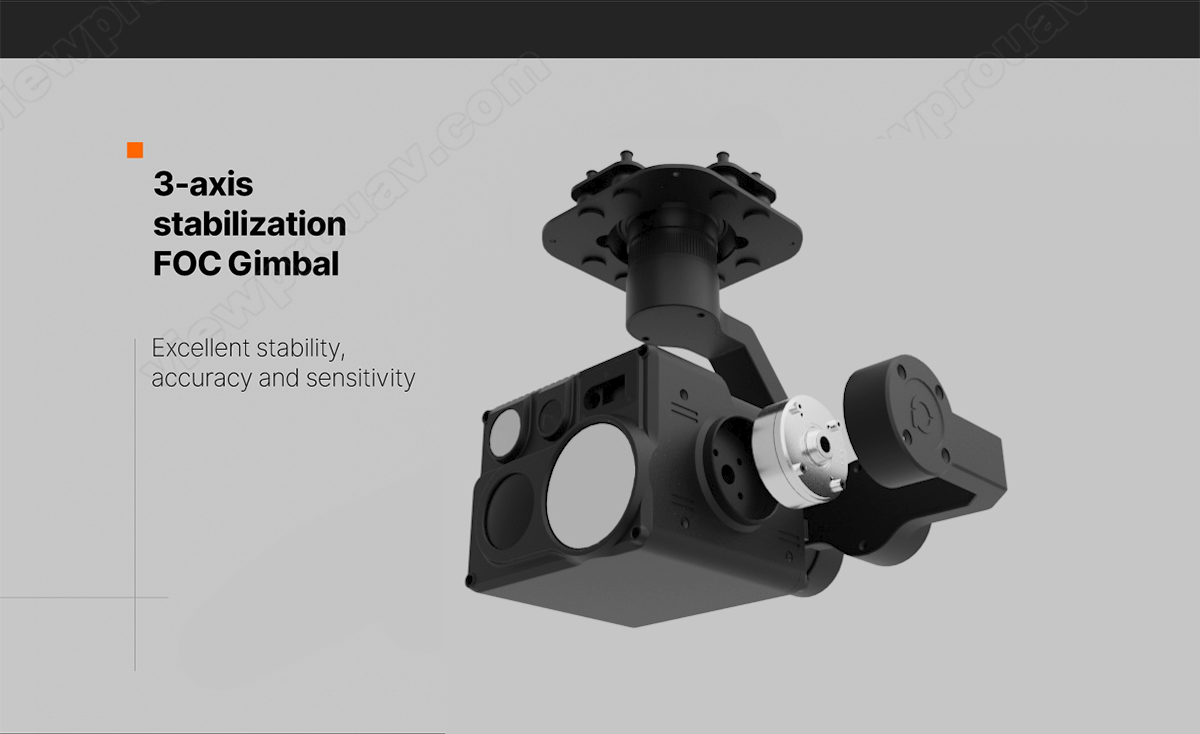

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: 120 , Roll: 70 , Yaw/Pan: 300 / 360 *N (IP output version) |
| Controllable Range | Pitch/Tilt: -45 120 , Yaw/Pan: 290 / 360 *N (IP output version) |
| Vibration angle | Pitch/Roll: 0.02 , Yaw 0.02 |
| One-key to center | |
| EO Camera Spec I | |

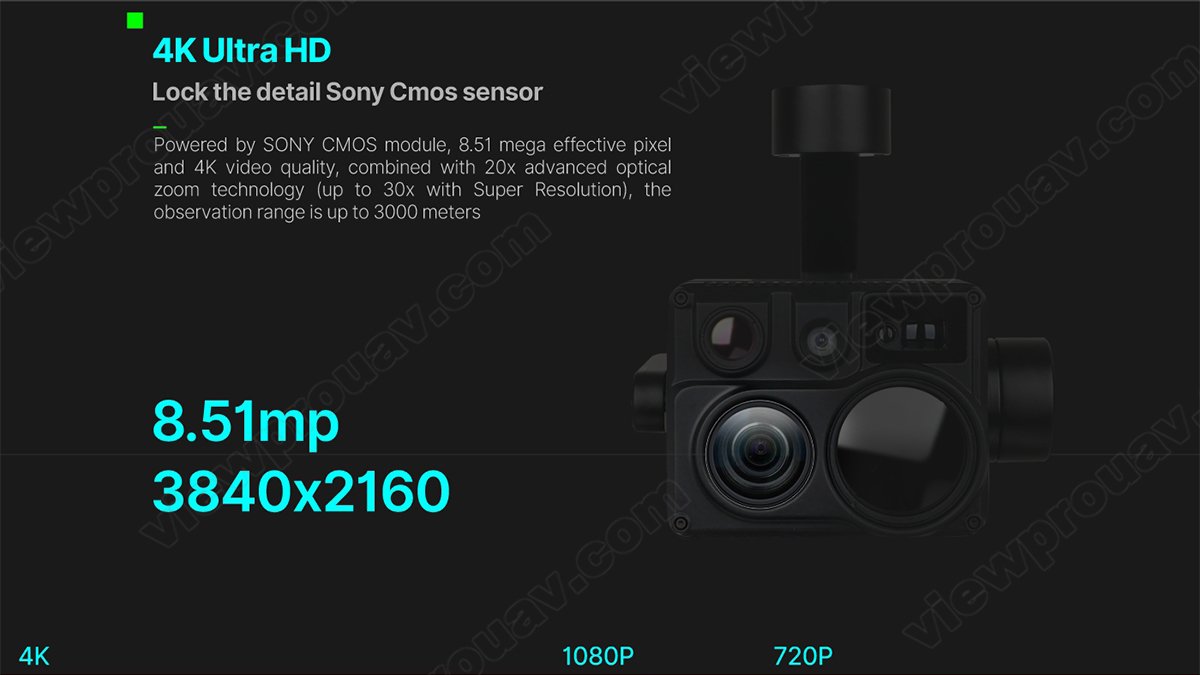

| Imager Sensor | SONY 1/2.5 Exmor R CMOS |
| Total pixel | 8.51MP |

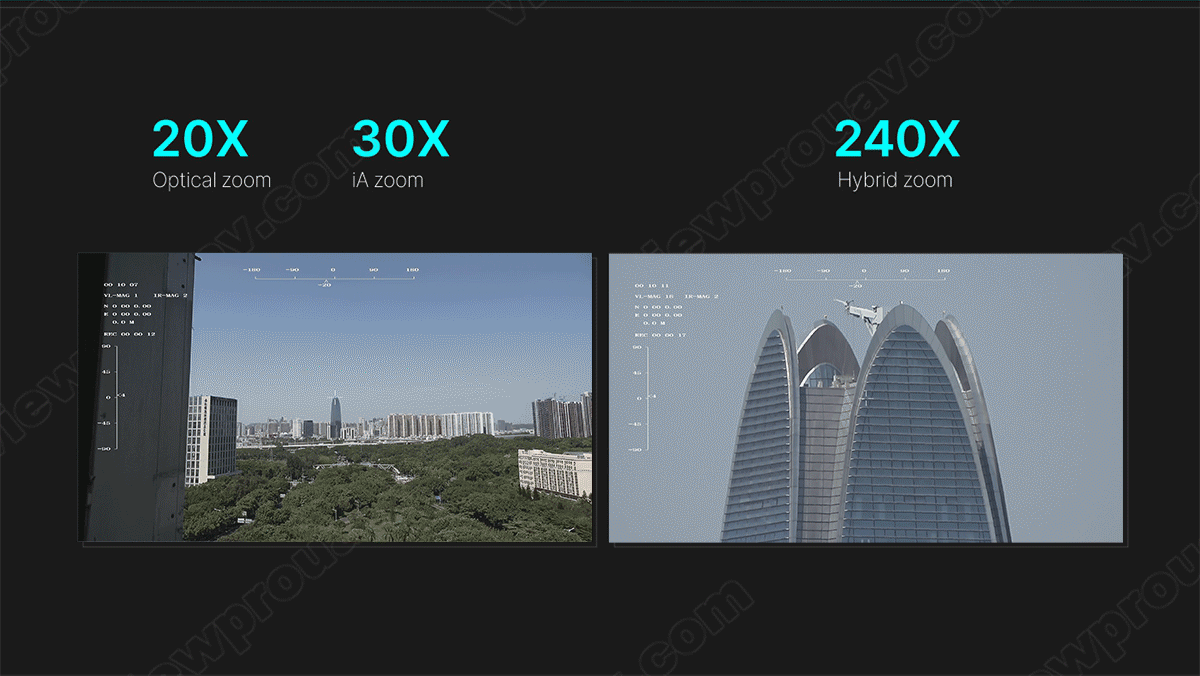

| Optical zoom | 20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele), up to 30x with Super Resolution |
| Digital zoom | 12x (240x with optical zoom) |
| Min. working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Angle of view ( H ) | 70.2 (Wide end) ~ 4.1 (Tele end) |
| Sync system | Internal/External |
| S/N ratio | 50dB |
| Recommended illumination | 100 to 100000 lux |
| Min illumination | 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) |
| Back light compensation | On/Off |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter speed | 1/1 to 1/10000 sec. (22 steps) |
| Noise reduction | On/Off (level 5 to 1/ Off, 6 steps) |
| Defog mode | On/Off (Low, Mid, High) |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180 , Horizontal/Vertical mirror image |
| OSD | Yes |

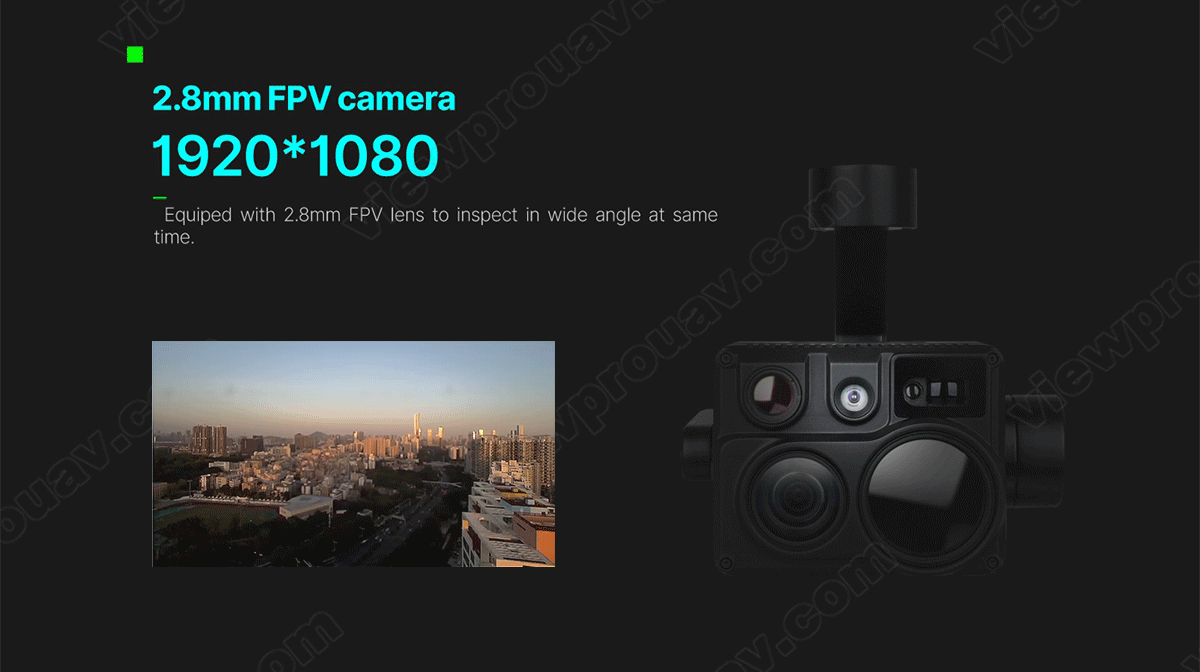

| EO Camera Spec II | |
| Focus Length | 2.8mm |
| Resolution | 1920*1080 |

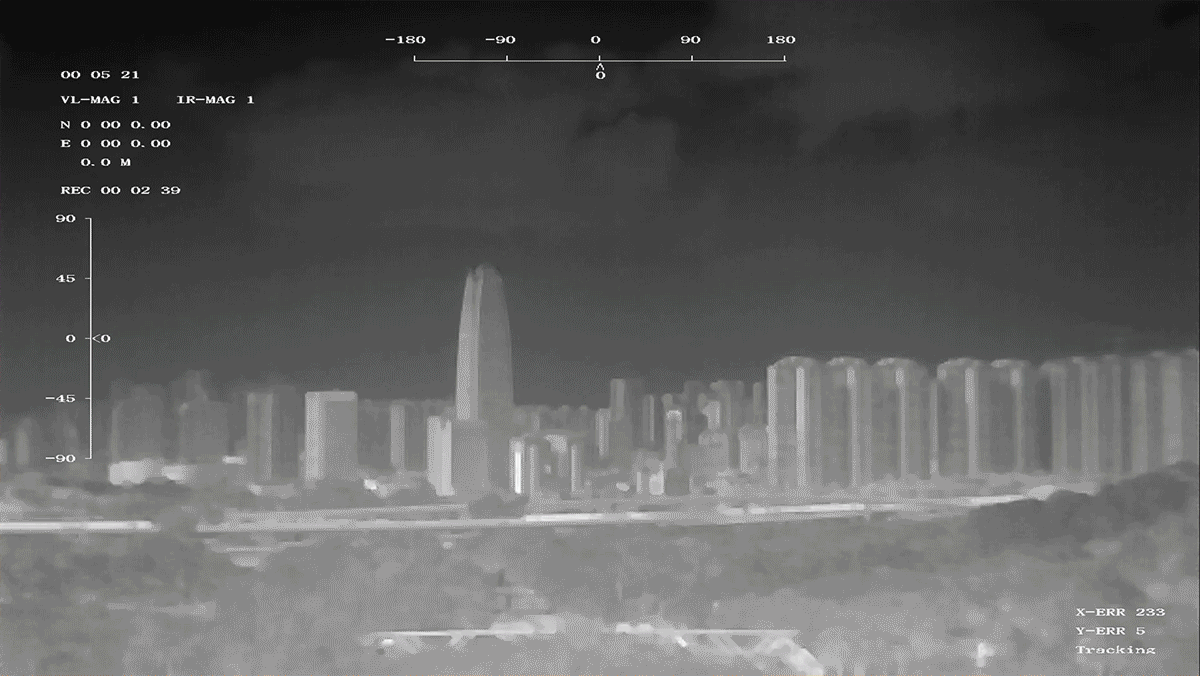

| IR Thermal Imager Spec I | |
| Focus Length | 50mm |
| Horizontal FOV | 12.4 |
| Vertical FOV | 9.3 |
| Diagonal FOV | 15.5 |
| Detective Distance (Man: 1.8 0.5m) | 1471 meters |
| Recognize Distance (Man: 1.8 0.5m) | 368 meters |
| Verified Distance (Man: 1.8 0.5m) | 184 meters |
| Detective Distance (Car: 4.2 1.8m) | 4510 meters |
| Recognize Distance (Car: 4.2 1.8m) | 1127 meters |
| Verified Distance (Car: 4.2 1.8m) | 564 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0 ~120 (For thermometry version only) |
| IR Thermal Imager Spec II | |
| Focus Length | 13mm |
| Horizontal FOV | 45.4 |
| Vertical FOV | 34.8 |
| Diagonal FOV | 55.2 |
| Detective Distance (Man: 1.8 0.5m) | 382 meters |
| Recognize Distance (Man: 1.8 0.5m) | 96 meters |
| Verified Distance (Man: 1.8 0.5m) | 48 meters |
| Detective Distance (Car: 4.2 1.8m) | 1173 meters |
| Recognize Distance (Car: 4.2 1.8m) | 293 meters |
| Verified Distance (Car: 4.2 1.8m) | 147 meters |
| Working mode | Uncooled long wave (8 m~14 m) thermal imager |
| Detector pixel | 640*480 |
| Pixel pitch | 17 m |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | 50mK (@25 ) |
| MRTD | 650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |

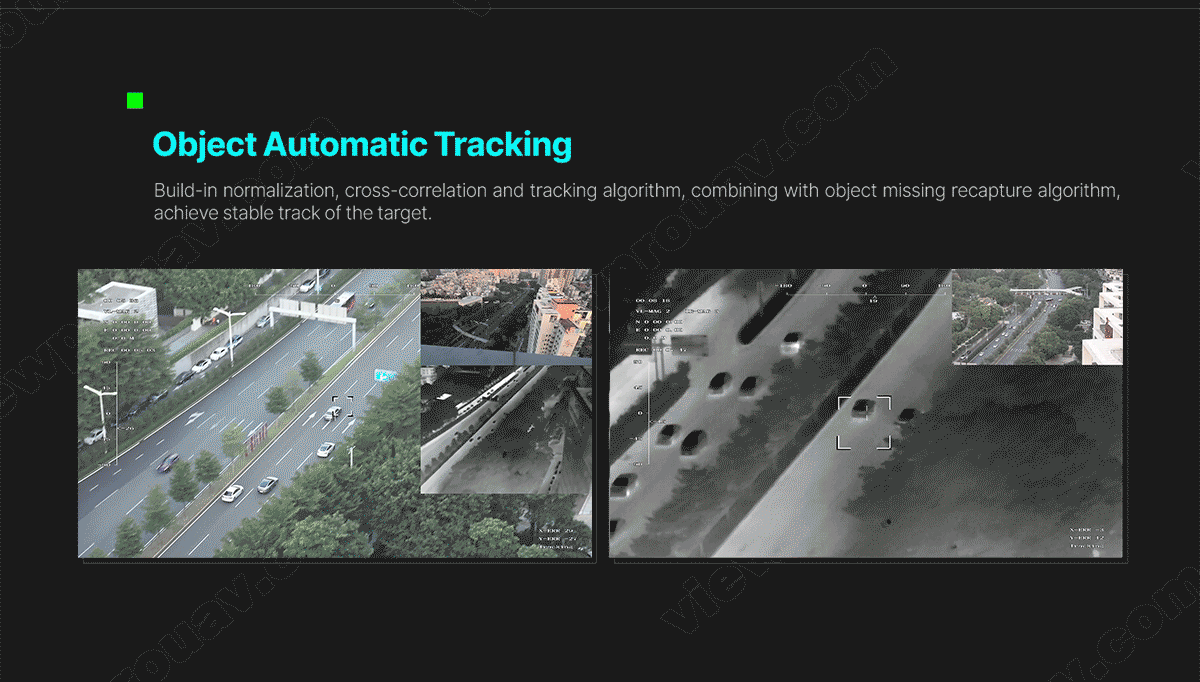

| IR / EO Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |

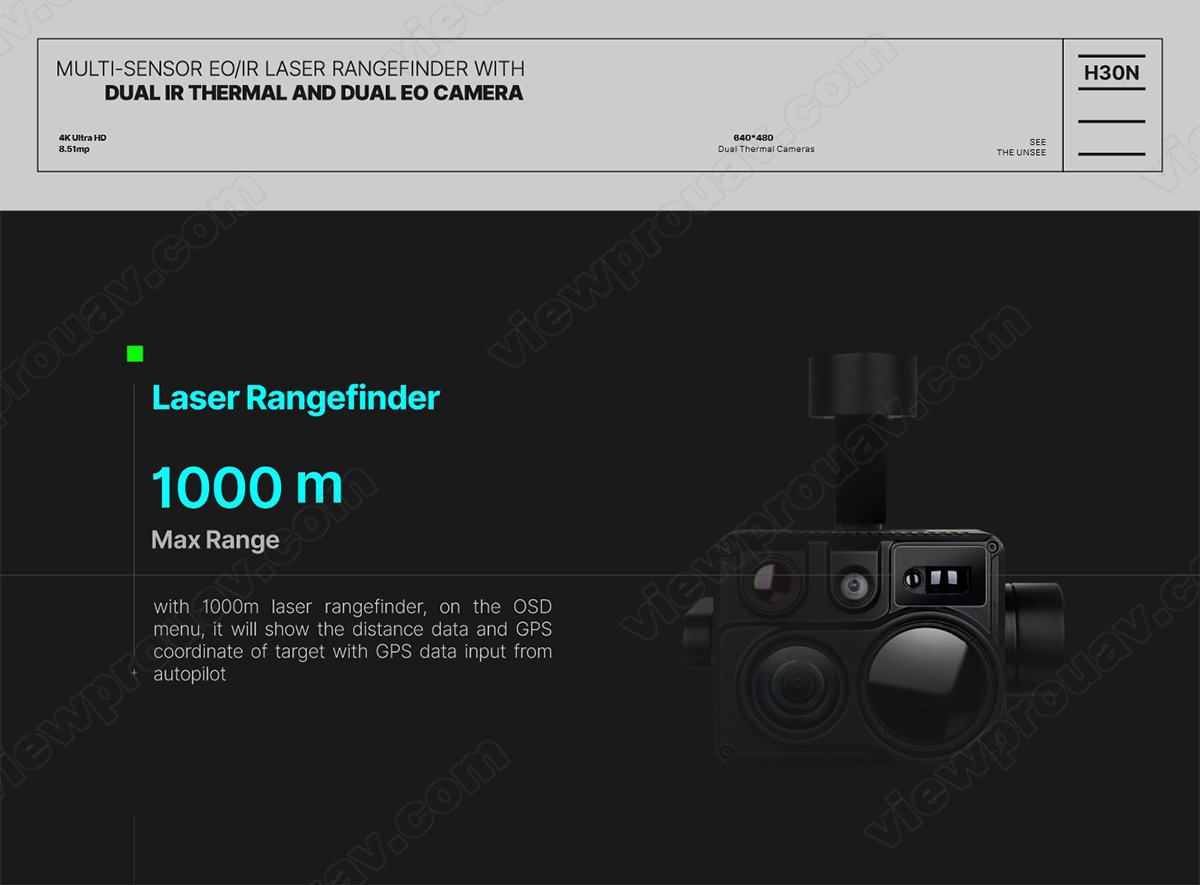

| IR Laser Rangefinder | |
| Range | 5~1000 meters |
| Resolution | 1m: <400 1 2m: >400 0.4% |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 12 mrad |
| Laser pulse frequency | 0.1C1Hz |

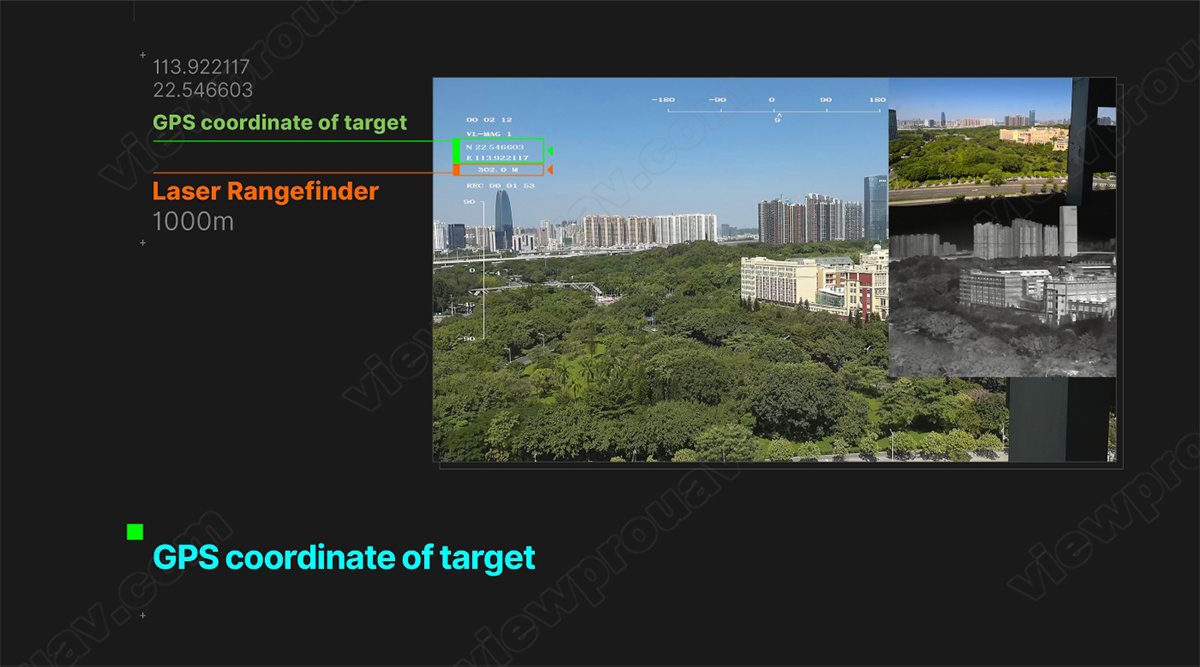

| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| Packing Information | |

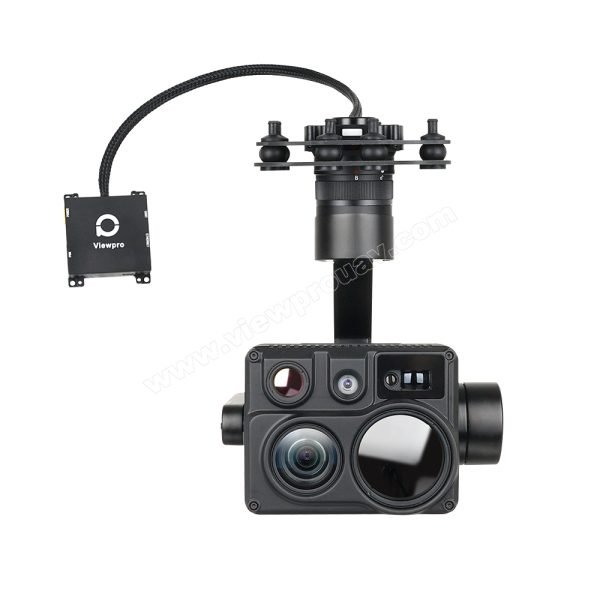

| N.W. | 1339g(Viewport Version) |

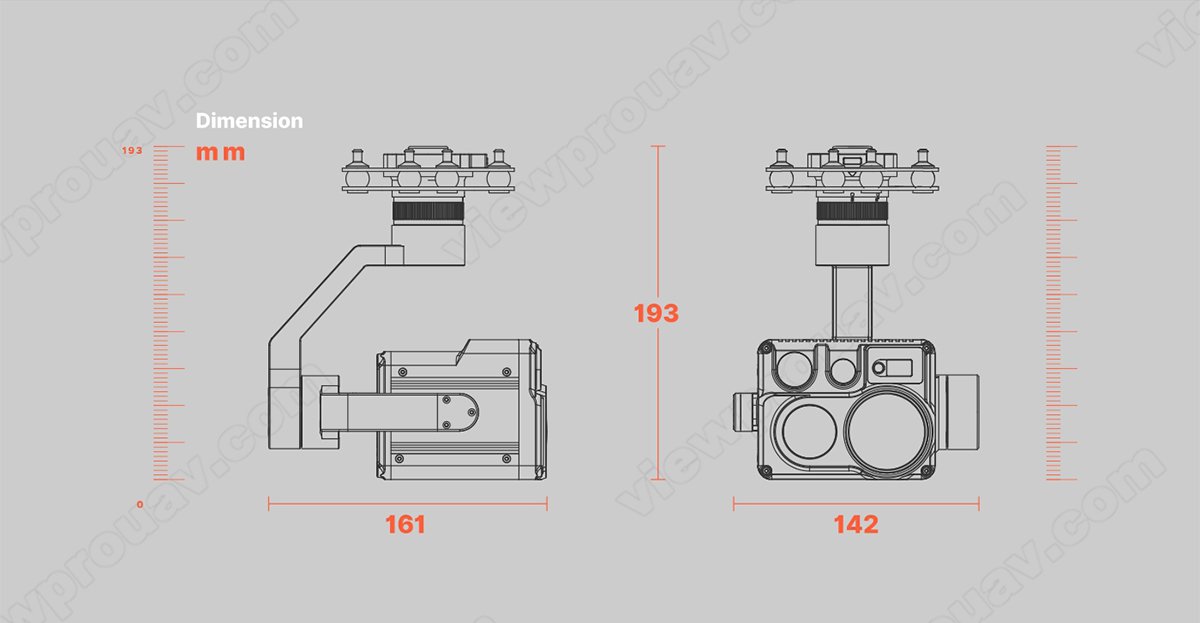

| Product meas. | 161.1*142.5*186.8mm / 161.1*142.5*193.5mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| G.W. | 2749g |

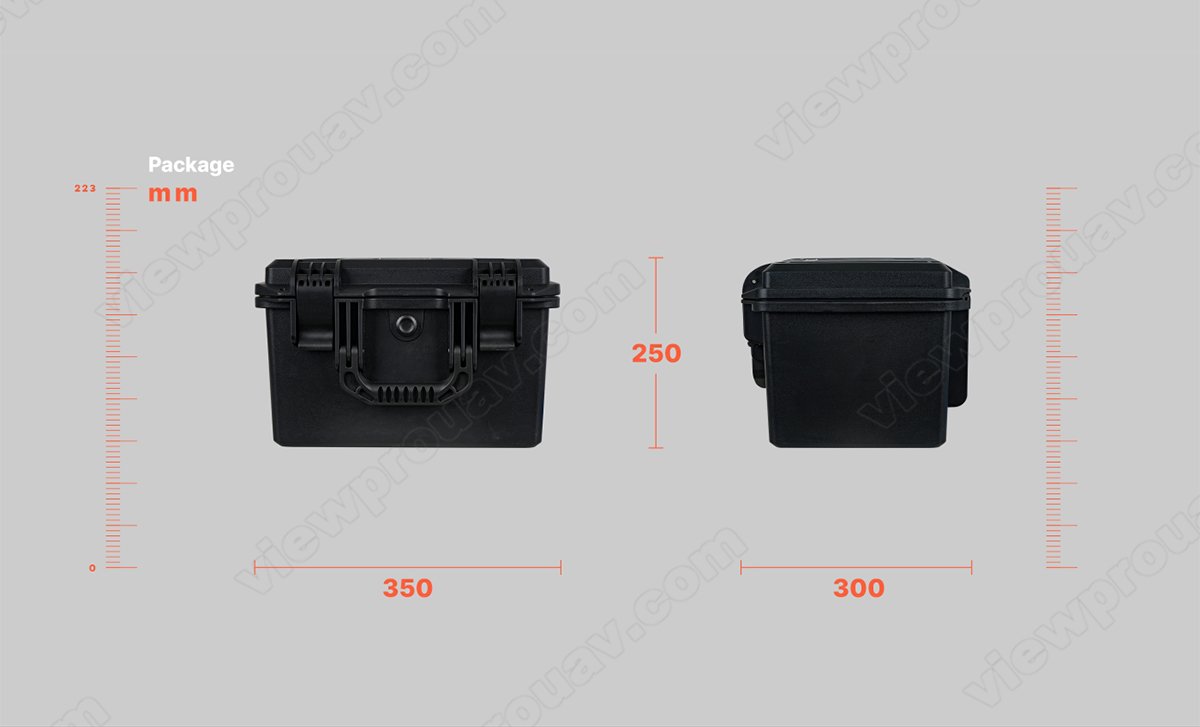

| Package meas. | 300*250*200mm |
