MFSD30G619 30x Optical Zoom +640*512 Thermal imaging, IP67 Waterproof Dual Light 3-Axis Stabilized IP Output Gimbal Camera

The FSD30G619 is a professional-grade dual-light gimbal camera combining 30x optical zoom with 640×512 thermal imaging in an IP67 waterproof package. Featuring a high-precision three-axis stabilization system with aviation-grade waterproof interfaces, this compact system delivers exceptional stability and low power consumption. The 8-megapixel visible light camera provides 1080p HD output with real-time focusing under one second, while the uncooled thermal imager offers 50mK sensitivity for precise temperature measurement. Advanced capabilities include dual-channel synchronous recording, picture-in-picture display modes, pseudo-color thermal switching, and intelligent human and vehicle detection tracking up to 100 simultaneous targets. Network IP control enables direct gimbal and camera operation with local TF card storage and network file access. Operating on 12V-26V power with minimal static consumption, the system supports multiple control modes including network IP, serial port, SBUS, and PWM. Weighing just 1150g with precise angle control and one-click return functionality, it’s engineered for demanding surveillance and reconnaissance applications.

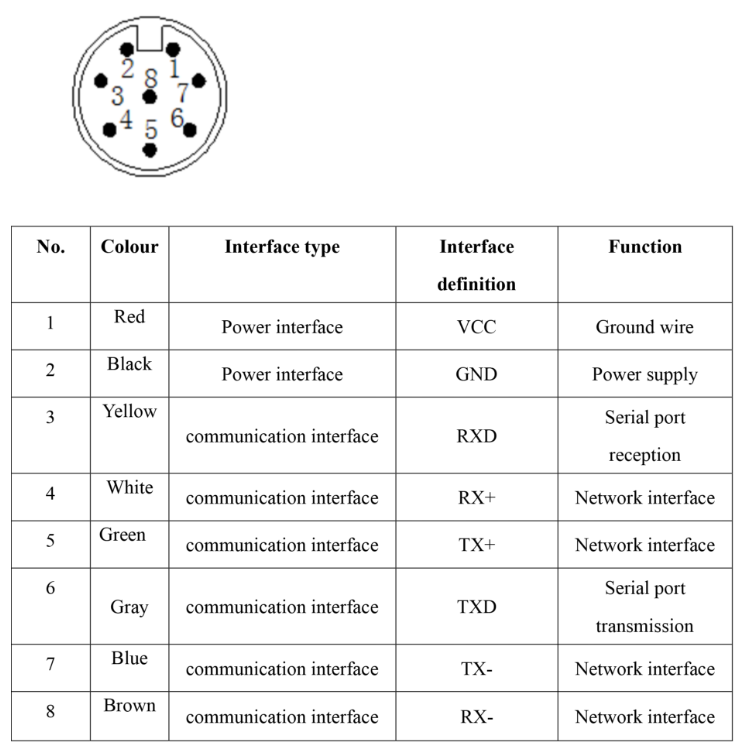

The FSD30G619 is a high-precision, three-axis stabilized network gimbal camera with dual-light functionality (visible and thermal) and an IP67 waterproof rating. It integrates a 30x optical zoom visible camera and a 640×512 resolution thermal imager. Designed for robustness, it features an aviation-grade waterproof connector and an external network IP interface. The gimbal utilizes a high-precision encoder-based FOC control scheme, offering outstanding stability in a lightweight, compact, and low-power form. The visible sensor is an 8MP wide dynamic range device, while the thermal module employs a shutterless 640×512 detector. The system comes with a ground control software suite that enables dual-video picture-in-picture (PiP) display, direct network-based control of both gimbal and camera, local storage via a TF card, and network file read/write. Additional capabilities include dual-channel synchronized recording, adjustable PiP display modes, switchable pseudo-color palettes, and full IP67 environmental sealing.

FSD30G619 30x Optical Zoom +640*512 Thermal imaging, IP67 Waterproof Dual Light 3-Axis Stabilized IP Output Gimbal Camera

Voltage	3S -6S 12V-26V	Power	Static 7.8W
Roll Angle	-40 ~+40	Pitch Angle	-40 ~+120
Yaw Angle	-280 ~+280	Tilt and roll direction angle jitter	0.02
Horizontal angle jitter	0.03	One-key return function	One-click automatic quick return to the initial position
PTZ control speed adjustable	When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera	Control mode	Support network IP control and serial port control (optional SBUS and PWM control)

CMOS Size	1 / 2.8 Inch 2 mega pixel wide dynamic range CMOS sensor
Optical Zoom	30x HD optical zoom lens,f=4.5 135 mm 5%
Focusing time	Real time focusing, fast focusing time < 1s
Video Output	Network HD RTSP output 1080p, 1080p video recording
Field Angle(FOV)	D : WIDE 67.8o 5% TELE 2.77o 5% H : WIDE 59.8o 5% TELE 2.34o 5% V : WIDE 40.5o 5% TELE 1.48o 5%
Support Mode	1080P 30fps

Resolution ratio	640 512 pixel
Space between pixels	12 m
Type	Uncooled vanadium oxide
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	50mk@25 @F1.0
Field angle	19mm lens FOV 22.9 x18.4
Measurement function (optional)	Center point, maximum temp and minimum temp display; Support all area temp measurement

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	waterproof
