MFSD20S78 20x Optical Zoom IP67 Waterproof 3-Axis Stabilized IP Output Gimbal Camera

The MFSD20S78 is a professional-grade three-axis stabilized gimbal camera featuring 20x optical zoom and IP67 waterproof protection. Equipped with an 8-megapixel STARVIS2 sensor and advanced FOC control technology, this compact device delivers exceptional stability with minimal power consumption. It supports 4K and 1080P video recording with local TF card storage and wireless transmission capabilities. The camera offers precise motion control with pitch and roll jitter angles of just 0.02 degrees and horizontal jitter of 0.03 degrees. Multiple control modes including network IP and serial port connectivity provide flexible integration options. With intelligent human and vehicle detection tracking up to 100 simultaneous targets, adaptive PTZ speed control, and one-click restore functionality, this gimbal camera is ideal for professional surveillance, aerial platforms, and demanding applications requiring reliable performance in harsh environments.

The FSD20S78 is a professional-grade, three-axis stabilized waterproof network dome camera equipped with a 20x optical zoom lens. Designed for dual-light operation, it features an aviation-grade waterproof connector and an external network IP interface. The system utilizes a high-precision encoder with FOC control, offering outstanding stability, a compact form factor, lightweight construction, and low energy consumption. At its core, the camera integrates a STARVIS2 sensor delivering 8 million effective pixels with low-noise performance. It supports local TF card storage and wireless transmission for both 4K and 1080P video formats. The enclosure meets IP67 ingress protection standards.

FSD20S78 20x Optical Zoom IP67 Waterproof 3-Axis Stabilized IP Output Gimbal Camera

Voltage	3S-6S(12V-26V)	Power	Static 8.4W, dynamic 11W
Roll angle action range	-40 +40	Pitch angle action range	-40 ~+110
Yaw angle action range	-280 ~+280	Pitch and Roll Jitter Angle	0.02
Horizontal Jitter Angle	0.03	One-Click Restore	One-click restore to the initial position
PTZ control speed adjustable	When the PTZ rotates, the speed is adaptive based on the current speedmode and the multiple of the visible camera	Control mode	Support network lP control and serial port control(optional SBuS and PWM control)

SENSOR	1 / 1.8 Inch 8 mega pixel wide dynamic range CMOS sensor
Optical Zoom	20x HD optical zoom lens, f=6.7 125 mm 5%
Focusing time	Real time focusing, fast focusing time < 1s
Video output	Network HD RTSP output 1080p, 1080p video recording
Field Angle (FOV)	D : WIDE 66 6o 5% TELE 4.0o 5% H : WIDE 59.6o 5% TELE 3.5o 5% V : WIDE 35.7o 5% TELE 2.0o 5%

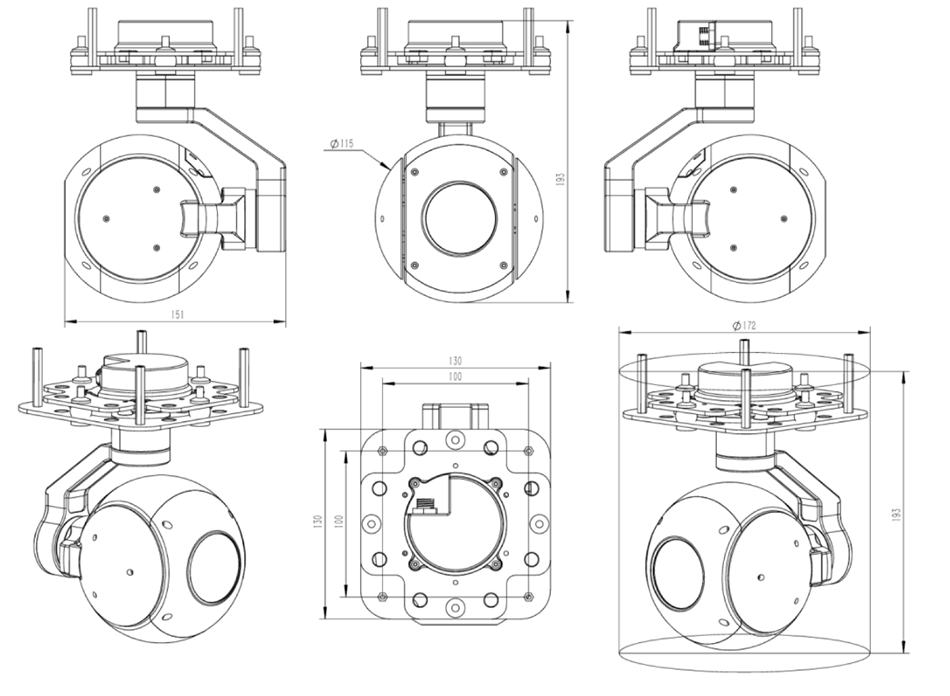

Device Size	:183mm H:204 mm	Work Condition	-10 to +45 /20% to 80% RH
Storage Condition	-20 to +65 /20% to 95% RH	Weight (Not including dampers)	1120 20g

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
