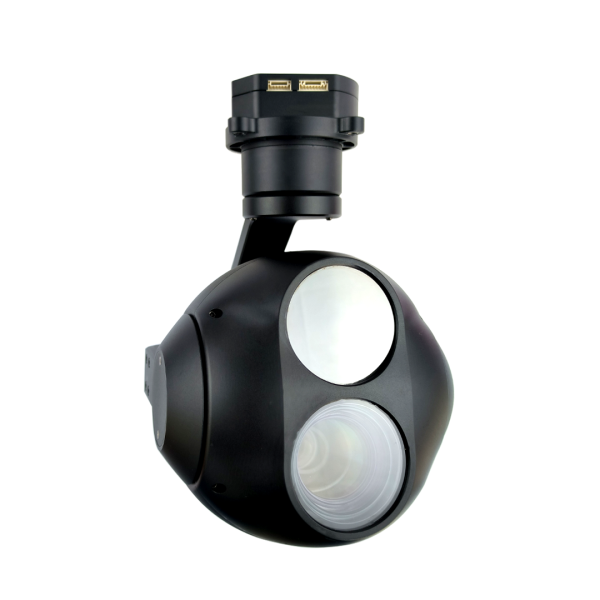

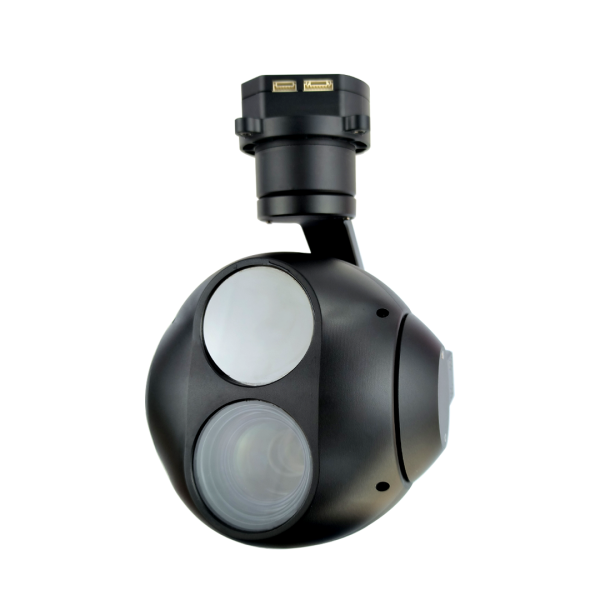

MEHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

The MEHP20S86G12 is an advanced dual-sensor integrated camera system combining a 180x mixed zoom visible light camera with a 1280×1024 uncooled thermal infrared camera. Featuring a 48MP dynamic CMOS sensor and 20x optical zoom lens, it delivers exceptional clarity from wide to telephoto ranges. The integrated three-axis stabilized gimbal provides precise FOC control with minimal jitter for smooth, stable footage. The thermal camera offers 40mK sensitivity for accurate temperature measurement and includes picture-in-picture mode and multiple false color options. Supporting Ethernet RTSP streaming, SBUS/UART/UDP/PWM control, and intelligent human/vehicle detection tracking of up to 100 targets simultaneously, this compact system operates on DC12-26.2V with low power consumption. Ideal for surveillance, reconnaissance, and monitoring applications requiring both high-resolution optical and thermal imaging capabilities.

The EHP20S86G12 is a dual-sensor integrated camera system featuring a 180x hybrid zoom visible camera, a 25mm infrared thermal imager with 1280×1024 resolution, and a high-accuracy three-axis stabilization gimbal. It supports Ethernet RTSP streaming video output and is compatible with SBUS, UART, UDP, and PWM control protocols. The gimbal utilizes a high-precision FOC control scheme with an integrated encoder, offering excellent stability, compact size, lightweight construction, and low power consumption. The visible light camera is built around a 48MP dynamic sensor, while the thermal camera employs a 1280×1024 uncooled vanadium oxide detector with a built-in shutter. Additional features include picture-in-picture (PIP) mode, multiple pseudo-color palettes, and temperature measurement capability.

EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

Voltage	DC12 26.2V	Power	Dynamic 8W
Roll Angle	45 45	Pitch Angle	-30 +100
Yaw Angle	-280 +280	Tilt and roll direction angle jitter	0.02
Horizontal angle jitter	0.03	One-key return function	One-click automatic quick return to the initial position

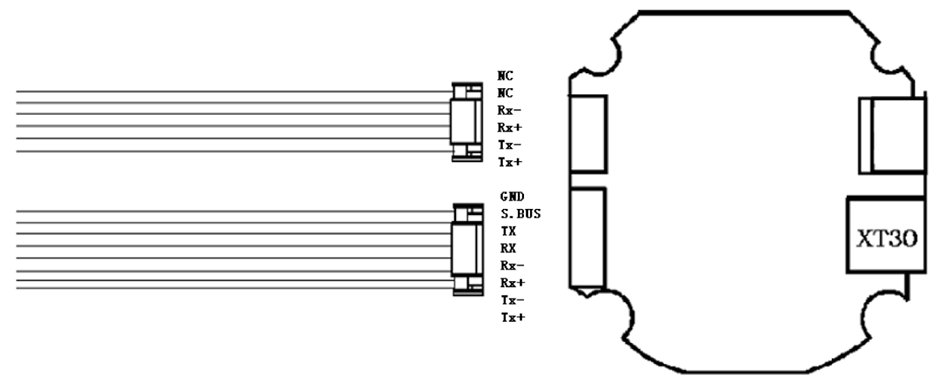

Adjustable Gimbal Speed	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple.	Control mode	Support network IP control, S.BUS control, UART control (PWM control is optional)

CMOS Size	1/2 inch 48 million pixel wide dynamic CMOS SENSOR
Optical Zoom	20x HD optical zoom lens, f=6.7 125 mm 5%
Focusing time	Real time focusing, fast focusing time < 1s
Video Output	Network output RTSP 1080P stream, local TF 4K storage
Field Angle(FOV)	D : WIDE 66.6o 5% TELE 4.0o 5% H : WIDE 59.6o 5% TELE 3.5o 5% V : WIDE 35.7o 5% TELE 2.0o 5%
Support Mode	1080P 30fps

Resolution ratio	1280X1024 pixel
Space between pixels	12 m
Type	Uncooled vanadium oxide
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	40mk@25
Field angle	25mmLens Field of view 34.2 27.6

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
