MEHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights

The MEHP20S78N is a professional-grade 20X optical zoom gimbal camera system designed for drone applications. Featuring a three-axis starlight gimbal with exceptional stability, this compact and lightweight device delivers outstanding performance with minimal power consumption. Equipped with a STARVIS2 low-noise 8-megapixel sensor, it supports 4K and 1080P video recording with local TF card storage and network capabilities. The camera offers precise control through IP, S.BUS, and UART protocols, compatible with China Moneypro ground station software. With advanced tracking capabilities detecting humans and vehicles simultaneously, real-time fast focusing under one second, and supplemental lighting, this gimbal provides professional surveillance and reconnaissance solutions for aerial platforms.

Category:

The EHP20S78N is a three-axis starlight gimbal designed for drones, featuring a 140X hybrid zoom capability. It adopts an FOC control scheme that offers excellent stability, a compact form factor, light weight, and low energy consumption. Equipped with a STARVIS2 low-noise sensor, the camera delivers 8 million effective pixels and supports 4K as well as 1080P recording. Footage can be stored locally via a TF card or accessed through network read/write functions. The gimbal operates with China Moneypro ground station control software. Additionally, the EHP20S78N provides flexible control options, including IP, S.BUS, and UART interfaces.

EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights

EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights
Voltage   DC12V-26.2VPower   Dynamic 10W
Roll Angle action range   -45 +45 Pitch action range   -45 +120
Yaw angle action range   -280 +280 Pitch and Roll Angle Jitter    0.02
Horizontal Angle Jitter    0.03 One-click return function   Quick return to initial position with one click
Adjustable PTZ Speed   The current speed mode based on the multiple zoom of cameraControl mode   IP and UART and S.BUS control or PWM for Option
EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights
CMOS Size   1/1.8″ WDR CMOS SENSOR: 8 Mega Pixels
Optical zoom   20X optical zoom HD lens, f=6.7 5% 125 5%mm
Focus time    Real-time fast focusing function, focusing time <1S
Video Output   IP Output 1080P, Local TF Card Storage
Field Angle(FOV)    D : WIDE 66.6o 5% TELE 4.0o 5%
   H : WIDE 59.6o 5% TELE 3.5o 5%
   V : WIDE 35.7o 5% TELE 2.0o 5%
EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights
Min tracking target size   16 16 pixelsMax tracking target size   256 256 pixels
Target Memory Time   2 secondsTracking speed   50 Pixel/Frame max
Simultaneous detection qty   100 targets maxRecognized categories   Human and Vehicle
Min detection target size   32 32 pixelsDebounce   Dynamic stabilization
EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights

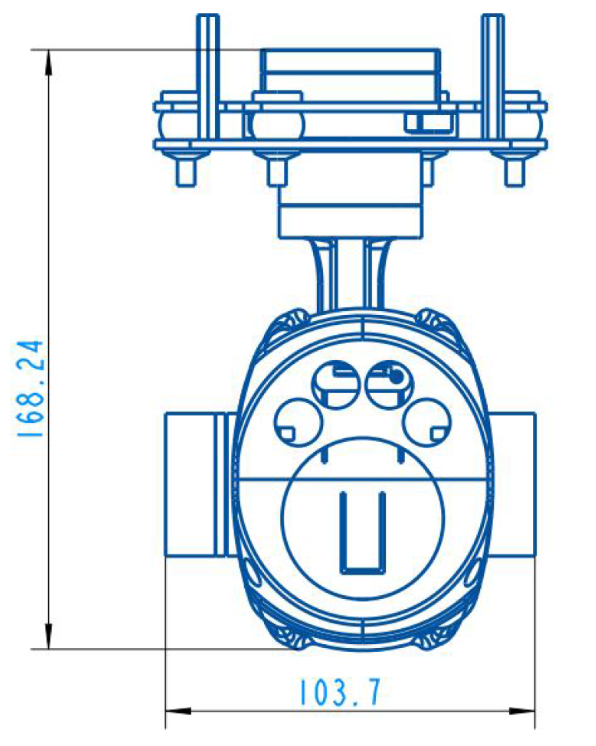

Dimensions   103.7mm 170.95mm 168.24mmOperating Temperature   -10 to +55 / 20% to 80% RH
Storage Temperature   -20 to +60 / 20% to 95% RHWeight   803 20g

EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights
