MEHP20S68N 20X Optical Zoom Global exposure with Supplement Lights

The MEHP20S68N is a professional 140X hybrid zoom three-axis starlight night vision gimbal camera featuring 20X optical zoom and global shutter technology. Equipped with an 8-megapixel STARVIS2 low-noise sensor, it delivers exceptional image quality in 4K and 1080P. The camera outputs RTSP video streams with IP, S.BUS, and UART control capabilities for both camera and gimbal. Its advanced FOC control scheme ensures high stability with minimal power consumption. Real-time fast focusing completes in under one second. The gimbal offers impressive motion ranges with pitch from -45 to +120 degrees and yaw from -280 to +280 degrees, maintaining precise angle jitter of just 0.02 degrees. Intelligent tracking detects and follows humans and vehicles simultaneously with dynamic stabilization. Supports local TF card storage and wireless video transfer. Operating from DC12V-26.2V with just 10W dynamic power, this compact 803g unit performs reliably in temperatures from -10 to +55 degrees Celsius, making it ideal for surveillance, reconnaissance, and monitoring applications.

Category:

The EHP20S68N is a three-axis gimbal camera featuring a 140X hybrid zoom and starlight night vision with a global shutter. It streams RTSP video and supports control over IP, S.BUS, and UART interfaces for both the camera and the gimbal. Thanks to its FOC control architecture, the device offers high stability, a compact footprint, light weight, and low energy consumption. Equipped with a STARVIS2 low-noise sensor, the camera delivers an effective 8-megapixel resolution. It supports 4K and 1080P recording to a local TF card, along with wireless transmission capabilities.

EHP20S68N 20X Optical Zoom Global exposure with Supplement Lights

EHP20S68N 20X Optical Zoom Global exposure with Supplement Lights
Voltage   DC12V-26.2VPower   Dynamic 10W
Roll Angle action range   -45 +45 Pitch action range   -45 +120
Yaw angle action range   -280 +280 Pitch and Roll Angle Jitter    0.02
Horizontal Angle Jitter    0.03 One-click return function   Quick return to initial position with one click

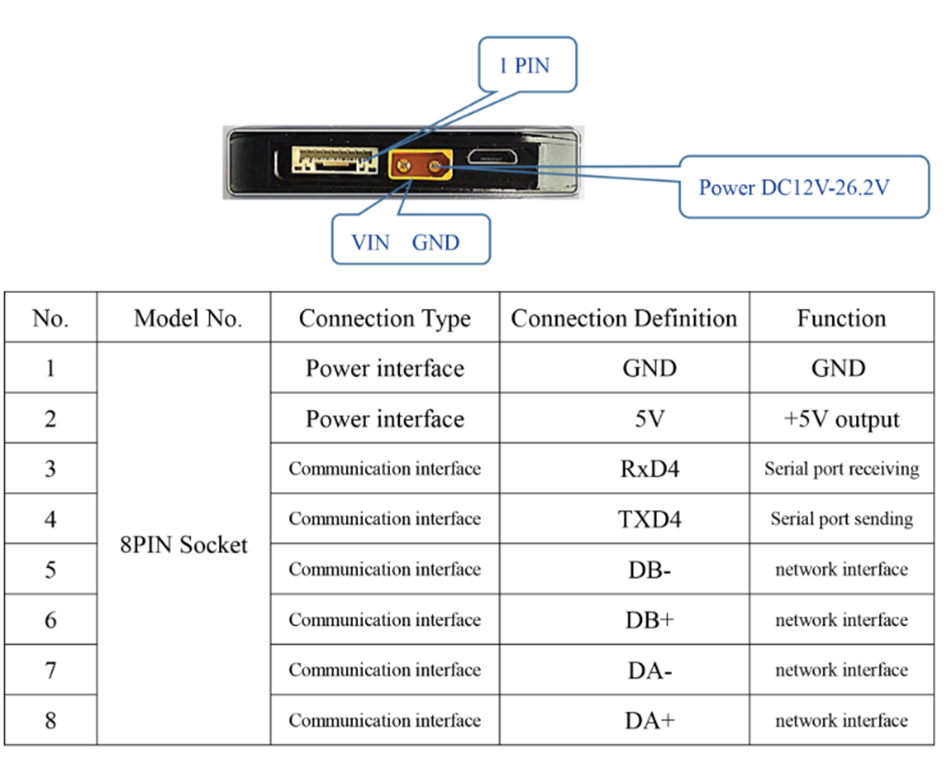

Adjustable PTZ Speed   The current speed mode based on the multiple zoom of cameraControl mode   IP and UART and S.BUS control or PWM for Option
EHP20S68N 20X Optical Zoom Global exposure with Supplement Lights
CMOS Size   1/1.8″ WDR CMOS SENSOR: 8 Mega Pixels
Optical zoom   20X optical zoom HD lens, f=6.7 5% 125 5%mm
Focus time    Real-time fast focusing function, focusing time <1S
Video Output   IP Output 1080P, Local TF Card Storage
Field Angle(FOV)    D : WIDE 66.6o 5% TELE 4.0o 5%
   H : WIDE 59.6o 5% TELE 3.5o 5%
   V : WIDE 35.7o 5% TELE 2.0o 5%
EHP20S68N 20X Optical Zoom Global exposure with Supplement Lights
Min tracking target size   16 16 pixelsMax tracking target size   256 256 pixels
Target Memory Time   2 secondsTracking speed   50 Pixel/Frame max
Simultaneous detection qty   100 targets maxRecognized categories   Human and Vehicle
Min detection target size   32 32 pixelsDebounce   Dynamic stabilization
EHP20S68N 20X Optical Zoom Global exposure with Supplement Lights

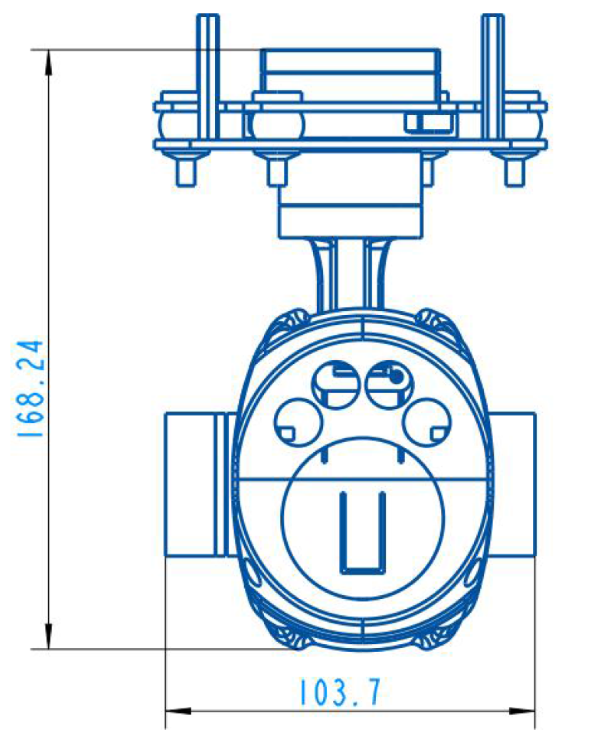

Dimensions   103.7mm 170.95mm 168.24mmOperating Temperature   -10 to +55 / 20% to 80% RH
Storage Temperature   -20 to +60 / 20% to 95% RHWeight   803 20g

EHP20S68N 20X Optical Zoom Global exposure with Supplement Lights
