MEHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

MEHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280×1024 IR + 3000m LRF

China Moneypro

The MEHP20G12L30 is a professional three-axis stabilized gimbal camera system designed for high-precision surveillance and reconnaissance. It features a 20X optical zoom visible light camera with 8-megapixel wide dynamic range sensor, a 1280×1024 thermal imager with uncooled vanadium oxide detector, and a 3000-meter laser rangefinder. The compact, low-power design delivers exceptional stability with minimal jitter. Dual-channel video supports picture-in-picture display, pseudo-color switching, and synchronous recording. Control options include network IP, serial port, and S.BUS connectivity. The system offers advanced target detection and tracking for humans and vehicles, global temperature measurement, and flexible storage via TF card or network. Operating from DC12-26.2V with dynamic power consumption of 10W, it performs reliably in temperatures from -10 to +55 degrees Celsius.

EHP20G12L30 is a high-precision professional three-axis stabilization pod with integrated 140x hybrid zoom, 1280×1024 thermal imager with 25mm focal length, and 3000m laser ranging. This pod adopts a compact design with high stability, high integration, and low power consumption. The visible light camera uses a wide dynamic sensor with an effective pixel of 8 mega; the thermal imaging uses a vanadium oxide 1280 resolution detector with a built-in baffle. 3000m high-precision ranging function. Provides software ground station, supports picture-in-picture display of dual-channel video, network, S.BUS and serial port can directly control the PTZ and camera, supports local TF storage and network file read and write operations, supports dual-channel synchronous recording, supports multiple picture-in-picture modes and pseudo-color switching.

EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

Voltage	DC12 26.2V	Power	Dynamic 10W
Roll angle	45 45	Pitch Angle	-30 +110
Yaw Angle	-285 +285	Angle jitter in pitch and roll directions	0.02
Horizontal angle jitter	0.03	One-click return to the center function	Quick return to initial position with one click

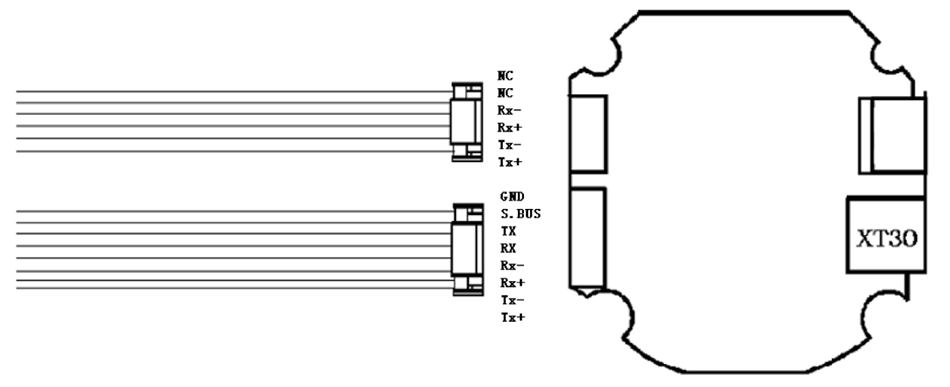

Adjustable Gimbal Speed	When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification	Control Mode	Support network IP control, serial port control, S.BUS control (PWM control is optional)

CMOS Size	1/1.8 INCH mega pixel Wide dynamic range CMOS SENSOR
Optical Zoom	20x HD optical zoom lens, f=6.7 125 mm 5%
Focus time	Real-time fast focus function, focusing time <1S
Field Angle FOV	D : WIDE 66 6o 5% TELE 4.0o 5% H : WIDE 59.6o 5% TELE 3.5o 5% V : WIDE 35.7o 5% TELE 2.0o 5%
Video output	Network output RTSP 1080P stream, local TF 1080P storage
Support Mode	1080P 30fps

Resolution	1280×1024 pixel
Pixel spacing	12 m
Type	Uncooled Vanadium Oxide Detector
Wavelength range	8 14 m
Thermal sensitivity (NETD)	50mk@F1.0@25
Field of view	25mm lens Field of Angle 34.2 x 27.6
Global temperature measurement	Support global temperature measurement, optional full pixel temperature saving function

Infrared wavelength	1535 10nm
Measuring range	50m~3000m
Accuracy/resolution	1m resolution 40m

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
