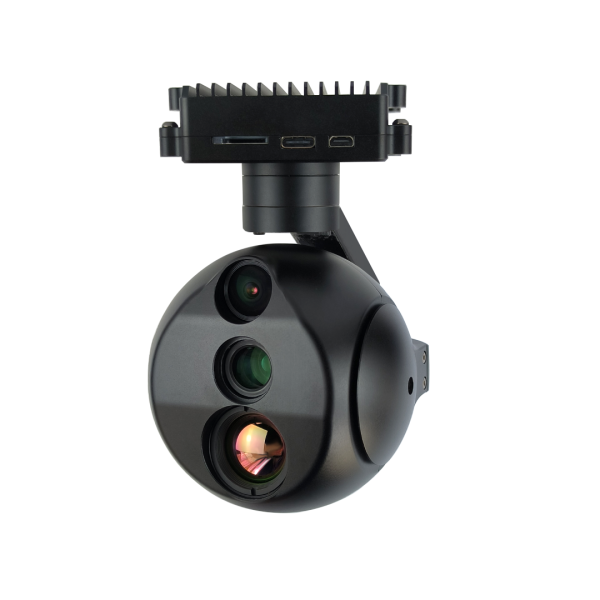

MEHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

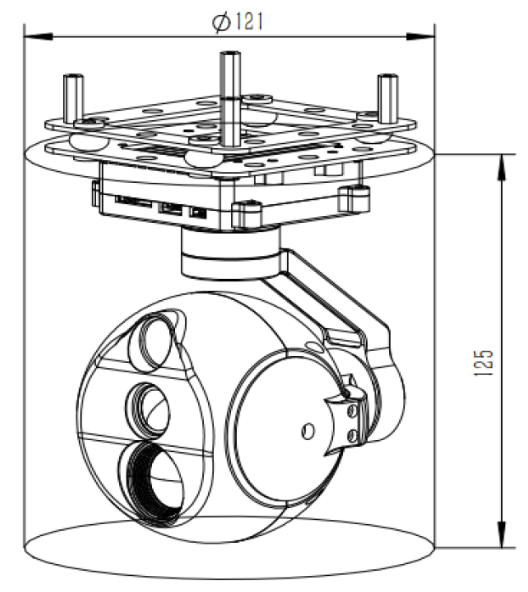

The MEHP03S86G19 is a professional three-in-one gimbal camera system featuring 48MP fixed-focus visible light imaging, 3X optical zoom capability, and 640×512 thermal imaging with vanadium oxide detection. Equipped with a high-precision three-axis stabilization pod using FOC control technology, this compact system delivers exceptional stability with minimal power consumption. The dual-output design supports network RTSP picture-in-picture streaming with multiple pseudo-color displays and global temperature measurement functions. Featuring advanced AI-powered human and vehicle detection and tracking capabilities, it accommodates up to 100 simultaneous targets. Control options include network IP, serial port, and S.BUS protocols with optional PWM support. The system records dual-channel video locally on TF cards and operates on DC 12V-26.2V power. Weighing just 370g with dimensions of 125mm x 121mm, it combines professional-grade thermal and visible light imaging in a lightweight, portable design ideal for surveillance, inspection, and monitoring applications.

EHP03S86G19 is an all-in-one three-sensor gimbal system featuring 3x optical zoom, a 48MP fixed-focus visible camera, and a 640×512 high-resolution thermal imager. Built around a precision three-axis stabilization platform, the gimbal utilizes a high-accuracy encoder FOC control design, offering excellent stability, compact size, lightweight construction, and low power consumption. The visible-light module (both fixed-focus and zoom) is equipped with a 48-megapixel effective SENSOR, while the thermal imaging unit employs a vanadium oxide (VOx) detector. The system supports RTSP network streaming with picture-in-picture (PiP) output, offers multiple PiP and pseudo-color display modes, and includes full-screen temperature measurement capabilities. Both serial port and S.Bus over network protocols allow full control of the camera and gimbal functions. Additionally, dual-channel video recording and still image capture to a local TF card are supported. The thermal imaging lens features a focal length of 19mm.

EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

Voltage	DC 12V-26.2V	Power	Dynamic 8W
Roll angle range	-45 +45	Pitch angle range	-60 +125
Yaw angle range	-150 +150	Angle jitter in pitch and roll directions	0.02
Horizontal Angle jitter	0.03	One-click return function	One-click automatic quick return to the initial position

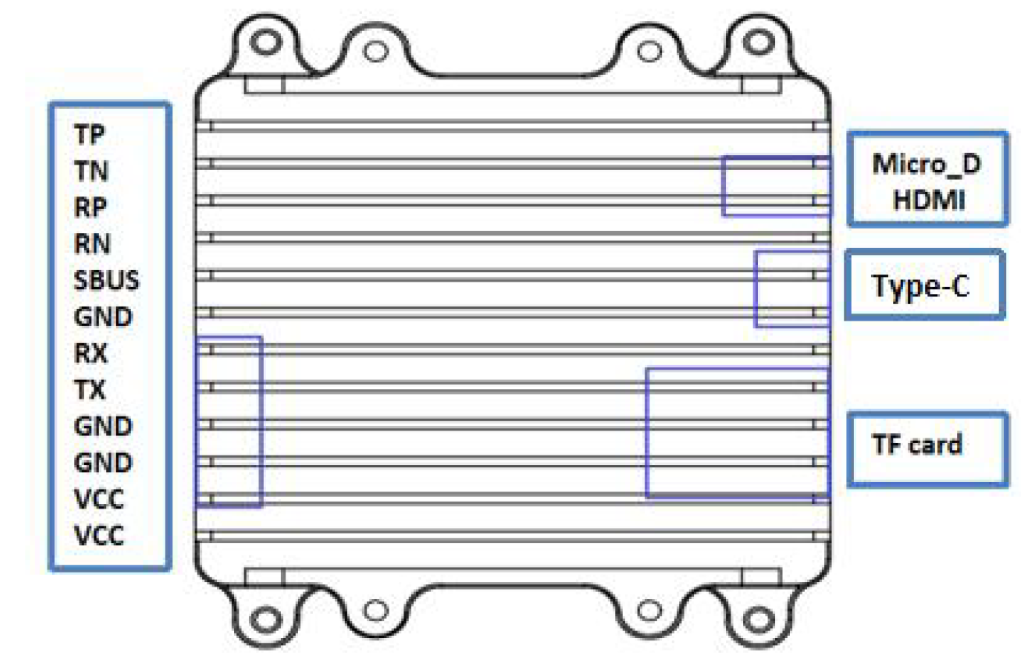

Gimbal control speed adjustable	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple	Control mode	Support network IP control, serial port control, S.BUS control (PWM control is optional)

CMOS Size	1/2 inch 48 million pixel CMOS SENSOR
Optical Zoom	3x HD optical zoom lens,15mm(Wide)-50mm(Tele) 5%
Focus time	Real-time fast focus function, focusing time <1S
Video Output	Network HD RTSP output 1080P, video stream local TF storage
Field Angle FOV	D : WIDE 28.98o 3% TELE 9.06o 3% H : WIDE 23.48o 3% TELE 7.29o 3% V : WIDE 17.81o 3% TELE 5.49o 3%

CMOS Size	CMOS SENSOR pixels: 48 million pixels
Digital zoom	Support 9x digital zoom
Compressed storage mode	H264 H265,Video stream local TF card storage
Network support mode	1080P 30fps
Field Angle FOV	FOV 120 94 70

Resolution	640*512
Pixel spacing	12 m
Type	Uncooled focal plane microbolometer
Wavelength range	8 14 m
Thermal sensitivity (NETD)	50mk@F1.0@25
Field of view	19mm lens angle 32.9 26.6
Measurement function (optional)	Support global temperature measurement, optional full pixel temperature saving function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
