MEHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

China Moneypro

The MEHP03S86 is a professional-grade dual-sensor gimbal camera system featuring 48-megapixel resolution and 3x optical zoom capabilities. This compact, lightweight device integrates a three-axis stabilized gimbal with high-precision FOC control for exceptional stability and minimal power consumption. The dual-output system supports network RTSP picture-in-picture streaming and multiple viewing modes. Control options include network IP, serial port, and S.BUS connectivity. The camera delivers 1080P HD video output with local TF card dual-channel recording. Advanced features include real-time fast focus under one second, intelligent human and vehicle detection tracking up to 100 simultaneous targets, and 9x digital zoom. The gimbal offers extensive motion ranges with pitch from -50 to +130 degrees and yaw from -150 to +150 degrees, maintaining exceptional stability with 0.02-degree jitter. Operating on DC 12V-26.2V with just 8W dynamic power consumption, this system weighs only 290 grams and functions reliably in temperatures from -10 to +45 degrees Celsius, making it ideal for professional surveillance and reconnaissance applications.

The EHP03S86 is a dual-light integrated system featuring a 3x optical zoom and a 48-megapixel fixed-focus high-precision professional three-axis stabilized gondola. The gimbal adopts a high-precision encoder FOC control scheme, which is characterized by high stability, small size, light weight, and low power consumption. The fixed-focus and zoom visible light cameras are equipped with a 48-megapixel sensor. The system supports network RTSP picture-in-picture stream output and multiple picture-in-picture modes. Both serial port and network S.BUS can control the camera and gimbal, and it supports local TF card dual-channel video recording and photo taking. EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

Voltage	DC 12V-26.2V	Power	Dynamic 8W
Roll Angle action range	-45 +45	Pitch action range	-50 +130
Yaw angle action range	-150 +150	Angle jitter in pitch and roll directions	0.02
Horizontal angle jitter	0.03	One-click return function	One-click automatic quick return to the initial position

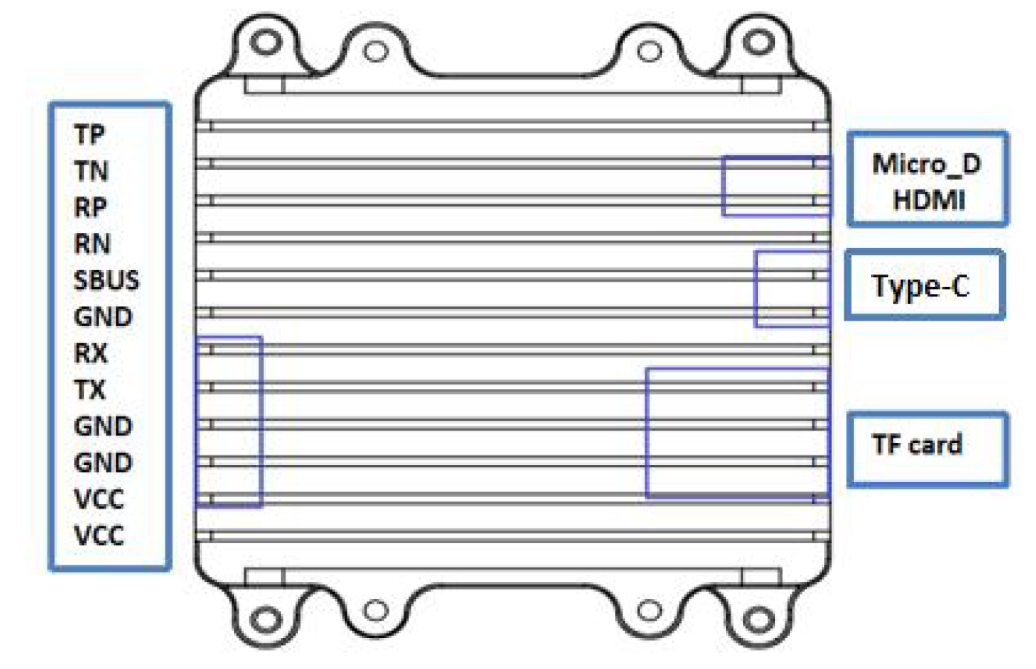

Gimbal control speed adjustable	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple	Control mode	Support network IP control, serial port control, S.BUS control (PWM control is optional)

CMOS Size	1/2 inch 48 million pixel CMOS SENSOR
Optical zoom	3x HD optical zoom lens,15mm(Wide)-50mm(Tele) 5%
Focus time	Real-time fast focus function, focusing time <1S
Video Output	Network HD RTSP output 1080P, video stream local TF storage
Field Angle(FOV)	D : WIDE 28.98o 3% TELE 9.06o 3% H : WIDE 23.48o 3% TELE 7.29o 3% V : WIDE 17.81o 3% TELE 5.49o 3%

CMOS Size	CMOS SENSOR pixels: 48 million pixels
Digital zoom	Support 9x digital zoom
Compressed storage mode	H264 H265,Video stream local TF card storage
Field of view FOV	FOV 120 94 70
Network support mode	1080P 30fps

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
