MEHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

China Moneypro

The MEHP03G6S90D15 is a high-precision 3-axis gimbal integrating advanced multi-sensor technology. It features a 48MP visible light camera with 3x optical zoom, 1080P fixed focus capability, 640×512 thermal imaging with vanadium oxide detector, and a 1.5KM laser rangefinder. The compact design delivers exceptional stability and low power consumption. The system supports network RTSP video streaming in picture-in-picture mode with various pseudo color displays and overall temperature measurement. Dual-channel local recording via TF card, flexible control via serial port, network, or S.BUS, and HDMI output make it ideal for surveillance, reconnaissance, and thermal analysis applications.

The EHP03G6S90D15 is a compact, high-precision 3-axis gimbal system combining three core functions: 3x optical zoom, a 1080P fixed-focus visible camera, a 640×512 thermal imager, and a 1500m laser rangefinder. Designed for high stability and high integration, it operates with low power consumption. The visible-light module features a 48MP CMOS sensor, while the thermal imaging unit uses a vanadium oxide detector with 640×512 resolution and a built-in baffle. The system supports network RTSP video streaming with picture-in-picture (PiP) mode, multiple pseudo-color palettes, and full-frame temperature measurement. Both the camera and gimbal can be controlled via serial port, network, or S.BUS. It also supports dual-channel local recording and photo capture to a TF memory card. The thermal lens has a focal length of 9.1 mm.

EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

Voltage	DC12 26.2V	Power Supply	Dynamic 10W
Roll angle range	45 45	Pitch angle range	-30 +110
Heading angle range	-285 +285	Angle jitter in pitch and roll directions	0.02
Horizontal angle jitter	0.03	One-click return to center function	One-click automatic quick return to initial position

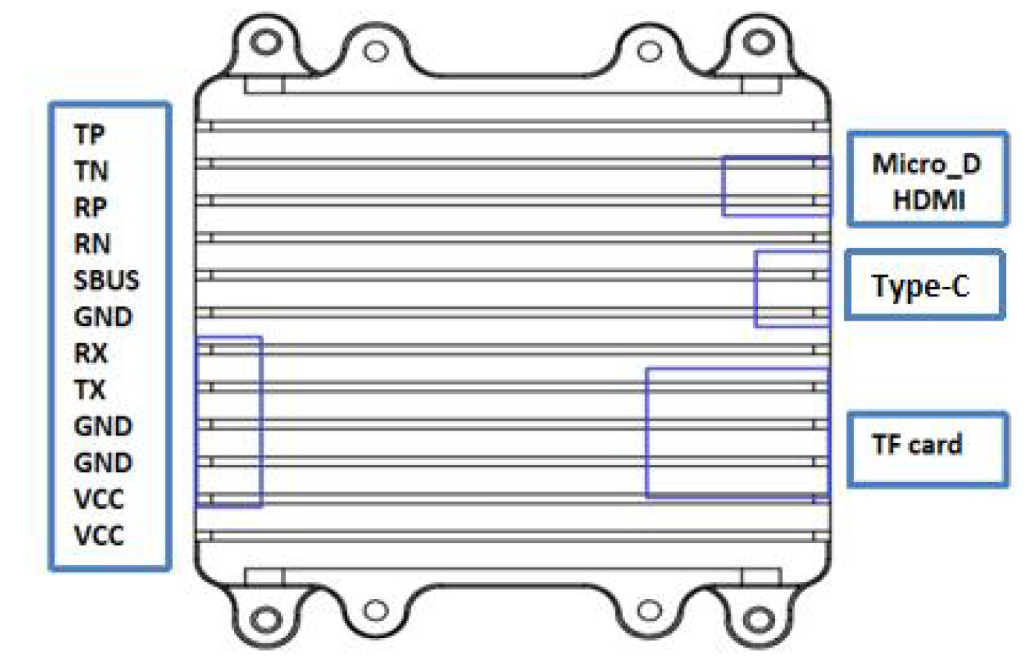

PTZ control speed adjustable	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple	Control method	Support network IP control, S.BUS control, serial port control (PWM control is optional)

CMOS Size	1/2 inch 48MP COMOS Sensor
Optical zoom	3x HD optical zoom camera, 15mm(Wide)-50mm(Tele) 5%
Focus time	Real-time fast focusing function, focusing time <1S
Video Output	Network RTSP 1080P stream,local TF card storage
Field of View FOV	D : WIDE 28.98o 3% TELE 9.06o 3% H : WIDE 23.48o 3% TELE 7.29o 3% V : WIDE 17.81o 3% TELE 5.49o 3%

CMOS Size	CMOS SENSOR Pixel 2MP
Digital zoom	Support 9x digital zoom
Compressed storage mode	H264 H265,Video streaming local TF storage
FOV	FOV 94.6 86.6
Support mode	1080P@30fps

Resolution	640*512 pixel
Pixel spacing	12 m
Type	Uncooled focal plane microbolometer
Wavelength range	8 12 m
Thermal sensitivity (NETD)	50mk@F1.0
Field of view	9.1mm focal length FOV 45.76 37.31
Measurement Functions	Support global temperature measurement, optional full pixel temperature saving function

Infrared Wavelength	905nm 5nm class Safety laser
measuring range	5m 1500m
Accuracy/resolution	1m

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
