The MEHP03G6S86D15 is a high-precision 3-axis gimbal integrating advanced multi-sensor technology. It features a 48MP CMOS visible light camera with 3x optical zoom and real-time fast focusing, combined with 640×512 thermal imaging using vanadium oxide detection for precise temperature measurement. The system includes a 1500m laser rangefinder for accurate distance measurement. With exceptional stability and low power consumption, it supports network RTSP video streaming, HDMI output, and dual-channel TF card recording. Control options include network IP, S.BUS, and serial port connectivity. Advanced AI capabilities enable human and vehicle detection and tracking of up to 100 simultaneous targets. Ideal for surveillance, reconnaissance, and thermal analysis applications.

Category:

EHP03G6S86D15 is a high-precision 3-axis gimbal that integrates 3x optical zoom, 48MP fixed focus, 640×512 thermal imaging, and 1500m laser rangefinder. It adopts a compact design and features high stability, high integration, and low power consumption. The visible light camera uses a 48 million effective pixels COMS sensor; the thermal imaging uses a vanadium oxide 640*512 resolution detector with a built-in baffle. The system supports network RTSP video stream output in picture-in-picture mode, various pseudo color display, and overall temperature measurement. The camera and gimbal both can be controlled via Serial port, Network, S.BUS, supports TF memory card dual-channel local recording and photography. The focal length of the thermal imaging lens is 9.1 mm.

EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output

EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output
Voltage   DC12 26.2VPower Supply   Dynamic 10W
Roll angle range    45 45 Pitch angle range   -30 +110
Heading angle range   -285 +285 Angle jitter in pitch and roll directions    0.02
Horizontal angle jitter    0.03 One-click return to center function   One-click automatic quick return to initial position

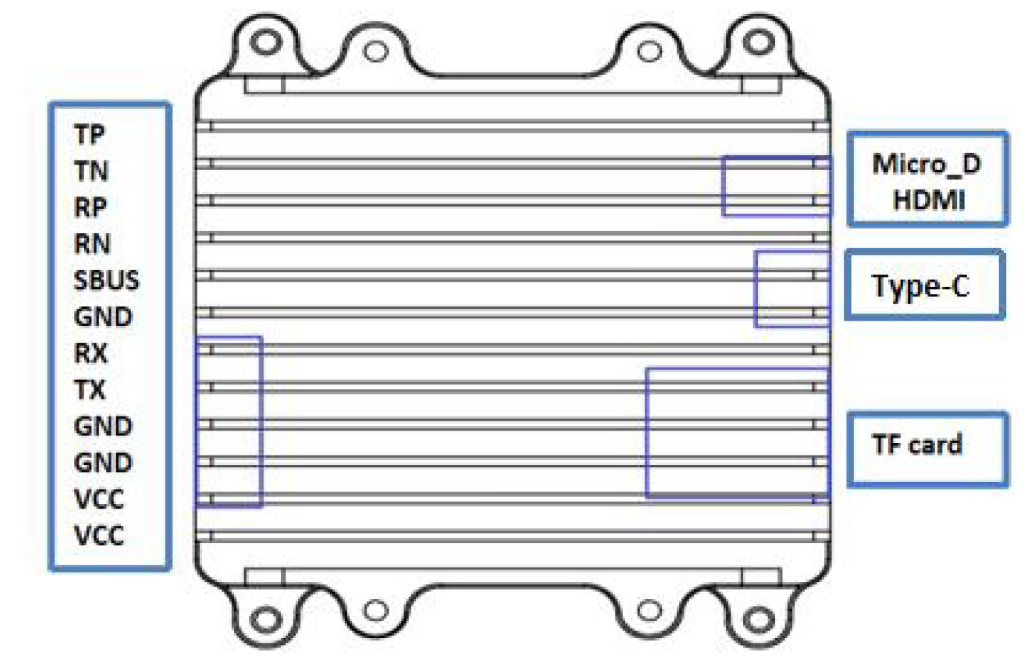

PTZ control speed adjustable   When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multipleControl method   Support network IP control, S.BUS control, serial port control (PWM control is optional)
EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output
CMOS Size   1/2 inch 48MP COMOS Sensor
Optical zoom   3x HD optical zoom camera, 15mm(Wide)-50mm(Tele) 5%
Focus time   Real-time fast focusing function, focusing time <1S
Video Output    Network RTSP 1080P stream,local TF card storage
Field of View FOV    D : WIDE 28.98o 3% TELE 9.06o 3%
H : WIDE 23.48o 3% TELE 7.29o 3%
V : WIDE 17.81o 3% TELE 5.49o 3%
EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output
CMOS Size   CMOS SENSOR Pixel 48MP
Digital zoom   Support 9x digital zoom
Compressed storage mode   H264 H265,Video streaming local TF storage
FOV   FOV 120 94 70
Support mode   1080P@30fps
EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output
Resolution   640*512 pixel
Pixel spacing   12 m
Type   Uncooled focal plane microbolometer
Wavelength range   8 12 m
Thermal sensitivity (NETD)    50mk@F1.0
Field of view   9.1mm focal length FOV 45.76 37.31
Measurement Functions   Support global temperature measurement, optional full pixel temperature saving function
EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output
Infrared Wavelength   905nm 5nm class Safety laser
measuring range   5m 1500m
Accuracy/resolution    1m
EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output
Min tracking target size   16 16 pixelsMax tracking target size   256 256 pixels
Target Memory Time   2 secondsTracking speed   50 Pixel/Frame max
Simultaneous detection qty   100 targets maxRecognized categories   Human and Vehicle
Min detection target size   32 32 pixelsDebounce   Dynamic stabilization
EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output

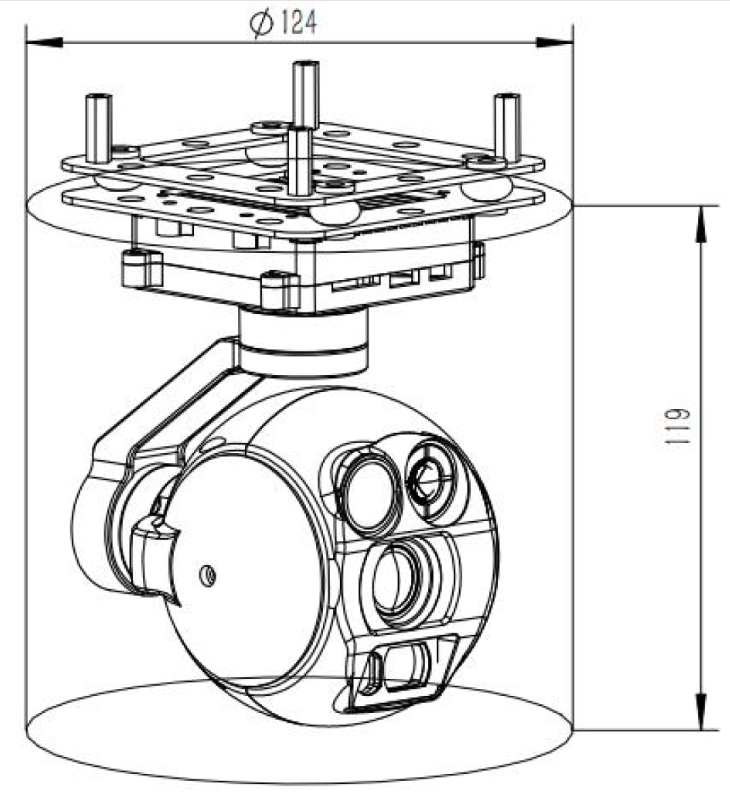

Dimensions   124mm 119mm/td>Working Condition   -10 to +60 / 20% to 80% RH
Storage Environment   -20 to +80 / 20% to 95% RHWeight   360 20g

EHP03G6S86D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging +1.5KM Rangefinder. Network and HDMI output
