ME40S48A645L30 High performance four-light pod 40x lossless zoom + 48M camera, 640 thermal imager + 3000m rangefinder
China Moneypro
The ME40S48A645L30 is a professional three-axis stabilization pod featuring advanced multi-sensor integration. It combines 40x lossless optical zoom with a 48MP high-resolution camera, 640×512 thermal imager with vanadium oxide detector, and 3000m laser rangefinder. The compact design delivers exceptional stability and low power consumption. The system supports 180x hybrid zoom, real-time fast focus under 1 second, and thermal sensitivity of 50mK. Advanced features include dual-channel video picture-in-picture display, network and serial port control, local TF storage, dual-channel synchronous recording, and multiple pseudo-color modes. AI-powered detection tracks up to 100 targets simultaneously, recognizing humans and vehicles. Precise three-axis stabilization maintains 0.02-degree jitter in pitch and roll. The pod operates across -10 to +55 degrees Celsius with comprehensive software ground station support for professional surveillance and reconnaissance applications.
E40S48A645L30 is a high-precision professional three-axis stabilization pod with integrated 180x hybrid zoom, 48MP fixed focus, 640×512 thermal imager, 45mm focal length, and 3000m laser ranging. This pod adopts a compact design with high stability, high integration, and low power consumption. The camera uses a SENSOR with an effective pixel of 48 million; 40x lossless zoom; thermal imaging uses a vanadium oxide 1280 resolution detector. 3000m high-precision ranging function. Provides software ground station, supports picture-in-picture display of dual-channel video, network, S.BUS and serial port can directly control the PTZ and camera, supports local TF storage and network file read and write operations, supports dual-channel synchronous recording, supports multiple picture-in-picture modes and pseudo-color switching.
| Voltage | DC12 26.2V | Power Supply | Dynamic 10W |
| Roll angle range | 45 45 | Pitch angle range | -30 +110 |
| Heading angle range | -285 +285 | Angle jitter in pitch and roll directions | 0.02 |
| Horizontal angle jitter | 0.03 | One-click return to center function | One-click automatic quick return to initial position |

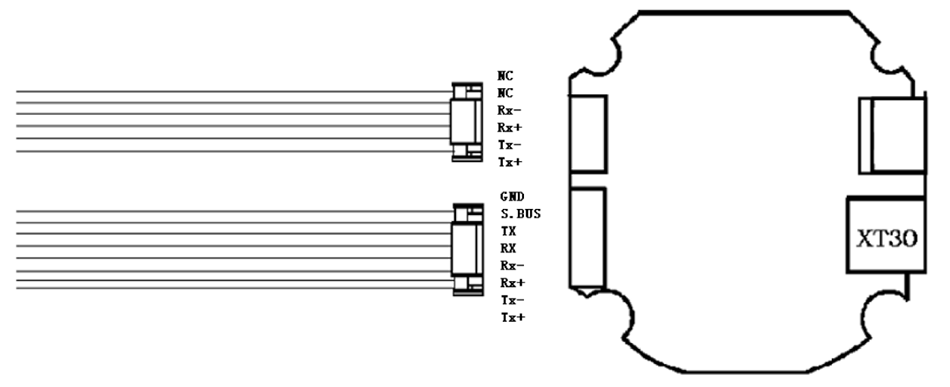

| PTZ control speed adjustable | When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple | Control method | Support network IP control, S.BUS control, serial port control (PWM control is optional) |
| CMOS Size | 1/1.8 inch 8 megapixel wide dynamic range CMOS SENSOR |
| Optical zoom | 20x high-definition optical zoom lens, f=6.7 125 mm 5% |
| Focus time | Real-time fast focus function, focusing time <1S |
| Video Output | Network output RTSP 1080P stream, local TF 1080P storage |
| Field of View FOV | D : WIDE 66.6o 5% TELE 4.0o 5% H : WIDE 59.6o 5% TELE 3.5o 5% V : WIDE 35.7o 5% TELE 2.0o 5% |
| Support Mode | 1080P 30fps |
| CMOS Size | 1/2 inch 48 million pixels |
| Focal length | 3.5mm |
| Field of view | 53.2*67.2 |
| Resolution | 640*512 pixel |
| Pixel spacing | 12 m |
| Type | Uncooled focal plane microbolometer |
| Wavelength range | 8 12 m |
| Thermal sensitivity (NETD) | 50mk@F1.0@25 |
| Field of view | 45mm lens, field of view: 9.7 x 7.8 |
| Measurement Functions | Support global temperature measurement, optional full pixel temperature saving function |
| Contrast, false color | Adjustable, multiple pseudo color modes |
| Infrared wavelength | 1535 10nm |
| Measuring range | 50m3000m |
| Accuracy/resolution | 1m; resolution 40m |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

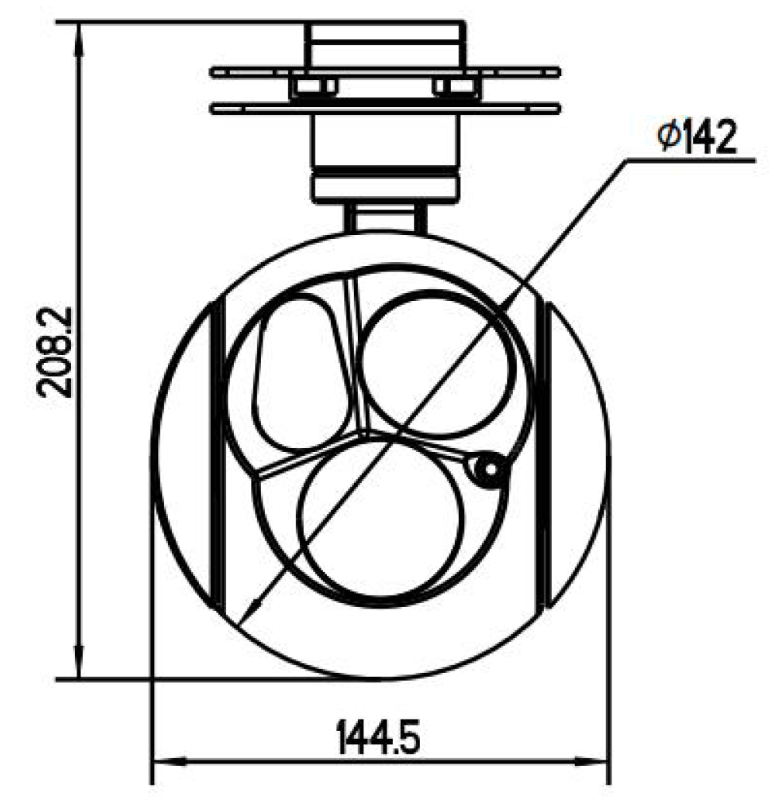

| Dimensions | 208.2*144.5*176.3 | Working Condition | -10 to +55 / 20% to 80% RH |
| Storage Environment | -20 to +60 / 20% to 95% RH | Weight | 1390 20 g |
