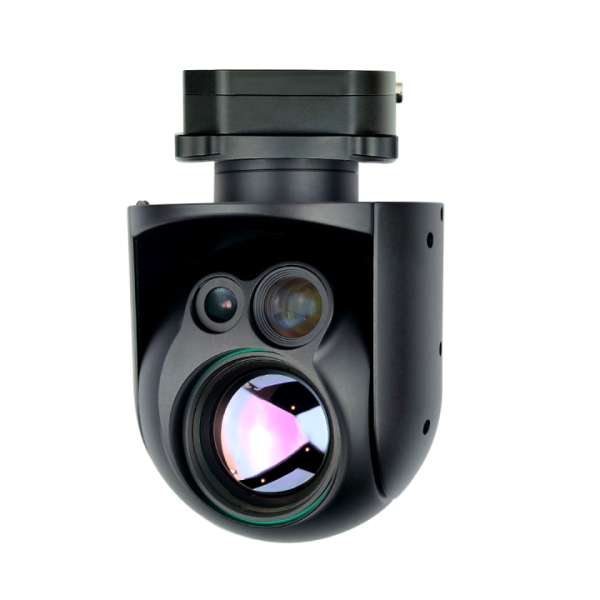

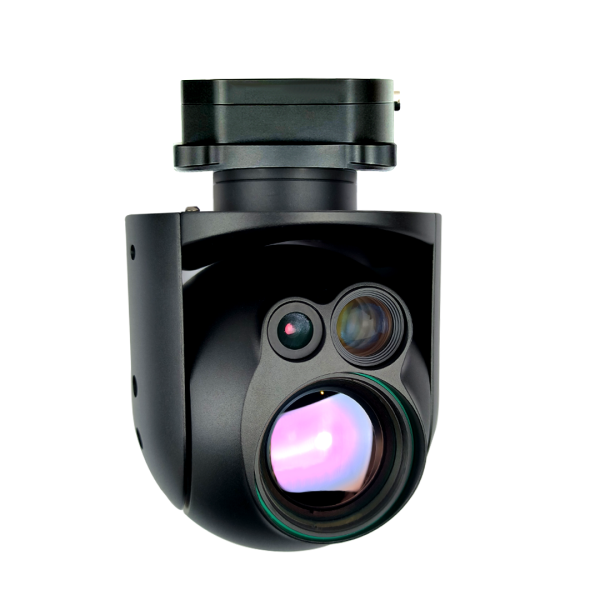

MDYD415S90G645 2-axis Gimbal Camera

China Moneypro

The MDYD415S90G645 is a compact 2-axis gimbal camera system featuring three integrated imaging modules: an 8-megapixel visible light camera with 35mm focal length, a 2-megapixel camera with 6mm focal length, and a 640×512 thermal imaging module with 45mm focal length. This lightweight, low-power system delivers exceptional stability with pitch and roll jitter angles of just 0.02 degrees. It supports network RTSP streaming with picture-in-picture output modes, dual-channel TF card recording, and 9x digital zoom capability. Control options include serial port, network, and S.BUS interfaces. The system features advanced human and vehicle detection and tracking for up to 100 simultaneous targets, with global temperature measurement support. Operating on 12-26.2V DC with minimal 6.6W power consumption, it weighs only 510g and operates reliably in temperatures from -10 to +55 degrees Celsius, making it ideal for surveillance, reconnaissance, and thermal monitoring applications.

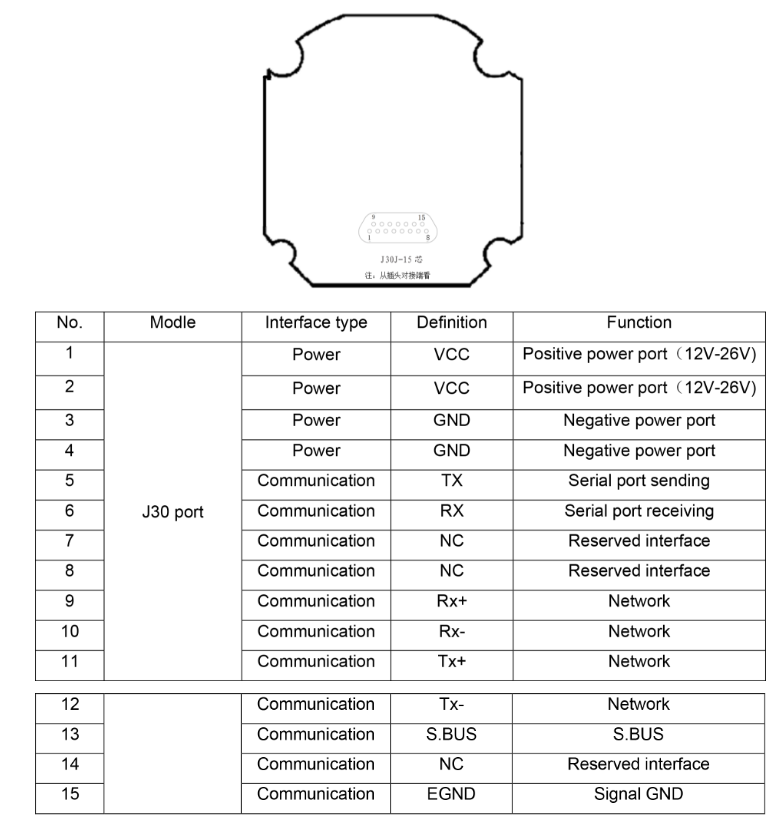

DYD415S90G645 is a three-light and two-axis stabilization small pod that integrates two visible light cameras, one of which is 8 million pixels and the other is 2 million pixels. 45mm focal length 640 512 thermal imaging module. It has the characteristics of high stability, small size, light weight and low power consumption; the system supports network RTSP stream output, three video streams can be combined into picture-in-picture output, supports multiple picture-in-picture modes, and local TF card dual-channel synchronization Video and photo taking. Serial port , network, and S.BUS can control the camera and gimbal, and support 9x digital zoom. The focal lengths of visible light are 35mm and 6mm respectively.

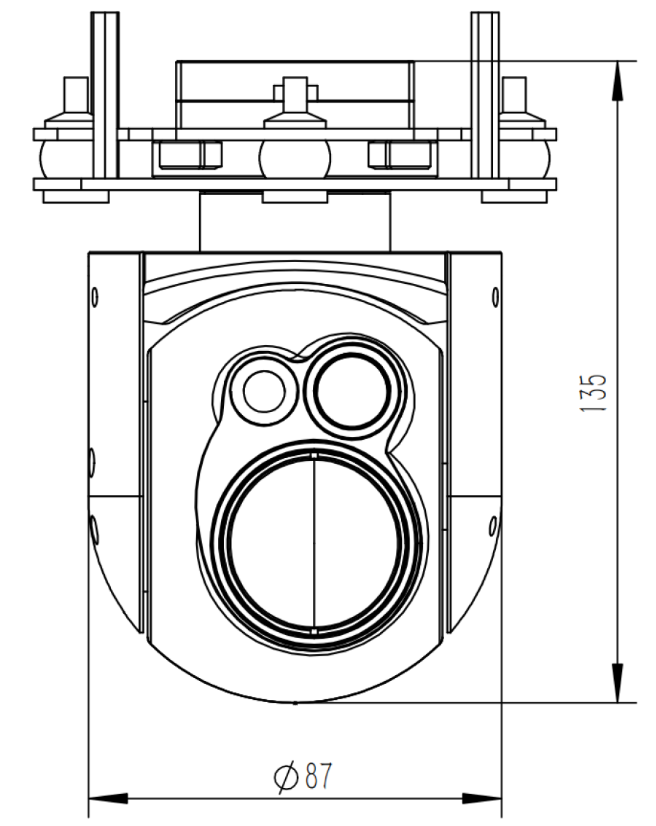

DYD415S90G645 2-axis Gimbal Camera

Voltage	DC 12V-26 .2V	Power	Dynamic 6.6w
Yaw Angle	-20 +180	Pitch Angle	360
Pitch and Roll Jitter Angle	0.02	Horizontal Jitter Angle	0.03
One-Click Restore	One-click restore to the initial position	Adjustable Gimbal Speed	When the gimbal rotates, the speed is adapted based on the current speed mode the visible light camera multiple

CMOS Size	CMOS SENSOR 8MP
Dogital zoom	Suport 7x digital zoom
Compressed storage mode	H264 H265,Video streaming local TF card storage 4K
Field Angle FOV	35mm focal-length, FOV 10.1 x 7.6

CMOS Size	CMOS SENSOR 2MP
Dogital zoom	Suport 9x digital zoom
Compressed storage mode	H264 Video streaming local TF card storage 4K
Field Angle FOV	6mm focal-length FOV 60 x 43

Resolution	640 512 pixel
Pixel spacing	12 m
Type	Uncooled vanadium oxide
Wavelength range	8 14 m
Thermal sensitivity (NETD)	50mk@25 @F1.0
Field of view	45mm focal-length FOV 9.8 7.8
Global temperature measurement	Support global temperature measurement, optional full-pixel temperature saving function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
