MDYD415S90G609 2-Axis Mini Gimbal Dual Fixed Focus Lens + 640 Thermal

China Moneypro

The MDYD415S90G609 is a professional-grade 2-axis stabilized gimbal featuring triple integrated sensors for comprehensive surveillance. It combines two visible light cameras with 25mm and 6mm fixed focus lenses alongside a 640×512 thermal imaging camera. The 8-megapixel and 2-megapixel WDR sensors deliver exceptional clarity in varied lighting conditions. Advanced FOC control ensures high stability with minimal power consumption. The system supports synchronized visible light and thermal video recording with picture-in-picture switching and multiple thermal pseudo-color modes. Local TF card storage enables 4K and 1080P recording capabilities. The gimbal offers impressive pitch range from -25 to +110 degrees and yaw range of -145 to +145 degrees with minimal angle jitter. Intelligent tracking detects and follows humans and vehicles with up to 100 simultaneous targets. Multiple control options include IP, S.BUS, and UART protocols. Compatible with China Moneypro ground station software for comprehensive mission planning and data management.

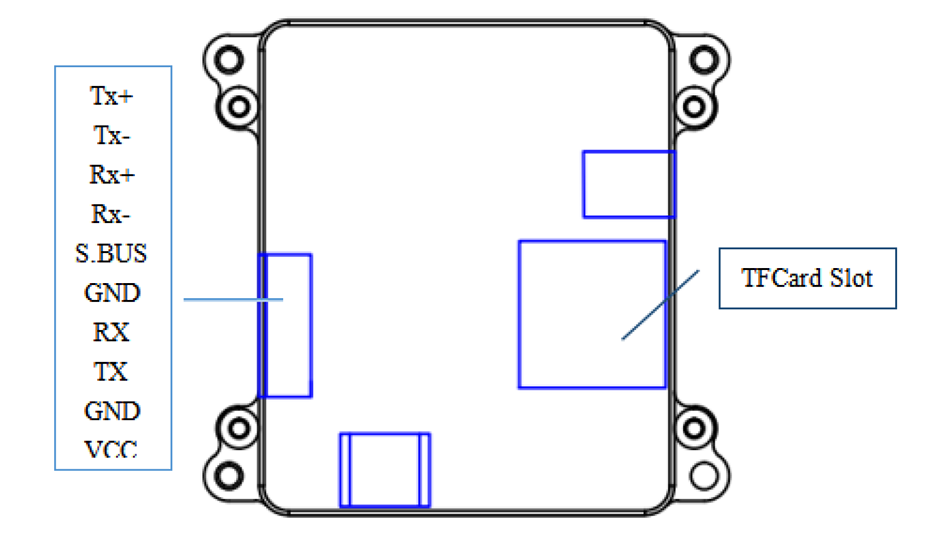

DYD415S90G609 is a high-precision professional 2-axis stabilized triple sensor gimbal integrated with two visible light cameras which are 25mm and 6mm, and one 9.1mm 640*512 thermal. The FOC control scheme of the device has the characteristics of high stability, high integration and low consumption. The visible light movement adopts two WDR SENSORS with 8 mega pixels and 2 mega pixels. With China Moneypro ground station control software, the system supports picture in picture switch modes, multiple pseudo colors switching, local TF storage and visible light and thermal videos recording synchronously. DYD415S90G609 supports IP control, S.BUS control and UART control as well.

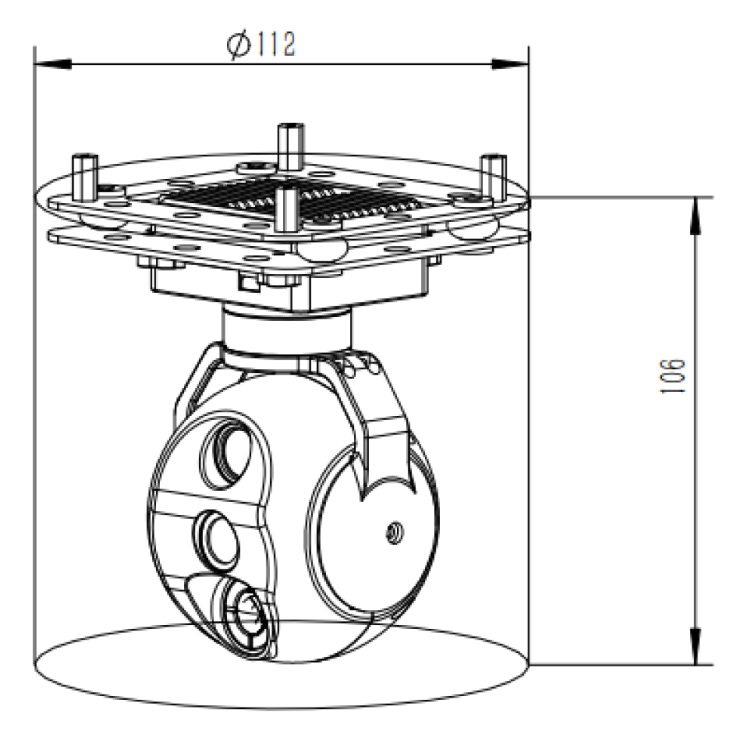

DYD415S90G609 2-Axis Mini Gimbal Dual Fixed Focus Lens + 640 Thermal

Voltage	DC12 26.2V	Power	Dynamic 5W
Pitch Angle Range	-25 +110	Yaw Angle Range	-145 +145
Horizontal angle jitter	0.03	Angle jitter in pitch and roll direction	0.02
Adjustable PTZ Speed	The current speed mode based on the multiple zoom of camera	One click return function	One click automatic quick return to the initial position

CMOS Size	1/2.8 ” WDR CMOS SENSOR: 8 Mega Pixels
Digital Zoom	7X digital zoom
Storage Mode	H264 H265; 4K Local TF Card Storage
Field Angle FOV	25mm lens; FOV: 10.5 x 7.8

CMOS Size	WDR CMOS SENSOR: 2 Mega Pixels
Digital Zoom	9X digital zoom
Storage Mode	H264 H265; 1080P Local TF Card Storage
Field Angle FOV	6mm lens FOV 60 x 43

Resolution	640 512 Pixels
Pixel spacing	12 m
Type	Uncooled Infrared Microbolometer Camera
Wavelength range	8 14 m
Thermal sensitivity (NETD)	50mk@25 @F1.0
Field of view	9.1mm lens FOV 48.7 38.6
Measurement Functions	Support showing the center temperature, highest temperature and lowest temperature;Support temperature data storage and display for optional

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
