MDYD10G613 10x visible light Optical zoom camera + 640*512 thermal dual light camera 2-Axis Stabilized IP Output Gimbal
The MDYD10G613 is a professional dual-sensor gimbal system combining a 10x optical zoom visible light camera with 90x total hybrid zoom capability and a 640×512 thermal imaging sensor. Featuring a high-precision 2-axis stabilized gimbal with FOC control, this system delivers exceptional stability with minimal jitter. The 2-megapixel CMOS sensor captures 1080P video at 30fps via Ethernet RTSP output, while the uncooled vanadium oxide thermal sensor provides 50mK sensitivity. Advanced features include picture-in-picture streaming, multiple pseudo-color displays, global temperature measurement, and intelligent tracking for humans and vehicles simultaneously. Controlled via network IP, serial port, or SBUS, the system supports dual-channel micro-SD recording. Operating on 12-26V DC with just 6.5W power consumption, it weighs only 310g and operates reliably in -10 to +55°C environments. Perfect for surveillance, reconnaissance, and thermal monitoring applications requiring professional-grade imaging and stabilization.
The DYD10G613 is an all-in-one dual-sensor camera platform equipped with a high-performance two-axis stabilized gimbal. The visible light module features a 2MP wide dynamic CMOS sensor with 10x optical zoom and 9x digital zoom, enabling up to 90x hybrid zoom capability. The thermal imaging module incorporates a 640×512 vanadium oxide uncooled detector paired with a 13mm lens, supporting 9x digital zoom. The gimbal adopts a high-precision encoder-based FOC control scheme, offering excellent stability, compact size, lightweight construction, and low energy consumption. Video and control are transmitted via Ethernet IP, with both serial and network interfaces available for camera and gimbal management. The system supports RTSP-based picture-in-picture streaming with multiple PIP layout options, various pseudo-color palettes, and global temperature measurement functionality. Local recording for both visible and thermal channels is supported via a micro-SD card, including video and photo capture.
| Voltage | DC 12V-26V | Power | Dynamic 6.5W |
| Pitch Angle | -25 ~+110 | Yaw Angle | -140 +140 |
| The amount of horizontal Angle jitter | 0.03 | The amount of angular jitter in pitch and roll direction | 0.02 |

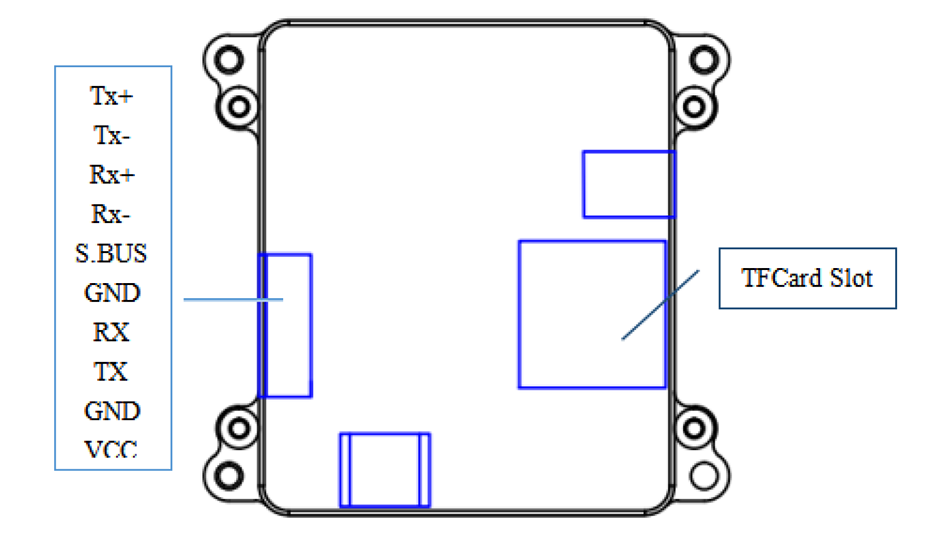

| One-Click Restore | One-click automatic quick return to the initial position | Control mode | Support network IP control, SBUS control, serial port control (optional PWM control) |
| CMOS Size | 1/2.8 inch 2 megapixel CMOS SENSOR |
| Optical Zoom | 10x optical zoom lens, f=5.15 5% 47.38 5%mm |
| Video output | Ethernet RTSP output 1080P, storage in micro-sd card |
| Field Angle(FOV) | D : WIDE 69.5o 5% TELE 7.95o 5% H : WIDE 61.5o 5% TELE 7.00o 5% V : WIDE 35.0o 5% TELE 3.97o 5% |
| Support Mode | 1080P 30 fps |
| Resolution ratio | 640 512 pixel |
| Space between pixels | 12 m |
| Type | Uncooled vanadium oxide |
| Wavelength Range | 8 14 m |
| Thermal sensitivity(NETD) | 50mk@25 @F1.0 |
| Field of view | 13mm camera lens, FOV 32.9 x26.6 |
| Measurement function (optional) | Central point, the highest temperature and lowest temperature display temperature function; Supports global temperature measurement |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

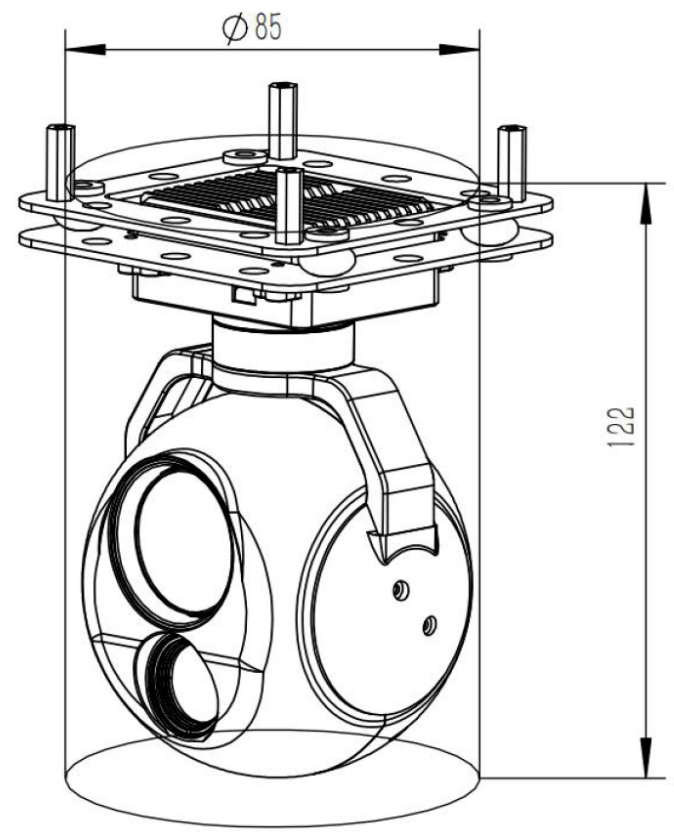

| Dimensions | :85mm H:122mm | Operating Environment | -10 to +55 / 20% to 80% RH |
| Storage Conditions | -20 to +60 / 20% to 95% RH | Weight | 310 10g |
