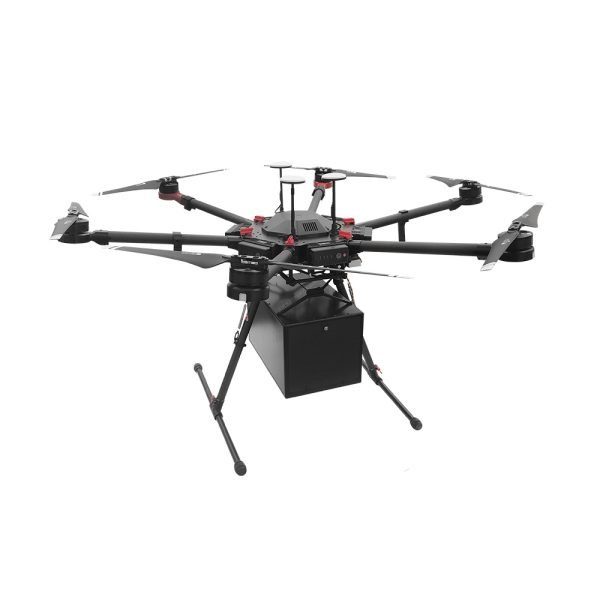

MDrop Box for Drone Delivery DJI M600 Compatible with Quick Release Mechanism

China Moneypro

The MDrop Box for Drone Delivery is an ingeniously designed delivery system compatible with DJI M600 drones. Featuring a quick-release mechanism, it enables one-minute assembly and disassembly for maximum efficiency. The electric-controlled delivery door ensures responsive and precise package deployment with impressive speed. Built with high-strength aviation aluminum through CNC processing and anodized treatment, this system offers exceptional durability and corrosion resistance. Supporting a maximum load capacity of 5KG, it accommodates various delivery needs. The universal design integrates seamlessly with other company modules and requires no tools for installation, thanks to hand-screwed fasteners and retaining buckles. Customizable options include extended channels, independent remote control functionality, and airborne power supply support. The included remote control features 800M line-of-sight range, dual antennas, and independent control capabilities. Perfect for commercial drone delivery applications, this innovative solution combines reliability, ease of use, and professional-grade performance for modern logistics operations.

Unique ingenious design

Convenient quick disassembly design for 1-minute quick disassembly and assembly

Electric control delivery door, responsive and precise delivery

Open delivery door design, fast delivery speed High-strength structural design, maximum load-bearing capacity. 5KG

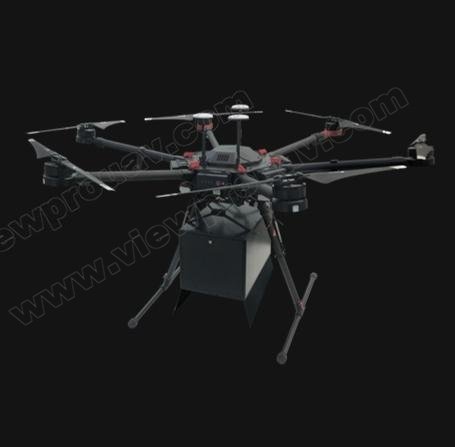

Drop Box for Drone Delivery DJI M600 Compatible with Quick Release Mechanism1

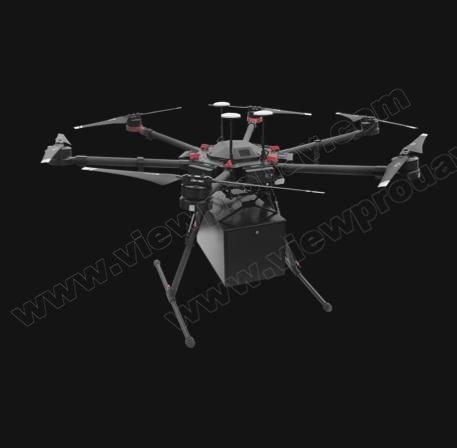

Drop Box for Drone Delivery DJI M600 Compatible with Quick Release Mechanism2

Meet the customized requirements

Support for M600 Pro extended

channel and independent remote control function,

Support for custom airborne power supply and independent power supply functions

Note. standard for the body. If you need to customize independent power supply. please contact the sales in advance!

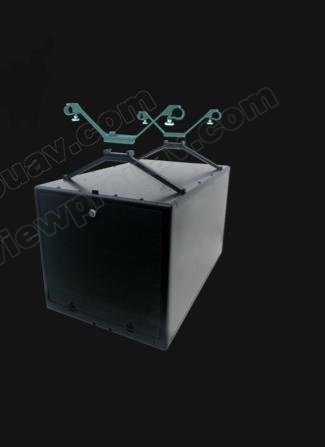

M600 quick disassembly of the hanger

Universal design can be used on the same platform as the other modules of the company

Hand screwed screw and module retaining buckle design,installation without any tools

Aviation aluminum material through CNC processing process and sand blasting anode polarization treatment,with high precision, anti-corrosion and wear resistance.

Note: The standard version does not include MGD0 quick demolition hangers, and should be purchased separately.

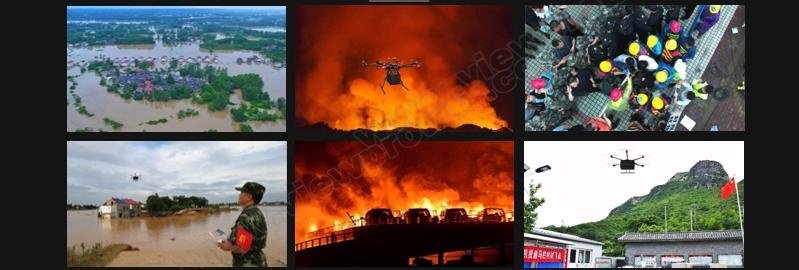

Module application scenarios

Drop Box for Drone Delivery DJI M600 Compatible with Quick Release Mechanism4

Drop box	Remote control device
Product Size: 378230274mm (Model M600 Pro)	Overall size: 180 82161mm
Packing size: 466390351mm	Weight: 392g
Internal cavity size: 218215366mm	Input power supply: 1.5A A44
Side Door Size: 207*190mm	Data output: P52 interface PPM
Installation mode: Quick disassembly	Frequency range: 2.4055-2475GHZ
Net weight: 1.70KG	Band Width: 500KHZ
Volume of approximately: 17L	Transmiter power: not above 20dBm
Max load capacity: 5KG	Low voltage alarm is below 4.2V
Support platforms: Viewpro M115, Viewpro Herc M180, DJI M600 Pro and vehicles above 5KG	No charging interface
	Antenna length: 26 mm*2 (built-in dual antenna)
Control mode: Independent remote control	Display mode: STN semi transparent positive display
Control distance: 800M LOS	128 64 lttice
Expand channel: M600 expansion Channel enabled (contact Sales first)	VA73*39 mm LED White backlight
Notes: provide support for custom airbore or independent power	supply
