MDIY10S62 is a single sensor gimbal that integrated a 90x hybrid zoom camera with a high-precision professional 3-axis stabilized PTZ
China Moneypro
The MDIY10S62 is a professional single sensor gimbal featuring a powerful 90x hybrid zoom camera with high-precision 3-axis stabilized PTZ control. Equipped with a 2-megapixel wide dynamic range CMOS sensor and 10x optical zoom lens, it delivers exceptional image clarity and detail. The advanced FOC control solution ensures high stability with minimal power consumption in a compact, lightweight design. Electronic image stabilization algorithms provide superior video quality with pitch and roll jitter angles as low as 0.02 degrees. Supporting 1080P video at 30fps with RTSP streaming and local TF card storage, this gimbal offers flexible deployment options. Featuring intelligent human and vehicle detection and tracking capabilities, comprehensive motion ranges, and one-click restore functionality, it’s ideal for professional surveillance and monitoring applications requiring precision and reliability.
DIY10S62 is a single sensor gimbal that integrated a 90x hybrid zoom camera with a high-precision professional 3-axis stabilized PTZ. The PTZ adopts a high-precision encoder FOC control solution, it has the characteristics of high stability, small size, light weight, and low power consumption. The visible light camera uses a 2 mega pixel wide dynamic range sensor and is equipped with an electronic image stabilization algorithm to further ensure image stability.
| Voltage | DC12V-26.2V | Power | Dynamic 5W |
| Roll angle action range | -45 +45 | Pitch angle action range | -45 +120 |
| Yaw angle action range | -285 +285 | Pitch and Roll Jitter Angle | 0.02 |
| Horizontal Jitter Angle | 0.03 | One-Click Restore | One-click restore to the initial position |
| SENSOR | 1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR |
| Optical Zoom | 10x HD optical zoom lens, f=5.15 5% 47.38 5%mm |
| AF Time | Real time fast focusing, focusing time < 1s |
| Video Output | RTSP stream IP network output, 1080P video stream local TF card storage |
| Local Record | photos and videos storage on local TF card; 1080P video stream real-time output |
| Field Angle (FOV) | D : WIDE 69.5o 5% TELE 7.95o 5% H : WIDE 61.5o 5% TELE 7.00o 5% V : WIDE 35.0o 5% TELE 3.97o 5% |
| Support Mode | 1080P 30fps |

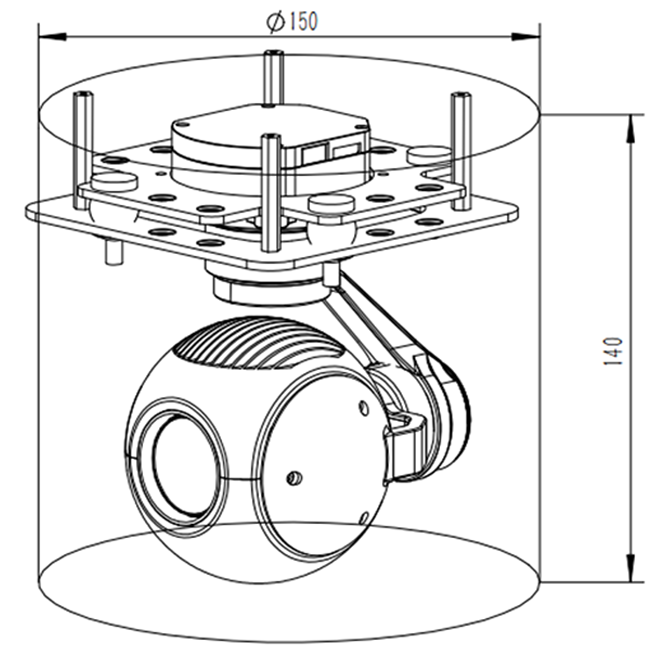

| Device Size | :150mm H:140mm | Work Condition | -10 to +50 / 20% to 80% RH |
| Storage Condition | -20 to +60 / 20% to 95% RH | Weight (Not including dampers) | 425 10g |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |
