MDIY10S62-E 10x Optical zoom IRCUT 3-Axis Gimbal, IP output

China Moneypro

The MDIY10S62-E is a professional gimbal camera system featuring 10x optical zoom with 90x hybrid zoom capability and advanced 3-axis stabilization. Equipped with a 2-megapixel CMOS sensor, it delivers 1080P video output via IP network streaming and supports local TF card storage. The high-precision PTZ gimbal uses FOC control technology for exceptional stability with minimal power consumption. Electronic Image Stabilization ensures smooth footage with pitch and roll jitter under 0.03 degrees. The camera supports both UART and IP control, real-time fast autofocus under 1 second, and intelligent human and vehicle detection tracking up to 100 targets simultaneously. Operating on DC12V-26.2V with just 5W dynamic power, it features wide motion ranges and one-click restore functionality. Compact and lightweight at 425g, this versatile system is ideal for surveillance, monitoring, and professional video applications requiring precision zoom and stabilization.

DIY10S62-E is a gimbal camera system integrated 90x Hybrid zoom, 3-axis stabilized PTZ, with additional Electronic Image Stabilization (EIS) function. It adopts IP output. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight and low power consumption. The camera adopts COMS SENSOR with 2 mega effective pixels; Supports 1080P network RTSP code stream output. Both UART and IP can control the camera and PTZ, and support local TF storage.

DIY10S62-E 10x Optical zoom IRCUT 3-Axis Gimbal, IP output

Voltage	DC12V-26.2V	Power	Dynamic 5W
Roll angle action range	-45 +45	Pitch angle action range	-45 +120
Yaw angle action range	-285 +285	Pitch and Roll Jitter Angle	0.02
Horizontal Jitter Angle	0.03	One-Click Restore	One-click restore to the initial position

SENSOR	1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR
Optical Zoom	10x HD optical zoom lens, f=5.15 5% 47.38 5%mm
AF Time	Real time fast focusing, focusing time < 1s
Video Output	RTSP stream IP network output, 1080P video stream local TF card storage
Local Record	photos and videos storage on local TF card; 1080P video stream real-time output
Field Angle (FOV)	D : WIDE 69.5o 5% TELE 7.95o 5% H : WIDE 61.5o 5% TELE 7.00o 5% V : WIDE 35.0o 5% TELE 3.97o 5%
Support Mode	1080P 30fps

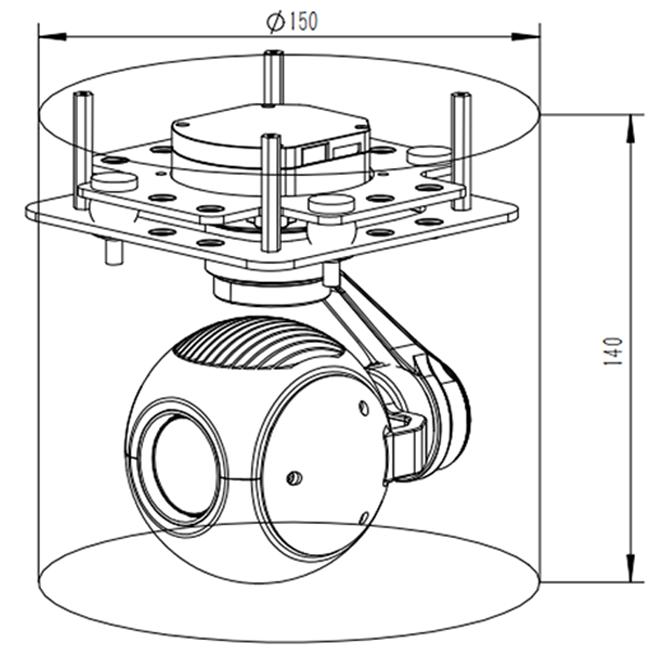

Device Size	:150mm H:140mm	Work Condition	-10 to +50 / 20% to 80% RH
Storage Condition	-20 to +60 / 20% to 95% RH	Weight (Not including dampers)	425 10g

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Gyroscope electronic anti shake
