The MDIY10G613-E is an advanced dual-sensor camera system combining 10x optical zoom visible light imaging with 640×512 thermal imaging capabilities. Featuring 90x hybrid zoom, it delivers professional-grade surveillance and monitoring. The integrated three-axis stabilization gimbal uses high-precision encoder FOC control for exceptional stability with minimal power consumption. The 2-megapixel CMOS sensor captures 1080P video at 30fps with real-time autofocus under 1 second. The uncooled vanadium oxide thermal detector provides 50mK sensitivity for precise temperature measurement. Supporting network RTSP output, multiple picture-in-picture modes, and pseudo-color displays, the system enables comprehensive monitoring. Dual-channel video recording to microSD cards, network and serial port control, and intelligent human/vehicle detection tracking up to 100 simultaneous targets make it ideal for security, surveillance, and reconnaissance applications. Operating on DC 12-26V with minimal 6.5W power draw, it features adjustable gimbal speed, one-key return function, and precise angle control with 0.02-0.03 degree jitter.
The DIY10G613-E is an integrated dual-sensor camera system equipped with a 90x hybrid zoom visible camera, a 13mm focal length thermal imager (640×512 resolution), and a professional three-axis stabilization gimbal with high precision. It supports Ethernet IP-based video output and remote control. The gimbal adopts a high-precision encoder FOC control design, offering excellent stability, compact dimensions, light weight, and low energy consumption. The visible light camera features a 2MP wide dynamic CMOS sensor, while the thermal imaging module utilizes a 640×512 vanadium oxide (VOx) microbolometer detector. The system supports network RTSP picture-in-picture (PIP) streaming, multiple PIP layout options, various pseudo-color palettes, and global temperature measurement functions. Both the serial port and Ethernet interface allow control over the camera and gimbal. Additionally, it supports dual-channel video recording and still image capture to a local microSD card.
Voltage
DC 12V-26V
Power
Dynamic 6.5W
Roll Angle action range
-45 +45
Pitch action range
-45 +100
Yaw angle action range
-140 +140
Tilt and roll direction angle jitter
0.02
Horizontal angle jitter
0.03
One-key return function
One-click automatic quick return to the initial position
The speed of the gimbal control is adjustable
The gimbal adjusts its rotation speed adaptively based on the current speed mode and the zoom level of the visible-light camera.
Control mode

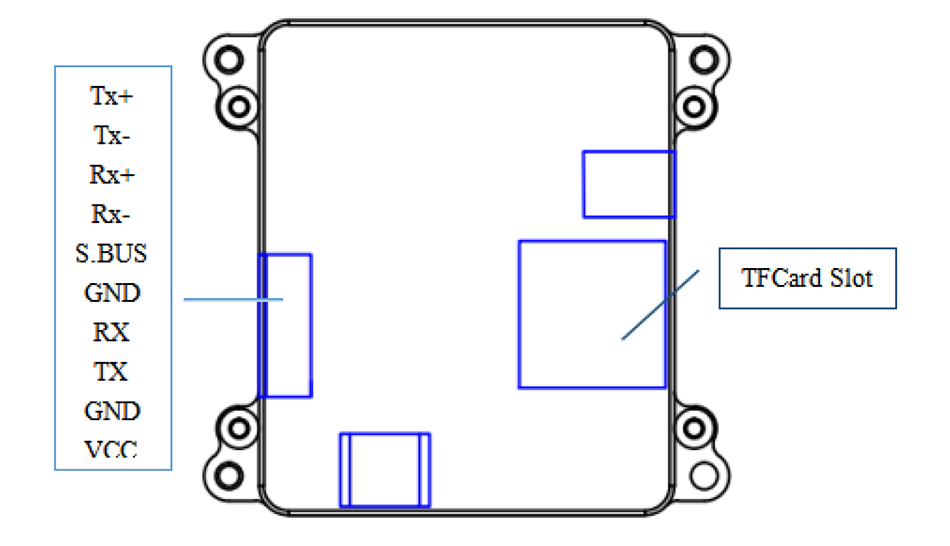

Support network IP control, SBUS control, serial port control (optional PWM control)
SENSOR
1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR
Optical Zoom
10x HD optical zoom lens, f=5.15 5% 47.38 5%mm
AF Time
Real time fast focusing, focusing time < 1s
Video Output
RTSP stream IP network output, 1080P video stream local TF card storage
Local Record
photos and videos storage on local TF card; 1080P video stream real-time output
Field Angle (FOV)
D : WIDE 69.5o 5% TELE 7.95o 5% H : WIDE 61.5o 5% TELE 7.00o 5% V : WIDE 35.0o 5% TELE 3.97o 5%
Support Mode
1080P 30fps
Resolution ratio
640 512 pixel
Space between pixels
12 m
Type
Uncooled vanadium oxide
Wavelength Range
8 14 m
Thermal sensitivity(NETD)
50mk@25 @F1.0
Field angle
13mm camera lens, FOV 32.9 x26.6
Measurement function
Support global temperature measurement and optional full pixel temperature saving function
