MDIY10A613D15N Four-in-one Gimbal Camera with dual output

China Moneypro

The MDIY10A613D15N is an advanced four-in-one gimbal camera system designed for professional surveillance and reconnaissance. It combines a 90x hybrid zoom visible light camera with 10x optical and 9x digital zoom, a 640×512 thermal imaging sensor with vanadium oxide detector, and a 5-1500 meter laser rangefinder. The system features a high-precision three-axis stabilized gimbal with FOC control technology, ensuring exceptional stability and minimal jitter. It delivers dual video output via Ethernet RTSP streaming at 1080P/30FPS, supporting multiple picture-in-picture modes and pseudocolor displays. The thermal camera includes global temperature measurement capabilities, while the visible light camera offers 2 million effective pixels with wide dynamic range. Control options include UDP, UART, and S.BUS protocols. The compact, lightweight system operates on DC12V-26.2V power with low consumption and supports video recording, photography on Micro-SD cards, and network remote access. Perfect for UAV integration, border security, and tactical operations.

The DIY10A613D15N is a four-in-one gimbal camera system that integrates a 90x hybrid zoom (10x Optical Zoom + 9x Digital Zoom), a 13mm focal length 640×512 thermal imaging sensor, a 5-1500 meters laser rangefinder, supplementary lights with a high-precision professional three-axis stabilized gimbal. It uses Ethernet (RTSP)output. The gimbal uses a high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight, and low power consumption. The visible light camera uses a wide dynamic SENSOR with 2 million effective pixels, while the thermal imaging uses a vanadium oxide detector. The camera system supports RTSP stream real-time video output, multiple picture-in-picture modes and multiple pseudocolor displays, and it also supports global temperature measurement functions. You can control the camera and the gimbal via serial port (UART), UDP and S.BUS. The camera outputs both visible light video and thermal imaging video, supporting video recording and photography on Micro-SD card and network remote accessing to stored videos and pictures on micro-SD card.

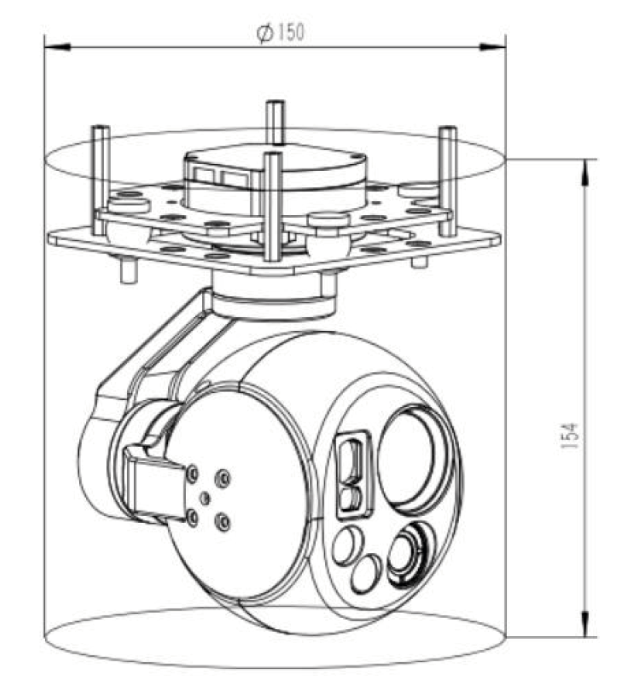

DIY10A613D15N Four-in-one Gimbal Camera with dual output

Voltage	DC12V-26.2V	Power Supply	Static 7.2W
Roll angle range	45 45	Pitch angle range	-30 +100
Heading angle range	-285 +285	Angle jitter in pitch and roll directions	0.02
Horizontal angle jitter	0.03	One-click return to center function	One-click automatic quick return to initial position
Adjustable Gimbal Speed	When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification	Control Mode	UDP/UART/SBUS (OPTIONAL PWM)

CMOS Size	1/3″ CMOS SENSOR: 4 Mega Pixels
Optical zoom	10 x optical zoom+9x digital zoom; f=5.15 5% 47.38 5%mm
Focus time	Real-time fast focusing function, focusing time <1S
Video Output	Ethernet (RTSP) @1080P/30FPS
Field of View FOV	D : WIDE 69.5o 5% TELE 7.95o 5% H : WIDE 61.5o 5% TELE 7.00o 5% V : WIDE 35.0o 5% TELE 3.97o 5%

Resolution	640*512 pixel
Pixel spacing	12 m
Type	Uncooled Vanadium Oxide Detectorr
Wavelength range	8 14 m
Thermal sensitivity (NETD)	50mk@F1.0@25
Field of view	13mm lens FOV 33 26
Temperature Measurement	Global temperature measurement,Optional full-pixel temperature saving function

Infrared Wavelength	905nm class Safety laser
measuring range	5 1500 meters
Accuracy/resolution	1m

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
