MDIU10S4KG613 10x 4K visible light Optical zoom camera + 640*512 thermal dual light camera 3-Axis Stabilized IP Output Gimbal
China Moneypro
The MDIU10S4KG613 is a professional dual-sensor gimbal system combining a 10x 4K optical zoom visible light camera with 70x total hybrid zoom and a 640×512 thermal imaging sensor. Featuring an 8-megapixel CMOS sensor with real-time fast focusing and a vanadium oxide thermal detector, this system delivers exceptional surveillance and monitoring capabilities. The high-precision three-axis stabilized gimbal offers minimal angular jitter and supports multiple control modes including network IP, serial port, and SBUS. Advanced features include picture-in-picture RTSP streaming, multiple pseudo-color displays, global temperature measurement, and intelligent human and vehicle detection tracking up to 100 simultaneous targets. With dual-channel micro-SD recording, adjustable gimbal speed, and one-click return functionality, this compact 340g system operates on DC 12V-26V power and supports both network and serial control for comprehensive surveillance solutions.
The DIU10S4KG613 is an advanced dual-sensor camera system integrating a high-performance visible light module and a thermal imaging unit. It includes a 10x optical zoom 4K CMOS sensor (complemented by 7x digital zoom, achieving 70x hybrid zoom), alongside a 13mm uncooled thermal sensor with 640×512 resolution and 9x digital zoom. All functions are managed over Ethernet IP with both video streaming and control supported. The system is built around a professional three-axis stabilization gimbal featuring a high-precision encoder FOC control design, offering excellent stability, a compact form factor, light weight, and low energy use. The visible camera is equipped with an 8-megapixel wide dynamic range CMOS sensor, while the thermal module uses a 640×512 vanadium oxide (VOx) detector. It supports network RTSP-based picture-in-picture streaming, multiple PiP layout options, various pseudo-color palettes, and global temperature measurement. Both the gimbal and camera functions can be accessed via serial port or network connection. Additionally, the system allows dual-channel video and photo recording directly to a local micro-SD card.
| Voltage | DC 12V-26V | Power | SDynamic 6.5W |
| Roll Angle action range | -45 ~+45 | Pitch action range | -45 ~+100 |
| Yaw angle action range | -140 +140 | The amount of angular jitter in pitch and roll direction | 0.02 |
| The amount of horizontal Angle jitter | 0.03 | One-click return function | One-click automatic quick return to the initial position |
| The speed of the gimbal control is adjustable | The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera | Control mode | Support network IP control, SBUS control, serial port control (optional PWM control) |
| CMOS Size | 1/2.8 inch 8 megapixel CMOS SENSOR |
| Optical zoom | 10x 4K optical zoom lens, f=5.15 5% 47.38 5%mm |
| focusing time | Real-time fast focusing function, focusing time <1S |
| Video Output | Ethernet RTSP output 1080P, storage in micro-sd card 4k |
| Field Angle(FOV) | D : WIDE 69.5o 5% TELE 7.95o 5% H : WIDE 61.5o 5% TELE 7.00o 5% V : WIDE 35.0o 5% TELE 3.97o 5% |
| Support mode | 4K 30 fps |
| Resolution ratio | 640 512 pixel |
| Space between pixels | 12 m |
| Type | Uncooled vanadium oxide |
| Wavelength Range | 8 14 m |
| Thermal sensitivity(NETD) | 50mk@25 @F1.0 |
| Field Angle | 13mm camera lens, FOV 32.9 x26.6 |
| Measurement (Optional) | Central point, the highest temperature and lowest temperature display temperature function; Supports global temperature measurement |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

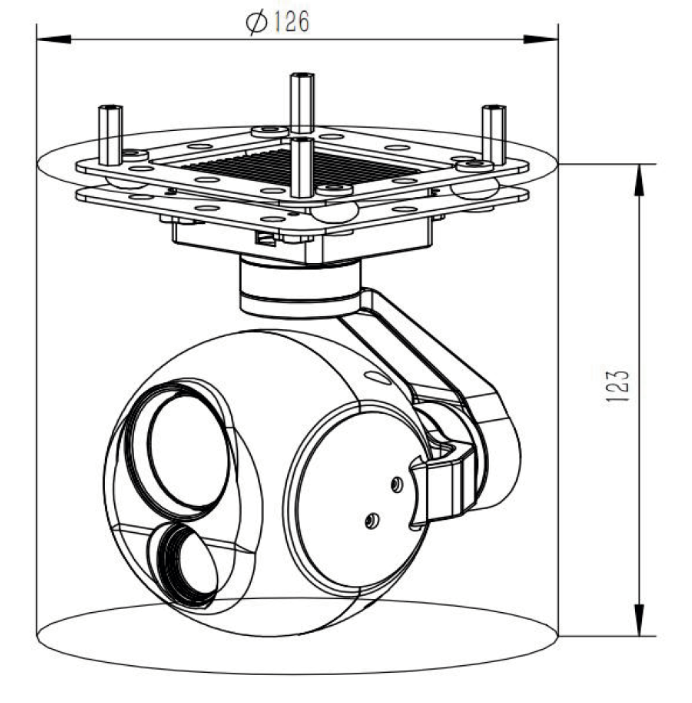

| Dimensions | :126mm H:123mm | Oerating Environment | -10 to +55 / 20% to 80% RH |
| Storage Conditions | -20 to +60 / 20% to 95% RH | Weight | 340 10g |
