MDIU05L12 45X Hybrid Zoom IP Output Mini Gimbal

China Moneypro

The MDIU05L12 is a compact three-axis stabilized mini gimbal featuring a 45X hybrid zoom visible camera and integrated 1200m laser rangefinder. Equipped with a 4-megapixel sensor, it delivers exceptional stability with minimal weight and low power consumption. The system supports multiple control modes including IP, UART, and S.BUS, with RTSP video format and local TF card storage for 1080P recording. Advanced features include real-time auto-focus, intelligent human and vehicle detection tracking up to 100 simultaneous targets, and one-click return functionality. Operating on DC 12V-26.2V with just 5W static power, it offers precise three-axis stabilization with minimal jitter. Perfect for surveillance, reconnaissance, and monitoring applications requiring high-performance zoom and ranging capabilities in a lightweight, portable design.

DIU05L12 is a high-precision three-axis stabilized camera gimbal integrated with a 45X hybrid zoom visible camera and a 1200m laser range finder, for providing high stability, tiny figure, light weight and low power consumption. The camera uses a 4 mega pixels sensor and supports UART, S.BUS and IP control, back up with TF card pictures and videos storage. The system supports RTSP video format and both IP output.

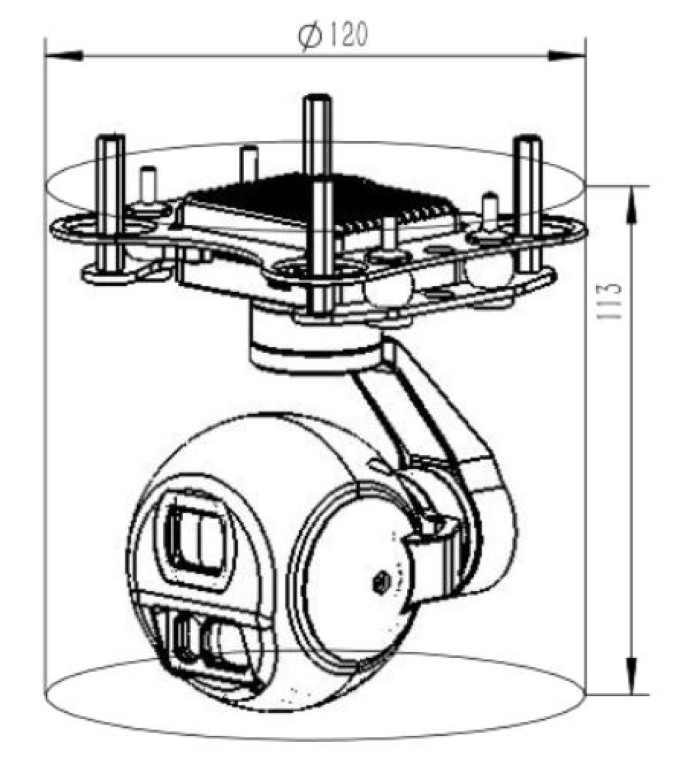

DIU05L12 45X Hybrid Zoom IP Output Mini Gimbal

Voltage	DC 12V-26.2V	Power	Static 5W
Roll Angle Range	-45 +45	Pitch Angle Range	-40 +100
Course Angle Range	-145 +145	Pitch and Roll Angle Jitter	0.02
Horizontal Angle Jitter	0.03	One-click Return Function	Quick return to initial position with one click
Adjustable PTZ Speed	The current speed mode based on the multiple zoom of camera	Control Modes	IP and UART and S.BUS control or PWM for Option

CMOS Size	1/3″ CMOS SENSOR: 4 Mega Pixels
Optical zoom	5x HD optical zoom lens, f=5 10% 25 10%mm
Focusing Time	Real time fast focusing focusing time <1S
Video Format	RTSP 1080P and Local TF 1080P record
Field Angle(FOV)	D : WIDE 61.1o TELE 12.41o H : WIDE 50.12o TELE 10.81o V : WIDE 38.07o TELE 8.13o
Support Mode	1080P 30fps

Laser wave	905nm (class 1 laser)
Detect range	5 1200m
Accuracy / Resolution	1m

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
