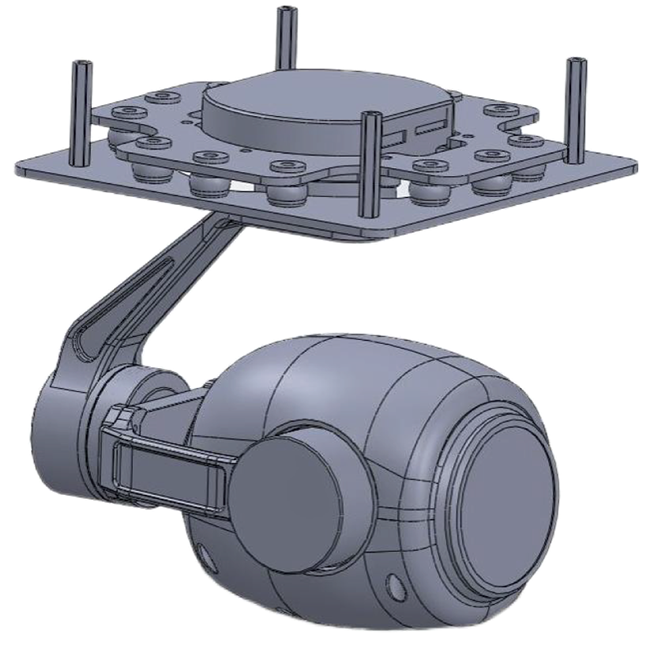

MDIP30S4K 30x Optical Zoom + 3-Axis Stabilization 4K Resolution Network IP Gimbal

China Moneypro

The MDIP30S4K is a professional 4K network IP gimbal featuring 30x optical zoom combined with 210x mixed zoom capability and advanced 3-axis stabilization technology. Equipped with an 8MP HD CMOS sensor, this compact device delivers exceptional video quality at 4K 30fps or 1080P resolution. The gimbal utilizes high-precision FOC encoder control for superior stability with minimal power consumption. Its 3-axis design provides precise pan, tilt, and roll control with impressive jitter angles of just 0.02 to 0.03 degrees. The device supports RTSP IP network output, local TF card storage in both 4K and 1080P formats, and wireless transmission capabilities. Features include real-time autofocus under one second, 360-degree continuous yaw rotation, and intelligent human and vehicle detection and tracking for up to 100 simultaneous targets. The lightweight design at 710g operates efficiently on DC12V-26.2V power with dynamic consumption of just 10W. Control is seamless via dedicated software app with full PTZ and zoom functionality. Perfect for surveillance, broadcasting, and professional video applications requiring reliable, high-performance imaging.

The DIP30S4K is a 4K gimbal camera featuring a 210x hybrid zoom and three-axis image stabilization. It supports 4K IP streaming output, while the ground receiver delivers an RTSP stream. The accompanying ground control software App enables PTZ manipulation and zoom adjustments. The gimbal utilizes a high-precision encoder FOC control architecture, offering excellent stability, a compact and lightweight design, and low energy consumption. The camera is built around an 8MP high-definition sensor and supports local recording to a TF card in both 4K and 1080p, alongside wireless video transmission.

DIP30S4K 30x Optical Zoom + 3-Axis Stabilization 4K Resolution Network IP Gimbal

Voltage	DC12V-26.2V	Power	Dynamic 10W
Roll angle action range	-45 +45	Pitch angle action range	–45 +100
Yaw angle action range	360 Degree continuous rotation	Pitch and Roll Jitter Angle	0.02
Horizontal Jitter Angle	0.03	One-Click Restore	One-click restore to the initial position

SENSOR	1/2.8 Inch 8MP CMOS SENSOR
Optical Zoom	30x HD optical zoom lens, f=4.5 10% 135 10%mm
AF Time	Real time fast focusing, focusing time < 1s
Video Output	RTSP code stream, IP network output 4K resolution, 1080P video stream
Local Record	Local TF storage, H.264, 4K, 1080P, video stream
Field Angle (FOV)	D : WIDE 67.8o 5% TELE 2.77o 5% H : WIDE 59.8o 5% TELE 2.34o 5% V : WIDE 40.5o 5% TELE 1.48o 5%
Support Mode	4K 30 fps /1080P 30fps

Device Size	140mm 162mm 144mm	Work Condition	-10 to +55 / 20% to 80% RH
Storage Condition	-20 to +60 / 20% to 95% RH	Weight (Not including dampers)	710 10g

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
