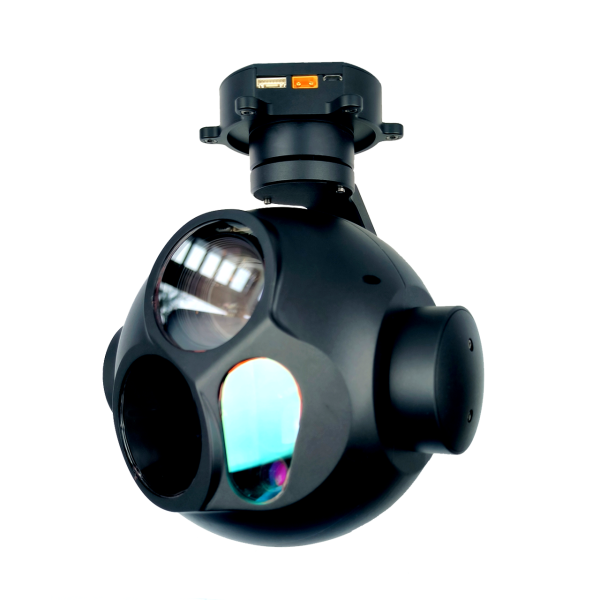

MDIP30G635L50 30x optical zoom + 640x 512 thermal imaging +5KM ranging three-light pod
China Moneypro
The MDIP30G635L50 is a professional 3-axis stabilized gimbal pod combining 30x optical zoom visible light camera, 640×512 thermal imaging with 35mm lens, and 5KM laser ranging capability. Featuring a compact design with high stability and low power consumption, this integrated system includes a 2MP CMOS sensor for visible light, vanadium oxide thermal detector with internal baffle, and eye-safe laser ranging with 1m accuracy. The gimbal supports Lock and Follow modes with one-click return functionality. Advanced features include real-time fast focusing under 1 second, 1080P IP video streaming, local TF card recording, dual-channel synchronized video, multiple PIP modes, and pseudo color switching. The thermal camera offers highest and lowest temperature display with 50mK sensitivity. Intelligent tracking detects and follows up to 100 human and vehicle targets simultaneously with dynamic stabilization. Operating on DC12V-26.2V with 10W dynamic power consumption, it weighs 1580g and operates in temperatures from -10 to +45 degrees Celsius. Compatible with ground station software for synchronized PTZ and camera control via network or serial port.
DIP30G635L50 is a professional 3-axis stabilized gimbal integrating 270x Hybrid zoom camera, 35mm focal length 640 * 512 thermal imaging and 5KM laser ranging finder. This gimbal compact in design and has the characteristics of high stability, high integration and low power consumption; The visible light camera uses a high-definition effective 2 mega pixels COMS SENSOR; The thermal imaging adopts 35mm lens, a vanadium oxide 640×512 resolution detector, with an internal baffle. The Laser ranging has 5KM high-precision distance measurement function. Using our ground station software, support network and serial port synchronous control PTZ and camera, read ranging data, local TF card storage and network file reading and writing, support two-way synchronous video recording, multiple PIP modes and pseudo color switching.

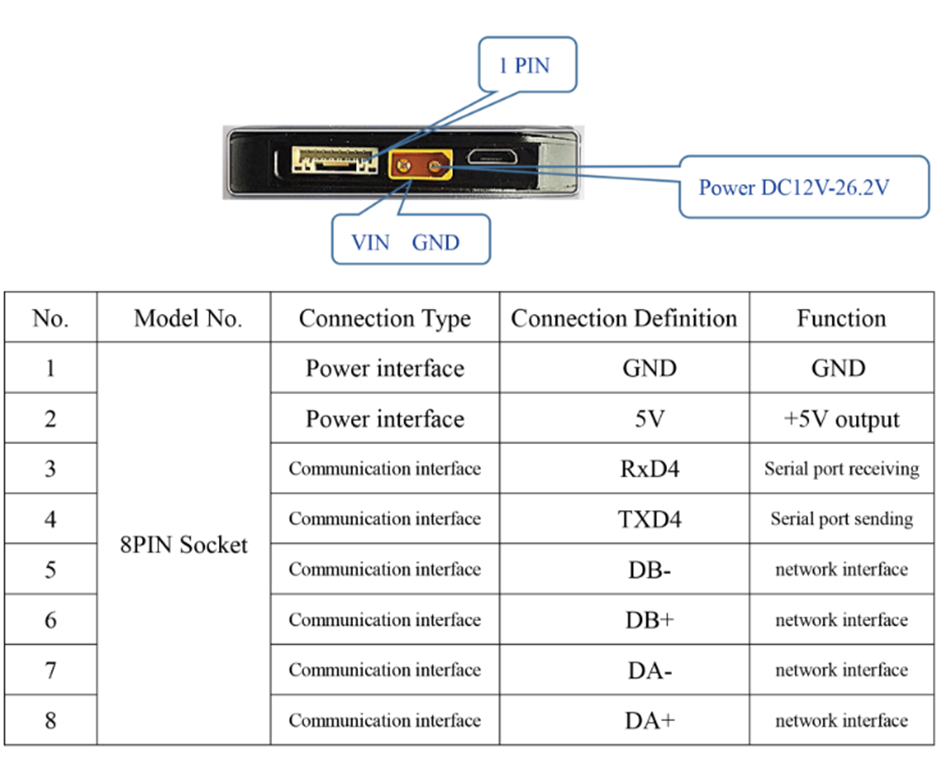

| Voltage | DC12V-26.2V | Power | Dynamic 10W |
| Roll Angle | 45 45 | Pitch Angle | -30 +120 |
| Yaw Angle | -280 280 | Gimbal Mode | Support gimbal Lock/Follow mode; One-click return to the initial position |
| CMOS Size | 1/2.8inch 2MP wide dynamic range CMOS SENSOR |
| Digital Zoom | 30x Optical Zoom, f=4.5 135 mm 5% |
| Focusing Time | Real time fast focusing, focusing time < 1s |
| Field Angle FOV | D : WIDE 67.8o 5% TELE 2.77o 5% H : WIDE 59.8o 5% TELE 2.34o 5% V : WIDE 40.5o 5% TELE 1.48o 5% |
| Video Output | IP output; RTSP 1080P video stream, Local TF 1080P recording |
| Resolution | 640*512 pixel |
| Pixel spacing | 12 m |
| Type | Uncooled infrared microbolometer camera |
| Wavelength range | 8 14 m |
| Thermal sensitivity (NETD) | 50mk@F1.0@25 |
| Field of view | 35mm Lens,Angle: 12.52 x10.03 |
| Measurement Functions | Highest temperature, lowest temperature, all area temperature display |
| Laser wave | 1535 10nm safety for eyes |
| Detect range | 50–5000m |
| Accuracy/Resolution | Accuracy 1m; Ranging resolution 40m |
| Min tracking target size | 16 16 pixels | Max tracking target size | 256 256 pixels |
| Target Memory Time | 2 seconds | Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max | Recognized categories | Human and Vehicle |
| Min detection target size | 32 32 pixels | Debounce | Dynamic stabilization |

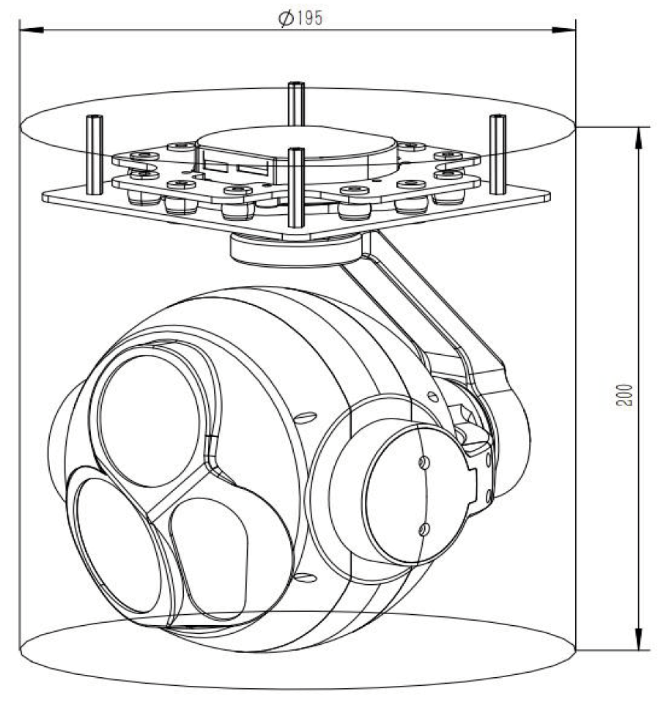

| Dimensions | W153mm*D171.9mm *H212mm | Working Condition | -10 to +45 / 20% to 80% RH |
| Storage Environment | -20 to +60 / 20% to 95% RH | Weight | 1580 20g |
