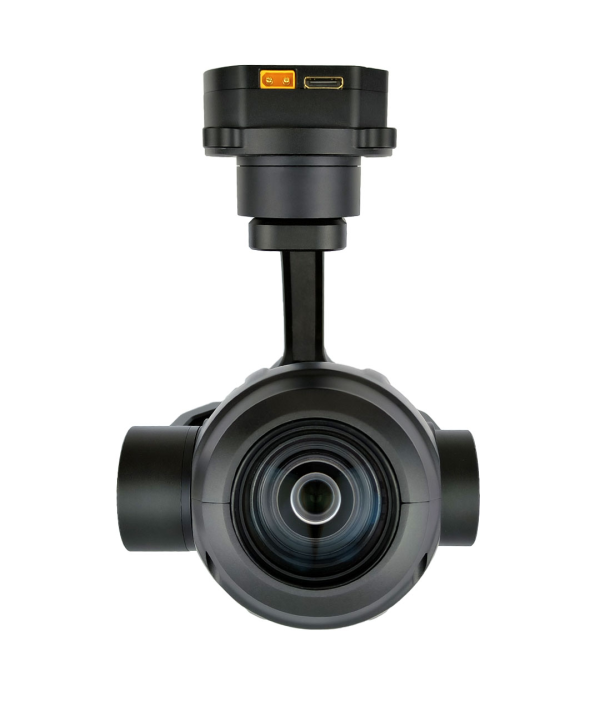

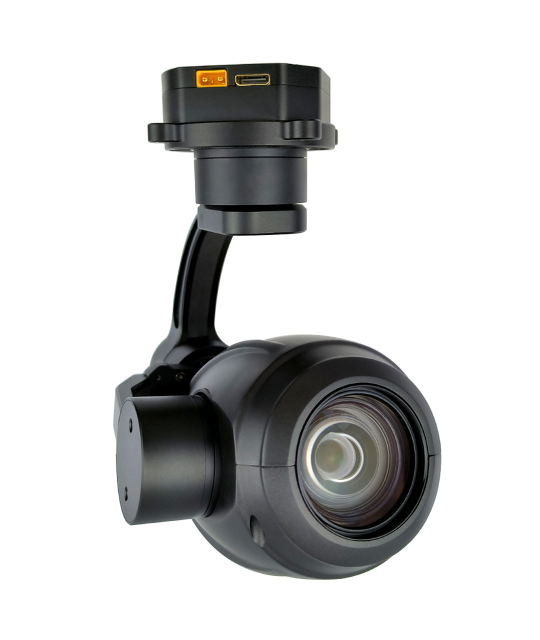

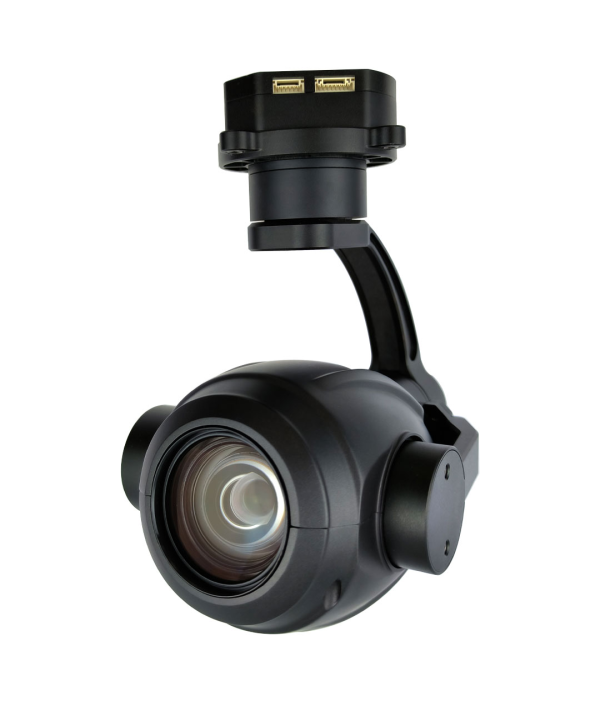

MDIP20S78 Ethernet Output 20x Optical Zoom + Starlight Night Vision Camera with 3-Axis Gimbal

China Moneypro

The MDIP20S78 is a professional-grade surveillance camera featuring 20x optical zoom with 140x hybrid zoom capability and advanced starlight night vision technology. Equipped with an 8-megapixel STARVIS2 sensor, it delivers exceptional low-light performance and supports 4K and 1080p recording. The integrated 3-axis gimbal provides precise stabilization with high-precision FOC control, ensuring smooth operation with minimal jitter. Ethernet RTSP output enables seamless network integration with full PTZ and zoom control from ground software. The system supports dual-way network control, real-time target tracking for humans and vehicles, and one-click position restoration. Operating on DC12V-26.2V with minimal power consumption, this compact and lightweight solution is ideal for demanding surveillance applications requiring superior image quality and reliability.

The DIP20S78 integrates a 140x hybrid zoom camera, a 3-axis stabilized PTZ with encoder-based FOC control for high precision, and Ethernet (RTSP) output. On the ground side, the receiver provides standard RTSP output, while the ground software enables full control over both PTZ movements and zoom camera functions. The PTZ system is designed for high stability, compact size, lightweight construction, and low power consumption. The camera features an 8-megapixel STARVIS2 low-noise sensor, supporting 4K and 1080p local recording to TF card as well as RTSP streaming. Network control is available via two independent channels.

DIP20S78 Ethernet Output 20x Optical Zoom + Starlight Night Vision Camera with 3-Axis Gimbal

Voltage	DC12V-26.2V	Power	6.72W
Roll angle action range	-45 +45	Pitch angle action range	-30 ~+120
Yaw angle action range	-280 ~+280	Pitch and Roll Jitter Angle	0.02
Horizontal Jitter Angle	0.03	One-Click Restore	One-click restore to the initial position

SENSOR	1 / 1.8 Inch 8 mega pixel wide dynamic range CMOS sensor
Optical Zoom	20x HD optical zoom lens, f=6.7 125 mm 5%
Focusing time	Real time focusing, fast focusing time < 1s
Video output	Network HD RTSP output 1080p, 1080p video recording
Field Angle (FOV)	D : WIDE 66 6o 5% TELE 4.0o 5% H : WIDE 59.6o 5% TELE 3.5o 5% V : WIDE 35.7o 5% TELE 2.0o 5%

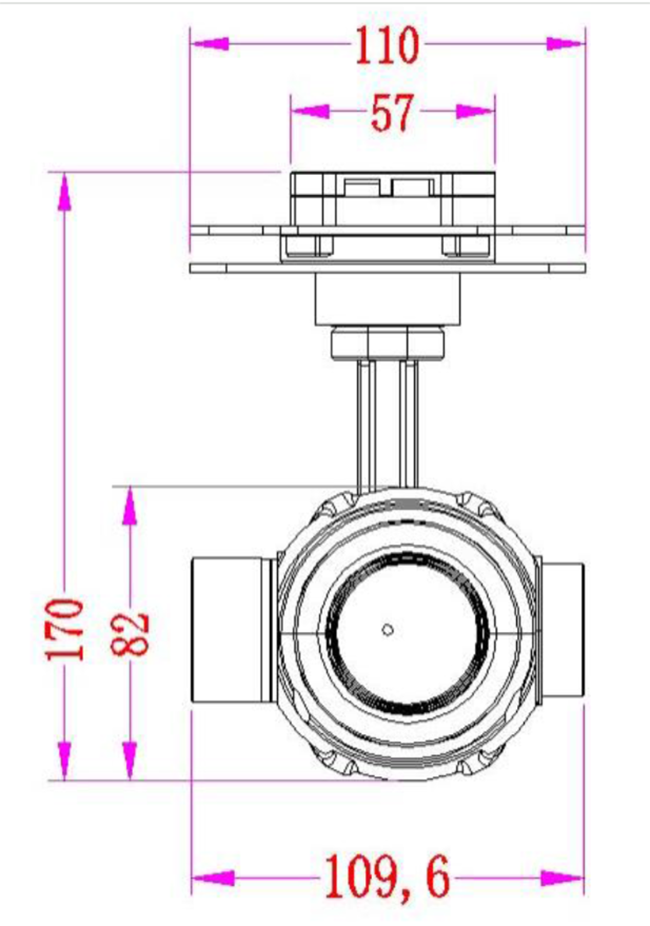

Device Size	:183mm H:204 mm	Work Condition	-10 to +45 /20% to 80% RH
Storage Condition	-20 to +65 /20% to 95% RH	Weight (Not including dampers)	670 20g

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
