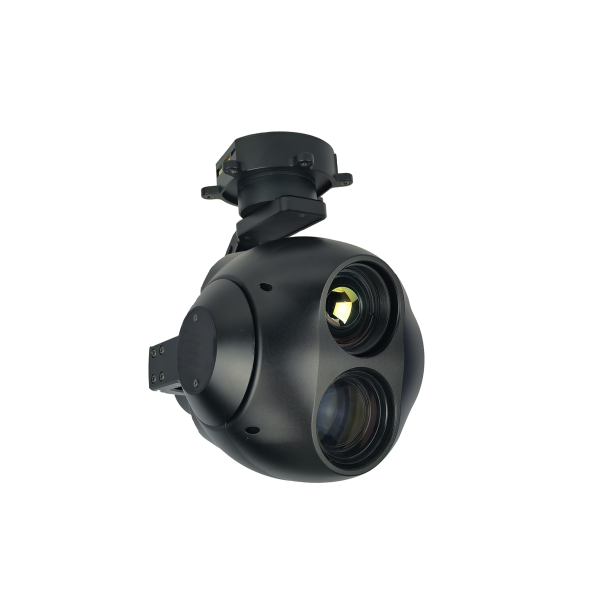

MDIP20G12A 20x optical zoom+1280 thermal imaging single output pod

China Moneypro

The MDIP20G12A is a professional dual-sensor imaging pod combining 140x hybrid zoom capability with 1280×1024 thermal imaging. Featuring an 8-megapixel high-sensitivity visible light camera and uncooled vanadium oxide thermal detector, it delivers exceptional clarity in all conditions. The integrated three-axis stabilization gimbal ensures precise, jitter-free performance with 360-degree yaw rotation and advanced FOC control. Supporting dual IP and HDMI outputs, network RTSP streaming, and multiple picture-in-picture modes, this compact system weighs just 1.5kg while consuming minimal power. Advanced AI detection tracks up to 100 human and vehicle targets simultaneously. Ideal for surveillance, reconnaissance, and professional monitoring applications requiring superior optical zoom and thermal capabilities in a lightweight, stable platform.

DIP20G12A is a zoom dual light system that integrates a 140x hybrid zoom camera, a 35mm focal length 1280 1024 thermal imaging module, and a high-precision professional three-axis stabilization pod. It uses network IP and HDMI dual outputs, IP control, and a high-precision encoder FOC control scheme for the pan tilt zoom. It has the characteristics of high stability, small size, light weight, and low power consumption; The visible light camera adopts high sensitivity and high dynamic SENSOR with an effective pixel count of 8 million; Thermal imaging uses a 1280 1024 resolution vanadium oxide detector. The system supports network RTSP picture in picture stream output, supports multiple picture in picture modes, multiple pseudo color displays, and can control the camera and gimbal through both serial port and network. It also supports local TF dual channel recording and photography.

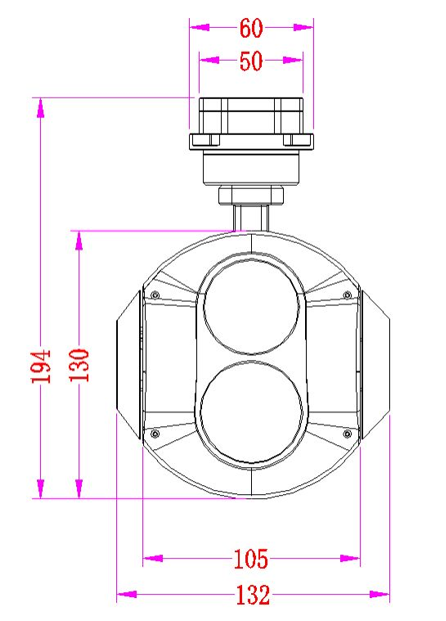

DIP20G12A 20x optical zoom+1280 thermal imaging single output pod

Voltage	DC12 26.2V	Power	Dynamic 8W
Roll Angle	45 45	Pitch Angle	-30 +100
Yaw Angle	360	Tilt and roll direction angle jitter	0.02
Horizontal angle jitter	0.03	One-key return function	One-click automatic quick return to the initial position
Adjustable Gimbal Speed	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple.	Control mode	Support network IP control, S.BUS control, UART control (PWM control is optional)

CMOS Size	1/1.8 INCH 8 mega pixel wide dynamic CMOS SENSOR
Optical Zoom	20x HD optical zoom lens, f=6.7 125 mm 5%
Focusing time	Real time fast focusing, focusing time < 1s
Video Output	Network output RTSP 1080P stream, local TF 1080P storage
Field Angle(FOV)	D : WIDE 66.6o 5% TELE 4.0o 5% H : WIDE 59.6o 5% TELE 3.5o 5% V : WIDE 35.7o 5% TELE 2.0o 5%
Support Mode	1080P 30fps

Resolution ratio	1280X1024 pixel
Space between pixels	12 m
Type	Uncooled vanadium oxide
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	40mk@25
Field angle	35mm lens FOV 24.4 *19.8

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
