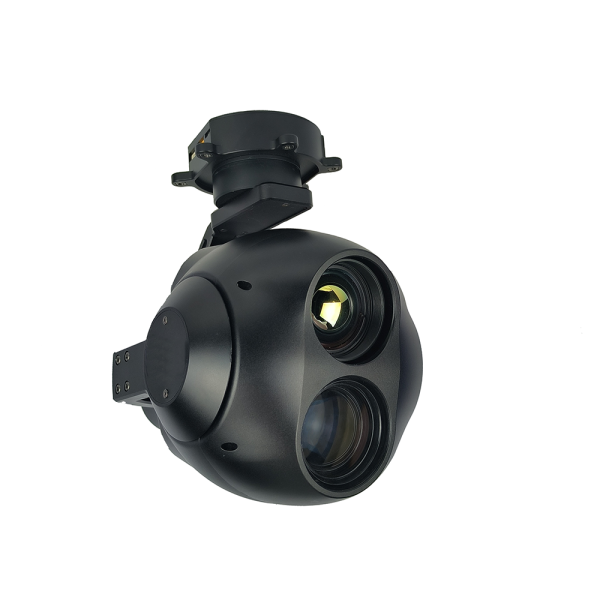

MDIP20G12 20x Optical Zoom Camera + 1280 Thermal Camera

China Moneypro

The MDIP20G12 is a professional dual-sensor integrated camera system combining a 20x optical zoom visible light camera with an 8-megapixel CMOS sensor and a 1280×1024 uncooled thermal infrared camera. Featuring a high-precision three-axis stabilized gimbal with FOC control, this compact all-metal system delivers exceptional stability and accuracy with minimal power consumption. It supports HDMI and Ethernet RTSP streaming, multiple control modes including network IP, S.BUS, and UART, and offers advanced capabilities like picture-in-picture mode, temperature measurement, and intelligent human and vehicle detection and tracking. With 360-degree yaw rotation, adjustable pitch and roll angles, and real-time fast autofocus under one second, this versatile camera operates reliably in demanding environments from -10 to +55 degrees Celsius, making it ideal for surveillance, reconnaissance, and monitoring applications.

The DIP20G12 is a compact dual-sensor camera system featuring a 140x hybrid zoom visible camera, a 35mm fixed-focal-length infrared thermal imager (1280×1024 resolution), and a highly accurate three-axis stabilized gimbal. Video streaming is supported via HDMI or Ethernet RTSP, while control options include SBUS, UART, UDP, and PWM.

The gimbal uses an FOC drive scheme with high-precision encoders, offering excellent stability, low power consumption, and a lightweight, space-saving design. The visible light camera incorporates an 8-megapixel dynamic sensor. The thermal camera utilizes an uncooled vanadium oxide detector with 1280×1024 resolution and a built-in baffle mechanism.

Additional capabilities include picture-in-picture (PIP) mode, multiple pseudo-color palettes, and temperature measurement. Both the camera and gimbal can be controlled simultaneously via serial port or network. The unit is enclosed in a durable all-metal housing.

DIP20G12 20x Optical Zoom Camera + 1280 Thermal Camera

Voltage	DC12 26.2V	Power	Dynamic 8W
Roll Angle	-45 +45	Pitch Angle	-30 +100
Yaw Angle	360	Tilt and roll direction angle jitter	0.02
Horizontal angle jitter	0.03	One-Click Restore	One-click restore to the initial position

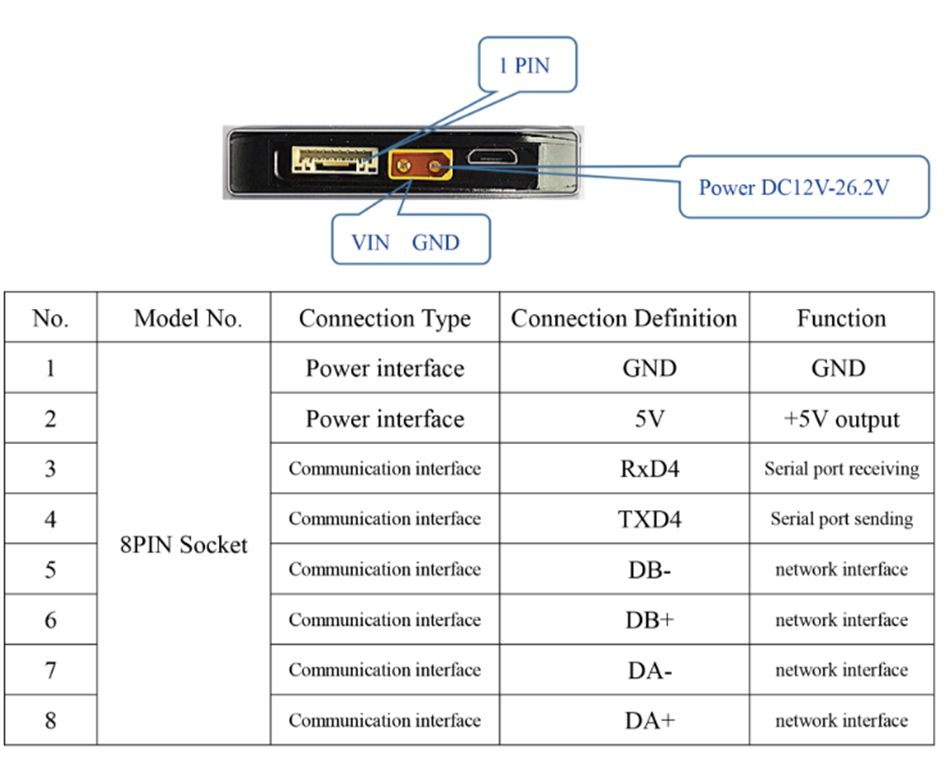

Adjustable Gimbal Speed	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple	Control Modes	Support network IP control, S.BUS control, UART control (PWM control is optional)

CMOS Size	1/1.8 INCH 8 mega pixel wide dynamic CMOS SENSOR
Optical Zoom	20x HD optical zoom lens, f=6.7 125 mm 5%
AF Time	Real time fast focusing, focusing time < 1s
Video Output	Network output RTSP 1080P stream, local TF 1080P storage
Field Angle(FOV)	D : WIDE 66.6o 5% TELE 4.0o 5% H : WIDE 59.6o 5% TELE 3.5o 5% V : WIDE 35.7o 5% TELE 2.0o 5%
Support Mode	4K 1080P 30fps

Resolution ratio	1280X1024 pixel
Space between pixels	12 m
Type	Uncooled vanadium oxide
Wavelength Range	8 14 m
Thermal sensitivity(NETD)	40mk@F1.0@25
Contrast, pseudo color	Adjustable, multiple pseudo color modes
Field of view	25mm Lens Field of view 34.2 27.6
Measurement function (optional)	Support global temperature measurement, optional full pixel temperature saving function

Min tracking target size	16 16 pixels	Max tracking target size	256 256 pixels
Target Memory Time	2 seconds	Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max	Recognized categories	Human and Vehicle
Min detection target size	32 32 pixels	Debounce	Dynamic stabilization
